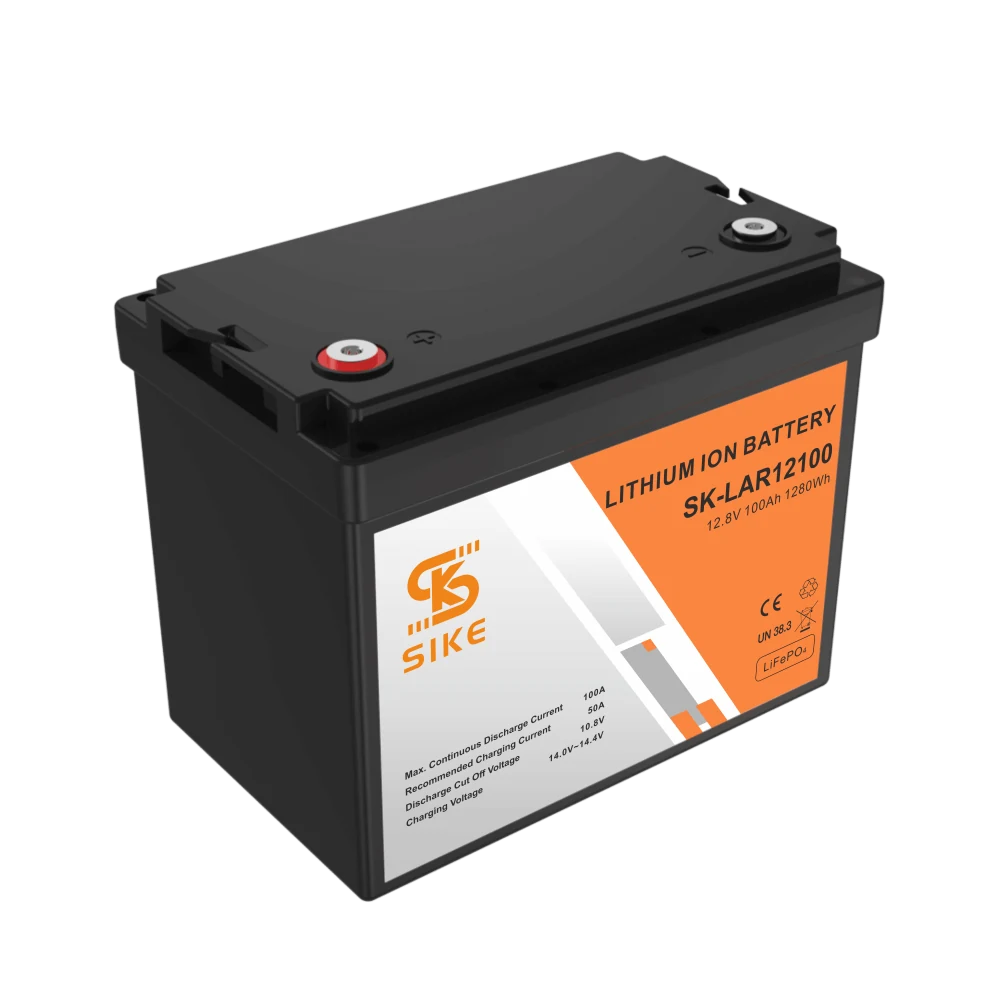

12V 100Ah Group 24 Bluetooth LiFePO4 Battery
100Ah built into the BCI group 24 case at 260 x 170 x 210 mm, with Bluetooth monitoring and a 100A smart BMS.
Product Overview
100Ah built into the BCI group 24 case at 260 x 170 x 210 mm, with Bluetooth monitoring and a 100A smart BMS. Group 24 is the most common deep cycle tray in RVs, small boats and utility vehicles, which makes this the pack most often used for a straight swap out of a lead-acid battery. IP65 ABS case, 3000+ cycles, and around a third of the weight it replaces.
Key benefits
Why Buyers Choose This Pack
The Most Common Tray Size
Group 24 is what the vehicle or boat already has, so the swap needs no fabrication.
Bluetooth In A Hidden Locker
Monitoring matters most when the battery is somewhere you cannot see it.
9.7 kg
One-hand carry, and a meaningful weight saving over the lead-acid battery from the same tray.
3000+ Cycles
Six to eight times the cycle life of the battery it replaces, in the same physical envelope.
Application scenarios
Where It Is Used
- RV and caravan house batteries
- Small boats and tenders
- Utility vehicles and service equipment
- Solar and off-grid cabins
- Backup power for small systems
- Fleet standardisation on one tray size
Who it is for
The Buyers This Pack Suits
Owners Doing A Direct Swap
Where the tray, strap and cabling stay exactly as they are.
Dealers And Service Centres
Offering a lithium upgrade over the counter in the size most vehicles use.
Distributors
Stocking the highest-turnover case format in the deep cycle range.
Problems it solves
What It Fixes
Modifying A Tray For A New Pack
A group 24 pack removes the job entirely.
Not Knowing What The Battery Is Doing
Bluetooth monitoring for a battery under a seat or in a locker.
Lead-Acid Replacement Cycles
3000+ cycles changes the replacement interval from seasons to years.
Specifications
Published Figures For This Pack
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Nominal voltage | 12.8 V |
|---|---|
| Capacity | 95-100 Ah consistent output |
| Case | BCI group 24, 260 x 170 x 210 mm |
| Weight | 9.7 kg |
| BMS current | 100 A smart BMS |
| Cycle life | 3000+ deep discharge cycles |
| Ingress protection | IP65, ABS case |
| Monitoring | Bluetooth real-time monitoring |
| Certificates | MSDS, UN38.3, CE, ROHS, UL |
| Cells and BMS | Grade A LiFePO4 cells, smart BMS |
Packing and documents
How It Ships And What Comes With It
Packing And Shipping
Packing follows UN38.3 requirements for lithium battery transport, and the carton and pallet arrangement is confirmed with the quotation for your quantity and destination. We do not publish a fixed carton specification here because it changes with order size and freight mode.
Documentation
UN38.3 and the MSDS travel with every lithium shipment, and the certificates listed in the specification table above are supplied for the model you order. Tell us the destination market at the quotation stage so the document set is planned rather than chased after the goods are built. Where a certificate we do not hold is required, we will say so rather than promise it.
Manufacturing
This pack is built at Shenzhen Sike Power Technology Co., Ltd. in Da Peng New District, Shenzhen, with cell grading, assembly, BMS integration, aging test and final inspection carried out in house. Only brand-new grade A LiFePO4 cells and a top-brand smart BMS go into it.
Download the catalogue and datasheets for the specification in PDF form.
Installation guide
Getting It Right First Time
Step 1
Confirm the tray is group 24 at 260 x 170 x 210 mm.
Step 2
Check terminal orientation against your cable runs before fitting.
Step 3
Set the charger to a LiFePO4 profile and use a DC-DC charger from an alternator.
Step 4
Pair the Bluetooth app at installation and note the baseline readings.
Step 5
Keep charging above freezing or ask about heated options.
Comparison
How It Compares In Our Range
Two case formats at 100Ah, plus larger capacities if the tray allows.
| Group 24 100Ah | 260 x 170 x 210 mm, most common tray |
|---|---|
| Group 31 100Ah | 330 x 172 x 240 mm, marine and commercial |
| 12V 150Ah | 50% more capacity, slightly larger case |
| Group 24 automotive | Automotive terminals for LSV and light EV use |
FAQ
12V 100Ah Group 24 Bluetooth LiFePO4 Battery Questions
Will it fit my group 24 tray?
The case is 260 x 170 x 210 mm to the group 24 standard. Check terminal position against your cable length before fitting.
Does the Bluetooth need an app?
Yes, a phone app pairs with the pack to show state of charge, voltage, current and temperature. Details come with the pack.
Group 24 or group 31?
Whichever the tray is. Both packs are 100Ah with the same electrical specification.
Can I use it for cranking?
No. It is a deep cycle pack. Cranking duty needs a battery designed for it.
How long will it last?
3000+ deep discharge cycles is the published rating.
Which certificates apply?
MSDS, UN38.3, CE, ROHS and UL.
