12V Automotive Lithium Batteries
H7, H8 and group 24 cases with automotive terminals for low-speed vehicles, light EV and solar - energy storage, not cranking.

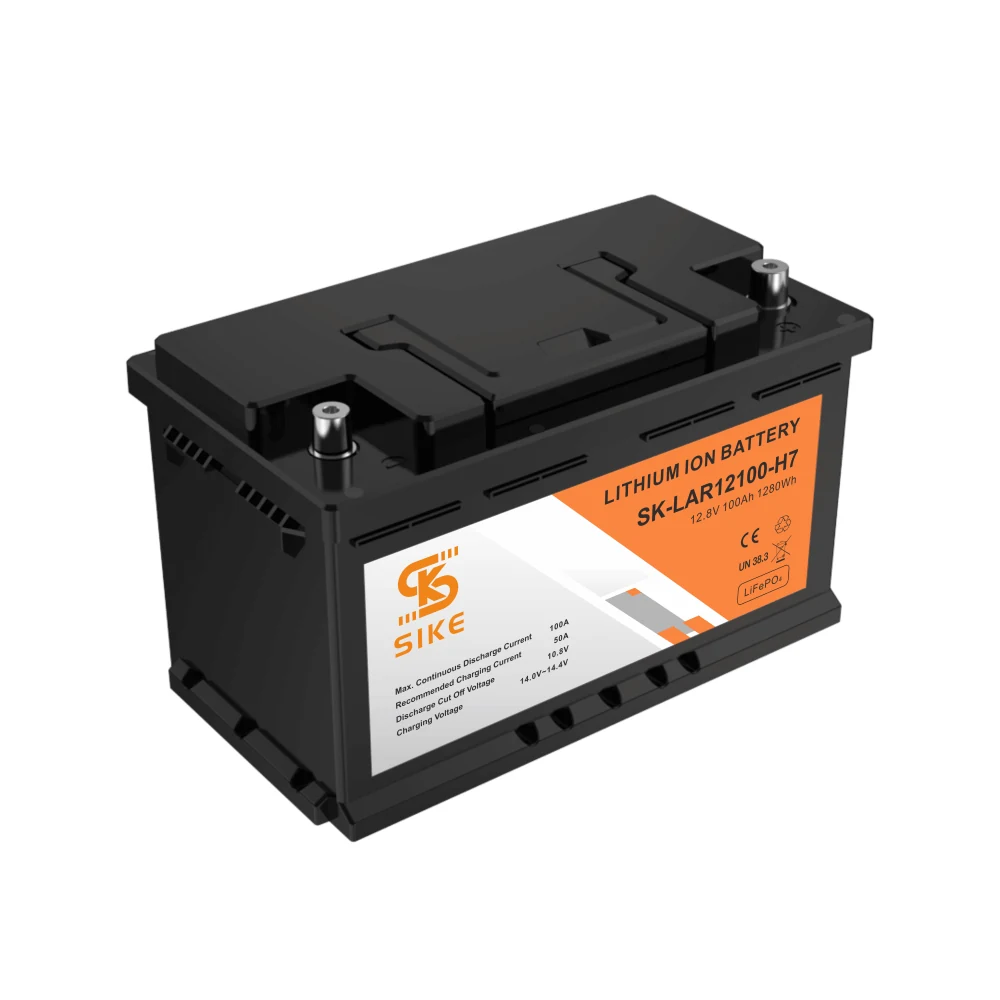

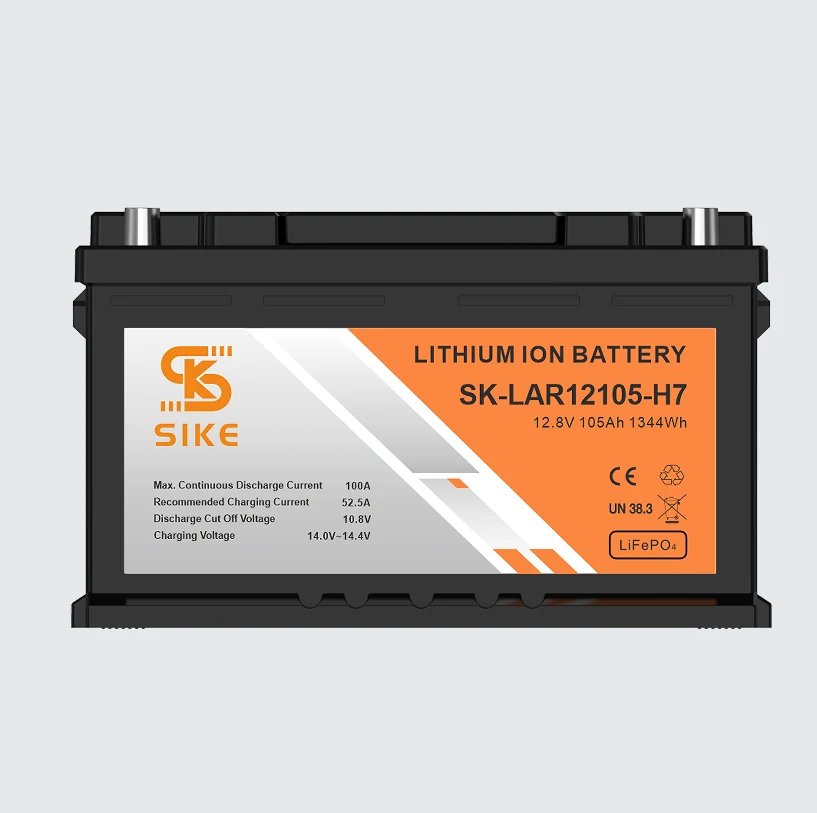

Three packs built in the car battery cases the aftermarket already stocks: H8 group 49 at 359x177x188 mm, H7 group 94R at 315x175x190 mm, and BCI group 24 at 260x176x220 mm, in capacities from 60Ah to 150Ah. They use automotive terminals, which handle high output current and shed heat better than a standard lithium post. One thing to be clear about: these are energy storage packs for low-speed vehicles, light EV, golf carts, solar and robotics. They are not starter batteries and must not be used for engine cranking.
The range
All 3 Products In This Group
The problem
What This Group Is Built To Solve
Builders of low-speed vehicles and light EVs need a pack that fits a standard battery tray and takes an automotive terminal, because that is what the harness is built for. Buying a generic lithium block means adapting cables and inventing a mounting. These packs use the case and terminal standard already in the vehicle, so the electrical install is the same job it always was.
Who buys these
Who This Range Is For
Low-Speed And Light EV Builders
Where the harness, tray and terminal standard are fixed by the vehicle platform.
Solar And Robotics Integrators
Needing a rugged 12V pack with high-current terminals in a known case size.
Distributors Serving The Aftermarket
Stocking H7, H8 and group 24 formats that fit trays customers already have.
Why these
What Makes This Range Different
Automotive Cases And Terminals
H8 group 49, H7 group 94R and BCI group 24, with car terminals rated for high output and better heat dissipation.
Capacity Choice Inside One Case
60Ah to 150Ah depending on the case, so the same tray can carry more energy without changing the vehicle.
3000+ Cycles
Deep discharge cycle life six to eight times that of the lead-acid battery in the same case.
Bluetooth And Heating Optional
Specify monitoring, or low-temperature heating for cold-climate operation, at the time of order.
Application
Where These Packs Are Used
- Low-speed vehicles and campus shuttles
- Light electric vehicles and utility carts
- Golf carts using automotive-format trays
- Solar and off-grid systems on a 12V bus
- Robotics and automated equipment
- Auxiliary and leisure banks in vehicles, separate from the starter battery
Applications
Sectors That Specify This Group
Golf Carts And Low-Speed Vehicles
48V and 72V 100Ah packs plus automotive-case 12V batteries for carts, LSVs and light EVs, IP67, 3500+ cycles.
Residential Solar Storage
Powerwall, stackable and rack mount 51.2V storage for homes running solar self-consumption, tariff shifting or full off-grid.
Further reading
Guides Related To This Group
Group 24 Group 31 H7 And H8 Case Sizes Explained
Which BCI and European case standards our packs use, the exact dimensions, and why the tray decides the pack.
FAQ
12V Automotive Lithium Batteries Questions
Can I use these to start an engine?
No. The source product pages state it plainly: these are energy storage batteries, not cranking batteries. If you need a starter lithium battery, contact us and we will tell you whether we can supply one rather than selling you the wrong pack.
Which case size do I need?
Measure the tray. H8 group 49 is 359x177x188 mm, H7 group 94R is 315x175x190 mm, and BCI group 24 is 260x176x220 mm. Match the case first, then choose the capacity available in it.
What capacities are available?
100Ah, 105Ah and 150Ah in the H8 group 49 case; 80Ah, 100Ah and 105Ah in the H7 group 94R case; 60Ah, 100Ah and 105Ah in the group 24 case.
Why automotive terminals rather than lithium posts?
Because the car terminal endures high power output and dissipates heat better, and because the vehicle harness is already built for it. It removes the adapter that would otherwise be the weakest joint in the install.
Is heating worth specifying?
If the vehicle is charged in freezing conditions, yes. Charging LiFePO4 below 0 degrees Celsius without heating is the fastest way to lose cell capacity permanently.
What certificates come with them?
MSDS, UN38.3, CE, ROHS and UL are listed on all three automotive products.
Get A Quotation On 12V Automotive Lithium Batteries
Send the models, the quantities and the destination and we will confirm specification, packing and lead time.
