Rack Mount Lithium Batteries
19-inch 51.2V modules at 5 kWh and 10 kWh, 6000+ cycles, IP54, for racks that have to stay serviceable.
Two 51.2V modules built to live in a 19-inch cabinet: a 100Ah 5 kWh unit at 482x480x133 mm and a 200Ah 10 kWh unit at 442x580x228 mm. Both use grade A LiFePO4 cells with a smart BMS, both are rated IP54, and both are designed to be pulled out and swapped without dismantling the system around them. Where a wall-mounted pack is a fixture, a rack module is a serviceable part.
The range
All 2 Products In This Group

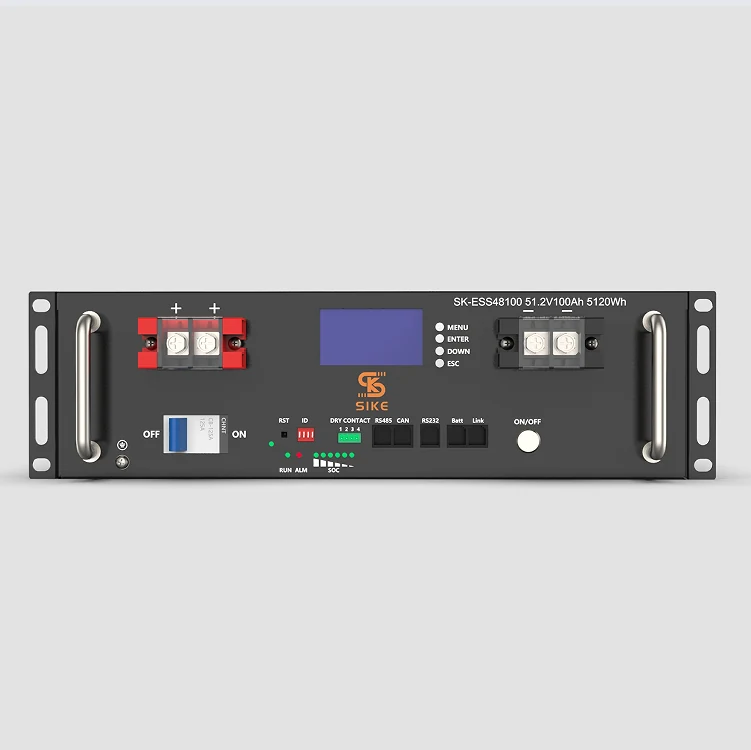

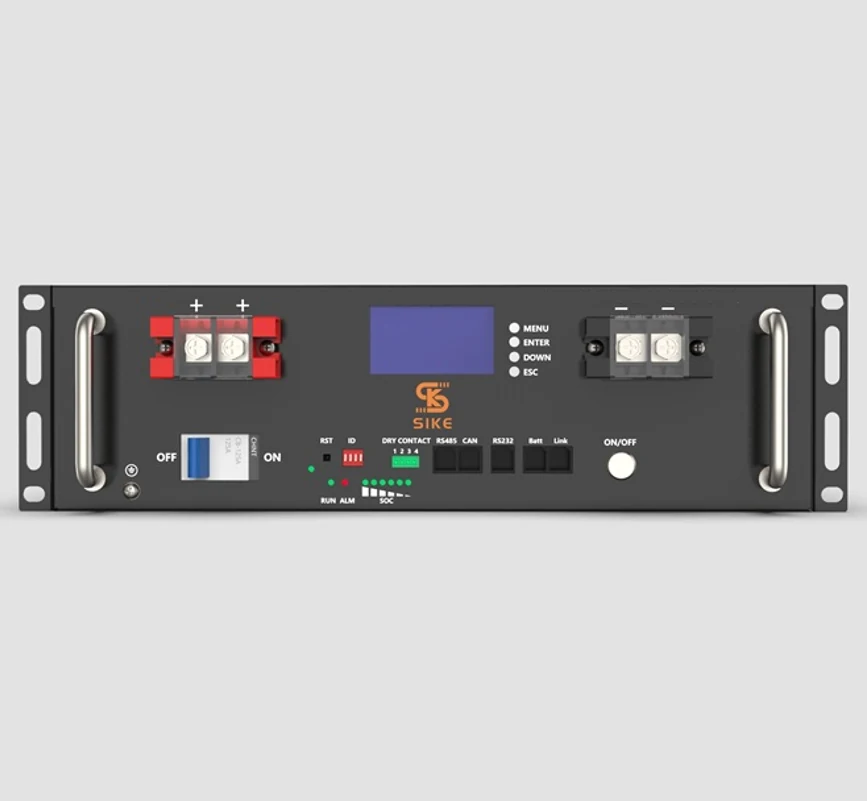

51.2V 100Ah / 5.12 kWh rack module
5 kWh Rack Mounted 51.2V 100Ah LiFePO4 Battery
The problem
What This Group Is Built To Solve
Storage in a rack fails on access, not on chemistry. A pack that needs the whole cabinet stripped to change one module turns a twenty-minute service into a day of downtime. These modules use the rack standard everyone already owns: 19-inch rails, front terminals, a module you can slide out with the system still running on its neighbours.
Who buys these
Who This Range Is For
Data And Comms Room Integrators
Replacing VRLA strings in existing cabinets with a format that fits the same rails.
Solar Installers With Equipment Rooms
Where the storage lives in a plant room rather than on a hallway wall.
Distributors Selling Serviceable Systems
Modules that can be stocked as a spare and swapped in the field.
Why these
What Makes This Range Different
Fits The Rack You Already Own
19-inch modular format, with the published module dimensions on each product page so you can check the depth before ordering.
Two Capacities On One Voltage
5 kWh and 10 kWh at 51.2V. Mix module counts to hit the bank size rather than redesigning the bus.
IP54 And Smart BMS
Dust and splash protection with over-charge, over-discharge, over-current, short-circuit and temperature protection on both models.
Serviceable Without System Downtime
A module is a part, not a fixture. Swap one and the rest of the bank keeps working.
Application
Where These Packs Are Used
- Solar and hybrid inverter storage in plant rooms
- UPS and backup banks in comms cabinets
- Telecom sites sharing a rack with transmission equipment
- Small commercial backup where floor space is scarce
- Off-grid systems that need field-replaceable modules
- Staged capacity growth by adding modules to the rack
Applications
Sectors That Specify This Group
Telecom And Data Centre Backup
48V rack packs at 50Ah, 100Ah and 200Ah for base stations, exchanges and DC plant, 6000+ cycles, parallel to fifteen units.
Residential Solar Storage
Powerwall, stackable and rack mount 51.2V storage for homes running solar self-consumption, tariff shifting or full off-grid.
Commercial And Industrial Energy Storage
Liquid-cooled 215 kWh and 232 kWh all-in-one cabinets, plus 51.2V modular banks for smaller commercial sites.
FAQ
Rack Mount Lithium Batteries Questions
Will these fit a standard 19-inch cabinet?
They are built for it. The 5 kWh module is 482x480x133 mm and the 10 kWh module is 442x580x228 mm. Check your cabinet depth against those figures, particularly the 580 mm on the 10 kWh unit.
How many modules can go in one bank?
The rack range is designed for parallel expansion; the telecom pages publish banks up to fifteen units in parallel on the 48V product. Send the target kWh and the cabinet layout and we will confirm the arrangement for your model.
Rack mount or wall mount for a home install?
Rack mount if the house already has an equipment cabinet, or the customer wants field-swappable modules. Wall mount if the battery is going on a wall in a garage or utility room and the capacity is settled.
Is heating available for cold sites?
Optional heating and Bluetooth are published on the 100Ah rack module. If the site drops below freezing during charging, specify it at enquiry - charging a lithium pack below 0 degrees Celsius without heating is what kills cells.
What IP rating do they carry?
IP54 on both rack mount models, which suits an indoor cabinet with dust and occasional splash exposure rather than outdoor mounting.
What certificates come with them?
MSDS, UN38.3, CE, ROHS and UL are listed on these product pages. Ask us for the copies covering the exact model.
Get A Quotation On Rack Mount Lithium Batteries
Send the models, the quantities and the destination and we will confirm specification, packing and lead time.
