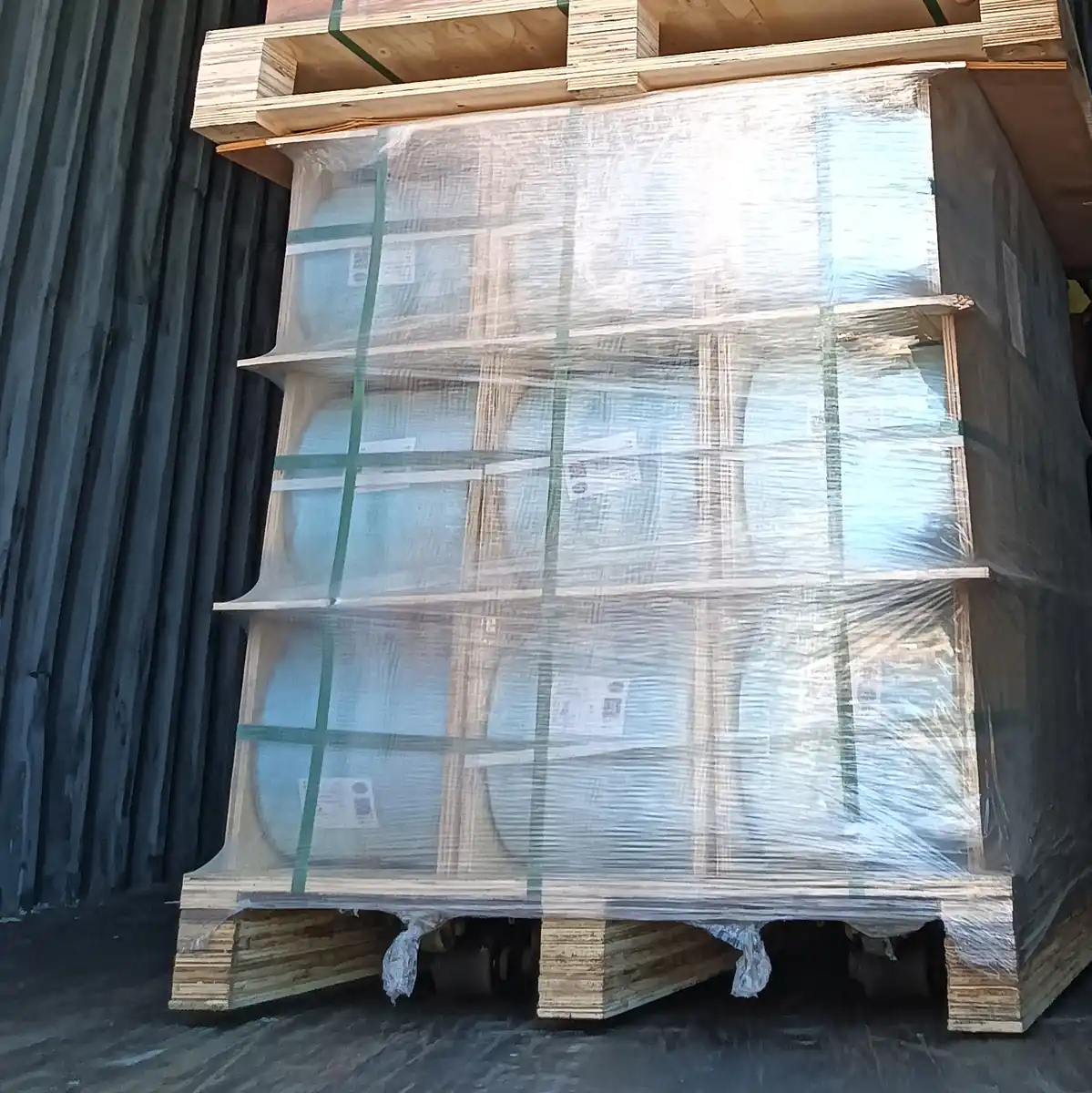

Material and Mould supplied by SEMIFCABLE
Home/Products/Material and Mould

Material and Mould

Shielding Foil Braiding Wire And Jacket Compound

Request A QuoteAll Products
Overview

Material and Mould At A Glance

These are the consumables a cable line eats through: shielding tapes, braiding wire and jacket compound. They are sold alongside the cores deliberately, because a shield only performs when the tape, the drain wire and the braid wire are matched to the construction. Every tape here has a stated working band and attenuation figure rather than a general claim.

Shielding Foil and Tape

AL PET Copper And Mylar Tapes For Cable Shielding · 6 products

Braiding and Conductor Wire

CCA CCS CCAM And Al Mg Wire On ABS Reels · 4 products

Problems It Solves

What This Category Is Actually For

  • Unsupported foil tears in the taping head at production speed.
  • Braiding wire choice trades conductivity, tensile strength, weight and solderability against each other.
  • The jacket compound decides where the finished cable may legally be installed.

Who Buys It

  • Cable plants buying shielding and jacket material by the roll or tonne
  • Braiding shops sourcing fine wire on ABS reels
  • Manufacturers standardising a shielding specification across products
Material and Mould production
Material and Mould produced at the SEMIFCABLE workshop in Lin'an, Hangzhou.
Core Advantages

Why This Category Is Specified

Shielding With Numbers Attached

AL/PET reaching up to 70 dB and copper polyester at around 100 dB in the 1 to 100 MHz band.

Four Braiding Wire Grades

CCA, CCS, CCAM and Al-Mg with a published comparison across conductivity, strength, weight and solderability.

Jacket Compound by Environment

PVC, PE, HDPE, LSZH, TPE, PU/TPU and FEP with flame-retardant grades to UL 94 V-0 and IEC 60332.

Slit and Reeled to Your Machine

Tape widths from 2 mm and ABS reels sized for automatic braiders.

Applications

Industries That Use This Category

FAQ

Material and Mould Questions

Which shielding tape gives the highest attenuation?

Copper foil polyester tape, at around 100 dB in the 1 to 100 MHz range, compared with up to 70 dB for aluminium composites used with Mylar foil.

How do I choose a braiding wire?

CCS for strength, CCA for economy, CCAM for flexibility and fatigue life, Al-Mg for the lightest shield. Al-Mg is not solderable.

Can tape be slit to our width?

Yes. Minimum slitting width is 2 mm with 5 mm conventional, on 52 mm or 76 mm cores.

Do you supply LSZH compound?

Yes, along with PVC, PE, HDPE, TPE, PU/TPU and FEP, formulated for flexibility, flame retardancy, temperature and colour.

Specify Your Material and Mould Order

Send the construction, grade and quantity. We confirm the specification before quoting so there is nothing to unpick later.
