PET Polyester Belt Mylar Tape
Biaxially Oriented Polyester Tape for Wrapping and Insulation
Product Overview
What This Product Is

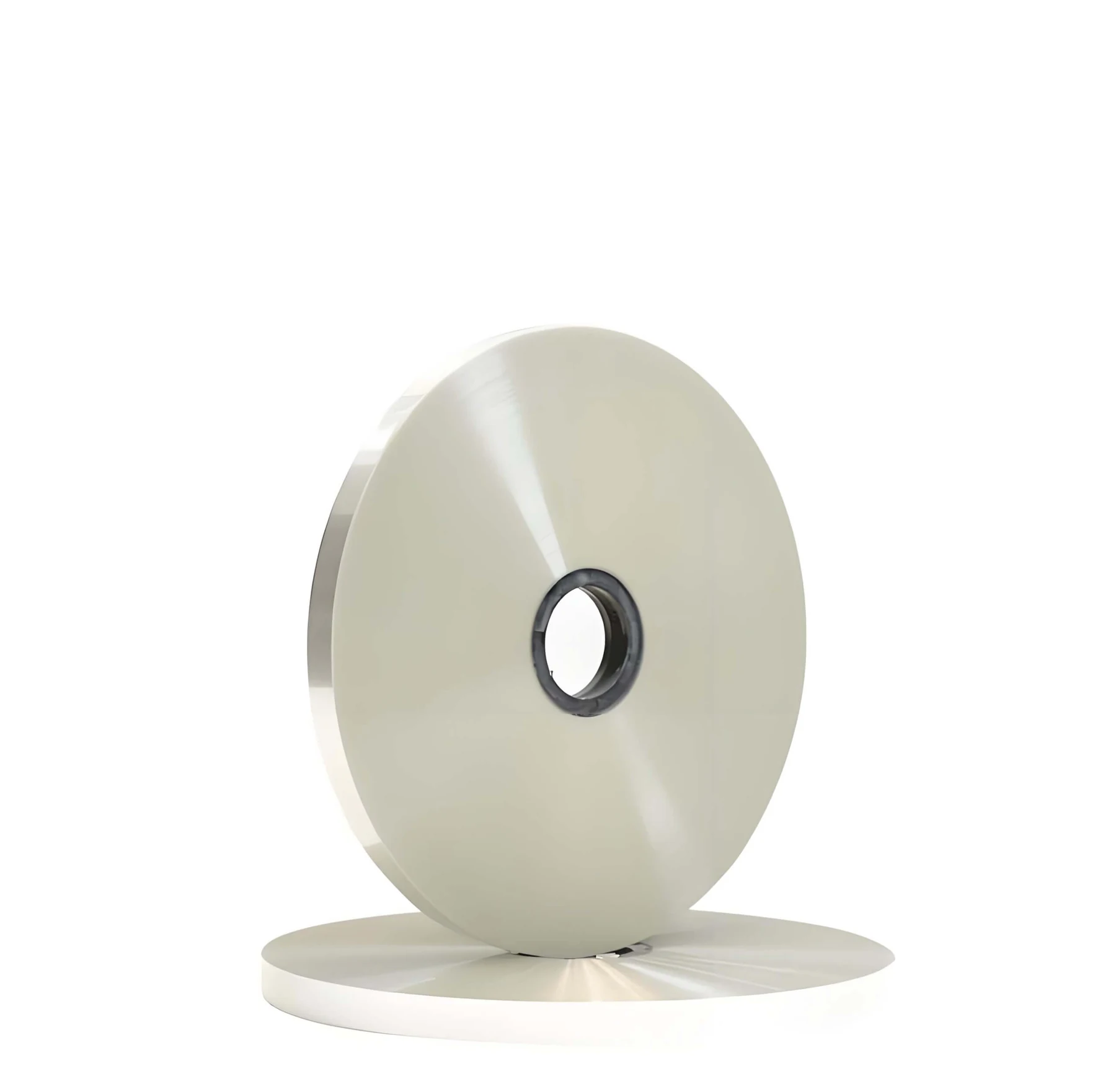

Mylar tape, also called polyester tape, is made from bi-axially oriented polyester film with high tensile strength and excellent electrical insulation. In cable manufacturing it is the binder and separator: wrapping cores, bundling pairs and insulating internal components so the construction holds its geometry through the next process. It is supplied transparent, slit to 2 mm minimum with 5 mm as the standard width.
Material and MouldShielding Foil and Tape
Key Benefits
What It Gives Your Production Line
Holds the Core Together
Wrapping and bundling keep pair and core geometry stable before jacketing.
Electrical Insulation Where Layers Meet
Excellent insulation properties allow it to separate conductive layers inside the cable.
High Tensile Strength
Bi-axially oriented film resists stretching under taping tension.
Transparent for Inspection
A transparent tape lets the layer underneath be seen during process checks.
Application Scenarios
Where It Is Used
- Wrapping cable cores during manufacture
- Bundling internal components
- Insulating layers inside multi-core cables
- Binder tape under shielding layers
Who It Is For
Who Buys It
- LAN and coaxial cable plants running binder tape heads
- Multi-core and control cable manufacturers
- Any producer needing a stable separator layer
Problems It Solves
The Reasons Buyers Move To This Product
Cores Unravel Before Jacketing
A binder wrap holds the lay in place between cabling and extrusion.
Layers Short Against Each Other
Polyester insulation separates shields and conductors inside the construction.
Narrow Tape Breaks Under Tension
Bi-axially oriented film keeps tensile strength even at 2 mm slit width.
Technical Features
Construction And Materials
- Made from bi-axially oriented polyester film
- High tensile strength
- Excellent electrical insulation properties
- Used for wrapping, bundling and insulating internal components
- Maintains structural integrity of the cable construction
- Supplied in shaft packing form
Certifications And Compliance
No product certification is claimed for this item beyond the standards named in the specification table. Where a specific certificate is required for your market, ask before ordering and we will confirm what can be provided.
Specifications
Published Figures
| Material | Bi-axially oriented polyester (Mylar) film |
|---|---|
| Colour | Transparent |
| Minimum Slitting Width | 2 mm |
| Standard Slitting Width | 5 mm |
| Core (Bore) Diameter | 52 mm or 76 mm |
| Maximum Roll Outer Diameter | 800 mm |
| Packing Form | Shaft packing |
| Outer Packaging | Cartons for safe handling and transportation |
Figures are the published specification for this product. Values outside this table are confirmed in writing before order rather than estimated.
Manufacturing And Quality Control
How It Is Produced And Checked
Materials are produced to the stated thickness, width and formulation, then slit, wound and packed to the reel or core size ordered. Dimensional checks are made against the specification before dispatch.
Incoming Material
Foil, film, compound or wire checked for thickness and surface condition before processing.
Processing
Coating, lamination, slitting or drawing to the ordered dimension.
Dimensional Check
Width, thickness and roll or reel diameter verified against the specification.
Performance Reference
Shielding attenuation and conductivity referenced to the published figures for the grade.
Packing
Shaft or reel packing in cartons for safe handling and transport.
Customisation Options
What Can Be Changed
- Slitting width from 2 mm
- Core bore diameter 52 mm or 76 mm
- Roll outer diameter up to 800 mm
- Roll length per shaft
Use Guide
Working With It On Your Line
- Set binder tension so the tape holds the lay without compressing the pairs.
- Use the transparent film to confirm the layer beneath during first-article inspection.
- Store rolls upright on the shaft to protect the edges.
- Order the slit width against your core diameter and overlap requirement, not the other way round.
Comparison
How It Compares Within The Range
PET Polyester Belt Mylar Tape sits inside the Material and Mould range. The products below are the closest alternatives or the parts most often ordered alongside it — compare the published specification tables rather than the descriptions when the choice is close.
FAQ
PET Polyester Belt Mylar Tape FAQ
What is Mylar tape used for in cable?
Wrapping, bundling and insulating internal components so the construction keeps its structural integrity and performs reliably.
What widths can it be slit to?
A minimum width of 2 mm, with 5 mm as the standard slitting width.
What bore sizes are available?
Core bore diameters of 52 mm or 76 mm, in shaft packing form.
How large can a roll be?
The maximum outer diameter of the wound roll is 800 mm.
What colour is the tape?
Transparent.
Request A Quotation For PET Polyester Belt Mylar Tape
Send the construction, grade and quantity you need. We confirm the specification in writing before quoting.
