Semi-Finished FTP CAT5e LAN Cable
Foil Shielded CAT5e Core for Moderate EMI Environments
Product Overview
What This Product Is

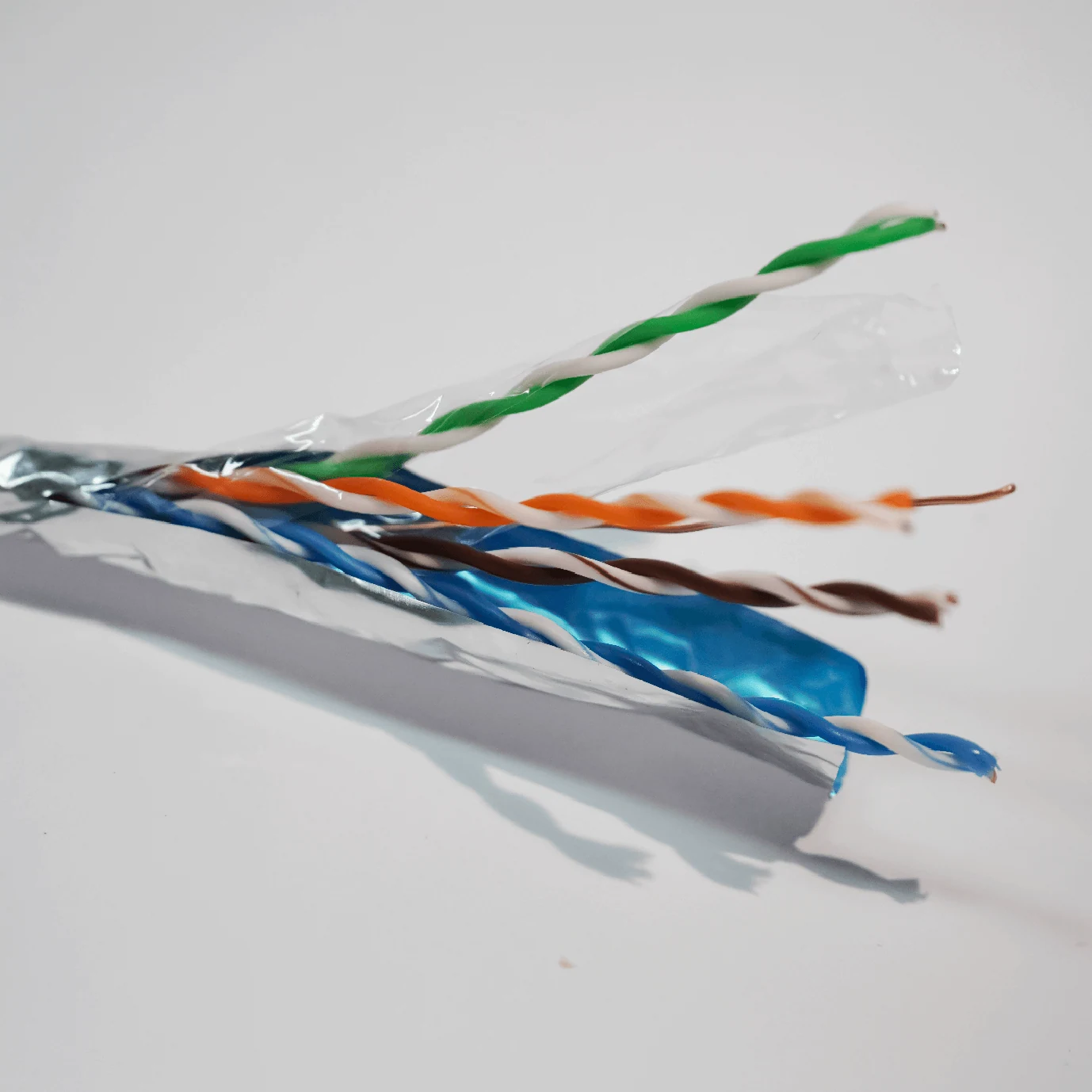

FTP CAT5e adds an overall aluminium-polyester foil around all four pairs plus a tinned copper drain wire, with the jacket left off. It is the middle option between plain UTP and fully braided S/FTP: enough shielding for cable trays that run beside power cable, without the cost of a braid. Core OD is about 5.2 to 5.8 mm and the construction is built for CPR-classified production in European markets.
Semi-Finished LAN CableCAT5e Semi-Finished Cores
Key Benefits
What It Gives Your Production Line
Shielding Where It Is Actually Needed
An overall foil handles moderate EMI from power cable, lighting and industrial equipment where full S/FTP is not cost-justified.
Drain Wire Already In Place
The tinned copper drain wire sits against the foil, so grounding continuity is built in rather than added at assembly.
Uniform OD for Jacket Adhesion
Consistent core diameter keeps jacket wall even on high-speed extrusion lines.
Ready for CPR Classification
Jacket in LSZH and the finished cable can be classified Dca or Cca under your own certification.
Application Scenarios
Where It Is Used
- FTP CAT5e cable for office, residential and light industrial networks
- CCTV and PoE networks needing extra noise immunity
- Structured cabling and OEM patch cords
- Data panel and telecom cabinet wiring
Who It Is For
Who Buys It
- Plants supplying European markets that need CPR-classified cable
- Manufacturers of PoE and CCTV network cable
- OEMs that print and jacket under their own brand
Problems It Solves
The Reasons Buyers Move To This Product
Crosstalk in Bundled Trays
Dense cable trays raise alien crosstalk. The overall foil improves NEXT and PSNEXT against plain UTP.
Grounding Done Badly on Site
A pre-installed drain wire in contact with the foil gives installers a proper grounding path.
Shielded Cable Ties Up Machinery
Foil taping equipment and process control add cost. Buying the shielded core avoids that investment.
Technical Features
Construction And Materials
- Conductor: solid bare copper, 24 AWG (0.51 mm nominal), IEC 60228 Class 1
- Insulation: HDPE colour-coded per TIA/EIA-568-B
- 4 pairs with controlled lay length
- Overall aluminium foil (Al/PET) at 100 percent coverage
- Tinned copper drain wire in contact with the foil
- Optional PE cross-web or central spline
- No jacket — for downstream PVC, LSZH or PE extrusion
Certifications And Compliance
No product certification is claimed for this item beyond the standards named in the specification table. Where a specific certificate is required for your market, ask before ordering and we will confirm what can be provided.
Specifications
Published Figures
| Characteristic Impedance | 100 ± 15 Ω |
|---|---|
| NEXT | ≥ 45 dB @ 100 MHz |
| PSNEXT | ≥ 43 dB |
| Return Loss | ≥ 16 dB |
| Attenuation | ≤ 22.0 dB/100m |
| DC Resistance | ≤ 9.5 Ω/100m |
| Delay Skew | ≤ 45 ns/100m |
| Propagation Delay | ≤ 538 ns/100m |
| Core Outer Diameter | Approx. 5.2 – 5.8 mm without jacket |
| Standard Lengths | 1,000 m / 2,000 m wooden drums |
| Packaging | PE-wrapped wooden reels or pallets |
| Marking | No jacket print — intended for OEM labelling |
| MOQ | Typically 3,000 – 5,000 metres per type |
Figures are the published specification for this product. Values outside this table are confirmed in writing before order rather than estimated.
Manufacturing And Quality Control
How It Is Produced And Checked
Conductors are insulated in HDPE and colour-coded, twisted into pairs with lay length controlled pair by pair, then shielded with foil and where specified a braid. Electrical performance is verified against the published limits before the core is reeled. The jacket is not applied.
Conductor And Insulation
Solid bare copper to IEC 60228 Class 1 insulated in colour-coded HDPE.
Lay Length Control
Pair twist pitch controlled per pair, which is what decides NEXT and PSNEXT margin.
Shield Application
Foil coverage and drain wire contact checked where the construction is shielded.
Electrical Testing
NEXT, PSNEXT, return loss, attenuation and delay skew checked against the published limits.
Drum Packing
PE film-wrapped wooden drums, cores left unprinted for your own marking.
Customisation Options
What Can Be Changed
- Single or double-sided Al/PET foil, ≥ 25 μm
- Tinned copper drain wire, customisable gauge such as 0.4 mm²
- Optional cross-filler for mechanical and electrical stability
- Compatible with CPR Dca, Cca and B2ca when paired with the correct outer jacket
- Jacket colours, printing and solid or stranded conductor per request
Use Guide
Working With It On Your Line
- Keep the drain wire in contact with the foil through the jacketing head — a displaced drain wire fails continuity testing later.
- Avoid sharp reverse bends; creased foil loses shielding effectiveness at the crease.
- Check foil overlap on a cut sample from each drum before the run.
- Ground the drain wire at one end only in the finished installation guidance you supply.
Comparison
How It Compares Within The Range
Semi-Finished FTP CAT5e LAN Cable sits inside the Semi-Finished LAN Cable range. The products below are the closest alternatives or the parts most often ordered alongside it — compare the published specification tables rather than the descriptions when the choice is close.
Read Next
Applications Solutions And Guides
FAQ
Semi-Finished FTP CAT5e LAN Cable FAQ
How is FTP different from S/FTP here?
FTP has one overall aluminium foil around all four pairs. S/FTP adds foil on each individual pair plus a tinned copper braid around the whole core.
What foil thickness is used?
Al/PET foil of 25 μm or more, available single or double sided.
Is a drain wire included?
Yes, a tinned copper drain wire runs in contact with the foil for grounding continuity. The gauge can be specified, for example 0.4 mm².
Can the finished cable be CPR classified?
Yes. With the correct outer jacket the finished cable can be classified Dca, Cca or B2ca under your own certification.
What core diameter should the jacket line expect?
Approximately 5.2 to 5.8 mm before jacketing.
