Semi-Finished U/FTP CAT6a LAN Cable
Individually Screened CAT6a Core for 10 Gigabit Ethernet
Product Overview
What This Product Is
U/FTP CAT6a wraps each twisted pair in its own aluminium-polyester foil, with no overall braid and no outer jacket. That construction is what makes 10GBASE-T workable in bundled installations, because alien crosstalk is suppressed pair by pair rather than at the cable surface. It is supplied as core material for manufacturers who will apply PVC, LSZH or PE jacketing, colour marking and their own branding.
Semi-Finished LAN CableCAT6a Semi-Finished Cores
Key Benefits
What It Gives Your Production Line
Built for 10 Gigabit Links
NEXT of 65 dB or better and PSNEXT of 62 dB or better keep 10GBASE-T margin in real installations.
Pair Screening Without Braid Bulk
Individually foiled pairs give crosstalk control while keeping the core at about 6.0 to 6.3 mm.
Cross-Filler Options for Geometry
An optional central X-shaped PE filler holds pair spacing constant through jacketing.
Pull Rope Available
An optional pull rope can be included to help jacket extrusion and later installation.
Application Scenarios
Where It Is Used
- Core material on LAN cable production lines
- PVC, LSZH or PE jacketed CAT6a finished cable
- Structured cabling systems, patch cords and OEM LAN harnesses
- EMI-sensitive high-speed network installations
Who It Is For
Who Buys It
- Manufacturers moving from CAT6 into 10G product lines
- Patch cord producers building CAT6a assemblies
- Brands supplying data centre and campus infrastructure
Problems It Solves
The Reasons Buyers Move To This Product
Alien Crosstalk Kills 10G
CAT6a fails in bundles when pairs are unscreened. Foil on every pair addresses the failure mode directly.
Screening Each Pair Is Process Heavy
Four taping heads and their tension control are a serious investment. Core supply avoids it.
Geometry Drift Through Jacketing
The optional cross-filler and controlled twist pitch hold pair position while the jacket is applied.
Technical Features
Construction And Materials
- Conductor: solid bare copper, 23 AWG (0.57 mm), IEC 60228 Class 1
- Insulation: HDPE colour-coded to TIA/EIA-568-B
- 4 pairs, tightly twisted to reduce internal crosstalk

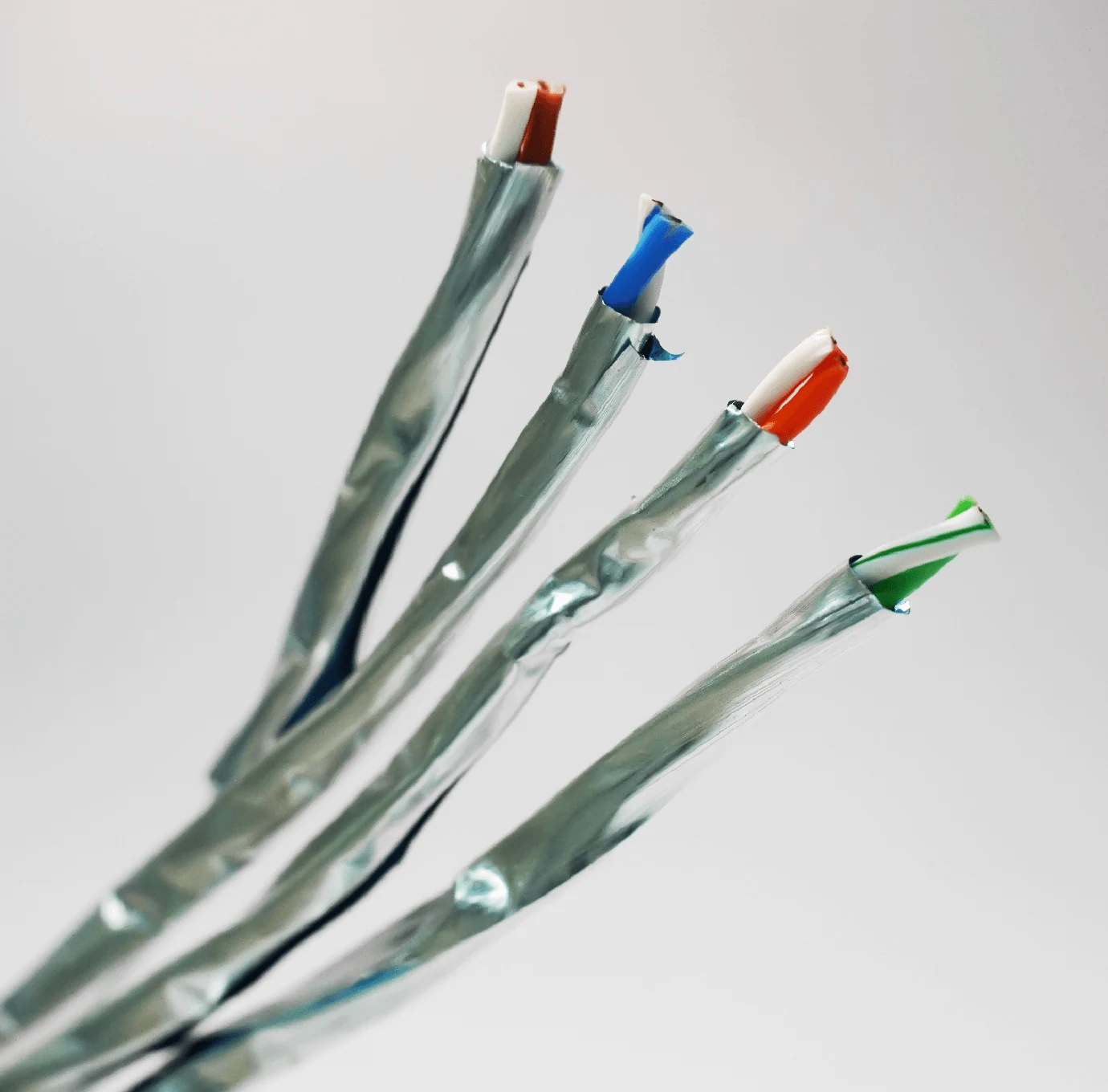

- Each pair individually wrapped in Al/PET foil
- Optional central X-shaped PE cross filler
- Optional tinned copper drain wire parallel to the shield
- Bare core — outer jacket not included
Certifications And Compliance
No product certification is claimed for this item beyond the standards named in the specification table. Where a specific certificate is required for your market, ask before ordering and we will confirm what can be provided.
Specifications
Published Figures
| Characteristic Impedance | 100 ± 15 Ω |
|---|---|
| NEXT | ≥ 65 dB @ 100 MHz |
| PSNEXT | ≥ 62 dB |
| Return Loss | ≥ 20 dB |
| Attenuation | ≤ 21.9 dB/100m |
| DC Resistance | ≤ 9.38 Ω/100m |
| Propagation Delay | ≤ 534 ns/100m |
| Delay Skew | ≤ 44 ns/100m |
| Core Outer Diameter | ~ 6.0 – 6.3 mm without outer jacket |
| Standard Lengths | 1,000 m or 2,000 m reels, custom available |
| Packaging | Wooden drum, shrink-wrapped |
| Print Marking | Usually none — added during final jacketing |
| Outer Jacket | Not included |
Figures are the published specification for this product. Values outside this table are confirmed in writing before order rather than estimated.
Manufacturing And Quality Control
How It Is Produced And Checked
Conductors are insulated in HDPE and colour-coded, twisted into pairs with lay length controlled pair by pair, then shielded with foil and where specified a braid. Electrical performance is verified against the published limits before the core is reeled. The jacket is not applied.
Conductor And Insulation
Solid bare copper to IEC 60228 Class 1 insulated in colour-coded HDPE.
Lay Length Control
Pair twist pitch controlled per pair, which is what decides NEXT and PSNEXT margin.
Shield Application
Foil coverage and drain wire contact checked where the construction is shielded.
Electrical Testing
NEXT, PSNEXT, return loss, attenuation and delay skew checked against the published limits.
Drum Packing
PE film-wrapped wooden drums, cores left unprinted for your own marking.
Customisation Options
What Can Be Changed
- Cross-filler or cross-web design for better crosstalk control
- Pre-attached drain wire for grounding continuity
- Bare or tinned copper drain wire
- Pair twist pitch adjustment to optimise NEXT and PSNEXT
- Optional pull rope for jacket extrusion processes
Use Guide
Working With It On Your Line
- Keep each pair's foil seam intact when opening the core for testing; a torn pair screen invalidates the sample.
- Use the cross-filler option if your jacket line runs hot, since it holds pair spacing under thermal load.
- Test PSANEXT on bundled finished cable, not single runs, because that is where CAT6a is judged.
- Label drums with twist pitch settings so repeat orders match the first production batch.
Comparison
How It Compares Within The Range
Semi-Finished U/FTP CAT6a LAN Cable sits inside the Semi-Finished LAN Cable range. The products below are the closest alternatives or the parts most often ordered alongside it — compare the published specification tables rather than the descriptions when the choice is close.
Read Next
Applications Solutions And Guides
FAQ
Semi-Finished U/FTP CAT6a LAN Cable FAQ
Why U/FTP rather than S/FTP for CAT6a?
U/FTP screens every pair individually without an overall braid, which controls alien crosstalk for 10GBASE-T while keeping the core smaller and easier to jacket.
What crosstalk performance is specified?
NEXT of 65 dB or better and PSNEXT of 62 dB or better at 100 MHz.
Is a drain wire included?
It is optional. A tinned or bare copper drain wire can run parallel to the shield for grounding continuity.
Can a pull rope be added?
Yes, an optional pull rope is available to assist jacket extrusion and later installation.
What lengths are supplied?
1,000 m or 2,000 m reels as standard, with custom lengths on request.
Request A Quotation For Semi-Finished U/FTP CAT6a LAN Cable
Send the construction, grade and quantity you need. We confirm the specification in writing before quoting.
