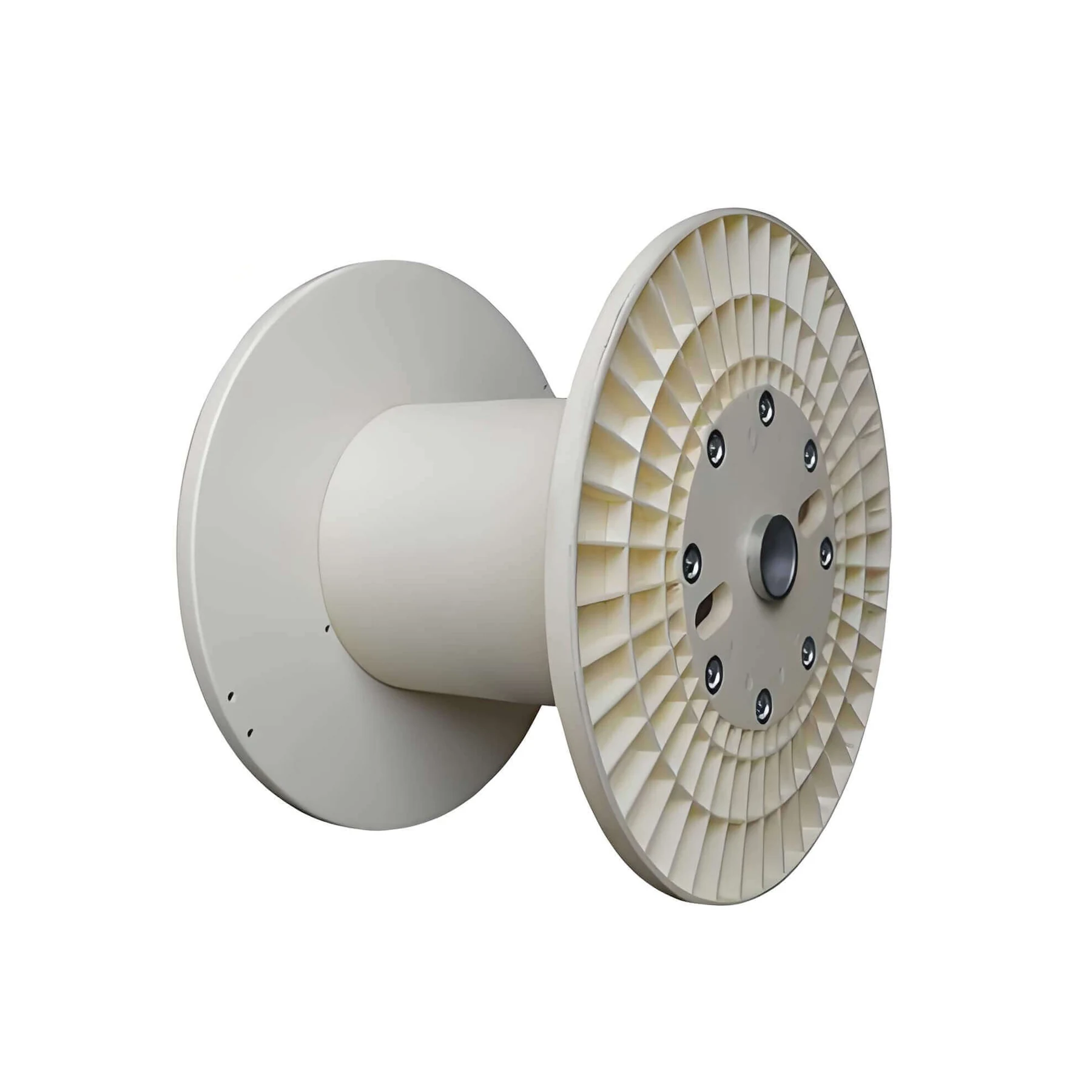

Cable ABS Reel Customizable Size
Impact Resistant Plastic Spools From 160 mm to 1000 mm
Product Overview
What This Product Is
ABS reels are the spools that carry wire and cable through winding, storage and transport. Acrylonitrile butadiene styrene is tough, light and anti-corrosive with a smooth surface that will not damage a cable jacket, and it is compatible with automatic winding machines. We supply one-piece moulded reels, two-piece assembled reels that flat-pack for freight, ventilated reels that save weight, small mesh reels for elastic cord, and high-precision reels balanced for high-speed coiling.
Machine and Parts
Key Benefits
What It Gives Your Production Line
Smooth Surface Protects the Jacket
The moulded surface will not scuff a finished cable jacket during winding and transport.
Two-Piece Reels Cut Freight Cost
Flanges and barrel ship flat and are assembled locally, which is cheaper in bulk and allows reuse after disassembly.
Balanced for High-Speed Coiling
High-precision reels are balanced for stability and minimal vibration on automatic coiling machines.
Branded to Your Order
Colours, logos, hub sizes and flanges can be customised, with OEM options for branding or specific equipment.
Application Scenarios
Where It Is Used
- Winding, storing and transporting wire and cable
- Telecom, electrical and industrial cable manufacturing
- Optical fibre cable and fine wire on high-precision reels
- Coiling elastic bands and nose bridge wire on mesh reels
- Lightweight cable and internal packaging on ventilated reels
Who It Is For
Who Buys It
- Cable plants specifying reels for finished product
- Exporters who need flat-packed reels for container efficiency
- Producers running automatic high-speed coiling machines
Problems It Solves
The Reasons Buyers Move To This Product
Reels Take Up More Space Than Cable
Two-piece reels flat-pack for transport and can be disassembled for reuse, which changes the shipping arithmetic.
Vibration at High Coiling Speed
High-precision reels are balanced so fine wire and optical fibre wind without vibration damage.
Reel Weight Counts Against Payload
Ventilated and perforated flanges reduce material usage and weight for lightweight cable.
Technical Features
Construction And Materials
- One-piece ABS reels moulded as a single unit, strong and impact resistant
- Two-piece assembled reels with separate flanges and barrel for flat-packing and reuse
- Ventilated or perforated reels with holes or mesh flanges to reduce weight
- Elastic cord and nose bridge mesh reels in smaller sizes with a smooth surface
- High-precision reels balanced for automatic high-speed coiling machines
- Customised reels with colours, logos, hub sizes and flange options
- Durable, lightweight, anti-corrosive and recyclable
- Compatible with automatic winding machines
Certifications And Compliance
No product certification is claimed for this item beyond the standards named in the specification table. Where a specific certificate is required for your market, ask before ordering and we will confirm what can be provided.
Specifications
Published Figures

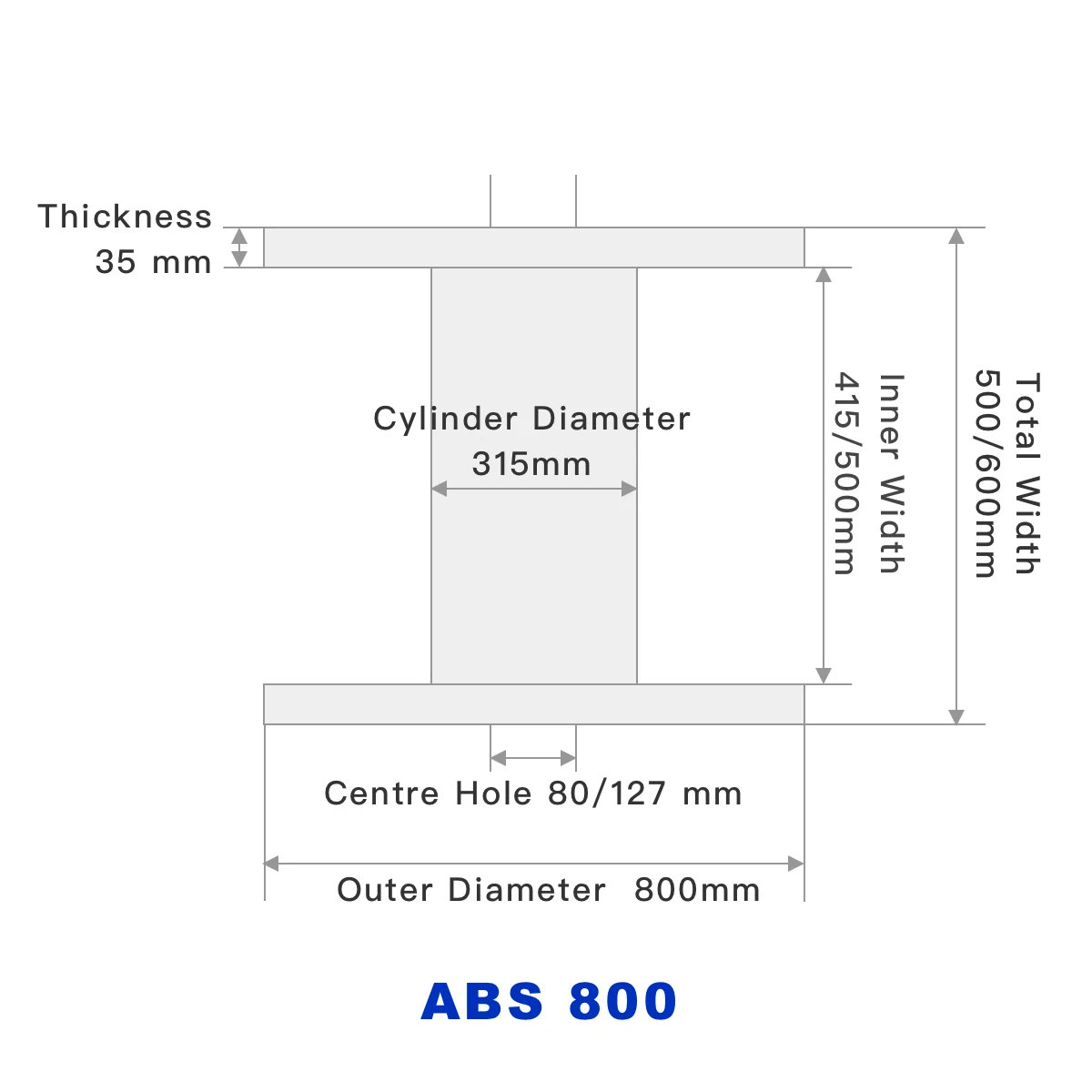

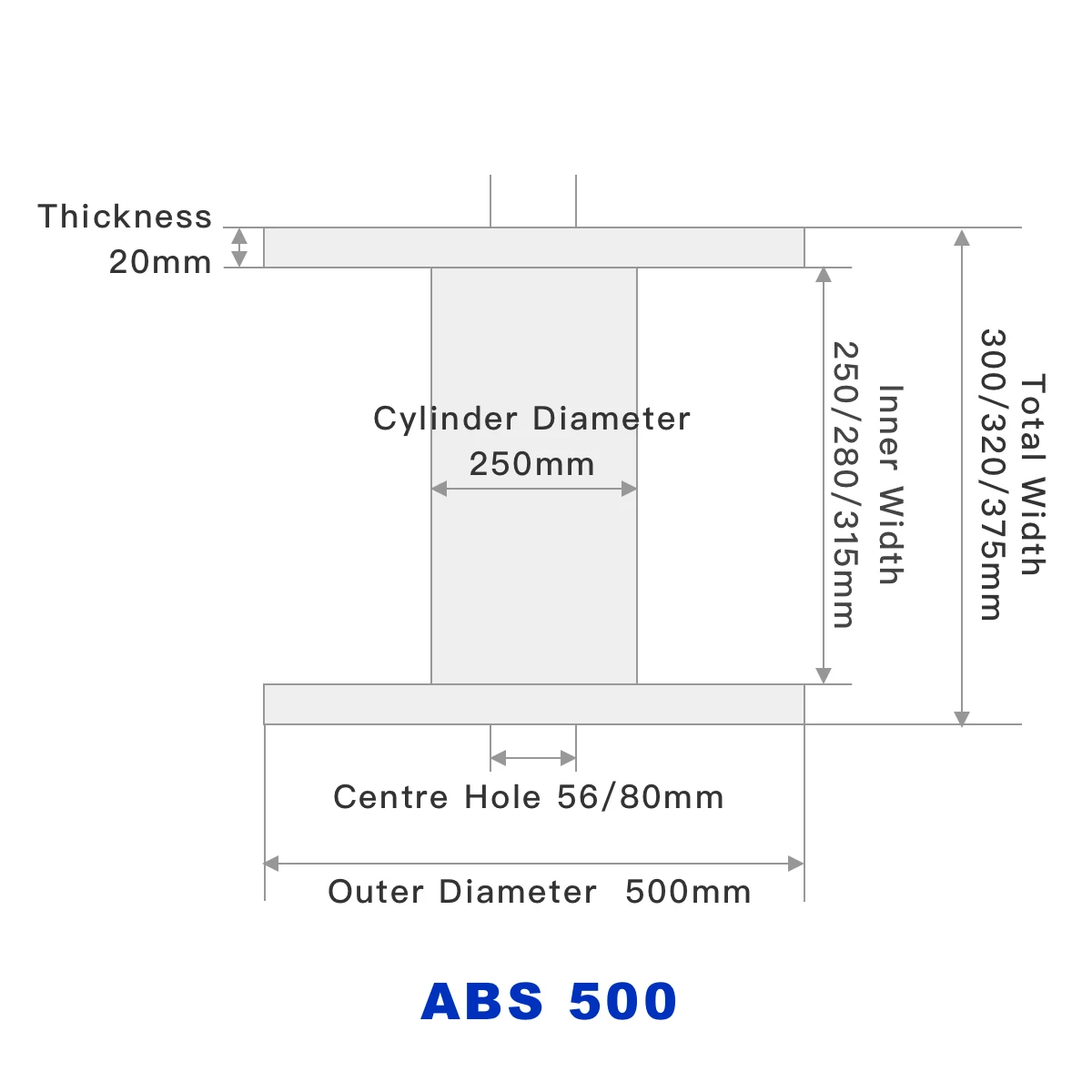

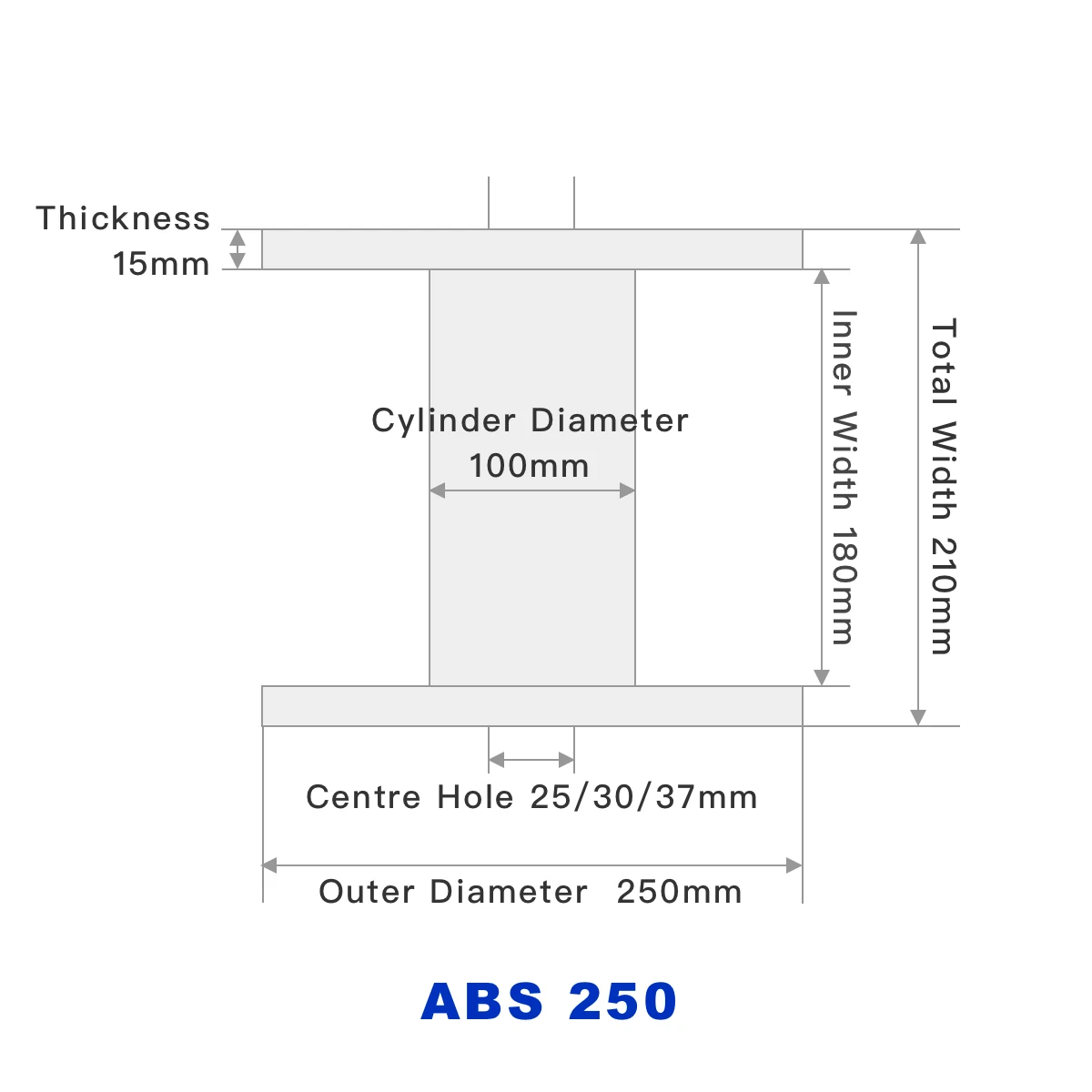

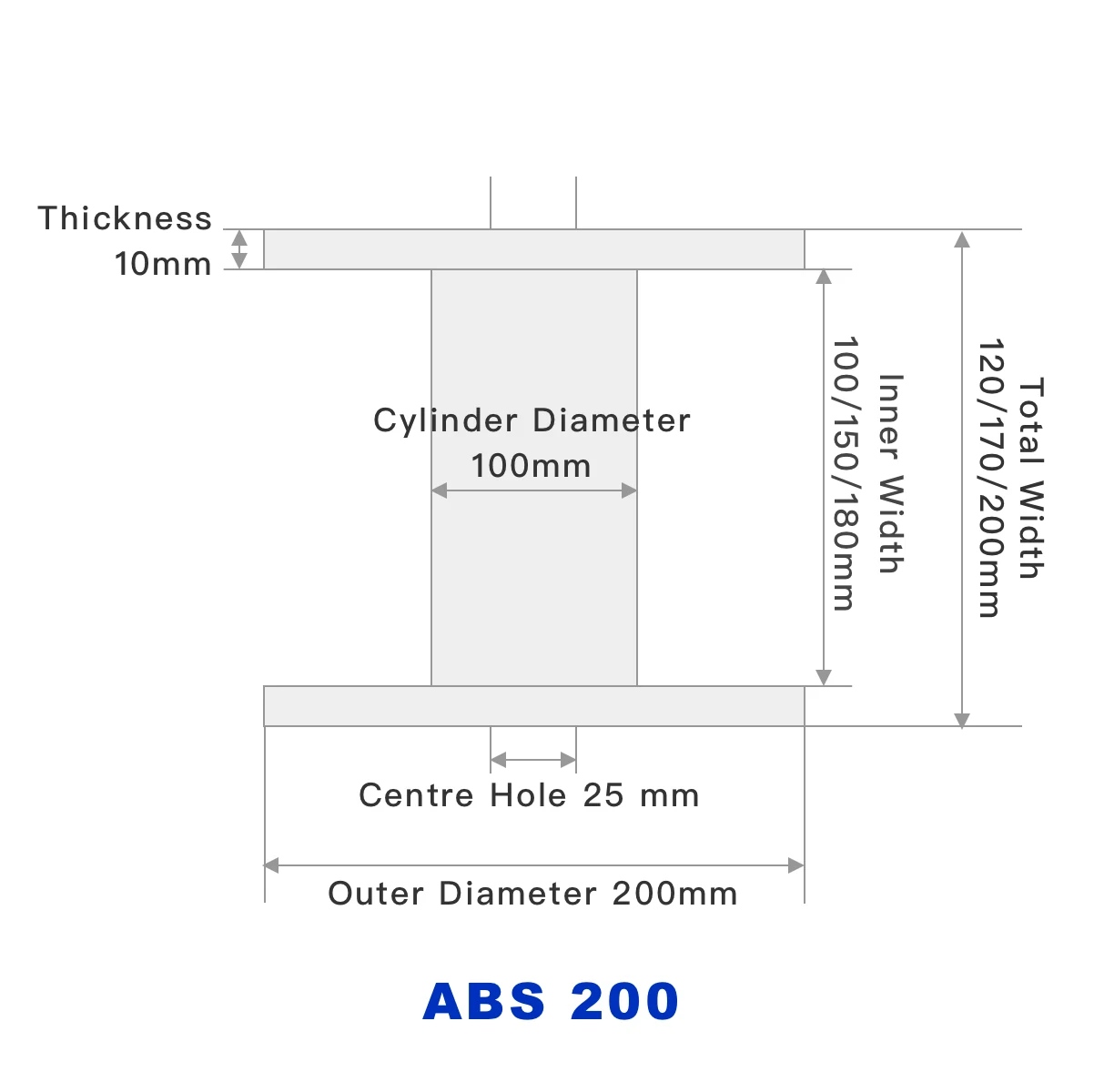

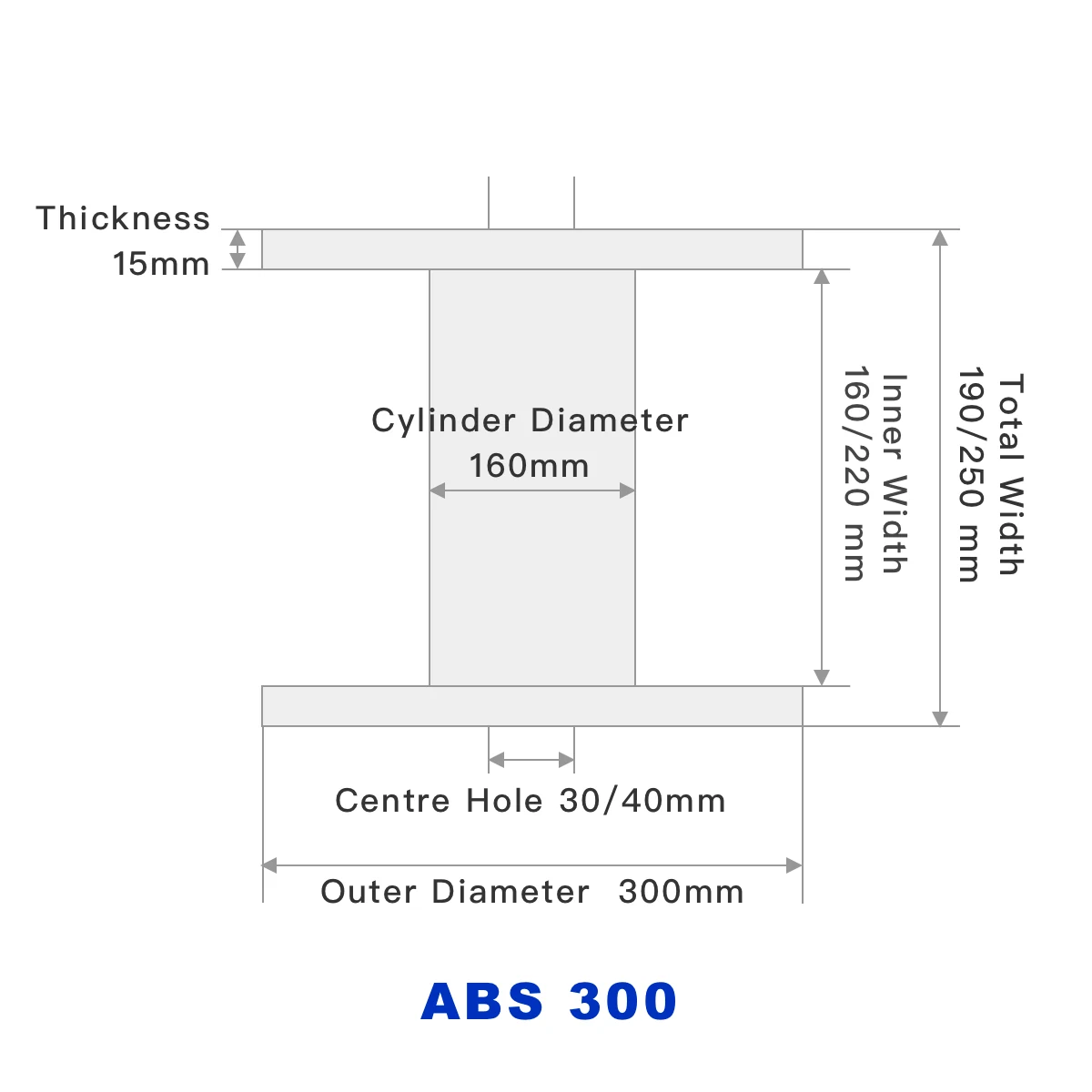

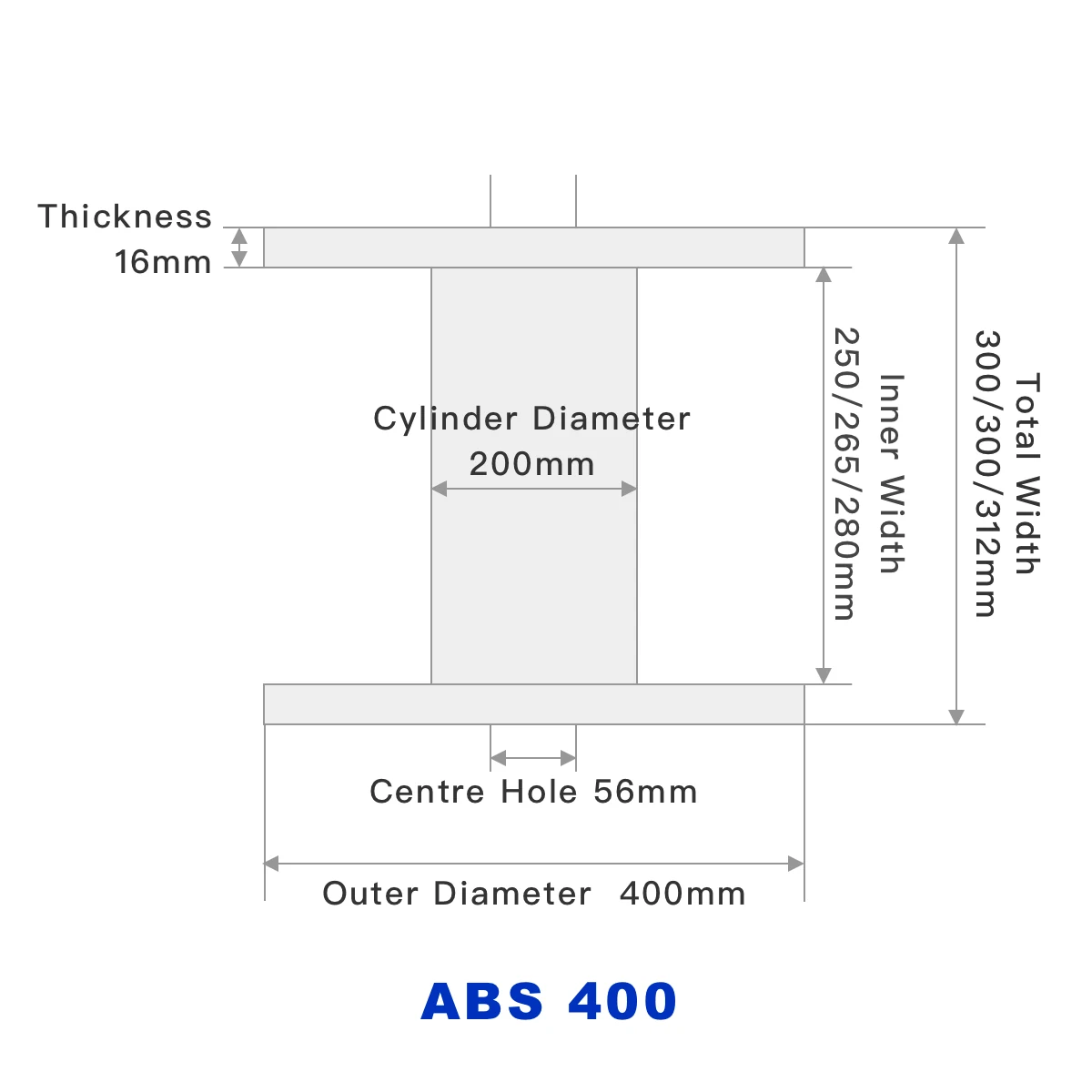

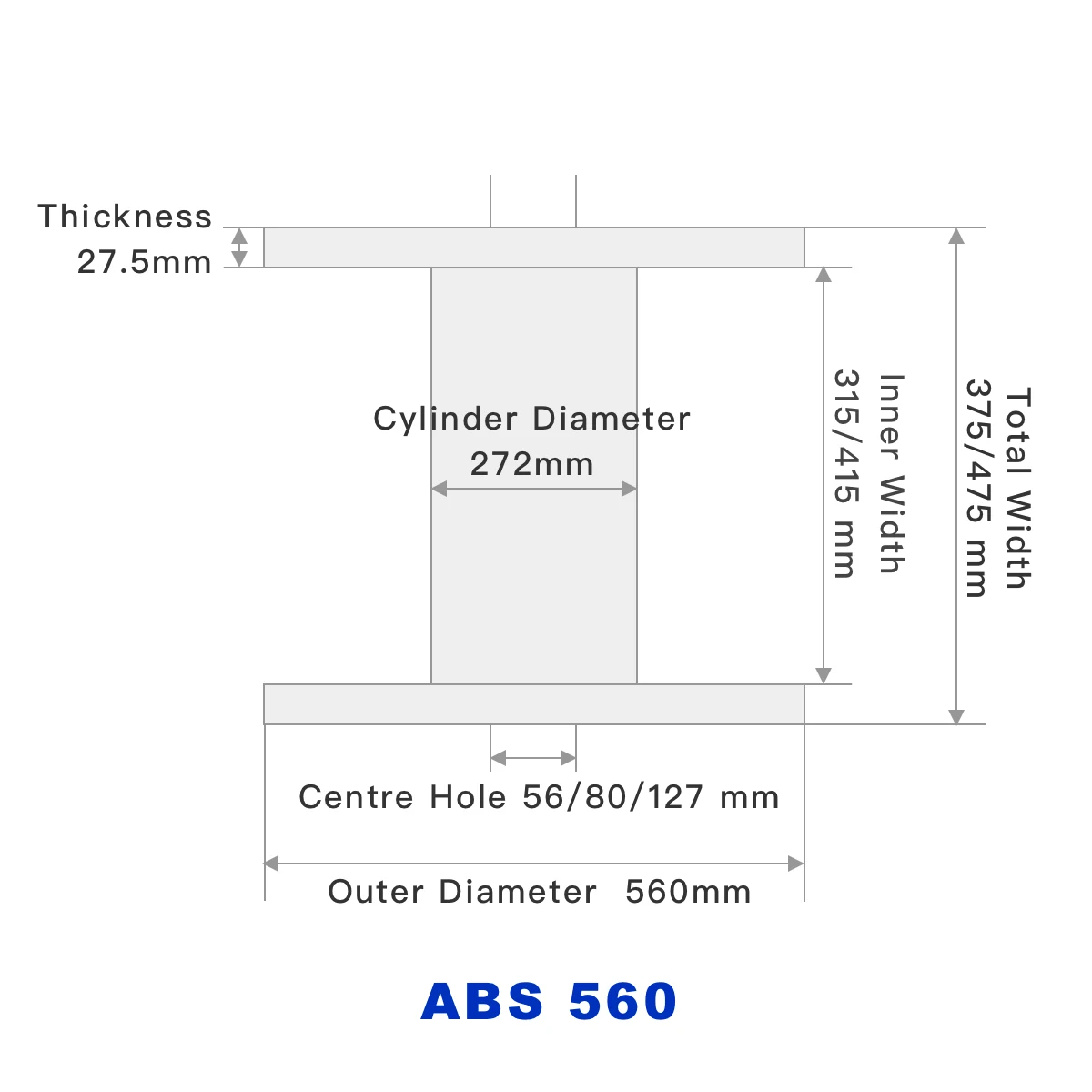

| One-Piece Reel Sizes | 200 mm, 250 mm, 300 mm, 315 mm, 350 mm, 400 mm, 500 mm, 560 mm, 600 mm, 630 mm, 800 mm, 1000 mm and others |
|---|---|
| Elastic Cord / Mesh Reel Sizes | Smaller sizes such as 160 mm and 200 mm diameter |
| Material | ABS (acrylonitrile butadiene styrene) |
| Two-Piece Construction | Flanges and barrel produced separately and assembled, flat-packable and reusable |
| Ventilated Type | Perforated or mesh flanges reducing material usage and weight |
| High-Precision Type | Balanced for stability and minimal vibration, used for optical fibre cable and fine wires |
| Customisation | Colours, logos, hub sizes and flanges; OEM options available |
Figures are the published specification for this product. Values outside this table are confirmed in writing before order rather than estimated.
Manufacturing And Quality Control
How It Is Produced And Checked
Machines are assembled and tested against the published model specification before dispatch, and commissioning support plus overseas service engineers are available after installation.
Specification Agreement
Model selected from conductor range and required output before anything is built.
Assembly
Line assembled to the agreed configuration, including instrumentation and control system.
Test Run
Machine tested against the published model specification before dispatch.
Documentation
Model parameters and component list supplied with the machine.
After Sales
Warranty, long-term maintenance and engineers available to service machinery overseas.
Customisation Options
What Can Be Changed
- Reel diameter from 160 mm to 1000 mm and above
- One-piece, two-piece, ventilated, mesh or high-precision type
- Colour and printed logo
- Hub size and flange design to fit your equipment
Use Guide
Working With It On Your Line
- Match hub size to your winder shaft before ordering — reel diameter alone is not enough.
- Use two-piece reels where reels are returned or shipped long distances.
- Choose high-precision reels for fine wire and optical fibre so vibration does not damage the product.
- Check flange strength against full reel weight for the largest sizes.
Comparison
How It Compares Within The Range
Cable ABS Reel Customizable Size sits inside the Machine and Parts range. The products below are the closest alternatives or the parts most often ordered alongside it — compare the published specification tables rather than the descriptions when the choice is close.
FAQ
Cable ABS Reel Customizable Size FAQ
Which reel sizes are available?
Common one-piece sizes are 200, 250, 300, 315, 350, 400, 500, 560, 600, 630, 800 and 1000 mm, with smaller 160 mm and 200 mm sizes for elastic cord and mesh types.
What is the advantage of a two-piece reel?
Flanges and barrel are produced separately and assembled, which is easier and cheaper to transport in bulk as flat packs, and the reel can be disassembled for reuse.
Can reels be branded?
Yes. Colours, logos, hub sizes and flanges can be customised, and OEM options are available for branding or fitting specific equipment.
Why choose ABS over other plastics?
ABS is durable, lightweight, anti-corrosive and recyclable, with a smooth surface that prevents damage to cable jackets, and it is compatible with automatic winding machines.
Which reel suits optical fibre or fine wire?
High-precision reels, which are balanced for stability and minimal vibration on automatic high-speed coiling machines.
Request A Quotation For Cable ABS Reel Customizable Size
Send the construction, grade and quantity you need. We confirm the specification in writing before quoting.
