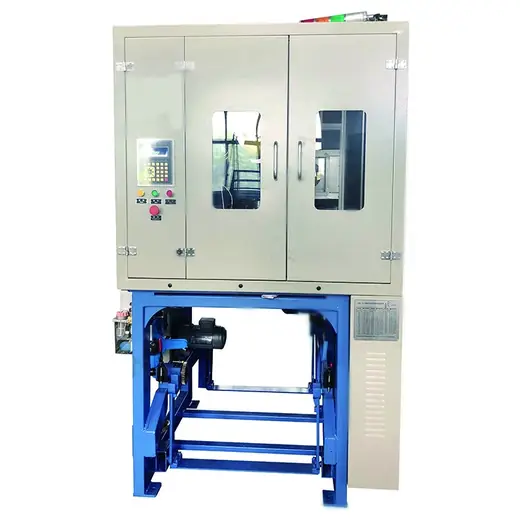

High Speed Double Layer Cable Braiding Machine Vertical Type
Two Braid Layers in One Pass at up to 130 RPM
View specifications →
Machine and Parts
Extrusion Lines Braiding Machines And ABS Reels
Overview
Machine and Parts At A Glance
The equipment side of the business exists because customers who buy cores eventually ask who supplies the line that processes them. These are the machines: LAN cable extrusion lines, general wire and cable extrusion lines from 130 to 900 kg per hour, fluoropolymer high-temperature lines, double-layer braiding machines, and the ABS reels the finished cable is wound onto.
Machine and Parts
Cable ABS Reel Customizable Size
Impact Resistant Plastic Spools From 160 mm to 1000 mm
View specifications →
Machine and Parts
Teflon High-Temperature Extrusion Line
Fluoropolymer Insulation Line Running to 500 Degrees Celsius
View specifications →
Machine and Parts

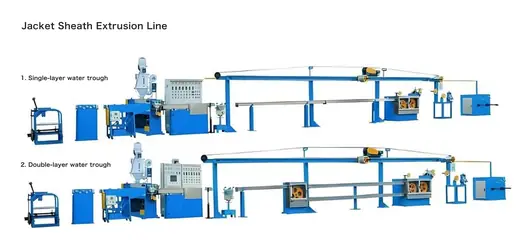

CAT5 CAT6 UTP FTP SFTP LAN Cable Making Machine
Jacket Extrusion Line Built for Category Data Cable
View specifications →
Machine and Parts

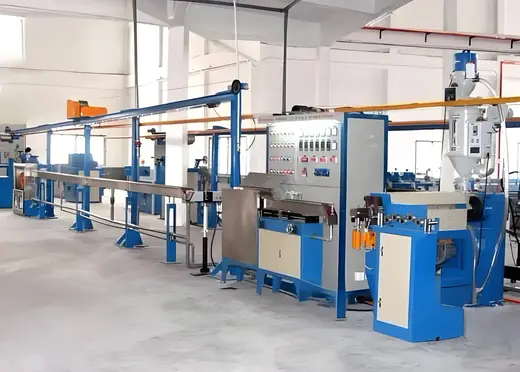

PLC Control Copper Wire Cable Making Machine
Extrusion Line From GF-65 to GF-200 With Full PLC Control
View specifications →
Machine and Parts
Electrical and Electronic Wires Extrusion Line
Fine Gauge Insulation Line With Closed Loop OD Control
View specifications →Problems It Solves
What This Category Is Actually For
- A semi-finished supply model only works if the jacketing line exists and is correctly sized.
- Defects found at final test have already consumed a full reel of material.
- Imported machinery is only as good as the service arrangement behind it.
Who Buys It
- Plants setting up a first jacketing line
- Manufacturers expanding conductor size range
- Producers adding shielding or fluoropolymer capability
Core Advantages
Why This Category Is Specified
Lines Sized by Product Mix
Screw diameters from 30 mm to 200 mm across the ranges, with output stated per model.
In-Line Quality Control
Laser diameter gauges with closed-loop feedback and 3 to 15 kV spark testers built into the line.
Fluoropolymer Capability
Barrel and die zones rated to 450–500°C and 600°C for FEP, PFA, ETFE and PTFE.
Overseas Service
Engineers available to service machinery overseas, with a one-year warranty and long-term maintenance.
Applications
Industries That Use This Category
Structured Cabling OEM Production
LAN Cores For Private Label And CPR Classified Cable
Read more →
CATV and Broadband Networks
Cores For Drop Distribution And Trunk Cable
Read more →
Industrial Automation and Ethernet
Double Shielded Cores For Electrically Hostile Plants
Read more →
RF Wireless and Antenna Systems
50 Ohm Cores From Compact Leads To Power Feeders
Read more →FAQ
Machine and Parts Questions
What output can the extrusion lines reach?
The GF series runs from 130 kg/h on a 65 mm screw to 900 kg/h on a 200 mm screw. The LAN cable line runs 70 to 150 kg/hr across 50, 60 and 70 mm screws.
Do the lines include testing equipment?
Yes. A 15 kV spark tester, diameter gauge and meter counter are part of the GF series line, and a laser OD gauge with closed-loop feedback is available on the electronic wire line.
Is service available outside China?
Engineers are available to service machinery overseas, with a one-year warranty and long-term maintenance.
What power supply do the machines need?
3-phase 380 V at 50 Hz or 60 Hz, or customised on request.
Specify Your Machine and Parts Order
Send the construction, grade and quantity. We confirm the specification before quoting so there is nothing to unpick later.
