CAT5 CAT6 UTP FTP SFTP LAN Cable Making Machine

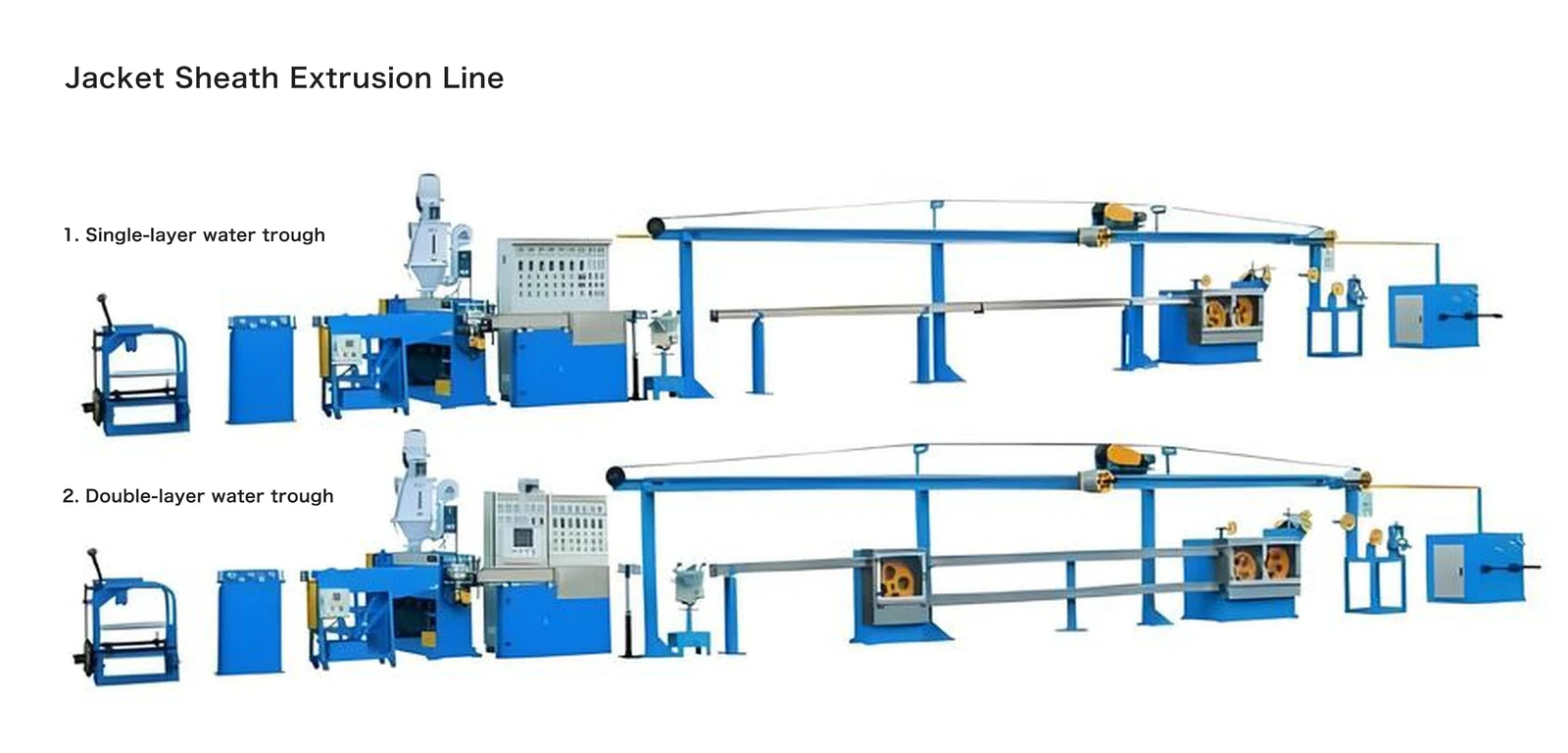

Jacket Extrusion Line Built for Category Data Cable
Product Overview
What This Product Is
This is the extrusion line that turns a semi-finished LAN core into a finished cable. It is configured for PVC, PE and other thermoplastics, and it handles CAT5 and CAT6 in UTP, FTP and SFTP constructions. Three screw sizes are offered — 50, 60 and 70 mm — with extrusion output from 70 to 150 kg per hour and maximum line speed between 350 and 500 m/min depending on the model and the wire diameter being run.
Machine and Parts
Key Benefits
What It Gives Your Production Line
Sized to Your Output, Not a Single Model
WRK-50, 60 and 70 mm screws cover 70, 100 and 150 kg/hr so the line matches the volume you actually run.
Speed Where Small Diameters Allow
Up to 500 m/min on the 50 mm machine for fine wire, stepping down as diameter increases.
Wide Wire Range per Model
0.6 to 4.0 mm on the 50 mm screw, up to 1.5 to 12.0 mm on the 70 mm, so one line covers several products.
Material Flexibility
Designed for PVC, PE and other plastic materials used in data cable jacketing.
Application Scenarios
Where It Is Used
- Manufacturing CAT5 and CAT6 UTP LAN cable
- FTP and SFTP shielded LAN cable production
- Jacket extrusion over semi-finished LAN cores
- Data cable production lines running mixed constructions
Who It Is For
Who Buys It
- New LAN cable plants setting up a first jacketing line
- Existing producers adding capacity for CAT6
- Manufacturers who buy semi-finished cores and finish in-house
Problems It Solves
The Reasons Buyers Move To This Product
Cores Bought In Still Need Jacketing
A semi-finished supply model only works if the jacket line exists. This is that line.
One Screw Size Does Not Fit Every Product
Choosing screw diameter by product mix avoids running a large extruder at a fraction of its capacity.
Speed and Diameter Trade Off
Published line speeds fall as wire diameter rises, which is stated per model rather than as a single headline figure.
Technical Features
Construction And Materials
- Designed for extrusion of PVC, PE and other plastic materials
- Suitable for CAT5 and CAT6 UTP, FTP and SFTP LAN cables
- Three screw sizes: 50 mm, 60 mm and 70 mm
- Capstan power from 3 HP to 5 HP by model
- Precise control and stable output for high-speed data cable standards
Certifications And Compliance
No product certification is claimed for this item beyond the standards named in the specification table. Where a specific certificate is required for your market, ask before ordering and we will confirm what can be provided.
Specifications
Published Figures
| Model | WRK-50mm / WRK-60mm / WRK-70mm |
|---|---|
| Screw Diameter | 50 mm / 60 mm / 70 mm |
| Extrusion Output | 70 kg/hr / 100 kg/hr / 150 kg/hr |
| Applicable Wire Diameter | 0.6–4.0 mm / 0.8–8.0 mm / 1.5–12.0 mm |
| Max Line Speed | 500 m/min / 450 m/min / 350 m/min |
| Capstan Power | 3 HP / 4 HP / 5 HP |
| Materials | PVC, PE and other thermoplastics for insulation and outer sheathing |
Figures are the published specification for this product. Values outside this table are confirmed in writing before order rather than estimated.
Manufacturing And Quality Control
How It Is Produced And Checked
Machines are assembled and tested against the published model specification before dispatch, and commissioning support plus overseas service engineers are available after installation.
Specification Agreement
Model selected from conductor range and required output before anything is built.
Assembly
Line assembled to the agreed configuration, including instrumentation and control system.
Test Run
Machine tested against the published model specification before dispatch.
Documentation
Model parameters and component list supplied with the machine.
After Sales
Warranty, long-term maintenance and engineers available to service machinery overseas.
Customisation Options
What Can Be Changed
- Screw diameter selected by product mix
- Line configuration for UTP, FTP or SFTP
- Capstan and take-up arrangement
- Material handling for PVC, PE or LSZH compound
Use Guide
Working With It On Your Line
- Choose the screw size from your dominant wire diameter, not from the largest cable you might ever run.
- Let barrel zones reach setpoint and stabilise before threading the core.
- Record line speed against diameter for each product so repeat runs start from a known setting.
- Purge fully when switching between PVC and LSZH compound.
Comparison
How It Compares Within The Range
CAT5 CAT6 UTP FTP SFTP LAN Cable Making Machine sits inside the Machine and Parts range. The products below are the closest alternatives or the parts most often ordered alongside it — compare the published specification tables rather than the descriptions when the choice is close.
Read Next
Applications Solutions And Guides
FAQ
CAT5 CAT6 UTP FTP SFTP LAN Cable Making Machine FAQ
Which cable types does this line produce?
CAT5 and CAT6 LAN cable in UTP, FTP and SFTP constructions.
What output can I expect?
70 kg/hr on the 50 mm screw, 100 kg/hr on the 60 mm and 150 kg/hr on the 70 mm.
What is the maximum line speed?
500 m/min on the WRK-50mm, 450 m/min on the WRK-60mm and 350 m/min on the WRK-70mm.
Which materials can be extruded?
PVC, PE and other plastic materials used for insulation and outer sheathing.
What wire diameter range does each model cover?
0.6 to 4.0 mm, 0.8 to 8.0 mm and 1.5 to 12.0 mm for the 50, 60 and 70 mm models respectively.
Request A Quotation For CAT5 CAT6 UTP FTP SFTP LAN Cable Making Machine
Send the construction, grade and quantity you need. We confirm the specification in writing before quoting.
