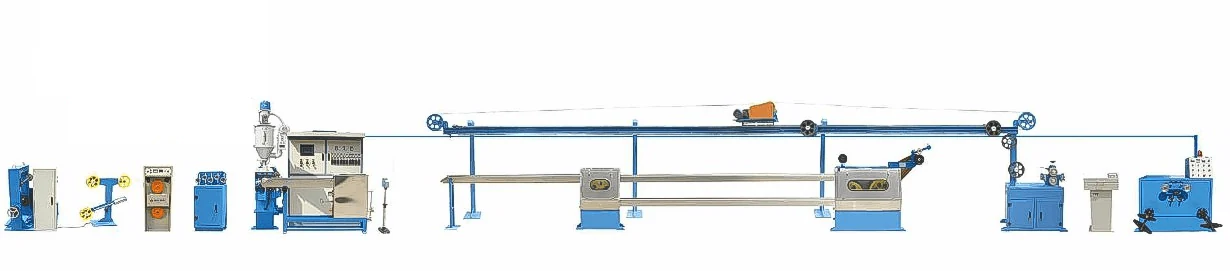

Teflon High-Temperature Extrusion Line
Fluoropolymer Insulation Line Running to 500 Degrees Celsius
Product Overview
What This Product Is
This line insulates wire with fluoropolymers — FEP, PFA, ETFE and PTFE by paste extrusion — for aerospace, military, medical and high-end industrial cable. The extruder barrel and screw are specially treated for fluoropolymer resistance and run continuously up to 450–500°C, with a 600°C die zone. Laser diameter control with closed-loop feedback keeps insulation thickness consistent, and a cleanroom option is available for medical-grade FEP tubing.
Machine and Parts
Key Benefits
What It Gives Your Production Line
Built for Corrosive High Temperature Work
Barrel, screw and components are treated and corrosion resistant for aggressive fluoropolymers at 500°C.
Concentric Insulation on Fine Wire
A precision crosshead die plus laser gauge with closed-loop feedback holds thickness to fine tolerance.
Servo Driven Line Control
Servo-motor capstan and PLC with HMI keep line speed and tension synchronised through the process.
Cleanroom Option Available
For medical-grade FEP tubing and ultra-clean insulation production.
Application Scenarios
Where It Is Used
- Aerospace and military wiring harnesses
- Medical tubing such as catheters and probes
- High-temperature sensor wires
- Industrial automation and robotics wiring
- Automotive engine compartment cables
Who It Is For
Who Buys It
- Specialist cable makers entering fluoropolymer work
- Medical tubing manufacturers
- Aerospace and defence wire suppliers
Problems It Solves
The Reasons Buyers Move To This Product
Standard Extruders Fail on Fluoropolymer
Ordinary barrels corrode and cannot hold 500°C. This line is specified for the material from the start.
Thermal Stress Cracks the Insulation
Multi-section cooling reduces temperature gradually so internal stress does not build up.
Medical Work Demands Clean Production
The cleanroom option addresses contamination control for medical tubing.
Technical Features
Construction And Materials
- Pay-off stand: motorised or dancer-controlled for smooth conductor feeding
- Preheating oven removing moisture and preheating the conductor for insulation adhesion
- High-temperature extruder with barrel and screw treated for fluoropolymer resistance
- Precision crosshead die for concentric, uniform insulation
- Optional curing oven for high-temperature sintering of PFA or special formulations
- Multi-section cooling and water trough
- Laser diameter gauge with closed-loop feedback
- Servo motor-controlled capstan or caterpillar
- Motorised drum or precision traverse take-up
- Supports single-layer, dual-layer or shielded high-temperature cable extrusion
Certifications And Compliance
No product certification is claimed for this item beyond the standards named in the specification table. Where a specific certificate is required for your market, ask before ordering and we will confirm what can be provided.
Specifications
Published Figures
| Applicable Fluoropolymers | FEP, PFA, ETFE and PTFE (paste extrusion) |
|---|---|
| Conductor Size | 0.1 – 6.0 mm² |
| Insulation Thickness | 0.1 – 1.0 mm |
| Line Speed | 50 – 200 m/min depending on size and material |
| Extruder Size | 30 mm – 65 mm screw diameter |
| Max Temperature | 450–500°C barrel zone, 600°C die zone |
| Power Supply | 380 V / 3-phase / 50 Hz or customised |
| Temperature Resistance | Continuous operation up to 500°C |
| Control | Servo-driven systems with PLC and HMI for accurate synchronisation |
Figures are the published specification for this product. Values outside this table are confirmed in writing before order rather than estimated.
Manufacturing And Quality Control
How It Is Produced And Checked
Machines are assembled and tested against the published model specification before dispatch, and commissioning support plus overseas service engineers are available after installation.
Specification Agreement
Model selected from conductor range and required output before anything is built.
Assembly
Line assembled to the agreed configuration, including instrumentation and control system.
Test Run
Machine tested against the published model specification before dispatch.
Documentation
Model parameters and component list supplied with the machine.
After Sales
Warranty, long-term maintenance and engineers available to service machinery overseas.
Customisation Options
What Can Be Changed
- Curing oven for PFA or special formulations
- Cleanroom configuration for medical-grade production
- Single-layer, dual-layer or shielded extrusion
- Extruder size from 30 to 65 mm
- Take-up type: motorised drum or precision traverse
Use Guide
Working With It On Your Line
- Extract and ventilate the die area properly — fluoropolymer processing releases fumes at these temperatures.
- Preheat the conductor to drive off moisture or the insulation will show voids.
- Bring the barrel to temperature slowly to protect the treated surfaces.
- Use the laser gauge feedback rather than periodic sampling to hold insulation thickness.
Comparison
How It Compares Within The Range
Teflon High-Temperature Extrusion Line sits inside the Machine and Parts range. The products below are the closest alternatives or the parts most often ordered alongside it — compare the published specification tables rather than the descriptions when the choice is close.
Read Next
Applications Solutions And Guides
FAQ
Teflon High-Temperature Extrusion Line FAQ
Which fluoropolymers can the line process?
FEP, PFA and ETFE by melt extrusion, and PTFE by paste extrusion.
What temperatures does it reach?
450 to 500°C in the barrel zone and 600°C at the die zone, with continuous operation designed up to 500°C.
What line speed is achievable?
50 to 200 m/min depending on the size and material being run.
Is a cleanroom version available?
Yes, for medical-grade FEP tubing and ultra-clean insulation production.
What insulation thickness range is covered?
0.1 to 1.0 mm on conductors from 0.1 to 6.0 mm².
