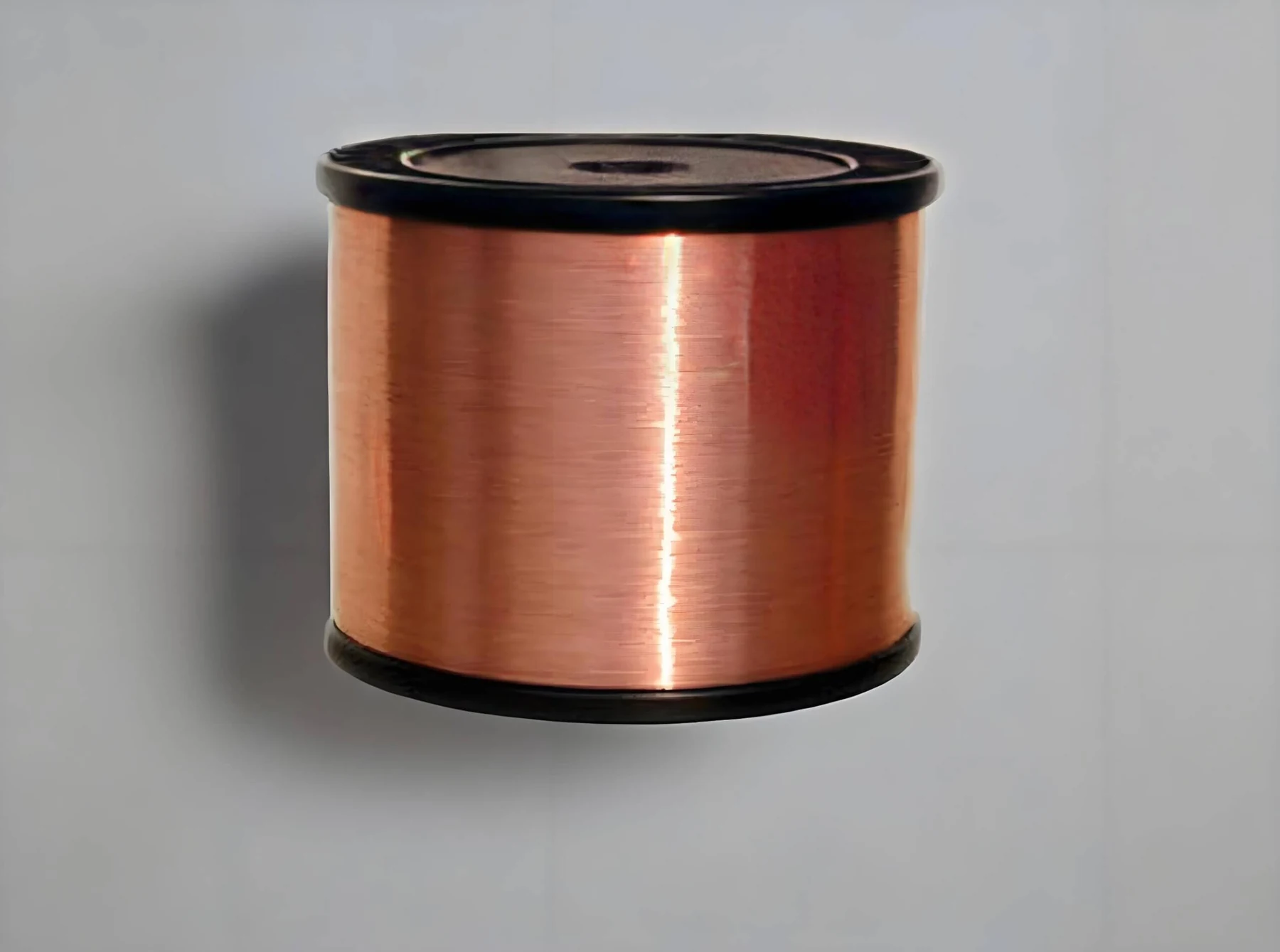

CCS Wire Copper-Clad Steel Wire
High Tensile Conductor for Coaxial Cores and Grounding
View specifications →
Braiding and Conductor Wire
CCA CCS CCAM And Al Mg Wire On ABS Reels
Overview
Braiding and Conductor Wire At A Glance
Four wire grades that cover the practical trade-off in cable shielding and stranding: conductivity, tensile strength, weight, flexibility and solderability. CCS is the strongest, CCA the cheapest conductor, CCAM the best compromise for high-flex work, and Al-Mg the lightest — but not solderable. All four are supplied in 0.12, 0.18 and 0.20 mm on ABS reels sized for automatic braiders.
Material and Mould
Al-Mg Wire Aluminum-Magnesium Alloy Wire
Lightest Braiding Wire With the Best Weight to Strength Ratio
View specifications →
Material and Mould
CCAM Wire Copper-Clad Aluminum Magnesium Wire
Stronger Than CCA for High Flex Data and HDMI Cable
View specifications →
Material and Mould
CCA Wire Copper-Clad Aluminum Wire
Light Low Cost Conductor for LAN Coax and Speaker Cable
View specifications →Problems It Solves
What This Category Is Actually For
- Copper price volatility hits fixed-price contracts.
- Wire breaks stop the braider and create splice defects.
- Solderability and conductivity requirements are often discovered after the wire is chosen.
Who Buys It
- Braiding shops shielding coax and data cable
- Stranded conductor producers
- Speaker and automotive cable makers
Core Advantages
Why This Category Is Specified
Published Comparison Table
Conductivity, tensile strength, weight, flexibility, solderability, corrosion resistance and cost compared across all four grades.
Standard Braiding Diameters
0.12 mm, 0.18 mm and 0.20 mm with stated reel capacity.
ABS Reels for Automatic Machines
φ200 to 250 mm reels holding 2 to 10 kg by diameter.
Honest Limits Stated
CCA ampacity and Al-Mg solderability limits are stated up front, not discovered later.
Applications
Industries That Use This Category
FAQ
Braiding and Conductor Wire Questions
Which wire has the highest conductivity?
CCA at approximately 60 percent IACS, with CCAM close behind at 55 to 65 percent. CCS is lowest at 20 to 40 percent.
Which wire is strongest?
CCS, because of its steel core, though it has poor flexibility.
Which wire cannot be soldered?
Al-Mg, because the surface is bare aluminium. The three copper-clad grades all solder normally.
What reel sizes are supplied?
ABS reels of φ200 to 250 mm, holding 2 to 5 kg for 0.12 mm wire and 5 to 10 kg for 0.18 and 0.20 mm.
Specify Your Braiding and Conductor Wire Order
Send the construction, grade and quantity. We confirm the specification before quoting so there is nothing to unpick later.
