Jib Cranes
Local lifting from 250 kg to 20 tons, in wall, column, pillar, mast, portable and davit mountings.
Six jib crane specifications covering the lifts that should never be waiting for the bay crane. Capacities run from 250 kg on the wall-mounted units up to 20 tons on the marine davit crane, with slewing ranges of 180, 270 or 360 degrees depending on the mounting, and electric, manual or pneumatic hoisting.
The range
All 6 Products In This Group
The problem
What This Group Is Built To Solve
A shared overhead crane is a queue. Every workstation that needs a lift competes for it, and the time lost is invisible because nobody measures it. A jib crane at the station that lifts most often usually pays back faster than any other piece of handling equipment in the building, and it costs a fraction of a bay crane plus its runway.
Who buys these
Who This Range Is For
Workshops and Machine Shops
A jib crane at a single workstation gives that operator their own hook, covering a circular working area without repositioning.
Warehouses and Loading Bays

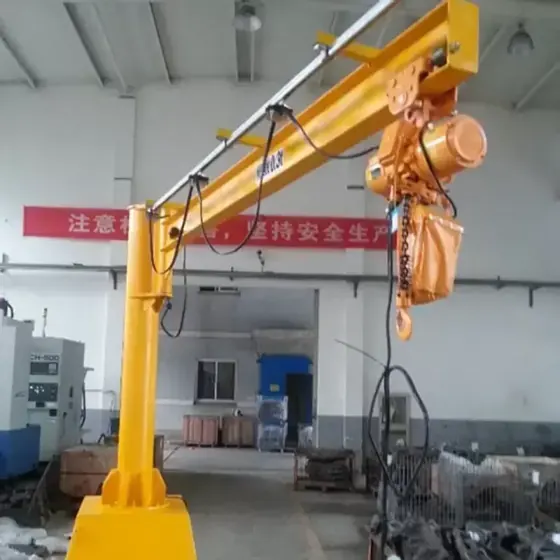

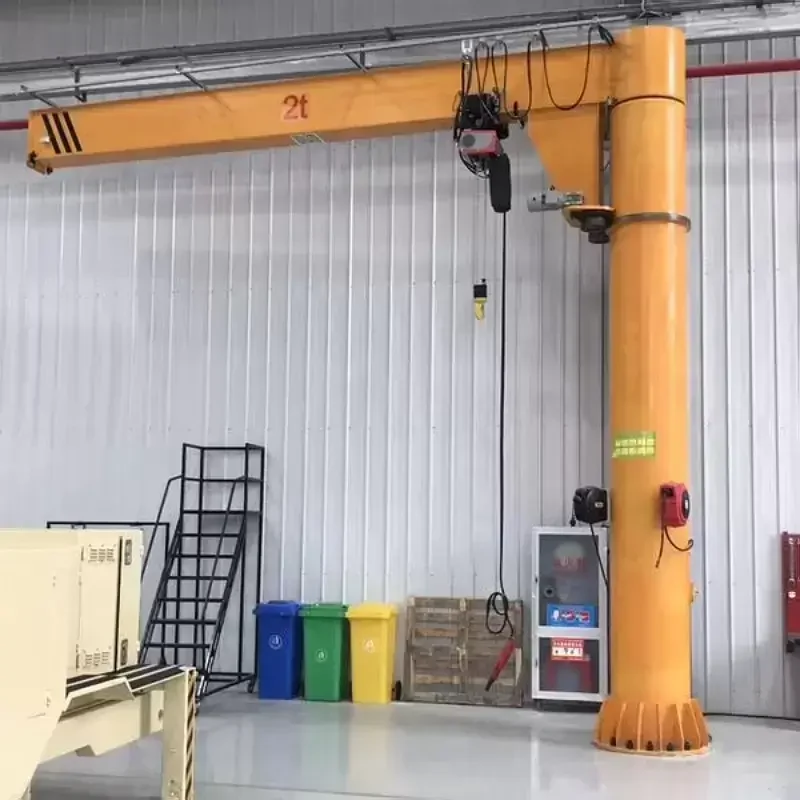

Pillar cranes are floor mounted with no building support, so they stand where the container door or the truck bed is.
Marinas and Shipyards

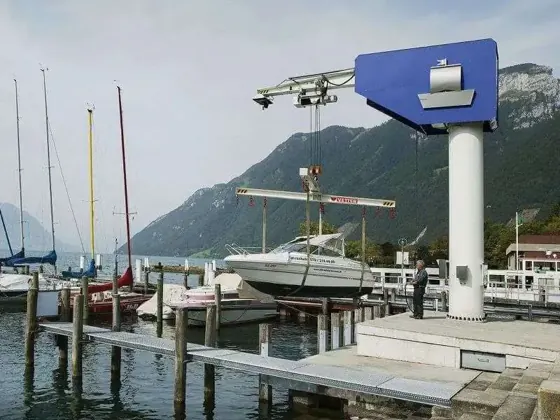

The davit crane covers 2.5 to 20 tons with corrosion resistant materials, anti-sway control and a variable frequency drive for lifting over water.
Why these
What Makes This Range Different
Mounting Chosen by the Building

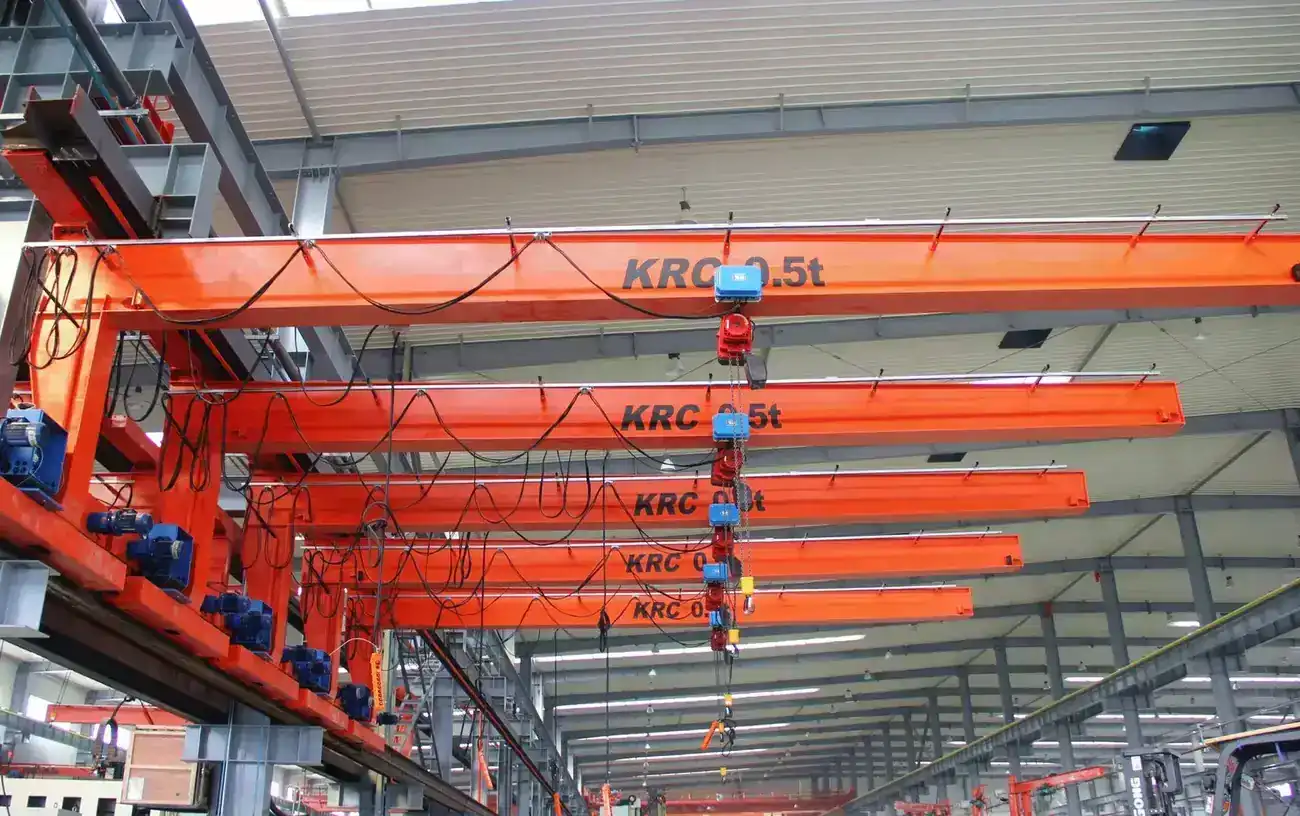

Wall and column mountings use no floor space; free-standing, pillar and mast types need no building structure; portable moves between temporary lifting points.
Three Hoisting Configurations
Electric for frequent lifts, manual for occasional, pneumatic where an electric hoist is not permitted. All three are available on the 3 to 6 ton range.
CE Certification on the Pillar Range
The pillar jib cranes are CE certified, which is what most European operations need before the crane can be put into service.
Low Maintenance by Design
Simple structures with few parts. Over a ten year life that usually matters more than the difference in purchase price.
Application
Where These Products Are Used
- Machine loading and unloading at a single workstation
- Warehouse container unloading at the bay door
- Truck loading and unloading of heavy items
- Maintenance bays lifting components off equipment
- Lifting boats out of the water at a marina
- Temporary lifting points served by a portable jib
Documentation
Downloads Covering This Group
Specification sheet PDFs already on file for products in this range.
- Cranes and Material Handling · Jib Cranes Specification Sheet15.2 KB
- Catalogue · Full Product Catalogue154.0 KB
- Cranes and Material Handling · Jib Cranes Specification Sheet15.2 KB
- Catalogue · Full Product Catalogue154.0 KB
- Cranes and Material Handling · Jib Cranes Specification Sheet15.2 KB
- Catalogue · Full Product Catalogue154.0 KB
- Cranes and Material Handling · Jib Cranes Specification Sheet15.2 KB
- Catalogue · Full Product Catalogue154.0 KB
- Cranes and Material Handling · Jib Cranes Specification Sheet15.2 KB
- Catalogue · Full Product Catalogue154.0 KB
- Cranes and Material Handling · Jib Cranes Specification Sheet15.2 KB
- Catalogue · Full Product Catalogue154.0 KB
Industries
Sectors That Specify This Group
Warehousing and Heavy Industry
Lifting from 250 kg to 360 tons, indoors on a runway or outdoors on legs.
Metal Fabrication and Machine Shops
Custom parts, tooling and the cranes that move them around the shop.
Food Packaging Lines
Depalletizing to palletizing, balanced against the filler in the middle.
Further reading
Guides Related To This Group
Choosing a Jib Crane Mounting for Your Building
Six mounting types exist because the building constrains the crane more often than the load does. Wall, column, free-standing, articulating, mast and portable each solve a different constraint.
FAQ
Jib Cranes Questions
What capacities are available?
From 250 kg on the wall-mounted units through to 20 tons on the davit crane, with 0.25 to 10 tons on the general jib range.
Which mounting should we choose?
Wall or column to save floor space, pillar or mast where there is no wall, portable where the work moves. Send a photo of the area for a recommendation.
How far do they slew?
180 degrees on the wall jib, 270 degrees on the pillar jib, and 360 degrees on the 2 ton, 3 to 6 ton and davit cranes.
Is remote control available?
Wireless remote control is available on the 2 ton and 3 to 6 ton ranges, and radio control on the davit crane.
Do we need to modify the building?
Not with pillar, mast or portable mountings, which are designed to work without building support.
What do you need to quote?
Capacity, required radius, mounting type, and whether the hoist should be electric, manual or pneumatic.
