Pillar Jib Crane

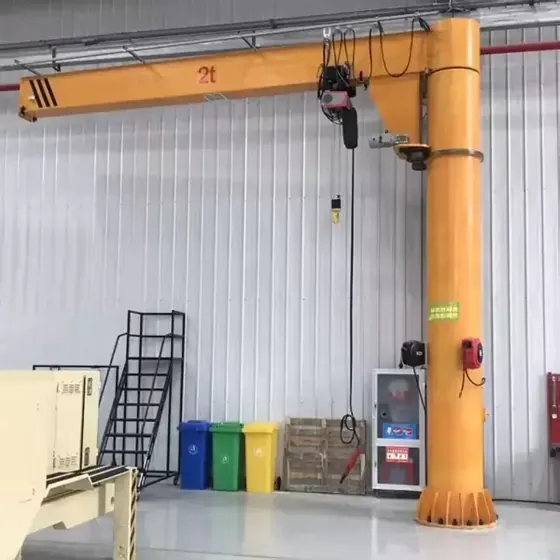

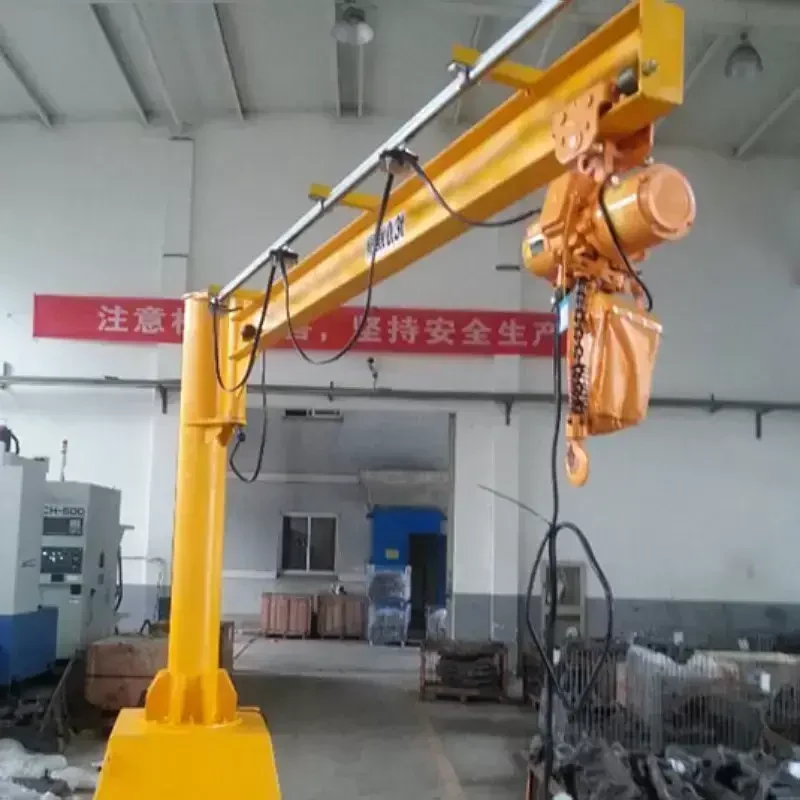

A CE certified pillar jib crane mounted directly on the floor without additional support, covering 0.5 t to 6.3 t with a 270 degree slewing range.
Product Overview
A CE certified pillar jib crane mounted directly on the floor without additional support, covering 0.5 t to 6.3 t with a 270 degree slewing range. The structure is simple and lightweight, which makes installation straightforward and keeps maintenance low because there are few parts. Ergonomic controls and a mobile control option let the operator work with minimal effort.
Key benefits
Why Buyers Choose This Specification
Floor Mounted Without Building Support
The crane is set on the floor with no wall, column or roof steel involved. That removes the structural survey that a wall-mounted crane usually triggers.
CE Certified
The jib cranes are certified by CE, which is what most European buyers need before the crane can be put into service.
Few Parts to Maintain
A simple structure with few parts is what keeps maintenance low. Over a ten year life that is usually worth more than the purchase price difference.
270 Degrees Around a Pillar
Three quarters of a circle covers a workstation and its feed and despatch points without the crane ever needing to be repositioned.
Application scenarios
Where It Is Used
- Shipping operations lifting spare parts from ship decks
- Warehouses carrying materials out of containers
- Truck loading and unloading of heavy items

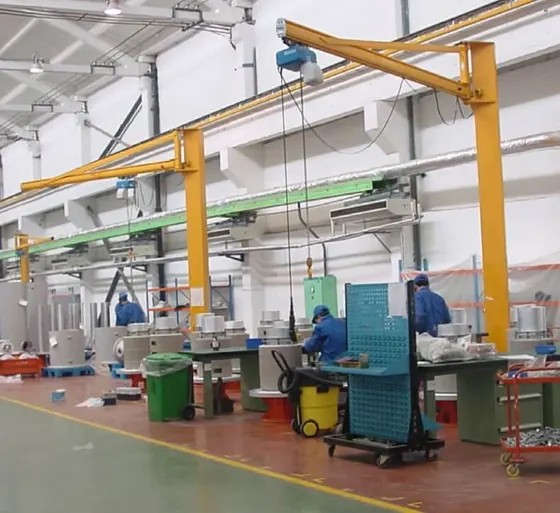

- Workstation feeding in manufacturing cells
- Repair bays lifting components off machines
- Yard positions where no wall or column is available
Who it is for
The Buyers This Product Suits
Warehouses Unloading Containers
Carrying materials from containers is a named application, and a floor-mounted pillar crane can stand exactly where the container door opens.
Truck Loading Bays
Lifting heavy loads from trucks needs a crane at the bay, not a crane in the building. A pillar jib is installed where it is needed.
Buyers Needing CE Marked Equipment
CE certification is held on this range, which simplifies acceptance in European operations.
Problems it solves
What It Fixes
No Structure to Mount a Crane To
The pillar design is set on the floor without any additional support, so a bare bay or yard is enough.
Maintenance Load on Small Teams
Few parts and a simple structure mean the crane needs little attention, which suits sites without a dedicated maintenance function.
Strain Injuries From Manual Handling
The crane is specified to improve worker safety by reducing strains and injuries on repetitive lifts.
Specifications
Published Figures For This Product
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Capacity Range | 0.5 t to 6.3 t |
|---|---|
| Slewing Range | 270 degrees |
| Mounting | Floor mounted, no additional support required |
| Structure | Simple, lightweight, few parts |
| Control | Mobile control option, ergonomic controls |
| Certification | CE |
| Shipping Application | Lift spare parts from ship decks |
| Warehouse Application | Carry materials from containers |
| Truck Application | Lift heavy loads from trucks |
| Grade | 0.5 t to 6.3 t, CE certified |
Packing and documents
How It Ships And What Comes With It
Packing And Loading
Shipping volume for this item depends on the configuration and capacity you select, so no fixed container figure is published. Confirm the specification and the destination and a loading plan is issued with the quotation, rather than a figure we cannot support.
Documentation On File
- Cranes and Material Handling · Jib Cranes Specification Sheet15.2 KB
- Catalogue · Full Product Catalogue154.0 KB
Sourcing And Inspection
This product is supplied through TrueGlow Imaging, working with manufacturing partners whose facilities are visited and verified rather than taken on trust. In-process quality control and delivery supervision are available so goods are inspected before the container is sealed. Certifications quoted on this page are those stated on the product specification and belong to that product range rather than to our trading entity, so ask for the certificate covering your specific item.
Handling guide
Getting It Right First Time
Step 1
Check the floor slab thickness and reinforcement against the base loads before ordering.
Step 2
Position the pillar so the 270 degree sweep covers both pick and place points.
Step 3
Select capacity within the 0.5 t to 6.3 t range from the heaviest routine lift.
Step 4
Confirm whether the mobile control option is required for the operating position.
Step 5
Request the CE documentation with the delivery for your equipment file.
Comparison
How It Compares In Our Range
Pillar jib against the mountings that rely on the building.
| Pillar Jib Crane | 0.5 t to 6.3 t, 270 degree slew, floor mounted with no additional support, CE certified, simple structure and low maintenance. |
|---|---|
| Wall or Column Mounted Jib | Uses no floor space, but needs building structure able to carry the overturning moment. |
FAQ
Pillar Jib Crane Questions
What capacity range is available?
0.5 t to 6.3 t across the available models.
How far does it rotate?
270 degrees, which covers a workstation and its feed and despatch positions.
Does it need to be fixed to a wall?
No. It is designed with a mounted structure set on the floor without any additional support.
Is it certified?
Yes, the jib cranes are certified by CE.
How much maintenance does it need?
Low. The structure is simple and has few parts, which is the main reason it is specified on sites with small maintenance teams.
Can the operator move around with the control?
A mobile control option is available so the task can be done with minimal effort.
