Metal Stamping Parts
Punching Parts

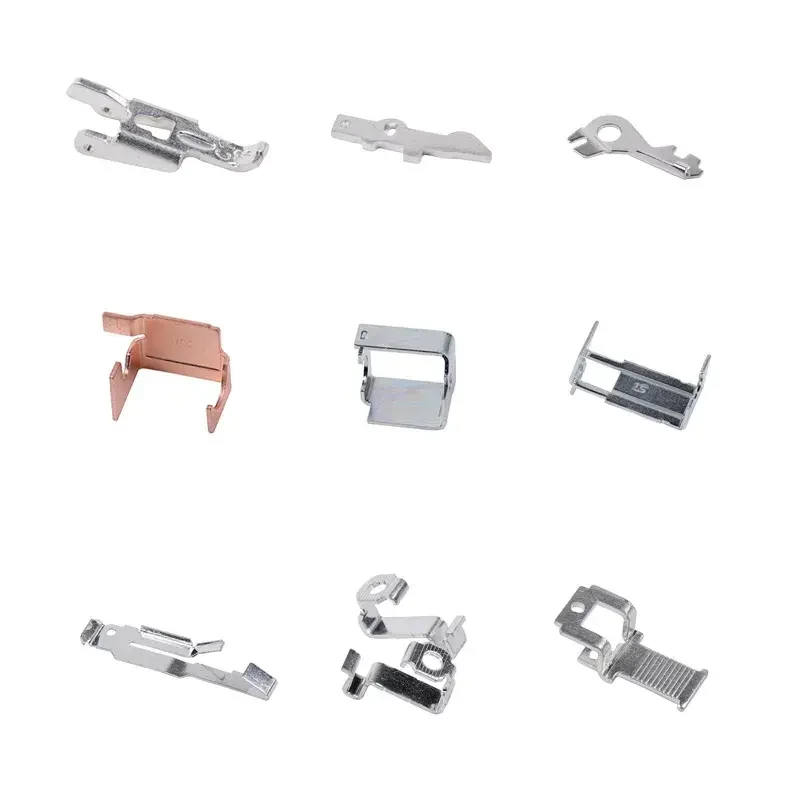

Custom CNC punching for brackets, enclosures, gears and similar formed components in aluminium, brass and stainless steel.
Product Overview
Custom CNC punching for brackets, enclosures, gears and similar formed components in aluminium, brass and stainless steel. Work runs from design through punching to a quality check on every part, and both OEM and ODM projects are accepted. Free samples are offered before mass production so the part can be assessed for fit and finish before the full order is committed.
Key benefits
Why Buyers Choose This Specification
Free Sample Before Mass Production
Assessing quality and precision on a real part before committing to a production order is the single most effective way to avoid a full batch of scrap.
Every Part Checked After Punching
Post-punching, each part undergoes a quality check rather than a sample from the batch. On punched parts the failure mode is usually progressive tool wear, which sampling misses.
OEM and ODM Both Welcome
Bring an original design or ask for modifications to an existing one. Neither route is treated as a special case.
Three Material Families as Standard
Aluminium, brass and stainless steel cover most punched components, and the material choice can follow the application rather than what the shop happens to stock.
Application scenarios
Where It Is Used
- Brackets used across industries for mounting and support
- Enclosures housing electronic components
- Gears for machinery and automotive applications
- Perforated and slotted panels for ventilation
- Chassis plates for equipment assemblies
- Pre-production samples ahead of a tooled run
Who it is for
The Buyers This Product Suits
Electronics Manufacturers
Enclosures to house components are a named application, and punched construction suits the volumes involved.
Machinery and Automotive Suppliers
Gears and brackets in quantity are exactly what CNC punching is efficient at compared with laser cutting.
Buyers Validating a New Supplier
Free samples make the first order a low-risk evaluation rather than a leap.
Problems it solves
What It Fixes
Committing to Volume Without Seeing a Part
Free samples let you assess quality and precision firsthand before mass production begins.
Tool Wear Drifting Through a Batch
Each part is quality checked after punching, which catches progressive drift that batch sampling does not.
Suppliers Who Only Accept Finished Designs
ODM work is accepted, so a part can be developed here from your requirement.
Specifications
Published Figures For This Product
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Process | CNC punching |
|---|---|
| Materials | Aluminium, brass, stainless steel |
| Typical Parts | Brackets, enclosures, gears |
| Service Type | OEM and ODM |
| Samples | Free samples before mass production |
| Inspection | Quality check on each part after punching |
| Grade | OEM and ODM |
Packing and documents
How It Ships And What Comes With It
Packing And Loading
Shipping volume for this item depends on the configuration and capacity you select, so no fixed container figure is published. Confirm the specification and the destination and a loading plan is issued with the quotation, rather than a figure we cannot support.
Documentation On File
- Precision Machining and Fabrication · Metal Stamping Parts Specification Sheet11.4 KB
- Catalogue · Full Product Catalogue154.0 KB
Sourcing And Inspection
This product is supplied through TrueGlow Imaging, working with manufacturing partners whose facilities are visited and verified rather than taken on trust. In-process quality control and delivery supervision are available so goods are inspected before the container is sealed. Certifications quoted on this page are those stated on the product specification and belong to that product range rather than to our trading entity, so ask for the certificate covering your specific item.
Handling guide
Getting It Right First Time
Step 1
Send the flat pattern with hole positions and tolerances marked.
Step 2
State the material and thickness, since punch and die clearance is set from it.
Step 3
Request a free sample before the production order and check it in your own assembly.
Step 4
Confirm burr direction requirements if the part is handled by operators.
Step 5
Specify any deburring or finishing required after punching.
Comparison
How It Compares In Our Range
Punching against laser cutting for the same part.
| CNC Punching | Fast per part in quantity, forms louvres and dimples as well as cutting, and lower piece cost on repeat runs. |
|---|---|
| Laser Cutting | No tooling limits on profile shape and better on one-offs, but slower and more expensive per part in volume. |
FAQ
Punching Parts Questions
Do you offer samples?
Yes. Free samples are offered before mass production so you can assess quality and precision firsthand.
Which materials can you punch?
Aluminium, brass and stainless steel, among others.
Do you accept our design?
Yes. OEM projects to your design and ODM projects where you want an existing design modified are both accepted.
How are parts inspected?
Each part undergoes a rigorous quality check after punching.
What parts do you commonly make?
Brackets for mounting and support, enclosures for electronics, and gears for machinery and automotive applications.
What quantities do you handle?
From sample quantities through to production runs. Send the drawing and annual volume on WhatsApp for a tiered price.
