Yogurt Fermentation Tank

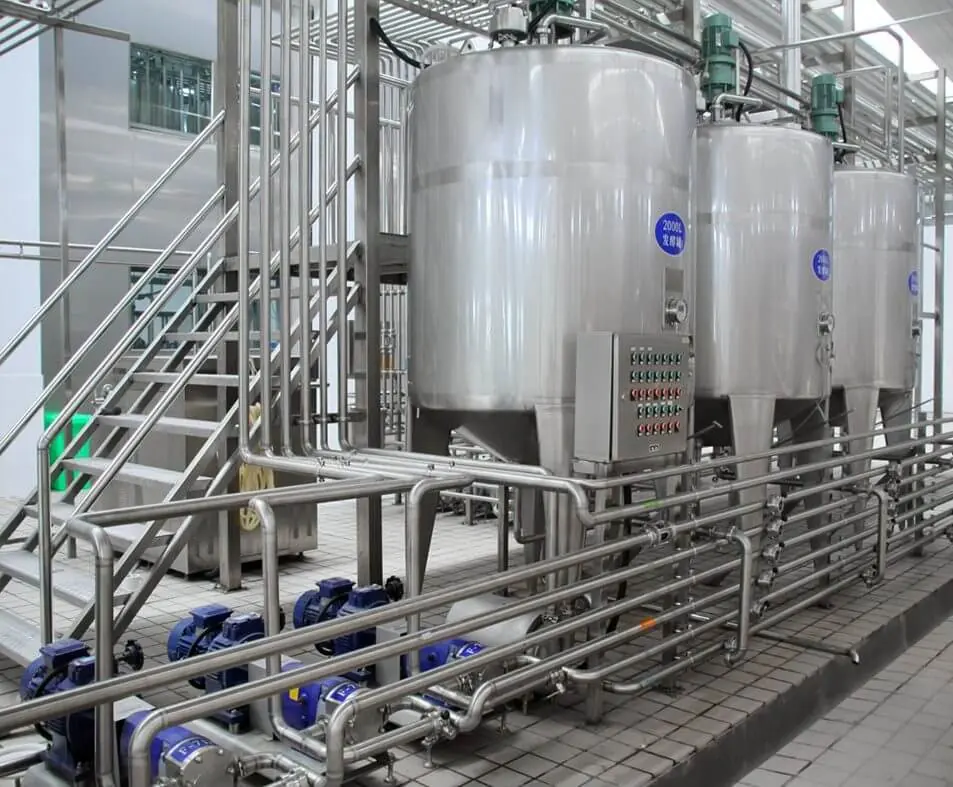

A yogurt fermentation tank from 500 L to 30,000 L in SUS304 or SUS316L, built as a vertical three layer tank with insulation and dimple jacket.
Product Overview
A yogurt fermentation tank from 500 L to 30,000 L in SUS304 or SUS316L, built as a vertical three layer tank with insulation and dimple jacket. It blends and ferments milk into yogurt, with frame or propeller agitators available and a scraper fitted where the recipe requires it. Standard components include product inlet and outlet, manway, air ventilation cap, conical cover, CIP cleaning ball, digital display thermometer, high and low liquid level sensors, sample valve, draw bar valve, anti-vortex plate, sight glass, lifting ears and four adjustable supporting legs.
Key benefits
Why Buyers Choose This Specification
Dimple Jacket Holds Culture Temperature
Yogurt culture works in a narrow temperature band for several hours. A three layer tank with insulation and dimple jacket is what keeps the whole batch in that band, not just the middle of it.
Anti-Vortex Plate Fitted
A vortex pulls air into fermenting yogurt and breaks the gel structure. The anti-vortex plate is a small fitting that protects the texture of the whole batch.
Sample Valve for In-Process Checks
Fermentation is judged by pH and taste over time. A sample valve lets the batch be checked without opening the tank.
Scraper Available on the Agitator
Set yogurt clings to the wall and insulates the batch from the jacket. A scraper keeps the heat transfer surface clear.
Application scenarios
Where It Is Used
- Fermenting set and stirred yogurt
- Producing drinking yogurt base
- Culturing dairy products in batch
- Blending and fermenting in one vessel
- Small yogurt lines at 500 L
- Production yogurt plants at up to 30,000 L
Who it is for
The Buyers This Product Suits
Yogurt Producers
This is the vessel in which the product is actually made, and its temperature uniformity is what makes each batch match the last.
Dairies Adding Cultured Products
A fermentation tank with the right agitation and temperature control is the core addition needed to move from milk into yogurt.
Plants Running Several Recipes
Frame and propeller agitators with optional scraper let one tank handle set and stirred products.
Problems it solves
What It Fixes
Temperature Gradients Across a Batch
Insulation plus a dimple jacket over the full wall keeps the batch even rather than warm at the wall and cool at the centre.
Gel Structure Broken by Aeration
An anti-vortex plate stops the agitator drawing air into the fermenting batch.
Not Knowing When Fermentation Is Complete
A sample valve and sight glass let the batch be checked without breaking the seal.
Specifications
Published Figures For This Product
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Product Model | HTK-FJG-01 |
|---|---|
| Product Volume | 500 L to 30,000 L, customised |
| Material | SUS304 / SUS316L |
| Structure | Vertical three layer tank with insulation and dimple jacket |
| Agitator Types | Frame agitator, propeller agitator, scraper customised |
| Instrumentation | Digital display thermometer, high and low liquid level sensors, sight glass |
| Valves | Sample valve, draw bar valve |
| Internals | Anti-vortex plate, CIP cleaning ball |
| Minimum Order | One unit |
| Production Capacity | 50 units per month |
| Grade | SUS304 / SUS316L |
Packing and documents
How It Ships And What Comes With It
Packing And Loading
Shipping volume for this item depends on the configuration and capacity you select, so no fixed container figure is published. Confirm the specification and the destination and a loading plan is issued with the quotation, rather than a figure we cannot support.
Documentation On File
- Dairy and Liquid Processing · Dairy Processing Machinery Specification Sheet53.2 KB
- Catalogue · Full Product Catalogue154.0 KB
Sourcing And Inspection
This product is supplied through TrueGlow Imaging, working with manufacturing partners whose facilities are visited and verified rather than taken on trust. In-process quality control and delivery supervision are available so goods are inspected before the container is sealed. Certifications quoted on this page are those stated on the product specification and belong to that product range rather than to our trading entity, so ask for the certificate covering your specific item.
Handling guide
Getting It Right First Time
Step 1
Set jacket temperature to your culture's requirement and hold it across the whole fermentation.
Step 2
Use gentle agitation during culturing and reserve higher speed for blending.
Step 3
Sample regularly through the sample valve and track pH rather than time alone.
Step 4
Specify a scraper where the product clings to the wall.
Step 5
Clean in place immediately after emptying, before the residue sets.
Comparison
How It Compares In Our Range
Which agitator suits which yogurt product.
| Frame Agitator | Sweeps a large volume gently, suited to viscous set-style products. |
|---|---|
| Propeller Agitator | Faster circulation for blending and for stirred yogurt. |
| With Scraper | Customised option that keeps the heat transfer wall clear on products that cling. |
FAQ
Yogurt Fermentation Tank Questions
What volumes are available?
500 L to 30,000 L, customised.
What is the tank structure?
A vertical three layer tank with insulation and dimple jacket.
Which agitators are available?
Frame agitator or propeller agitator, with a scraper customised where required.
What components are fitted?
Product inlet and outlet, manway, air ventilation cap, conical cover, CIP cleaning ball, digital display thermometer, high and low liquid level sensors, sample valve, draw bar valve, anti-vortex plate, sight glass, lifting ears and four adjustable supporting legs.
Which materials are available?
SUS304 or SUS316L.
What is the minimum order?
One unit, with a production capacity of 50 units per month.
