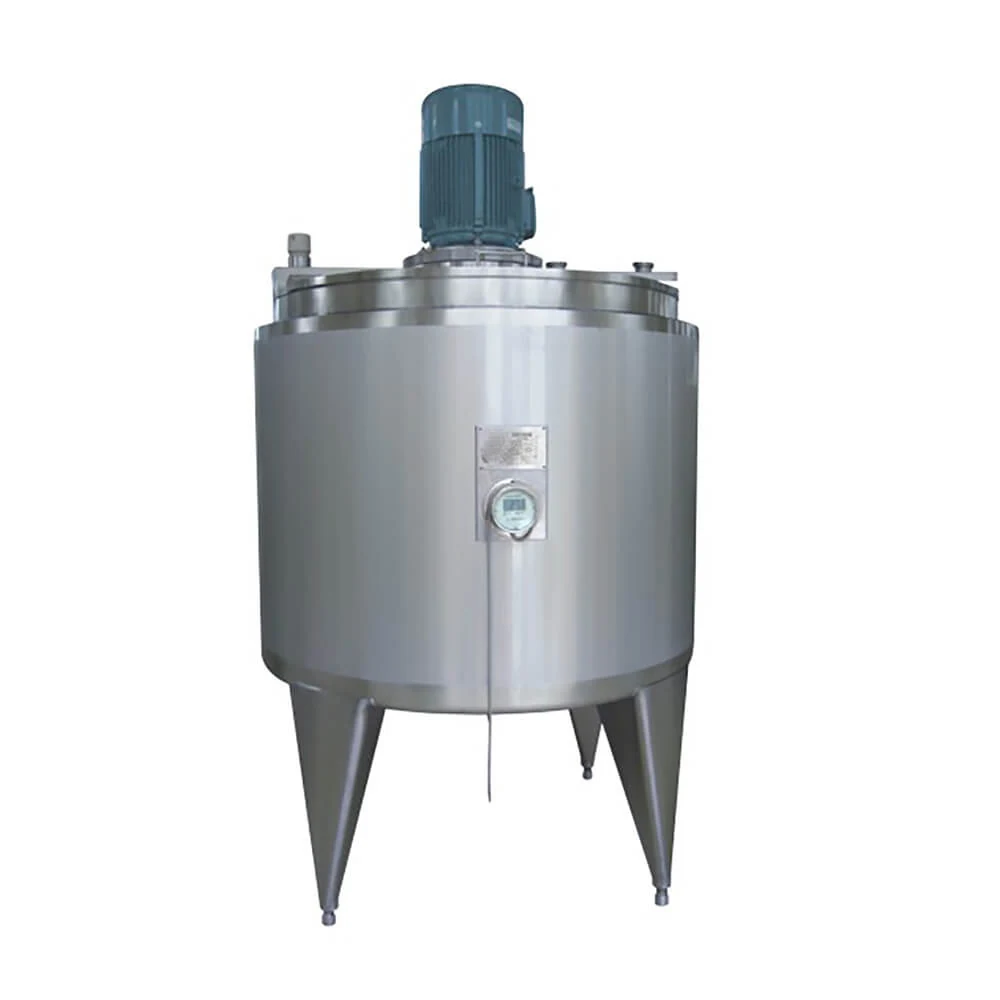

High Shear Tank
A high shear tank from 500 L to 3000 L in SUS304 or SUS316L, built as a three layer tank with insulation and jacket, with a high shear mixer running at 3600 RPM.
Product Overview
A high shear tank from 500 L to 3000 L in SUS304 or SUS316L, built as a three layer tank with insulation and jacket, with a high shear mixer running at 3600 RPM. It mixes sugar, milk powder, milk products, juice products, beverages, starch, gums, colloids and stabilisers. Standard components include product inlet and outlet, manway, air ventilation cap, CIP cleaning ball, sight glass, sight lamp, temperature sensor, lifting ear, pull rod, baffle plate and four adjustable supporting legs.
Key benefits
Why Buyers Choose This Specification
3600 RPM High Shear Mixer
Two and a half times the speed of the emulsification tank's head. Where a formulation needs maximum shear to disperse, this is the tank for it.
Baffle Plate Fitted
Without baffles, a high speed mixer spins the whole batch as one body and shears nothing. The baffle plate is what converts rotation into mixing.
Sight Glass and Sight Lamp
Being able to see what is happening in the tank during a mix is how an operator knows the powder has gone in rather than sitting on the surface.
Handles Finished Products as Well as Ingredients
Milk products, juice products and beverages are named alongside raw ingredients, so the tank works on both premix and finished blend duty.
Application scenarios
Where It Is Used
- Mixing sugar and milk powder into a dairy base
- Dispersing stabilisers into juice and beverage products
- Blending starch and colloids into a formulation
- Preparing concentrated premixes
- Mixing finished beverage products before filling
- Hydrating gum systems at elevated temperature
Who it is for
The Buyers This Product Suits
Beverage Formulators
Gum and stabiliser systems need high shear to hydrate, and 3600 RPM is the speed that does it.
Dairy Producers
Sugar, milk powder and milk products are all named applications for this tank.
Juice Producers
Juice products and beverages are mixed here as finished blends as well as premixes.
Problems it solves
What It Fixes
Powder Floating on the Surface
High shear with a baffle plate pulls powder down into the batch instead of letting it raft.
Batches Rotating Without Mixing
The baffle plate breaks the rotational flow that otherwise defeats a high speed mixer.
Not Knowing What Is Happening Inside
Sight glass and sight lamp let the operator watch the dispersion rather than guess at it.
Specifications
Published Figures For This Product
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Product Model | HTK-JQG-01 |
|---|---|
| Product Volume | 500 L to 3000 L, customised |
| Material | SUS304 / SUS316L |
| Structure | Three layer tank with insulation and jacket |
| Mixing Type | High shear mixer |
| Mixer Speed | 3600 RPM |
| Ingredients | Sugar, milk powder, milk and juice products, beverages, starch, colloids, stabilisers |
| Standard Components | Manway, air ventilation cap, CIP cleaning ball, sight glass, sight lamp, temperature sensor, lifting ear, pull rod, baffle plate, four adjustable legs |
| Minimum Order | One unit |
| Production Capacity | 100 units per month |
| Grade | SUS304 / SUS316L |
Packing and documents
How It Ships And What Comes With It
Packing And Loading
Shipping volume for this item depends on the configuration and capacity you select, so no fixed container figure is published. Confirm the specification and the destination and a loading plan is issued with the quotation, rather than a figure we cannot support.
Documentation On File
- Dairy and Liquid Processing · Dairy Processing Machinery Specification Sheet53.2 KB
- Catalogue · Full Product Catalogue154.0 KB
Sourcing And Inspection
This product is supplied through TrueGlow Imaging, working with manufacturing partners whose facilities are visited and verified rather than taken on trust. In-process quality control and delivery supervision are available so goods are inspected before the container is sealed. Certifications quoted on this page are those stated on the product specification and belong to that product range rather than to our trading entity, so ask for the certificate covering your specific item.
Handling guide
Getting It Right First Time
Step 1
Add powder gradually into a running vortex rather than all at once.
Step 2
Use the sight glass to confirm full dispersion before ending the mix.
Step 3
Set jacket temperature to the hydration requirement of your ingredient system.
Step 4
Avoid over-shearing sensitive products, since prolonged high shear can damage them.
Step 5
Clean in place immediately after the batch through the fitted CIP ball.
Comparison
How It Compares In Our Range
High shear tank against the emulsification tank.
| High Shear Tank | 3600 RPM high shear mixer, three layer with insulation and jacket. Maximum shear for difficult dispersions. |
|---|---|
| High Speed Emulsification Tank | 1440 RPM bottom-mounted emulsifier with dimple jacket. Gentler, suited to emulsions and standard powder dispersion. |
FAQ
High Shear Tank Questions
What volumes are available?
500 L to 3000 L, customised.
What is the mixer speed?
3600 RPM, with a high shear mixer.
What is the tank structure?
A three layer tank with insulation and jacket.
What can it mix?
Sugar, milk powder, milk products, juice products, beverages, starch, glue and colloids, and stabilisers.
What components are included?
Product inlet and outlet, manway, air ventilation cap, CIP cleaning ball, sight glass, sight lamp, temperature sensor, lifting ear, pull rod, baffle plate and four adjustable supporting legs.
What is the minimum order?
One unit, with a production capacity of 100 units per month.
