Stainless Steel Tanks
Herbal Tea Extraction Tank

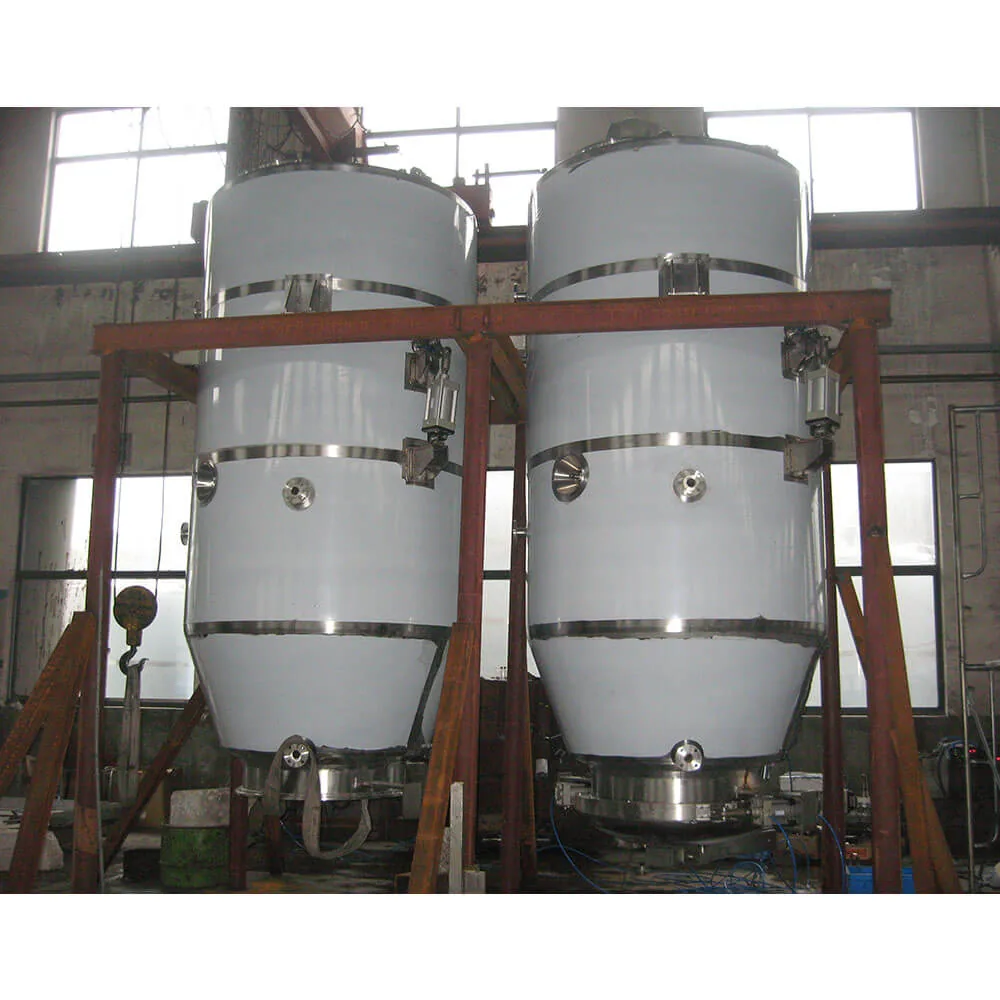

A vertical three layer extraction tank of 1000 L to 5000 L in SUS304 or SUS316L, with insulation and a dimple jacket, used to extract herbal or tea liquor from leaves.
Product Overview
A vertical three layer extraction tank of 1000 L to 5000 L in SUS304 or SUS316L, with insulation and a dimple jacket, used to extract herbal or tea liquor from leaves. It is fitted with a paddle type agitator and supplied with product inlet and outlet, an airtight manway, top elliptical cover, bottom conical cover, CIP cleaning ball, temperature sensor, high and low liquid level sensors, lifting ears and four adjustable supporting legs.
Key benefits
Why Buyers Choose This Specification
Dimple Jacket Plus Insulation
A dimple jacket transfers heat evenly across the shell and the insulation keeps it in. Extraction yield depends on holding temperature steady, not on reaching it once.
Conical Bottom for Complete Discharge
The bottom conical cover means the tank drains fully. With leaf material in the vessel, a flat bottom leaves product behind at every batch.
CIP Ball Fitted as Standard
Tea and herbal extracts stain and deposit. A fitted CIP cleaning ball is what allows a cleaning cycle without opening the vessel.
Full Instrumentation From New
Temperature sensor plus high and low level sensors come with the tank, so it can be integrated into an automated line without retrofitting.
Application scenarios
Where It Is Used
- Extracting tea liquor from tea leaves for RTD beverages
- Herbal extraction for functional drinks
- Botanical extraction for flavour concentrate production
- Batch infusion ahead of filtration and filling
- Pilot-scale extraction trials at 1000 L
- Production extraction at up to 5000 L per batch
Who it is for
The Buyers This Product Suits
Ready-to-Drink Tea Producers
Consistent extraction temperature and time is what makes each batch of tea base taste the same as the last.
Herbal and Functional Drink Makers
The vessel is built specifically for extracting from leaf material rather than for general mixing.
Plants Scaling From Pilot to Production
1000 L to 5000 L in the same design lets a recipe scale without changing the vessel geometry.
Problems it solves
What It Fixes
Extract Yield Varying Batch to Batch
Insulation and a dimple jacket hold the extraction temperature steady, which is the main variable behind yield.
Leaf Residue Left in the Vessel
The bottom conical cover allows complete discharge rather than trapping material on a flat base.
Cleaning Between Product Changes
A CIP cleaning ball and airtight manway allow cleaning in place with access when a manual clean is needed.
Specifications
Published Figures For This Product
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Product Model | HTK-CQG-01 |
|---|---|
| Product Volume | 1000 L to 5000 L, customised |
| Material | SUS304 or SUS316L |
| Structure | Vertical three layer tank with insulation and dimple jacket |
| Agitator | Paddle type |
| Covers | Top elliptical cover, bottom conical cover |
| Access | Airtight manway |
| Cleaning | CIP cleaning ball |
| Instrumentation | Temperature sensor, high and low liquid level sensors |
| Supports | Four adjustable supporting legs, lifting ears |
| Minimum Order | One unit |
| Production Capacity | 50 units per month |
| Grade | SUS304 / SUS316L |
Packing and documents
How It Ships And What Comes With It
Packing And Loading
Shipping volume for this item depends on the configuration and capacity you select, so no fixed container figure is published. Confirm the specification and the destination and a loading plan is issued with the quotation, rather than a figure we cannot support.
Documentation On File
- Dairy and Liquid Processing · Stainless Steel Tanks Specification Sheet7.8 KB
- Catalogue · Full Product Catalogue154.0 KB
Sourcing And Inspection
This product is supplied through TrueGlow Imaging, working with manufacturing partners whose facilities are visited and verified rather than taken on trust. In-process quality control and delivery supervision are available so goods are inspected before the container is sealed. Certifications quoted on this page are those stated on the product specification and belong to that product range rather than to our trading entity, so ask for the certificate covering your specific item.
Handling guide
Getting It Right First Time
Step 1
Select SUS316L where the extract is acidic or the cleaning chemistry is aggressive.
Step 2
Size the batch volume from your filling schedule rather than from the extraction time.
Step 3
Confirm heating medium and jacket pressure before the dimple jacket is designed.
Step 4
Set the agitator speed to keep leaf material suspended without shredding it.
Step 5
Include the CIP circuit flow and temperature in the cleaning validation.
Comparison
How It Compares In Our Range
Where SUS304 is sufficient and where SUS316L is needed.
| SUS304 | Standard food grade stainless, suitable for most tea and herbal extraction duties. |
|---|---|
| SUS316L | Added molybdenum for resistance to chlorides and acidic extracts, and to more aggressive cleaning chemistry. |
FAQ
Herbal Tea Extraction Tank Questions
What volumes are available?
1000 L to 5000 L, customised to your batch size.
Which materials can the tank be built in?
SUS304 or SUS316L stainless steel, both available.
What is the tank structure?
A vertical three layer tank with insulation and a dimple jacket.
What agitator is fitted?
A paddle type agitator.
What is included as standard?
Product inlet and outlet, airtight manway, top elliptical cover, bottom conical cover, CIP cleaning ball, temperature sensor, high and low liquid level sensors, lifting ears and four adjustable supporting legs.
What is the minimum order?
One unit, with a production capacity of 50 units per month.
