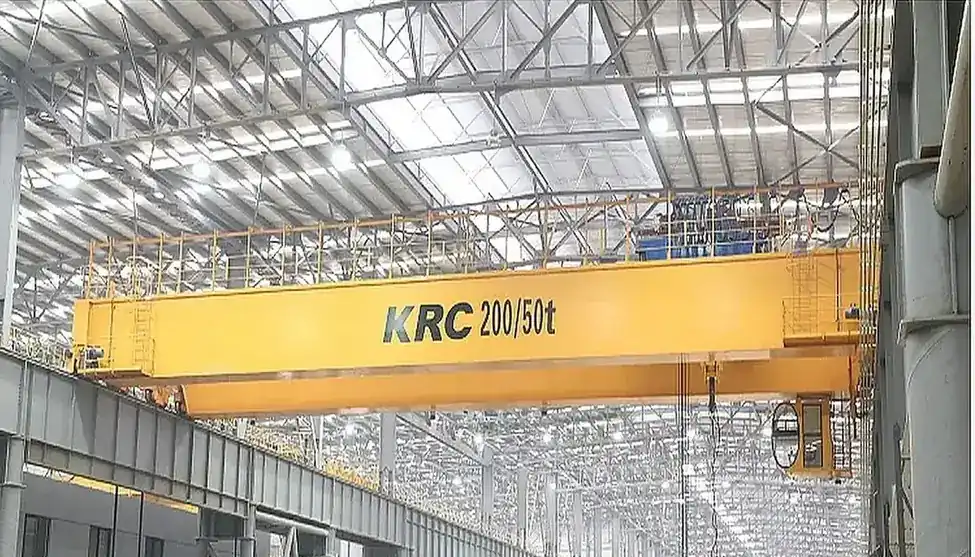

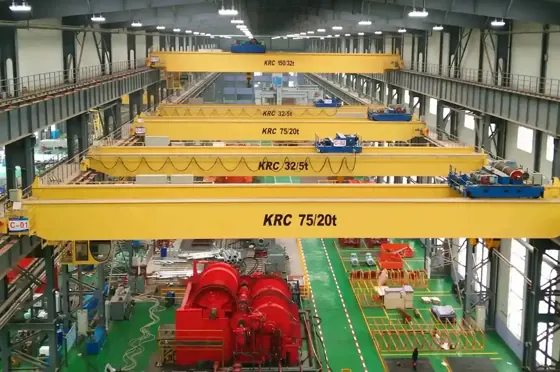

50 Ton Overhead Crane
A 50 ton overhead crane in light and winch double beam builds, both using a gearbox, motor and frequency converter and both built in Henan, China with a one year warranty.
Product Overview
A 50 ton overhead crane in light and winch double beam builds, both using a gearbox, motor and frequency converter and both built in Henan, China with a one year warranty. The light build lifts 10 to 100 tons and the winch build 10 to 360 tons, each spanning 0 to 49 metres with a maximum lifting height of 30 or 40 metres. Crane weight is 5000 kg. Both are bridge cranes and both accept customisation to the project.
Key benefits
Why Buyers Choose This Specification
Identical Core Components in Both Builds
Gearbox, motor and frequency converter are the same on the light and winch versions, so the difference in price is the drive and structure rather than the quality of the mechanics.
Capacity Range Above the Nameplate
A 50 ton duty sits in the middle of the 10 to 100 ton light range and the 10 to 360 ton winch range. Neither build is running at its structural limit at 50 tons.
Warranty and Origin Stated
One year warranty, built in Henan, China. Both appear on the specification rather than being left to the negotiation.
Customisation Inside a Fixed Envelope
Span, hook height and control format are configurable while the core drive train stays standard, which keeps delivery predictable.
Application scenarios
Where It Is Used
- Construction sites requiring certified heavy-load lifting
- Outdoor and indoor warehouses handling heavy stock
- Railroad projects moving heavy components
- Industrial plants installing and servicing large machinery
- Steel and metal handling between process stations
- Shipyard and marine component handling
Who it is for
The Buyers This Product Suits
Warehouses Handling Heavy Unit Loads
At 50 tons the load is usually a single large item. A bridge crane spanning to 49 metres reaches the whole floor area without repositioning.
Plants Needing Certified Equipment
The 50 ton range is supplied as certified high-efficiency equipment, which matters where insurers or main contractors audit lifting gear.
Projects With Non-Standard Geometry
Both builds allow customisation to fit the project rather than forcing the project to a catalogue size.
Problems it solves
What It Fixes
Unknown Crane Dead Weight at Design Stage
Runway calculations need the crane weight. It is published at 5000 kg for this range rather than supplied late.
No Warranty Position in the Quote
A one year warranty is part of the specification for both builds.
Choosing Between Light and Winch at 50 Tons
The capacity ranges overlap at 50 tons, so the decision is duty cycle and pulling, not tonnage. Both are quoted so the difference is priced.
Specifications
Published Figures For This Product
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Rated Lifting Capacity | 50 tons |
|---|---|
| Light Build Lifting Load | 10 to 100 tons |
| Winch Build Lifting Load | 10 to 360 tons |
| Crane Feature | Bridge crane |
| Core Components | Gearbox, motor, frequency converter |
| Span Range | 0-49 m |
| Max Lifting Height | 30 m / 40 m |
| Weight | 5000 kg |
| Place of Origin | Henan, China |
| Warranty | 1 year |
| Grade | Light and winch versions |
Packing and documents
How It Ships And What Comes With It
Packing And Loading
Shipping volume for this item depends on the configuration and capacity you select, so no fixed container figure is published. Confirm the specification and the destination and a loading plan is issued with the quotation, rather than a figure we cannot support.
Documentation On File
- Cranes and Material Handling · Overhead Cranes Specification Sheet32.4 KB
- Catalogue · Full Product Catalogue154.0 KB
Sourcing And Inspection
This product is supplied through TrueGlow Imaging, working with manufacturing partners whose facilities are visited and verified rather than taken on trust. In-process quality control and delivery supervision are available so goods are inspected before the container is sealed. Certifications quoted on this page are those stated on the product specification and belong to that product range rather than to our trading entity, so ask for the certificate covering your specific item.
Handling guide
Getting It Right First Time
Step 1
Give span and hook height, then state whether the crane lifts only or also pulls.
Step 2
Supply the runway design load so the 5000 kg crane weight plus payload can be checked against it.
Step 3
Confirm the control format: wireless remote, cab or handheld.
Step 4
Agree the commissioning and load test procedure before shipment.
Step 5
Record the warranty start date at commissioning rather than at despatch.
Comparison
How It Compares In Our Range
Light and winch, same core components, different lifting range.
| Light Overhead Crane 50 Ton | Lifting load 10 to 100 tons, span 0-49 m, bridge crane, gearbox, motor and frequency converter, 5000 kg, 1 year warranty. |
|---|---|
| Winch Overhead Crane 50 Ton | Lifting load 10 to 360 tons, span 0-49 m, bridge crane, same core components, 5000 kg, 1 year warranty. |
FAQ
50 Ton Overhead Crane Questions
How much does the crane itself weigh?
5000 kg for this range. Use that figure with the payload when checking the runway.
Where is it manufactured?
Henan, China.
What is covered by the warranty?
One year on the supplied crane. Confirm the start date at commissioning when you place the order.
What is the maximum span?
0 to 49 metres on both the light and winch builds.
Can it be customised?
Yes. Span, hook height and control format are set to the project, and the lifting range extends to 100 tons on the light build and 360 tons on the winch build.
Is a load test carried out?
A load test at commissioning is standard practice and is agreed in the contract before shipment.
