Overhead Cranes
20 Ton Overhead Crane Solution
Three 20 ton builds for indoor bays and outdoor yards.
Product Overview

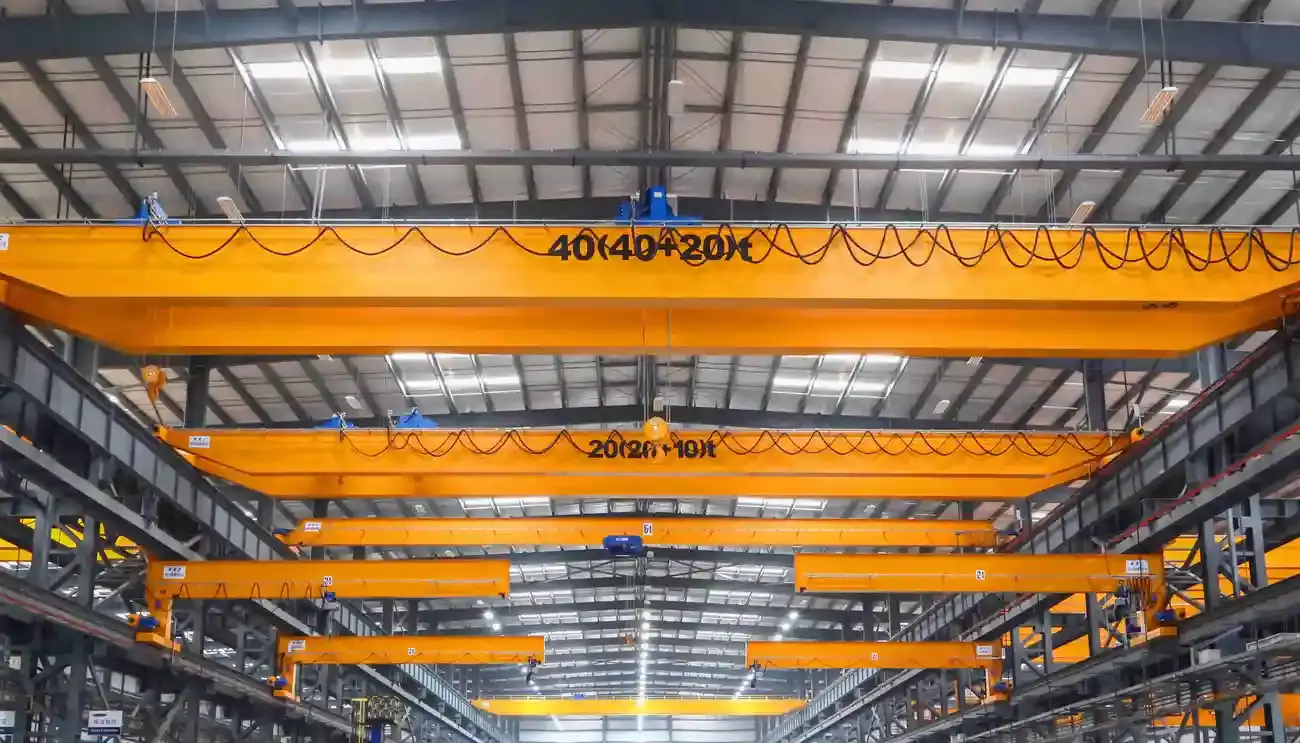

Three 20 ton builds for indoor bays and outdoor yards. The light 20 ton overhead crane handles general industrial lifting with a gearbox, motor and frequency converter for controlled load movement, spanning up to 49 metres with 30 to 40 metres of hook height. The winch build is for plants that lift and pull frequently and can be specified anywhere from 5 to 360 tons. The gantry version puts the same duty over an outdoor warehouse, railroad or construction site.
Key benefits
Why Buyers Choose This Specification
Indoor and Outdoor Covered by One Enquiry
Rather than quoting a crane and then discovering the lift happens in the yard, the overhead and gantry options are priced against the same duty so the site decides the build.
Smooth Precise Load Control
The gearbox, motor and frequency converter combination is fitted so a 20 ton load can be inched into position rather than dropped onto it. That matters most on machine installation and die changes.
Customisable Well Beyond 20 Tons
The winch build is customisable from 5 up to 360 tons on the same design family, so a plant expecting heavier work later is not buying a dead end.
Full Span and Height Range
Up to 49 metres of span and 30 to 40 metres of indoor lifting height covers almost any single-bay industrial building without a special design.
Application scenarios
Where It Is Used
- Outdoor warehouse handling where no overhead runway exists
- Railroad yards moving rolling stock components and track material
- Construction sites lifting and positioning heavy sections
- Mining sites lifting heavy machinery, equipment and materials
- Light industrial production bays with regular 20 ton lifts
- Frequent lifting and pulling duty in heavy manufacturing
Who it is for
The Buyers This Product Suits
Plants Lifting and Pulling
If the hook regularly drags as well as lifts, the winch 20 ton build is the one designed for it. The light build is not.
Outdoor Warehouses and Yards
A 20 ton gantry crane puts the capacity over stock stored outdoors without any building steel.
Light Construction and Industrial Sites
The light overhead build is specified for a wide range of heavy lifting on sites where the crane is not running continuously.
Problems it solves
What It Fixes
Positioning Accuracy on Machine Installation
Setting a machine bed needs millimetre control at the end of a 20 ton lift. Frequency converter drive gives the slow end of the speed range to do it.
No Building to Hang a Crane From
Outdoor warehouses, railroads and construction sites have no runway. The gantry build carries the same duty on its own legs.
A Crane Sized for Today Only
Specifying inside a family that runs to 360 tons means the next capacity step is a design change, not a replacement.
Specifications
Published Figures For This Product
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Rated Lifting Capacity | 20 tons |
|---|---|
| Light Overhead Range | 5 to 100 tons |
| Winch Overhead Range | 5 to 360 tons |
| Crane Type | Light double beam overhead crane |
| Core Components | Gearbox, motor, frequency converter |
| Hoist | European-style electric wire rope hoist |
| Span Range | 0-49 m |
| Max Lifting Height | 30 m / 40 m |
| Lifting Speed | 0.4-16 m/min |
| Long Travelling Speed | 5-90 m/min |
| Cross Travelling Speed | 4-40 m/min |
| Control Options | Wireless remote, cab control, handheld pendant |
| Place of Origin | Henan, China |
| Warranty | 1 year |
| Certifications | CE, ISO |
| Grade | Three configurations |
Packing and documents
How It Ships And What Comes With It
Packing And Loading
Shipping volume for this item depends on the configuration and capacity you select, so no fixed container figure is published. Confirm the specification and the destination and a loading plan is issued with the quotation, rather than a figure we cannot support.
Documentation On File
- Cranes and Material Handling · Overhead Cranes Specification Sheet32.4 KB
- Catalogue · Full Product Catalogue154.0 KB
Sourcing And Inspection
This product is supplied through TrueGlow Imaging, working with manufacturing partners whose facilities are visited and verified rather than taken on trust. In-process quality control and delivery supervision are available so goods are inspected before the container is sealed. Certifications quoted on this page are those stated on the product specification and belong to that product range rather than to our trading entity, so ask for the certificate covering your specific item.
Handling guide
Getting It Right First Time
Step 1
Decide indoors or outdoors first: that selects overhead or gantry before any other question.
Step 2
Send span and clear height, since 49 metres of span and 30 to 40 metres of lift are the working limits.
Step 3
Count lifts per shift and note whether loads are pulled horizontally, to separate light from winch duty.
Step 4
Confirm the control format, as wireless, cab and handheld are all offered.
Step 5
Check the foundation or rail can take gantry wheel loads if the outdoor option is chosen.
Comparison
How It Compares In Our Range
Same 20 tons, three different working environments.
| Light 20 Ton Overhead | Gearbox, motor and frequency converter. Span to 49 m, indoor lift height 30 to 40 m. Light construction and industrial duty. |
|---|---|
| Winch 20 Ton Overhead | Bridge design for frequent lifting and pulling. Customisable from 5 to 360 tons. |

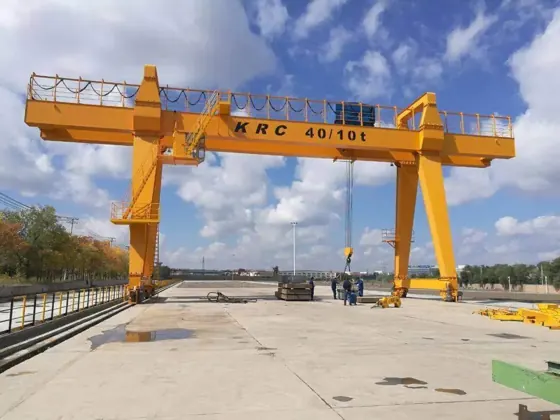

| 20 Ton Gantry | Outdoor lifting and lowering at construction sites, manufacturing yards, railroads, shipyards and outdoor warehouses. |
FAQ
20 Ton Overhead Crane Solution Questions
What is the difference between the light and winch versions?
The winch build is specified where the crane lifts and pulls frequently. The light build is for regular lifting only and costs less.
Can the gantry be used indoors?
It can, but it takes floor space that an overhead crane does not. If the building has or can take a runway, the overhead build is usually the better answer.
How high will it lift indoors?
30 to 40 metres, subject to the clear height of your building.
Can you go above 20 tons later?
Yes. The winch build is customisable from 5 to 360 tons within the same design family.
What controls are supplied?
Wireless remote, cab control or handheld pendant. State which before the electrical design is finalised.
How long does installation take?
It depends on the span and whether the runway exists. Send your building or yard drawing on WhatsApp and installation is quoted with the crane.
