200 Ton Crane Solution

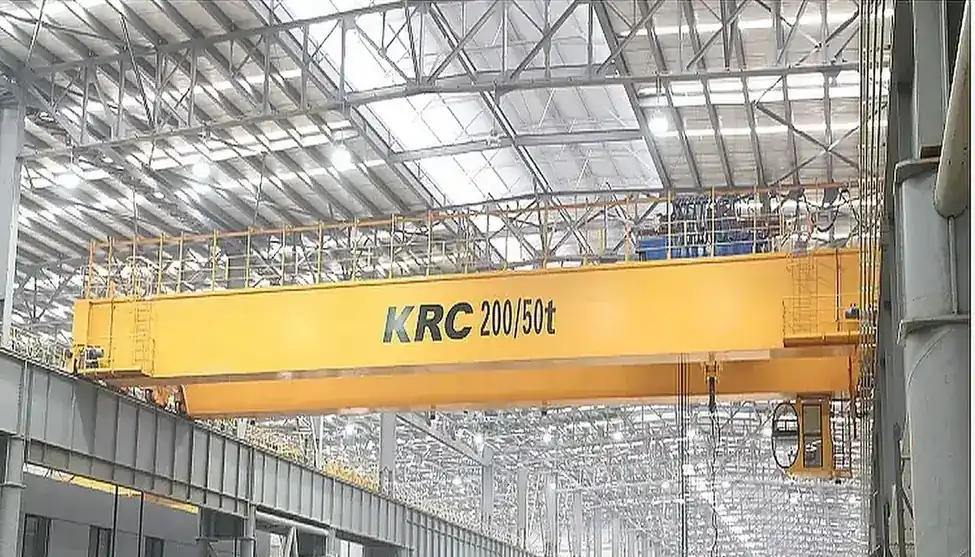

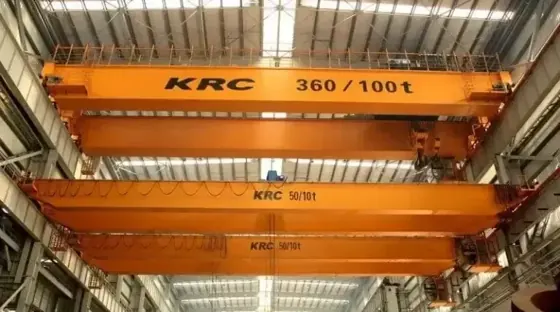

A 200 ton winch double beam overhead crane for construction, heavy manufacturing, shipbuilding, aerospace, metal and mining, power generation and transport work.
Product Overview
A 200 ton winch double beam overhead crane for construction, heavy manufacturing, shipbuilding, aerospace, metal and mining, power generation and transport work. Lifting load is 100 to 360 tons over a span range of 0 to 49 metres, with a maximum lifting height of 30 or 40 metres, lifting speed 0.4-20 m/min, long travelling 5-90 m/min and cross travelling 4-40 m/min. Core components are a gearbox, motor and frequency converter, with a European-style electric wire rope hoist. Built in Henan, China with CE and ISO certification and a one year warranty.
Key benefits
Why Buyers Choose This Specification
Full Motion Data Published
Lifting 0.4-20 m/min, long travelling 5-90 m/min and cross travelling 4-40 m/min are all stated, so a handling cycle at 200 tons can be timed on paper before the order.
Sized From 100 Tons Upward
This frame is rated 100 to 360 tons. A 200 ton duty sits in the middle of the range rather than at the edge of a lighter design.
Three Control Formats at Heavy Capacity
Wireless remote control, cab control and handheld control are all offered, so the operating position can follow the application rather than the crane.
Certification and Warranty on Record
CE and ISO certification with a one year warranty and a declared place of origin in Henan, China.
Application scenarios
Where It Is Used
- Shipbuilding handling major hull blocks
- Power generation installing turbines, generators and transformers
- Metal and mining plants moving furnaces and process equipment
- Aerospace facilities lifting large tooling and structures
- Heavy manufacturing handling complete fabricated assemblies
- Transport and logistics moving project cargo
Who it is for
The Buyers This Product Suits
Plants Timing Their Handling Cycles
Published lifting and travelling speeds let production planning calculate crane throughput instead of estimating it.
EPC Contractors
Power generation, metal and mining projects need certified lifting equipment with traceable specification data for the site file.
Shipyards Handling Blocks
A 0 to 49 metre span with 100 to 360 tons of lifting load covers block handling in most building halls.
Problems it solves
What It Fixes
Estimating Throughput Without Speed Data
All three motion speeds are published, so cycle times are calculable rather than assumed.
Operator Sightlines at 200 Tons
Cab control keeps the operator with the load on long runways where a floor remote loses the view.
Approval Delays on Site
CE and ISO certification supplied with the crane removes one of the common mobilisation hold points.
Specifications
Published Figures For This Product
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Product Name | Winch Double Beam Overhead Crane |
|---|---|
| Lifting Load | 100 to 360 tons |
| Core Components | Gearbox, motor, frequency converter |
| Crane Feature | Bridge crane |
| Span Range | 0-49 m |
| Max Lifting Height | 30 m / 40 m |
| Lifting Speed | 0.4-20 m/min |
| Long Travelling Speed | 5-90 m/min |
| Cross Travelling Speed | 4-40 m/min |
| Hoist | European-style electric wire rope hoist |
| Control Options | Wireless remote control, cab control, handheld control |
| Weight | 5000 kg |
| Place of Origin | Henan, China |
| Warranty | 1 year |
| Certifications | CE, ISO |
| Grade | CE and ISO certified |
Packing and documents
How It Ships And What Comes With It
Packing And Loading
Shipping volume for this item depends on the configuration and capacity you select, so no fixed container figure is published. Confirm the specification and the destination and a loading plan is issued with the quotation, rather than a figure we cannot support.
Documentation On File
- Cranes and Material Handling · Overhead Cranes Specification Sheet32.4 KB
- Catalogue · Full Product Catalogue154.0 KB
Sourcing And Inspection
This product is supplied through TrueGlow Imaging, working with manufacturing partners whose facilities are visited and verified rather than taken on trust. In-process quality control and delivery supervision are available so goods are inspected before the container is sealed. Certifications quoted on this page are those stated on the product specification and belong to that product range rather than to our trading entity, so ask for the certificate covering your specific item.
Handling guide
Getting It Right First Time
Step 1
Confirm runway and building steel capacity for a 200 ton crane before design starts.
Step 2
Send span, hook height and the required cycle rate so speeds can be checked against your throughput.
Step 3
Select the control format; at this capacity cab control is the usual choice.
Step 4
Request CE and ISO certificates for the project quality file at order stage.
Step 5
Schedule load testing, operator training and handover documentation at commissioning.
Comparison
How It Compares In Our Range
The 200 ton winch build against the lighter overhead range.
| Winch Double Beam 200 Ton | Lifting load 100 to 360 tons, span 0-49 m, lift 30/40 m, lifting 0.4-20 m/min, long travel 5-90 m/min, cross travel 4-40 m/min, CE and ISO. |
|---|---|
| Light Double Beam Cranes | 5 to 100 tons at 0.4-16 m/min. Suitable for regular production lifting, not for 200 ton duty. |
FAQ
200 Ton Crane Solution Questions
What is the lifting load range?
100 to 360 tons on this frame, so 200 tons is inside the normal working range.
How fast does it travel?
Lifting 0.4-20 m/min, long travelling 5-90 m/min and cross travelling 4-40 m/min.
What certification is supplied?
CE and ISO. Certificates are provided with the documentation package.
Where is the crane built?
Henan, China, with a one year warranty.
What hoist is fitted?
A European-style electric wire rope hoist.
Can the operator work from a cab?
Yes. Wireless remote control, cab control and handheld control are all available.
