Fruit Processing Machines

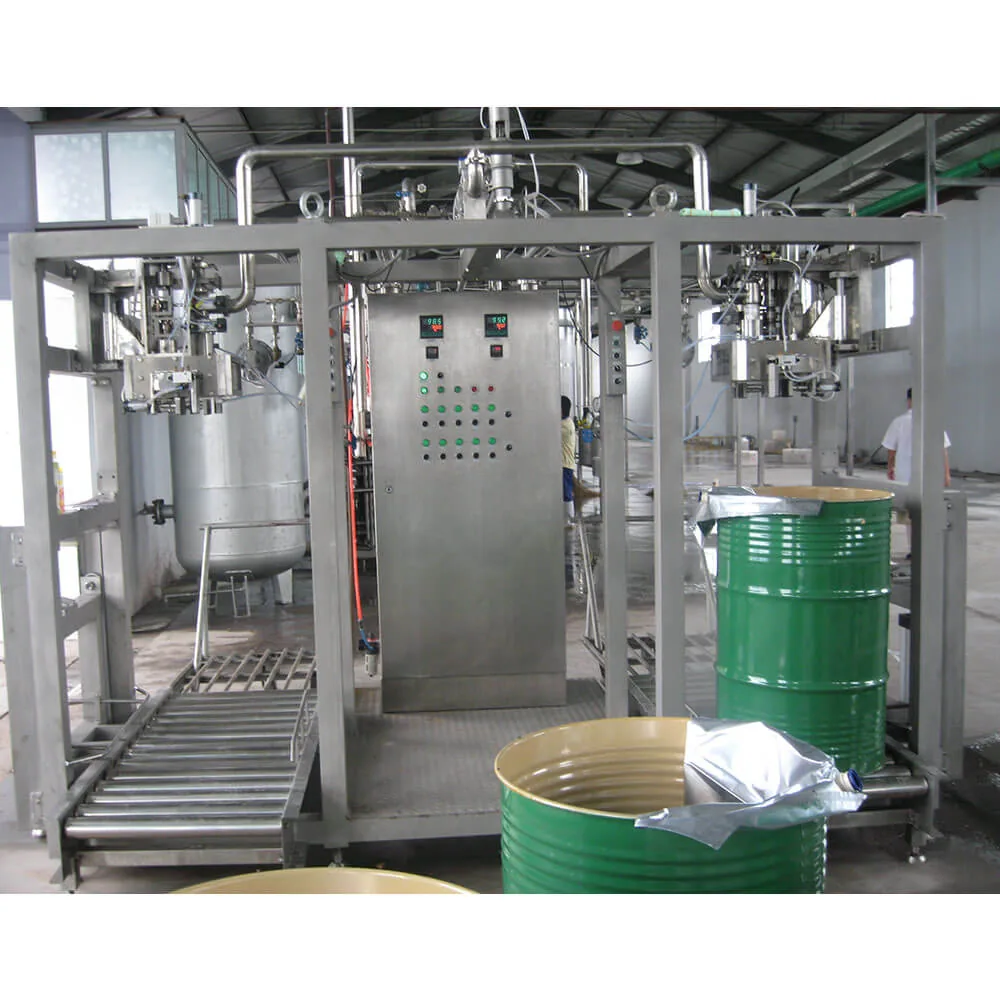

Aseptic Bag Filling Machine
An aseptic bag filling machine handling 1 T/H to 30 T/H in SUS304 or SUS316L, available with a single head or a double head.
Product Overview
An aseptic bag filling machine handling 1 T/H to 30 T/H in SUS304 or SUS316L, available with a single head or a double head. It fills sterilised juice, puree and concentrate into aseptic bags for bulk shipment, which is how processed fruit moves between processors without a cold chain. Minimum order is one unit with 10 units produced per month.
Key benefits
Why Buyers Choose This Specification
Double Head for Continuous Filling
A second head fills the next bag while the first is being changed. On a continuous steriliser upstream, that is the difference between running and stopping.
Bulk Product Without Cold Chain
Aseptic bagging is what lets concentrate and puree ship at ambient temperature, which is the entire economics of bulk fruit trade.
Capacity Range of Thirty to One
1 T/H to 30 T/H covers small seasonal operations through to large juice plants on the same machine family.
Material Choice for Acidic Product
SUS304 or SUS316L, so the specification follows the acidity of the product being filled.
Application scenarios
Where It Is Used
- Filling sterilised mango puree into aseptic bags
- Bulk concentrated juice for export
- Tomato paste bagged in drums for industrial customers
- Seasonal fruit processed and stored as aseptic bulk
- Supplying beverage plants with bulk aseptic base
- Small-scale aseptic production at 1 T/H
Who it is for
The Buyers This Product Suits
Fruit Processing Plants
The machine is used widely on fruit juice production lines, at the point where processed product becomes a tradeable bulk commodity.
Exporters of Puree and Concentrate
Aseptic bags in drums or bins ship at ambient, which removes refrigerated freight from the cost.
Seasonal Processors
Bagging aseptically lets a short harvest be processed once and drawn down through the year.
Problems it solves
What It Fixes
Cold Chain Cost on Bulk Product
Aseptic bag filling makes ambient shipment possible for sterilised product.
Filler Stopping the Steriliser
A double-head machine keeps filling while a bag is changed, which keeps a continuous steriliser running.
Energy Cost per Tonne Filled
Energy saving is an explicit design characteristic of this machine.
Specifications
Published Figures For This Product
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Product Model | HTK-WJGZ-01 |
|---|---|
| Working Capacity | 1 T/H to 30 T/H, customised |
| Material | SUS304 or SUS316L |
| Configurations | Single head or double-head |
| Application | Fruit juice production lines, aseptic bag filling |
| Minimum Order | One unit |
| Production Capacity | 10 units per month |
| Grade | SUS304 or SUS316L |
Packing and documents
How It Ships And What Comes With It
Packing And Loading
Shipping volume for this item depends on the configuration and capacity you select, so no fixed container figure is published. Confirm the specification and the destination and a loading plan is issued with the quotation, rather than a figure we cannot support.
Documentation On File
- Fruit Beverage and Packaging · Fruit Processing Machines Specification Sheet18.5 KB
- Catalogue · Full Product Catalogue154.0 KB
Sourcing And Inspection
This product is supplied through TrueGlow Imaging, working with manufacturing partners whose facilities are visited and verified rather than taken on trust. In-process quality control and delivery supervision are available so goods are inspected before the container is sealed. Certifications quoted on this page are those stated on the product specification and belong to that product range rather than to our trading entity, so ask for the certificate covering your specific item.
Handling guide
Getting It Right First Time
Step 1
Match filler capacity to the steriliser upstream so neither waits for the other.
Step 2
Choose single or double head based on whether upstream processing is batch or continuous.
Step 3
Confirm bag size, spout type and drum or bin format before ordering.
Step 4
Validate the sterile filling environment at commissioning with a challenge test.
Step 5
Plan bag and spout supply logistics ahead of the season, since they are the consumable that stops the line.
Comparison
How It Compares In Our Range
Single head against double head.
| Single Head Filling Machine | Lower cost, suited to batch upstream processing where a pause between bags is acceptable. |
|---|---|
| Double-Head Filling Machine | Fills continuously by alternating heads, which keeps a continuous steriliser upstream running without interruption. |
FAQ
Aseptic Bag Filling Machine Questions
What capacity is available?
1 T/H to 30 T/H, customised to your line.
Single head or double head?
Both are available. Choose from whether your upstream process is batch or continuous.
Which materials are used?
SUS304 or SUS316L.
Where is it used?
Widely on fruit juice production lines, filling sterilised product into aseptic bags.
What is the minimum order?
One unit, with a production capacity of 10 units per month.
What is the model number?
HTK-WJGZ-01.
