Dental Microscope

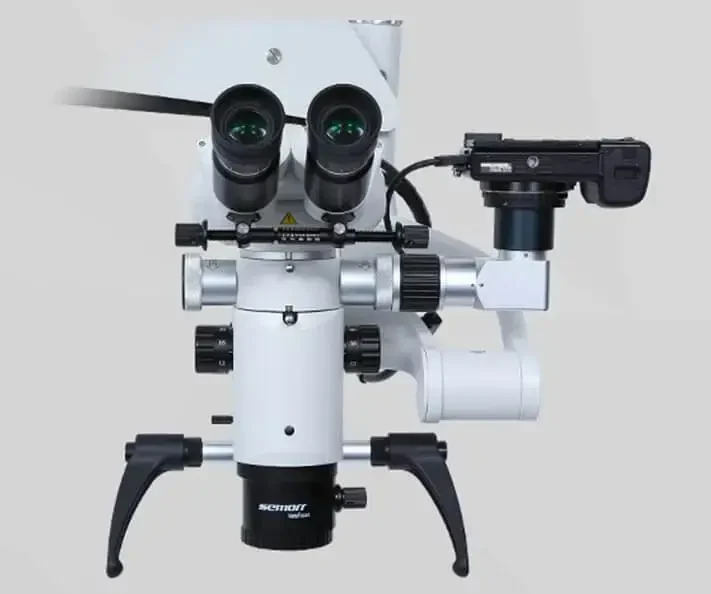

A dental operating microscope with 4K recording at 30fps on a Sony image sensor and static images up to 12MP (4000 x 3000).
Product Overview
A dental operating microscope with 4K recording at 30fps on a Sony image sensor and static images up to 12MP (4000 x 3000). Magnification is 3.6X to 23X with 12.5X eyepieces at an 18 mm aperture and a 250 mm focal length, with 200 mm and 400 mm objective lens options. LED illumination exceeds 80,000 lux at 6500K with an 85 mm spot, and yellow (CB550) and green filters are fitted. It stands on a mobile base, weighs 125 kg and measures 1250 mm x 1080 mm x 470 mm.
Key benefits
Why Buyers Choose This Specification
Documentation Built In Not Added
4K at 30fps and 12MP stills with storage on a TF card up to 128GB means the case record comes off the microscope itself rather than a bolted-on camera.
Two Objective Options
200 mm and 400 mm objectives change the working distance between the lens and the patient. Endodontic and restorative work want different figures, and both are available on the same stand.
Illumination Above 80,000 Lux
At 6500K with an 85 mm spot, the field is lit to natural daylight colour. Yellow CB550 and green filters are supplied for composite work and for contrast on soft tissue.
Four Ways to Control It
Mobile app, wireless remote, tablet and PC. Recording can be started without the operator breaking sterility or leaving the eyepieces.
Application scenarios
Where It Is Used
- Endodontic treatment requiring high magnification and documented canals
- Restorative dentistry checking margins under magnification
- Case documentation for patient records and insurance
- Teaching clinics live streaming procedures to students
- Implant placement work needing controlled illumination
- Practices sharing case data with a PC over wireless transfer
Who it is for
The Buyers This Product Suits
Endodontists
3.6X to 23X zoom with more than 80,000 lux of illumination is the specification that makes canal work visible.
Teaching and Training Clinics
Live streaming is supported with an additional live broadcast module, and 4K recording covers the case archive.
Practices Building a Case Library
TF card storage to 128GB plus wireless download to a PC means recordings do not have to be moved by hand.
Problems it solves
What It Fixes
Separate Cameras That Never Get Used
Recording is integrated at 4K with app, remote, tablet and PC control, so documentation happens during the procedure rather than after it.
Working Distance That Does Not Suit the Procedure
Objective lens options between 200 mm and 400 mm set the working distance to the type of work.
Colour Shift Under Clinical Light
The 6500K LED source provides natural light quality, and CB550 and green filters are available where composite handling requires them.
Specifications
Published Figures For This Product
Every value below comes from our own product specification. Where a figure is not published we leave it out rather than estimating it.
| Video Recording | 4K Ultra HD, 30fps, Sony image sensor |
|---|---|
| Static Image Resolution | Up to 12MP (4000 x 3000) |
| Control Methods | Mobile app, wireless remote, tablet, PC |
| Storage | TF card up to 128GB |
| Wireless Data Transfer | Download to PC via wireless connection |
| Live Streaming | Supported with additional live broadcast module |
| Eyepieces | 12.5X, aperture 18 mm |
| Binoculars | 0-210 degree adjustable inclination |
| Magnification | 3.6X-23X zoom, 250 mm focal length |
| Objective Lens | 200-400 mm options |
| LED Illumination | Variable brightness, more than 80,000 lux |
| Spot Size | 85 mm diameter |
| Light Filters | Yellow (CB550) and green |
| Colour Temperature | 6500K natural light |
| Swing Arm | 460 mm radius, 360 degree rotation |
| Microscope Arm | 700 mm radius, plus or minus 315 mm up and down motion |
| Voltage | AC100-250V, 50/60Hz |
| Power Consumption | Max 70VA, light source 20VA |
| Weight | 125 kg |
| Dimensions | 1250 mm x 1080 mm x 470 mm |
| Support System | Standard mobile base |
| Grade | 3.6X-23X zoom |
Packing and documents
How It Ships And What Comes With It
Packing And Loading
Shipping volume for this item depends on the configuration and capacity you select, so no fixed container figure is published. Confirm the specification and the destination and a loading plan is issued with the quotation, rather than a figure we cannot support.
Documentation On File
- Dental and Imaging Equipment · Dental Microscopes Specification Sheet6.8 KB
- Catalogue · Full Product Catalogue154.0 KB
Sourcing And Inspection
This product is supplied through TrueGlow Imaging, working with manufacturing partners whose facilities are visited and verified rather than taken on trust. In-process quality control and delivery supervision are available so goods are inspected before the container is sealed. Certifications quoted on this page are those stated on the product specification and belong to that product range rather than to our trading entity, so ask for the certificate covering your specific item.
Handling guide
Getting It Right First Time
Step 1
Select the objective lens first: 200 mm or 400 mm, based on your usual working distance.
Step 2
Set the binocular inclination within the 0 to 210 degree range for a neutral seated posture.
Step 3
Fit a TF card up to 128GB before first use if you intend to record.
Step 4
Add the live broadcast module separately if live streaming is required.
Step 5
Allow for a 125 kg unit on a mobile base measuring 1250 mm x 1080 mm x 470 mm when planning the room.
Comparison
How It Compares In Our Range
The two configuration choices that most affect clinical use.
| 200 mm Objective | Shorter working distance between lens and field, usually preferred for close restorative work. |
|---|---|
| 400 mm Objective | Longer working distance, giving more room between the microscope and the patient. |
FAQ
Dental Microscope Questions
What magnification range does it cover?
3.6X to 23X zoom, using 12.5X eyepieces with an 18 mm aperture and a 250 mm focal length.
Can it record in 4K?
Yes, 4K at 30fps on a Sony image sensor, with static images up to 12MP at 4000 x 3000.
How is the data transferred?
Stored on a TF card up to 128GB and downloaded to a PC over a wireless connection.
Is live streaming supported?
Yes, but it requires an additional live broadcast module.
How bright is the illumination?
Variable brightness LED with minimum illumination above 80,000 lux at 6500K, with an 85 mm diameter spot.
What power supply does it need?
AC100-250V at 50/60Hz. Total power consumption is a maximum of 70VA, of which the light source draws 20VA.
