Strip Processing Equipment and Rolling Mill Spare Parts Built To Your Drawing
Tension levelers, scale breakers, trimmers, shears and the roll cassettes, work rolls, bearings and CV joints that keep them running. Engineered in Xiangyang, China for pickling, galvanizing, colour coating and cut to length lines.
Equipment and Spare Parts For Strip Processing Lines
Two product families in one factory. Complete machines for pickling, galvanizing, colour coating, slitting and cut to length lines, and the consumable parts those machines wear out.

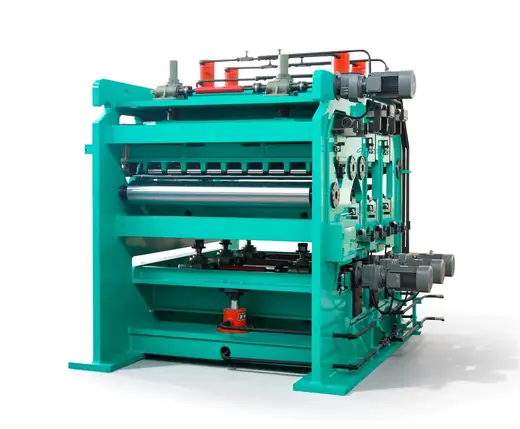

Tension Levelers
Machines that stretch and bend strip under tension so its shape and internal stress are corrected together.
Read More

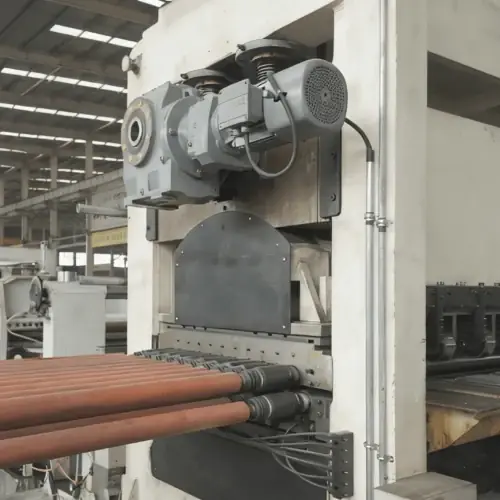

Multi Roll Levelers
Levelers with a high roll count for thin and high value strip, where correction has to be gradual rather than forceful.
Read More

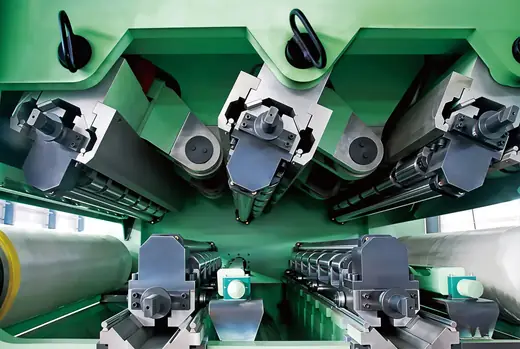

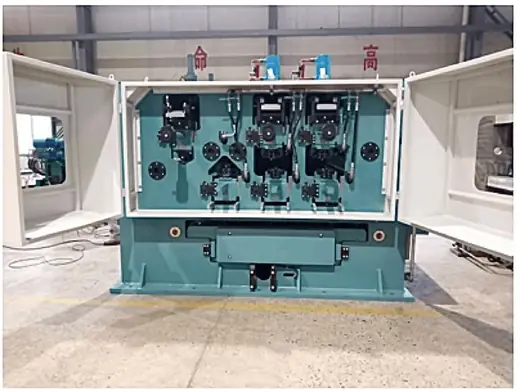

Scale Breakers
Tension leveling equipment installed in front of the pickling tanks, where it cracks the oxide layer and corrects shape in one pass.
Read More

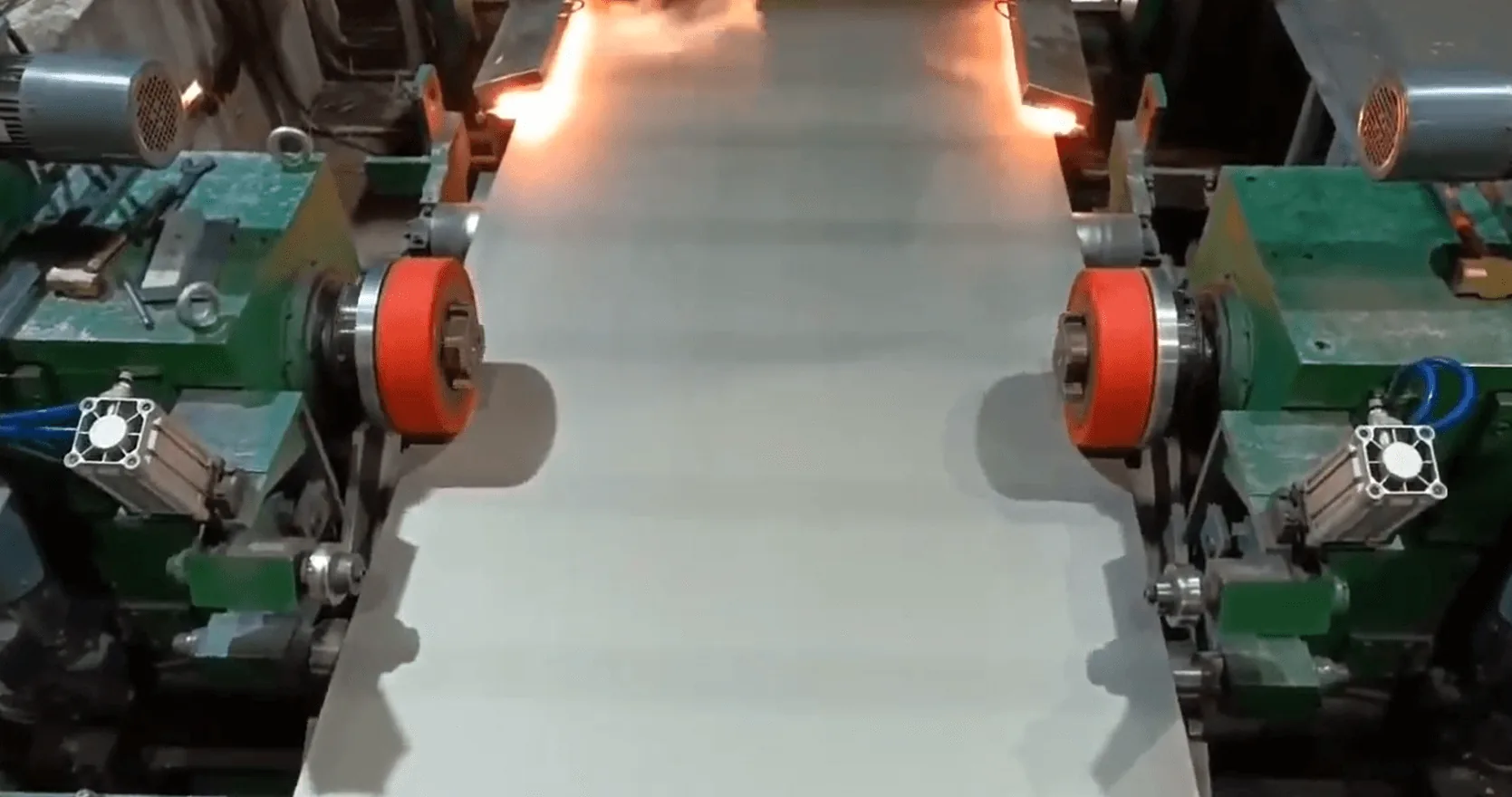

Side Trimmers
Equipment that removes defective strip edges so width stays constant and cracks never reach the next process.
Read More

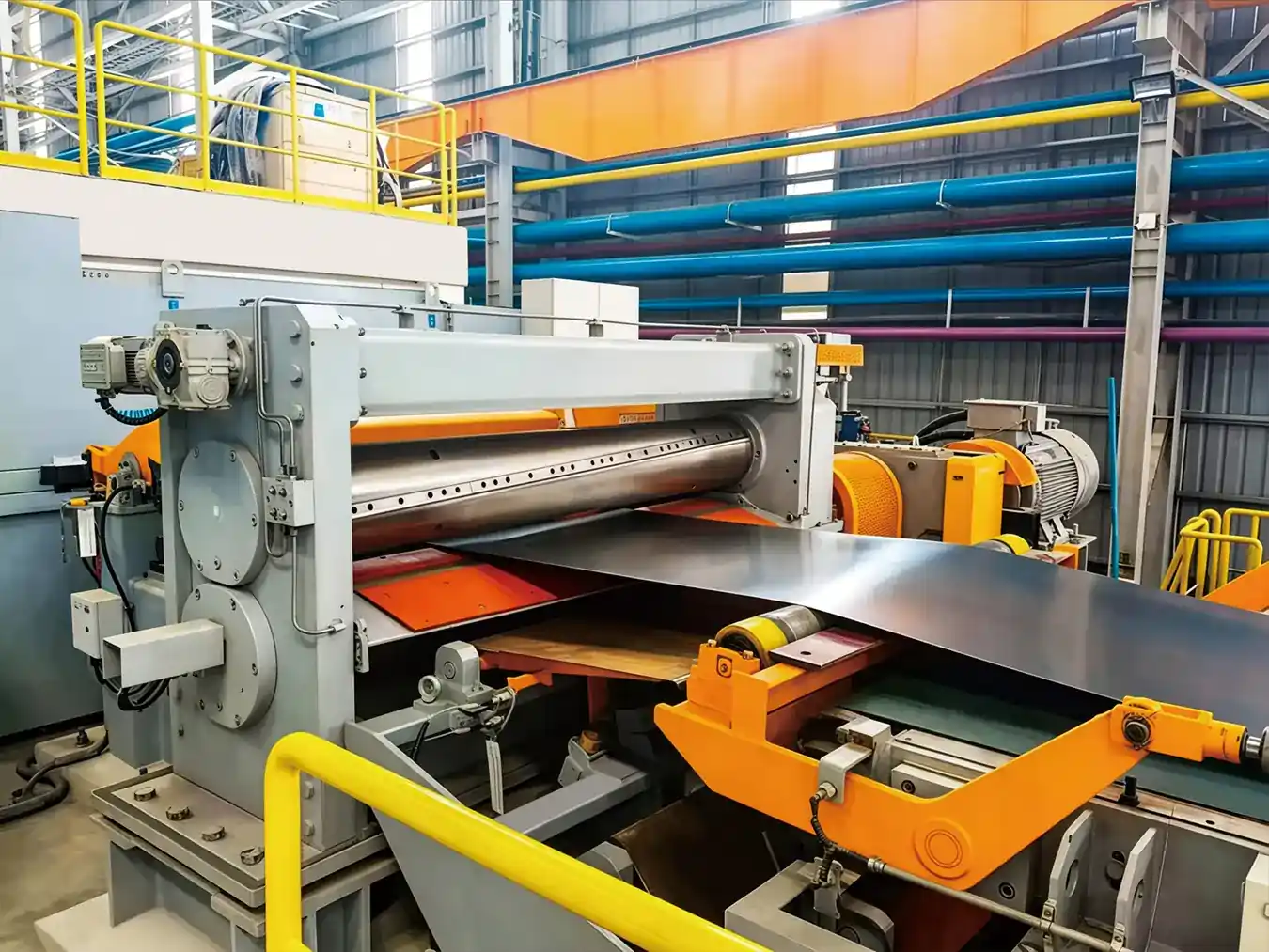

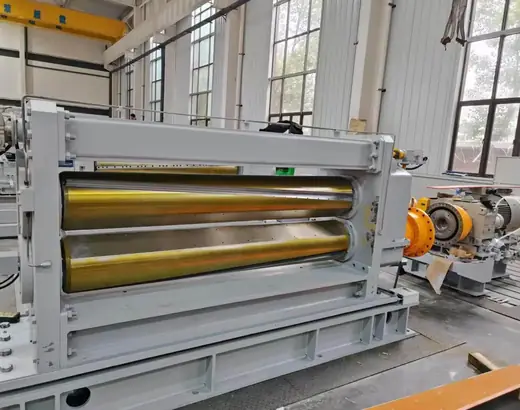

Fly Shears
Shears that cut while the strip keeps moving, so the line never decelerates for a crop.
Read More
Scrap Choppers
The machine that keeps the trimming section running by chopping edge scrap as fast as it is produced.
Read More

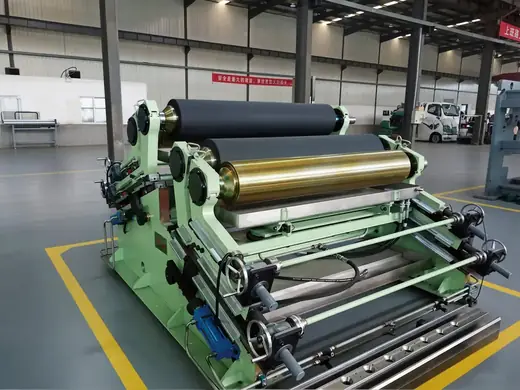

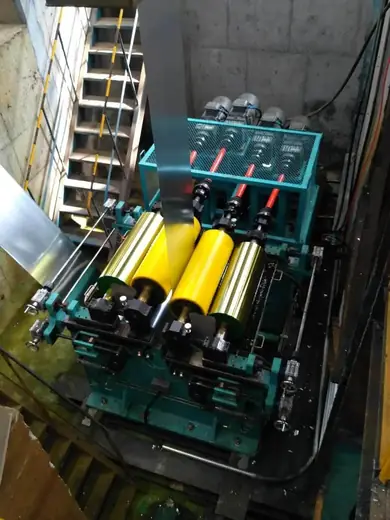

Roll Coaters
Finishing equipment that applies paint or passivation solution evenly across the strip surface.
Read More
Work Rolls
The rolls that contact the strip directly and therefore set flatness precision and surface quality.
Read More
Back Up Rolls
The support side of the cassette, where rigidity comes from, and the first place to look when flatness will not hold.
Read More

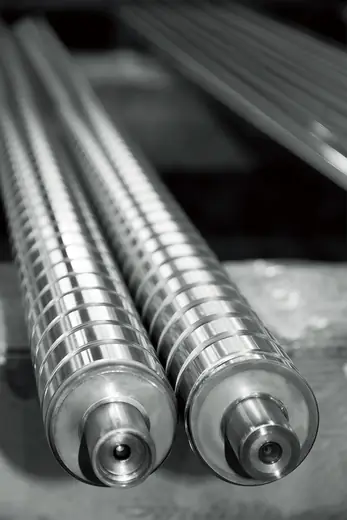

Intermediate Rolls
The bridge between work rolls and back up rolls, carrying bending load across to the support side.
Read More

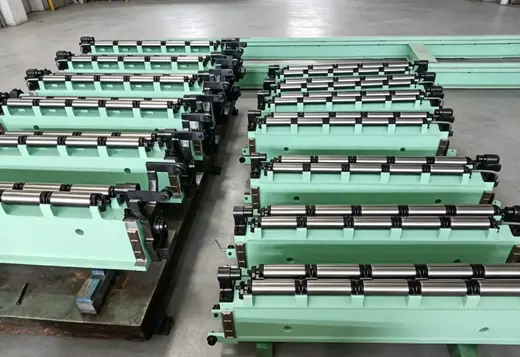

Roll Cassettes
The assembly that holds the work and intermediate rolls in position, and therefore sets the precision the whole machine can reach.
Read More
Roll End Supports
Small parts at the ends of the roll set that keep the rolls exactly where the cassette design puts them.
Read More

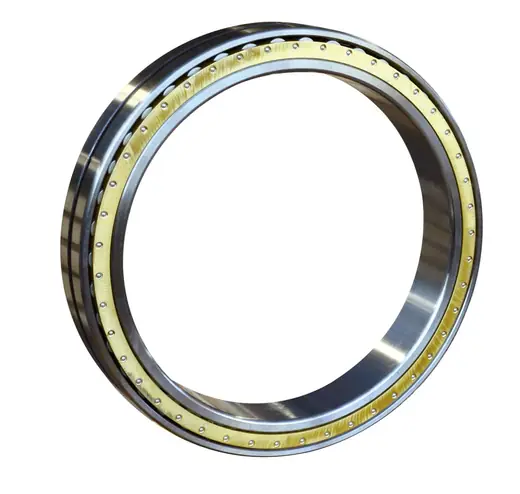

Bearings
Bearings for positions where cages fail first: low speed high load, shock loading and heavy radial duty.
Read More
CV Joints and Couplings
Constant velocity joints and couplings that replace cross joints in drives where speed fluctuation shows up in the product.
Read More
Universal Joints
The heaviest joints in the range, built for drive positions where a failure stops the whole line.
Read MoreProducts Buyers Ask For Most
A cross section of the catalogue, from complete leveling lines to the rolls and cassettes inside them.
Tension Leveler for 1550 mm Galvanizing Lines
1550 mm galvanizing line tension leveler with two bending rows and balancing rollers.
View DetailsScale Breaker for Push Pull Pickling Line 800-1350 mm
Tension leveler type scale breaker for push pull pickling lines handling 800-1350 mm hot rolled strip.
View DetailsHigh Speed Fly Shear for Continuous Strip Cutting
Rotary fly shear cutting at line speed, up to 2500 strokes per minute with carbide tipped blades.
View Details

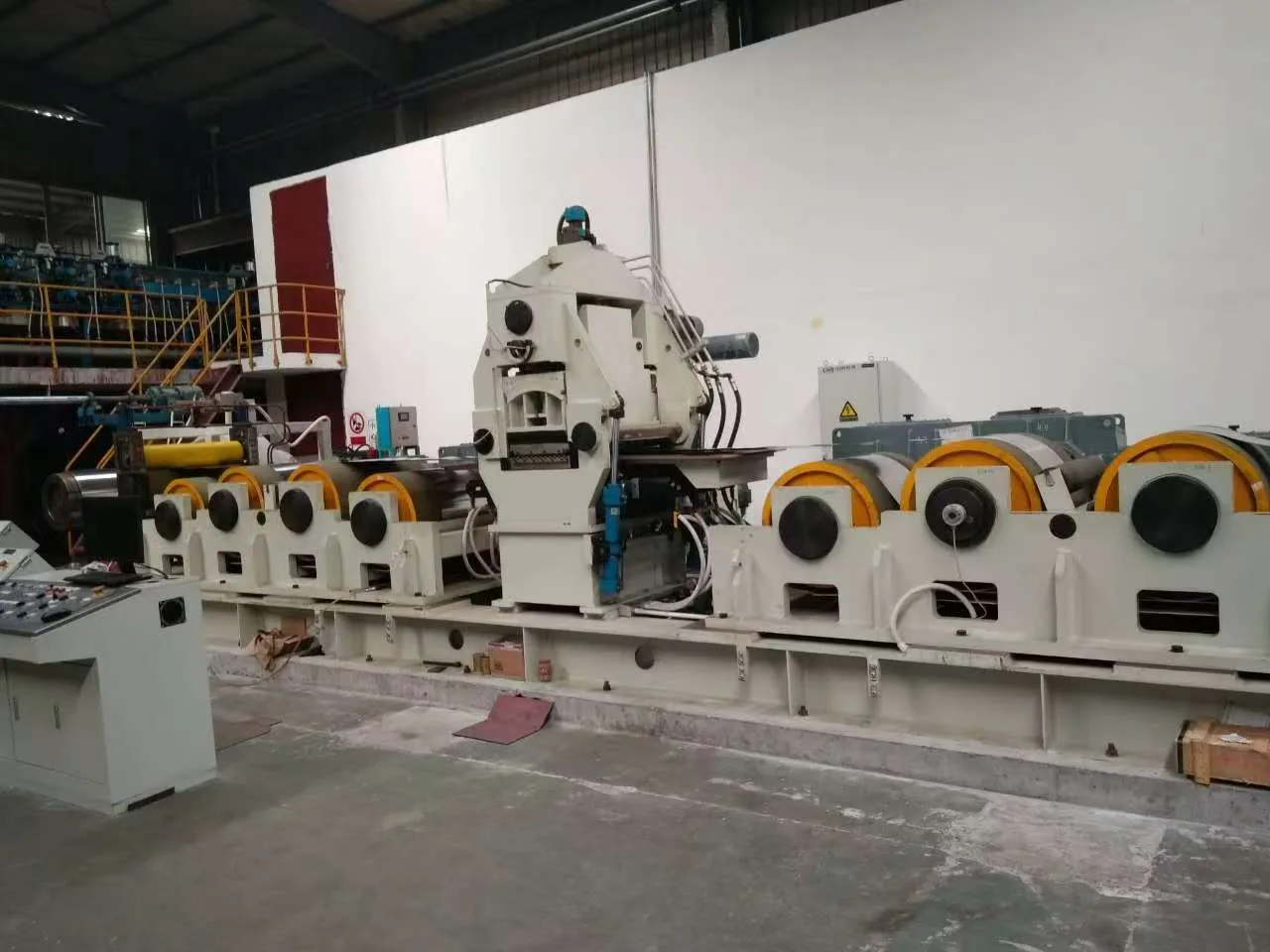

Cut to Length Line With Precision Leveling
Servo driven cut to length line holding length deviation within ±0.5 mm at speeds to 120 m/min.
View Details
Side Trimmer With 3-50 mm Trimmed Width
Slitting line side trimmer removing 3 to 50 mm from each edge to renew strip width.
View DetailsScrap Chopper Machine
Double roller scrap chopper cutting trimmed edge strip into pieces for collection and recycling.
View DetailsRoll Coating Machine for Galvanizing and Color Coating Lines
Horizontal, vertical and winding type coaters for 450-2200 mm strip at 70-260 m/min.
View Details

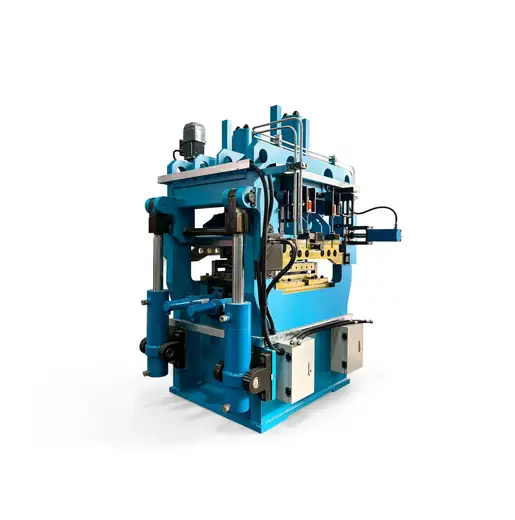

Multi Roll Leveler for 0.08-1 mm Copper Strip
Copper strip leveler for 0.08-1 mm material used in electrical and electronic components.
View Details
Precision Work Rolls 9-68 mm With Hard Chrome Plating
Chrome plated work rolls, HV 800-1000 surface hardness, matched to chrome plated back up rolls.
View DetailsPremium Back Up Rolls for Leveling Machines
Deep heat treated and precision ground back up rolls, roundness held to 0.005 mm class.
View Details
Tension Leveler Roll Cassettes With 16 mm Work Rolls
High accuracy cassettes with 16 mm work rolls in GCr15 or 9Cr2Mo for precision straightening.
View DetailsIntermediate Roll in GCr15 and 9Cr2Mo
Induction hardened intermediate rolls, HRC 61-63 surface with 3-4 mm hardened layer.
View DetailsFull Complement Cylindrical Roller Bearings for Frac Pumps
Cageless full complement bearings for frac pump power ends running at 100-150 MPa discharge pressure.
View DetailsBall Cage CV Universal Joints for Heavy Industry
Fixed and plunging ball cage CV joints from 380 N·m to 1,000,000 N·m, working angles to 75 degrees.
View Details
Drum Type Spline Couplings
Crowned tooth spline couplings carrying 15-20 percent more torque than straight tooth designs.
View Details
Roll End Support With Ceramic Beads 29 by 51 mm
Ceramic bead headed roll end supports restricting axial movement inside leveller cassettes.
View DetailsIndustries We Supply
Steel and non ferrous plants make up the core of our work, and the same equipment and components serve manufacturing, construction, energy, agriculture and mining customers.
Metallurgy and Steel
Pickling, galvanizing, colour coating and cold rolling lines, plus the consumable parts inside them.
Read More
Manufacturing
Precision and efficiency on production lines, from levelling and cutting equipment to bearings and drive components.
Read More
Construction
Equipment for the steel and sheet products construction depends on, built to withstand rugged conditions.
Read More
Energy
Bearings and drive components for hydraulic fracturing, wind energy and raw material processing.
Read MoreMining
Drive couplings, universal joints and conveyor components for crushers, feeders and conveyors.
Read MoreAgriculture Equipment
Flat sheet material and drive components for agricultural machinery and storage equipment production.
Read MoreThe Problems We Are Called In To Fix
Most enquiries reach us because something on the line is costing money every shift.
Flatness That Will Not Hold
Edge wave and centre buckle return a few hundred tonnes after a roll change, usually because the support side of the cassette is worn rather than the work rolls.
Acid And Time In The Pickling Section
An intact oxide layer slows descaling and consumes acid. A scale breaker in front of the tanks fractures the scale and corrects shape in the same pass.
Shearing That Caps Line Speed
A stop and cut shear forces the line to decelerate at every crop. A fly shear cuts at line speed and lifts output around 40 percent.
Spare Parts With No Drawing
When the original builder no longer supplies a roll or cassette, we measure the worn part and produce an equivalent with documented hardness and dimensions.
Drive Vibration Printing Into The Strip
Cross joints transmit non constant velocity at angle. Ball cage CV joints remove the pulsation that shows up as chatter marks.
Bearings Failing Under Shock Load
Frac pump power ends and conveyor chains both fail at the cage. Full complement construction raises roller count and removes that failure path.
Why Buyers Work With Ascon
We came into metallurgy from engineering construction, which is why we quote a line the way a project team does rather than as a catalogue seller.
Engineering Project Background
The company began in civil engineering and entered the metallurgical and steel fields through long term engineering construction work in China and abroad. Project management, design, procurement and construction sit in the same house.
Engineers With Line Experience
Professional engineers with more than eight years of industry experience each give fast, accurate feedback on whether an idea is buildable and at what cost.
Design Through Commissioning
Besides equipment supply we take on entire project engineering from design through installation and commissioning, so production deployment is one contract.
Sampling Inside 50 Days
Molding and sampling are committed to under 50 days so your own development timeline does not slip waiting for a supplier.
60 Plus Automatic Machines
More than 60 sets of advanced automatic production facilities carry the roll, cassette and joint programmes without queuing behind other work.
Spare Parts After The Project
We supply raw materials, spare parts and consumables after handover, which is what keeps a line running rather than just starting.
Numbers That Matter When You Compare Suppliers
Facts from our own operation, not industry averages.
Solutions Built Around Your Process
Four ways plants buy from us, from a single consumable roll through to a complete line section.
Pickling Line Scale Breaking
Cut acid consumption and correct strip shape in one pass at the entry of the pickling section.

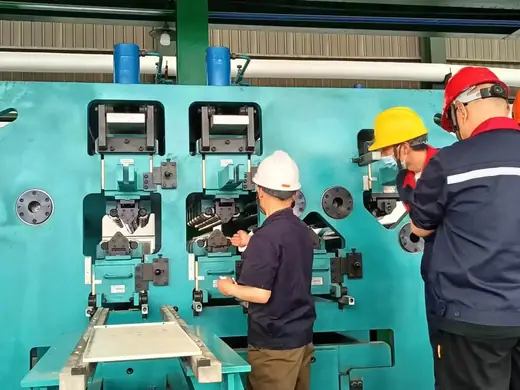

Read MoreGalvanizing and Coating Lines
Flatness and surface preparation before the coater, plus the roll sets that keep it consistent.
Read More
Cut To Length and Slitting
Flat blanks, accurate lengths and clean edges, with the scrap handling that keeps the line running.
Read MoreSpare Parts Supply Programme
Repeat supply of rolls, cassettes, bearings and joints against your drawings and your tonnage.
Read MoreProject References
Equipment we have configured and supplied, described by line specification rather than client name.

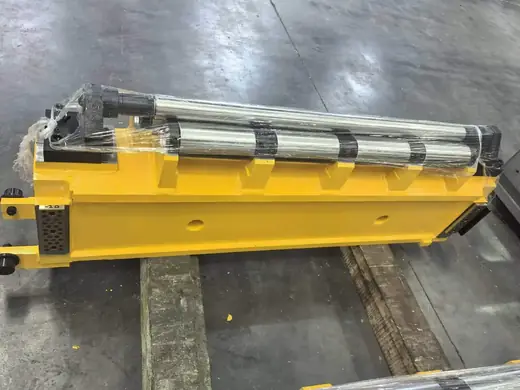

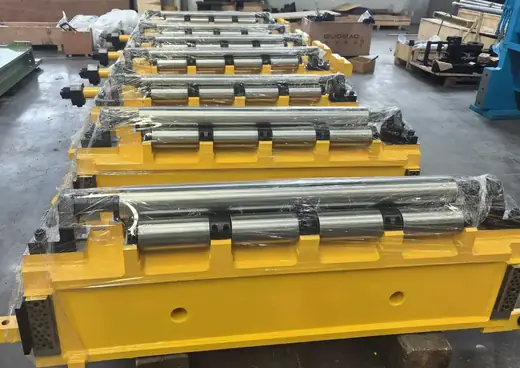

1660 mm Scale Breaker Roll Units For A Wide Cold Rolling Pickling Line
Precision roll units and cassettes for the scale breaking section of a 1660 mm wide cold rolling pickling line handling 0.5-12 mm strip.
Read More
Tension Leveler For A 1550 mm Galvanizing Line
A tension leveler configuration for carbon steel strip on a 1550 mm galvanizing line, with the chrome plated roll set to keep it consistent.
Read MoreLeveler For An 850 mm Cut To Length Line
A compact leveler for a narrow cut to length line producing blanks for electrical parts and automotive components.
Read More
Edge Trimming and Scrap Handling For A 2200 mm Slitting Line
A side trimmer and double roller scrap chopper supplied together so a wide slitting line could trim continuously without scrap jams.
Read MoreTechnical Articles From Our Engineers
Selection guidance, maintenance practice and process background written for the people who run these lines.
How Frac Pump Bearing Quality Keeps A Fracturing Job On The Design Curve
Displacement, pressure and uptime are one chain in hydraulic fracturing, and the power end bearing sits in the middle of it.
Read MoreTension Leveler Spare Parts Planning For AHSS Galvanizing Lines
What to stock, when to replace and why advanced high strength steel changes the roll wear calculation.
Read MoreHow Scale Breakers Optimise Surface Quality Before Cold Rolling
Dry and wet scale breakers, the elongation window that matters, and why the first processing step decides the last.
Read MoreSelecting Universal Joints For Multi Roll Tension Levelers
Torque calculation with the right service factor, and the articulation angle that decides fixed against plunging type.
Read More
Roller Wheels And Why Conveyor Performance Ends At The Last Component
Belt tracking, energy consumption and wear patterns all trace back to the roller wheel, not the belt.
Read MoreEdge Trimmer Shearing Principles For Metallurgical Strip Lines
Side clearance and overlap are the two settings that decide whether you get a clean shear or a burr.
Read MoreQuestions Buyers Ask Before Placing The First Order
Do you build complete lines or only spare parts?
Both. We supply complete machines such as tension levelers, scale breakers, trimmers and shears, and we supply the consumable parts inside them including work rolls, back up rolls, cassettes, bearings and CV joints. We also take on entire project engineering from design to installation and commissioning.
Can you produce a spare part if we only have the worn one?
Yes. Send photographs with the key dimensions, or ship us the worn part. We measure it, confirm the dimensions and material with you in writing, then produce to that specification.
How fast do you answer an enquiry?
Our engineers respond within 24 hours. For a machine enquiry we usually need one round of questions about line width, strip thickness, material grade and speed before we can price it properly.
Where are you located and can we visit?
We are at No.6 Furong Road, Xiangcheng District, Xiangyang City, Hubei Province, China. Visits are welcome, message us on WhatsApp beforehand so the right engineer is available.
What information do you need for a quotation?
For equipment: line width, strip thickness range, material grade, line speed and the flatness or cut accuracy you need. For spare parts: the drawing or sample dimensions, quantity per set and annual usage.
Do you supply after sales support?
Yes. Our after sales team covers installation guidance, personnel training and production commissioning, and we supply wearing parts, materials and consumables afterwards.
Which payment and delivery terms do you work on?
Terms are agreed per order and depend on scope, whether it is a spare parts order or a complete machine. Send your requirement and we state the terms with the quotation.
Tell Us What Is On Your Line
Send the line width, strip thickness and material and our engineers come back with equipment or spare parts options within 24 hours.
