Roll Cassettes For Tension Levelers and Scale Breakers
The assembly that holds the work and intermediate rolls in position, and therefore sets the precision the whole machine can reach.
A cassette that has lost alignment makes every roll inside it work harder. Thickness uniformity and surface quality follow the cassette, not the individual roll.
Roll Cassettes We Supply
From 16 mm work roll cassettes for high accuracy levelers to 15 roll heavy plate cassettes and 1660 mm scale breaker units.

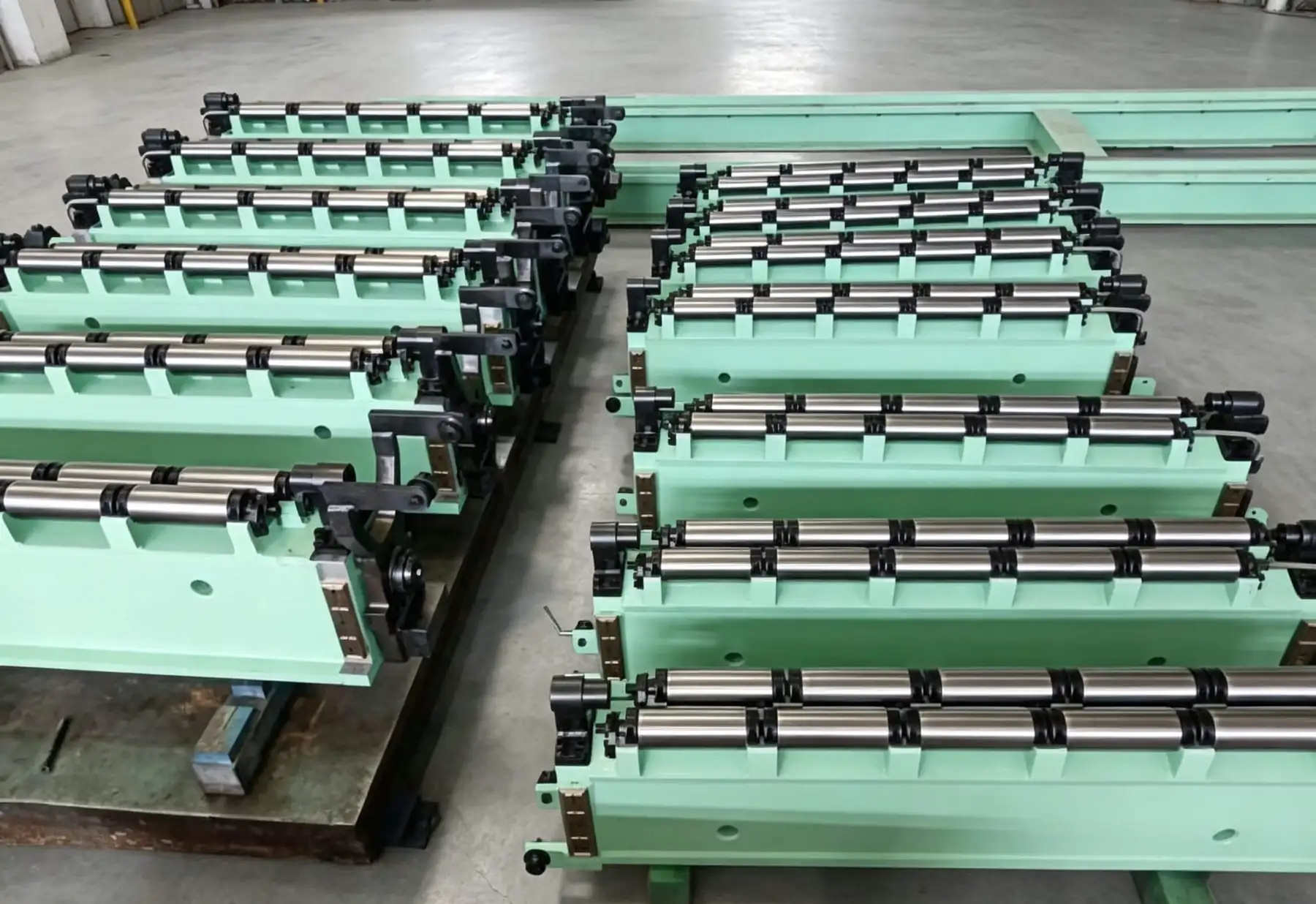

Roller Cartridges for Tension Leveling Machines
Deep quenched and chrome plated cassettes supporting work rolls and intermediate rolls.
View Details
Roll Units for High Accuracy Tension Leveling With 16 mm Work Rolls
Support units that prevent deflection of 16 mm diameter work rolls on high precision lines.
View Details

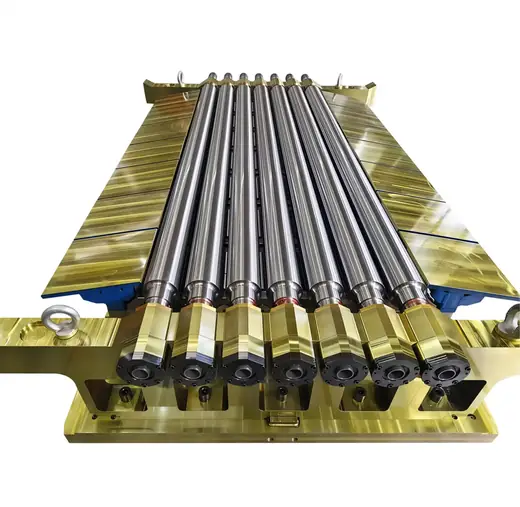

15 Roll Heavy Plate Multi Roll Leveler Roll Cassette
Quarto configuration 15 roll cassette for medium and wide heavy plate leveling lines.
View Details
1660 mm Precision Roll Units for Scale Breaking Machines
DIN 1.2344 equivalent alloy roll units with quick disassembly for 0.5-12 mm strip pickling lines.
View Details
Roll Cassettes for 1660 mm Scale Breaker
CNC machined cassettes held to ±0.05 mm, in DIN 1.2344 equivalent alloy steel.
View Details

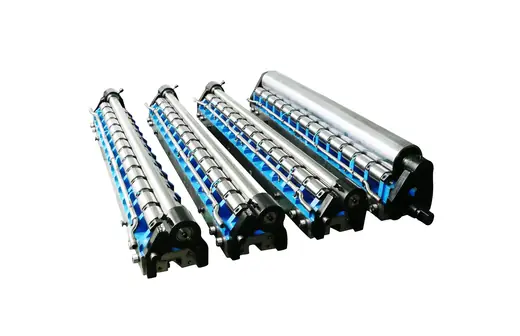

Roll Cassettes for Scale Breakers
Precision CNC machined cassettes with ±0.05 mm geometry for scale breaking machines.
View Details

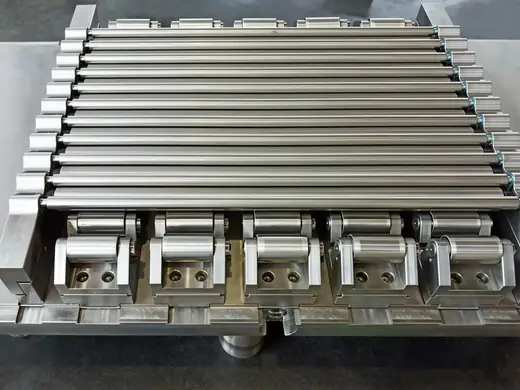

Roll System for High Precision 23 Roll Leveler
Multi roll system with micro stress elimination for copper, aluminum and specialty steel coil.
View Details

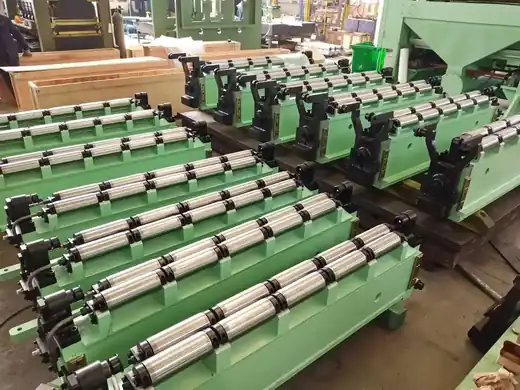

Precision Roll Cassettes for Tension Levelers
Cassettes with HRC 63-65 surface quenched rolls and chrome plating for high speed leveling.
View Details
High Precision Scale Breaker Roll Cassettes for Pickling Lines
Entry section bending roll cassettes for pickling lines serving automotive and electrical steel.
View Details
Tension Leveler Roll Cassettes With 16 mm Work Rolls
High accuracy cassettes with 16 mm work rolls in GCr15 or 9Cr2Mo for precision straightening.
View DetailsWho Buys Roll Cassettes
Who orders cassettes.
- Tension leveler and scale breaker operators
- Plants rotating a spare cassette through service
- Rebuild shops overhauling leveling equipment
- Buyers replacing cassettes whose OEM no longer supplies them
- Roll deflection inside a worn cassette
- Thickness variation across the strip width
- Downtime while a cassette is rebuilt in place
- Geometry differences between replacement cassettes
Why Plants Source Roll Cassettes From Ascon
How the cassettes are made.
Tolerance Within 0.05 mm
Precision CNC machining with robotic assembly repeats geometric parameters within 0.05 mm from cassette to cassette.
High Strength Alloy Construction
Built from alloy steel equivalent to DIN 1.2344 with premium load bearing units rated for dynamic load.
Hardened Plated Rolls Inside
Roll surfaces are surface quenched to HRC 63-65 with chrome plating around 0.05 mm over a 5 mm hardened layer.
Application Scenarios
Applications.
Tension Levelers
Cassettes with 16 mm work rolls for high accuracy straightening of sheet and strip.
Scale Breakers
1660 mm precision roll units and cassettes for wide cold rolling pickling lines.
Heavy Plate Levelers
15 roll quarto configuration cassettes with quick change function for plate lines.
Technical Reading
Tension Leveler Spare Parts Planning For AHSS Galvanizing Lines
What to stock, when to replace and why advanced high strength steel changes the roll wear calculation.
Read More
Choosing A Multi Roll Straightener Configuration For Mixed Materials
One machine can straighten high strength steel, stainless and titanium, but never with the same parameters.
Read More
Roll End Bush For Steel Strip Tension Levelers Explained
A small symmetrical part on both sides of the cassette that decides whether the roll system stays where it belongs.
Read MoreRoll Cassettes Buying Questions
Can you build a cassette for a machine you did not supply?
Yes, that is most of this work. Send the cassette drawing or detailed photos with dimensions and we produce to match.
What tolerance do you hold?
Geometric parameters within 0.05 mm through CNC machining and robotic assembly, with dimensional records issued with the cassette.
Should we keep a spare cassette?
Most plants do. Rotating a spare in means the line restarts while the used cassette is serviced off line.
What material is the cassette body?
High strength alloy steel equivalent to DIN 1.2344, with bearing units rated for dynamic load.
Do you supply the rolls separately?
Yes. Work rolls, intermediate rolls, support rolls and bearing units for the cassettes are all produced here.
What do you need to quote?
Cassette drawing or sample, roll count and diameters, machine width, strip material and quantity.
Quote A Replacement Cassette
Send your cassette drawing or photos with the machine model and we come back with a build specification.
