Ball Cage CV Joints and Couplings For Heavy Drive Lines
Constant velocity joints and couplings that replace cross joints in drives where speed fluctuation shows up in the product.
A cross joint transmits non constant velocity at angle. That pulsation reaches the rolls as chatter and prints wave patterns and burrs into the strip.
CV Joints and Couplings We Supply
Fixed and plunging ball cage joints, BJ and BC series couplings, and drum type spline couplings for the heaviest mill drives.
Ball Cage CV Universal Joints for Heavy Industry
Fixed and plunging ball cage CV joints from 380 N·m to 1,000,000 N·m, working angles to 75 degrees.
View Details
Drum Type Spline Couplings
Crowned tooth spline couplings carrying 15-20 percent more torque than straight tooth designs.
View Details
Ball Cage CV Joints for Metallurgical Drives
BJ, DOJ and BC series six ball CV joints with IT4 grade raceways for metallurgical drive lines.
View Details
BJ150 Coupling for the Metallurgical Industry
High torque BJ150 coupling in alloy steel with precision ground bearings and advanced sealing.
View Details
Driveshaft Universal Joint
Cardan type driveshaft joints for continuous casting, hot and cold rolling drive systems.
View Details

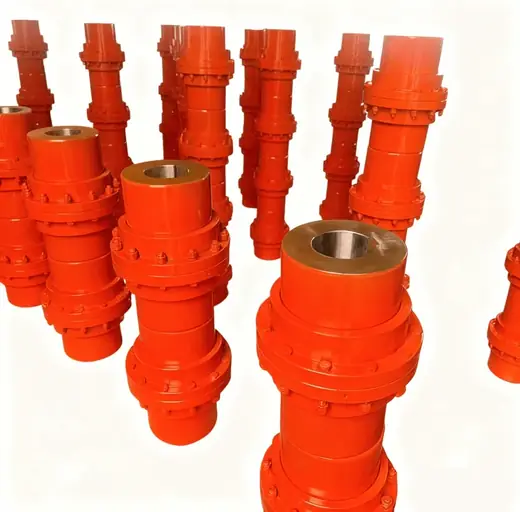

Heavy Duty Universal Joints
High strength joints for continuous casters, rolling mills and heavy duty conveyors.
View Details
BJ150 Coupling for Metallurgical and Engineering Drives
Power transmission coupling for steel making, continuous casting, hot and cold rolling drives.
View Details
Ball Cage CV Joint BJ125
BJ125 fixed type CV joint for steel making, casting, hot and cold rolling drive systems.
View Details
BC68 Series Coupling
BC68 series coupling with constant speed transmission for vehicle and industrial drives.
View DetailsWho Buys CV Joints and Couplings
Who specifies these.
- Rolling mill maintenance teams replacing Cardan shafts
- Non ferrous plants driving levelers and mills
- Mining and engineering machinery builders
- Vehicle industry drive system manufacturers
- Speed pulsation and roll chatter from cross joints
- Strip wave patterns and burrs traced to the drive
- Thermal expansion changing shaft alignment
- Joint failures in dusty hot plant areas
Why Plants Source CV Joints and Couplings From Ascon
Selection advantages.
True Constant Velocity
The symmetric ball cage structure keeps output speed equal to input speed at working angles from 0 to 75 degrees.
Fixed And Plunging Families
Fixed BJ series for stable shaft distances and plunging DOJ, BO5, BOJ and BC types where axial movement has to be absorbed.
Precision And Sealing
IT4 grade raceway precision with high reliability sealing for metallurgical environments.
Application Scenarios
Drive positions.
Mill Main Drives
Steel making, continuous casting, hot rolling and cold rolling drive lines.
Leveler And Auxiliary Drives
Non ferrous processing lines with levelers and mills at working angle.
Mining And Vehicle Drives
Crushers, conveyors, feeders and vehicle industry drive systems.
CV Joints and Couplings Buying Questions
Fixed or plunging type?
Fixed BJ series where the shaft distance stays constant, such as a main drive line. Plunging types where thermal expansion or roll adjustment changes the distance in operation.
What torque and size range do you cover?
Torque from 380 N·m to 1,000,000 N·m with rotational diameters from 36 mm to 725 mm and working angles from 0 to 75 degrees.
Can these replace our cross joints?
Yes, they are designed as substitutes. Send the installed length, flange or spline data, torque and working angle.
Is overload protection available?
Overload protection devices can be fitted under special working conditions. Tell us the protection torque you need.
What about drum type spline couplings?
They transmit 15 to 20 percent more torque than straight tooth couplings and allow up to 6 degrees angular displacement, with 1 to 1.5 degrees recommended for normal running.
Do you supply seals and spares?
Yes, seal kits and wear parts for the joints and couplings we manufacture.
Select A Joint For Your Drive
Send torque, speed, angle and installed length and our engineers confirm the model.
