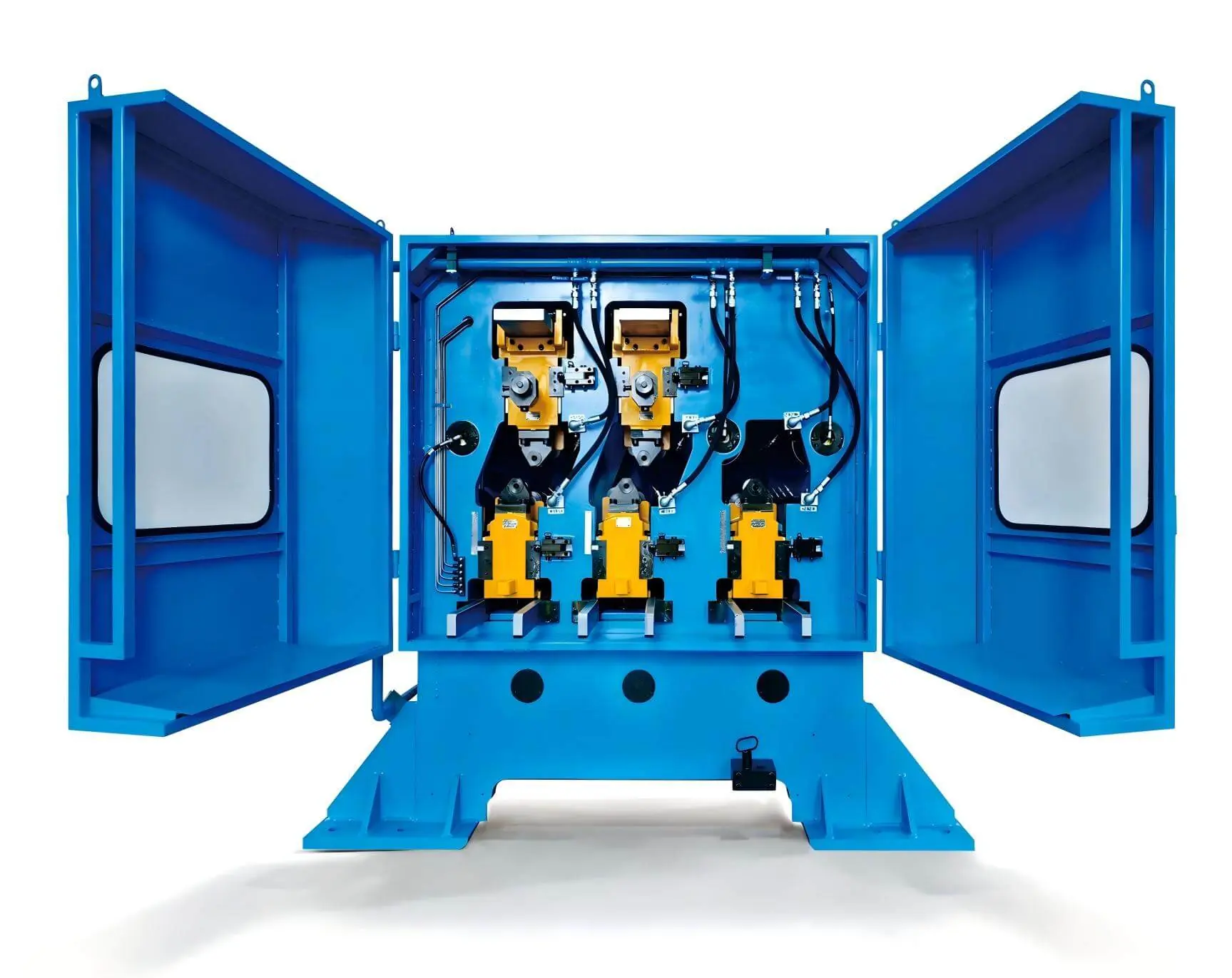

Scale Breaking For Pickling Lines
Everything that happens at the entry of a pickling line: fracturing the oxide layer, correcting strip shape and keeping the roll units serviceable afterwards.
Where The Problems Start
The pickling section carries two costs that a scale breaker addresses at the same time.
- Acid consumed dissolving an intact oxide layer
- Tank residence time limiting line throughput
- Shape defects carried forward into cold rolling
- Roll unit wear degrading descaling consistency
- Acid consumption reduced by fracturing scale mechanically
- Flatness below 5 IU on our push pull configuration
- Edge waves, centre waves, buckles and camber removed in the same pass
- Spare roll units and cassettes available to the original drawing
From Enquiry To After Sales
What happens at each stage of the project.
Feasibility
You know the acid bill is too high but not what the machine should be. We take the coil programme, line width and speed and produce a customised plan with the elongation and roll configuration proposed.
Technical Agreement
Scope creep and interface surprises appear late in machine projects. Dimensions, materials, drive and interfaces are fixed in a technical agreement, and production starts from those drawings.
Manufacturing
Frame distortion and roll geometry errors show up only at installation. Housings are welded, stress relieved and machined, rolls ground as a set, and parallelism verified before shipment.
Installation And Commissioning
A machine that works in the shop can still fight the line. Installation guidance, personnel training and production commissioning are part of the after sales scope.
Spare Parts Programme
Roll unit wear degrades descaling quietly over months. We hold your drawings and supply repeat roll units and cassettes against your tonnage.
Equipment And Parts In This Solution
The equipment and parts that make up this solution.
Scale Breaker for Push Pull Pickling Line 800-1350 mm
Tension leveler type scale breaker for push pull pickling lines handling 800-1350 mm hot rolled strip.
View Details
Scale Breaker for 1850 mm Pickling Lines
Pre pickling tank scale breaker for wide hot rolled strip with bending and correcting roll units.
View Details
High Precision Scale Breaker Roll Cassettes for Pickling Lines
Entry section bending roll cassettes for pickling lines serving automotive and electrical steel.
View Details
1660 mm Precision Roll Units for Scale Breaking Machines
DIN 1.2344 equivalent alloy roll units with quick disassembly for 0.5-12 mm strip pickling lines.
View Details
Roll Cassettes for Scale Breakers
Precision CNC machined cassettes with ±0.05 mm geometry for scale breaking machines.
View Details
Scale Breaker for Pickling Lines
Pickling line scale breaker fracturing oxide by stretch and bend, saving acid and correcting shape.
View DetailsProject References
1660 mm Scale Breaker Roll Units For A Wide Cold Rolling Pickling Line
Precision roll units and cassettes for the scale breaking section of a 1660 mm wide cold rolling pickling line handling 0.5-12 mm strip.
Read More
Tension Leveler For A 1550 mm Galvanizing Line
A tension leveler configuration for carbon steel strip on a 1550 mm galvanizing line, with the chrome plated roll set to keep it consistent.
Read MorePickling Line Scale Breaking FAQ
How much acid will we save?
It depends on your scale condition and tank practice. Fracturing the oxide layer means acid penetrates rather than dissolving an intact scale, which is where the saving comes from.
Push pull or continuous line?
We supply for both. Push pull lines process single coils without welding, which suits mixed order books, and our configuration handles 800-1350 mm at up to 180 m/min.
Can you retrofit into an existing line?
Yes. We need the layout, the space available before the acid tanks and the drive data.
What elongation is correct?
Up to 7 percent. Pickling efficiency is maximised at that level on a tension leveler type scale breaker.
What spares should we hold?
A spare cassette or roll unit set. It turns a multi day rebuild into a planned shutdown task.
Improve Your Pickling Section
Send your line data and coil programme and we propose a scale breaking configuration.
