Energy
Within the energy sector our technology supports production and resource optimisation. From equipment that processes raw materials efficiently to components that improve operational safety, the requirement is reliable performance in demanding environments.
Pain Points In Energy
Where energy equipment fails.
Non Productive Time On The Pad
Frac pump power end failures cost far more than the bearing. The duty combines 100-150 MPa discharge pressure with low speed high load running.
Turbine Downtime And Lost Generation
A bearing failure in a yaw or pitch system means a crane, a climb and lost generation, so material cleanliness and sealing matter more than unit price.
Documentation Gaps
Energy programmes need traceability. A component without records is a component that cannot be qualified.
What Buyers In This Sector Need
- Bearings rated for shock and pulsation rather than steady load
- Full traceability and quality certification
- Longer overhaul intervals on power ends
- Components that tolerate contamination and harsh weather
Typical Application Scenarios
- Triplex and quintuplex frac pump power ends
- Ultra high pressure fracturing above 20,000 psi
- Electric drive frac pumps
- Wind turbine yaw and pitch systems
Recommended Products
Components supplied to energy customers.

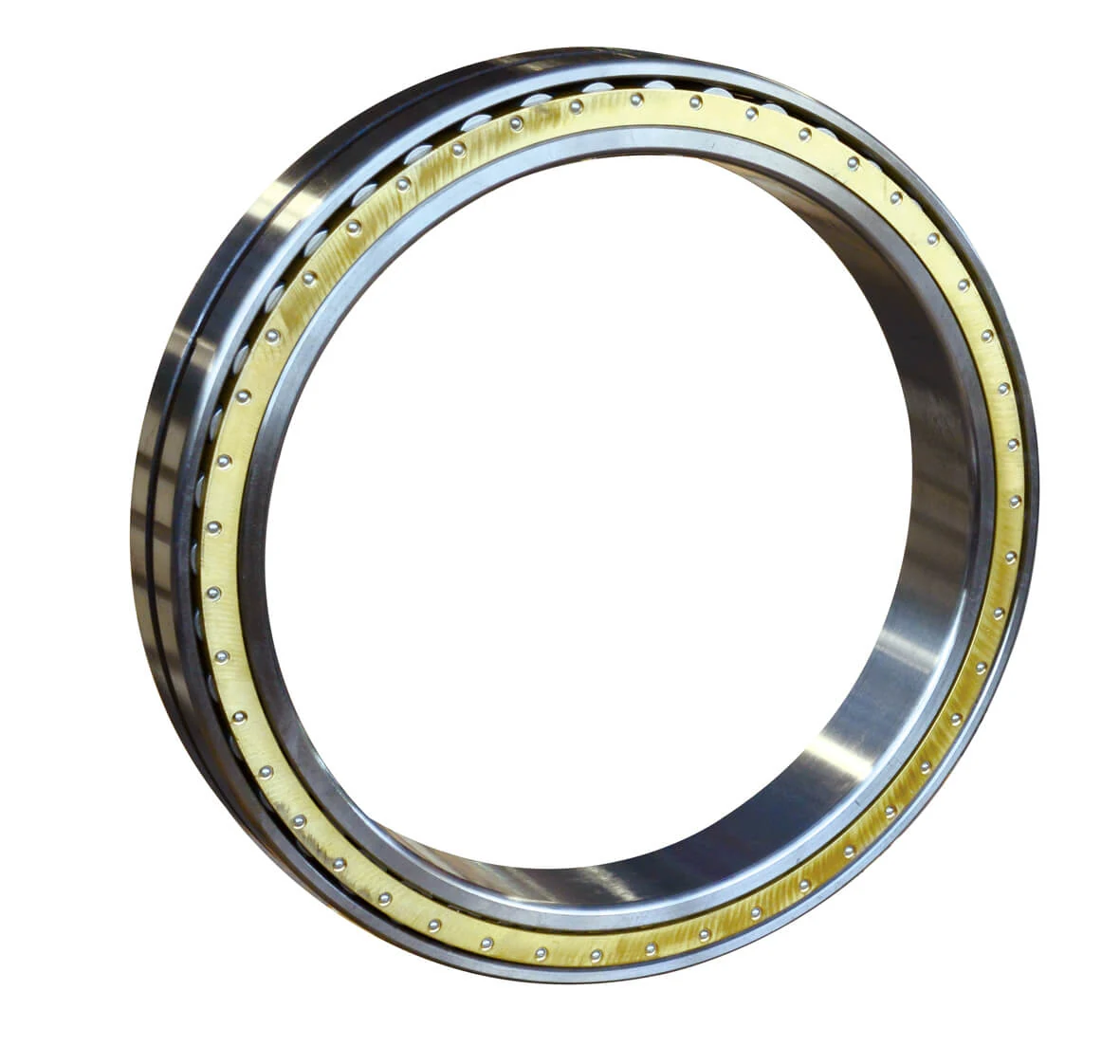

Full Complement Cylindrical Roller Bearings for Frac Pumps
Cageless full complement bearings for frac pump power ends running at 100-150 MPa discharge pressure.
View Details
Cylindrical Roller Bearings for High Pressure Fracturing Pumps
Power end and connecting rod bearings for triplex and quintuplex frac pumps above 15,000 psi.
View Details
SL18 Series Bearings for Wind Energy
Full complement SL18 bearings for yaw and pitch systems with advanced sealing and traceability.
View Details
Heavy Duty Universal Joints
High strength joints for continuous casters, rolling mills and heavy duty conveyors.
View Details
SL18 Series Full Complement Cylindrical Roller Bearings
SL18 full complement bearings guided by two flanges, separable and easy to mount.
View Details
Full Complement Cylindrical Roller Bearings 20-1200 mm
SL series full complement bearings from 20 mm to 1200 mm for high radial load duty.
View DetailsHow We Deliver
How an energy component enquiry proceeds.
Pressure, speed, load pattern, housing dimensions and the documentation you need.
Series, clearance class and sealing selected for the position.
Production with hardness, clearance and cleanliness verification.
Traceability records issued with the batch.
Delivery Capability
- Full complement construction for shock loaded positions
- Ultra clean high carbon chromium bearing steel
- Controlled carburizing or induction hardening
- Full traceability and quality certification
What You Get From Ascon
- Longer overhaul intervals on frac pump power ends
- Higher pump power without enlarging housing bores
- Documentation that survives a qualification audit
- A second qualified source for critical components
Related Technical Articles
How Frac Pump Bearing Quality Keeps A Fracturing Job On The Design Curve
Displacement, pressure and uptime are one chain in hydraulic fracturing, and the power end bearing sits in the middle of it.
Read More
Selecting Universal Joints For Multi Roll Tension Levelers
Torque calculation with the right service factor, and the articulation angle that decides fixed against plunging type.
Read MoreEnergy FAQ
Why do standard bearings fail in frac pumps?
The duty combines discharge pressure of 100-150 MPa, crankshaft speed of only 200-400 rpm and sharp pressure pulsations. The cage takes high frequency alternating loads and deforms.
How much capacity does full complement add?
Roller count rises from about 60-70 percent of theoretical maximum in a caged bearing to typically above 95 percent, and load rating rises with it.
Do you supply wind energy bearings?
Yes, SL18 series bearings for yaw and pitch systems, in ultra clean bearing steel with advanced sealing and full traceability.
Can we uprate an existing pump?
Often yes, because the extra capacity is gained inside the existing bore. We check the actual housing and shaft data first.
What lubrication cleanliness do you require?
NAS 7 as a minimum for frac pump bearings. Contamination control affects life more than any other factor in this duty.
Qualify Us As A Second Source
Send your component designation, duty data and documentation requirements and we respond within 24 hours.
