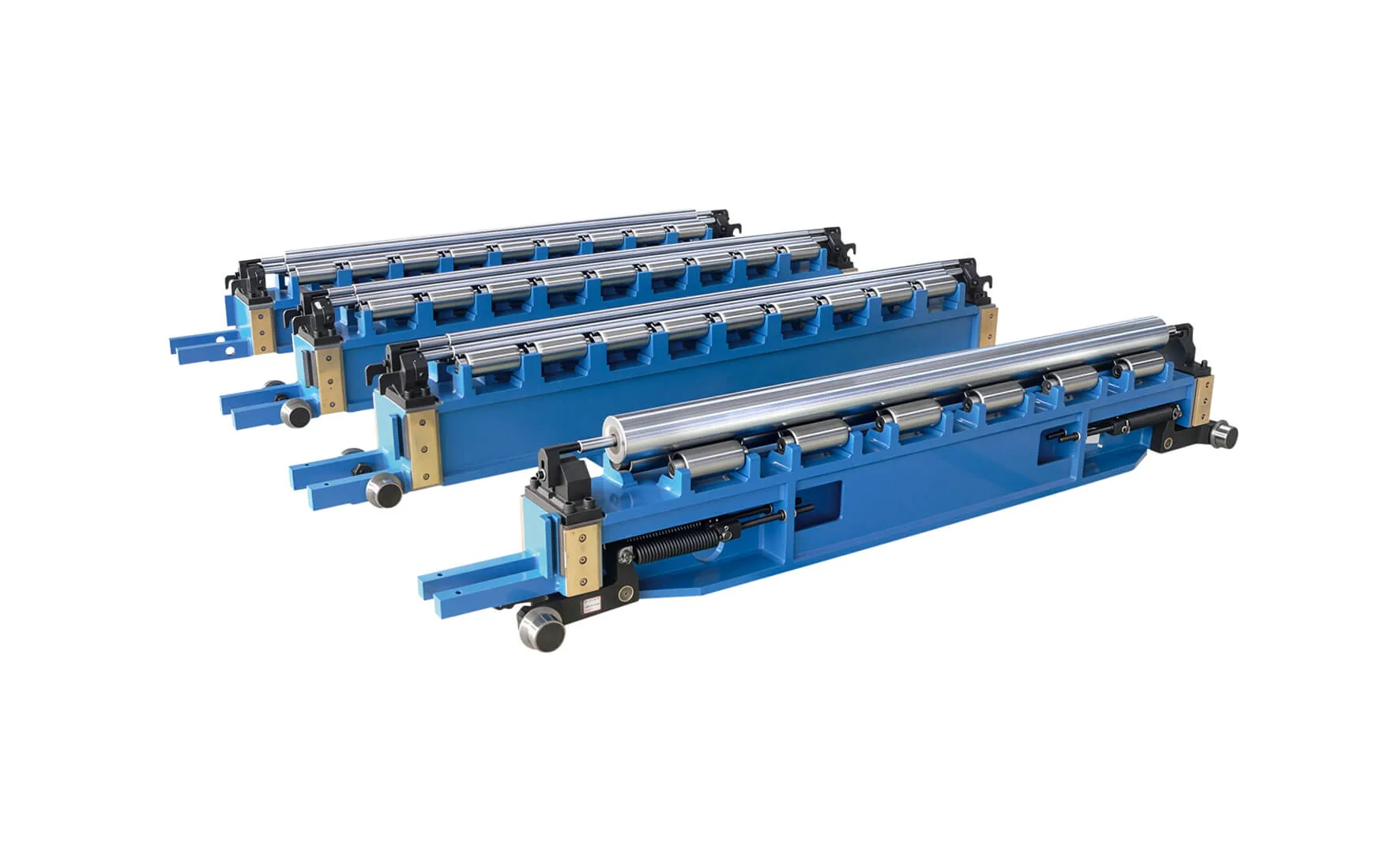

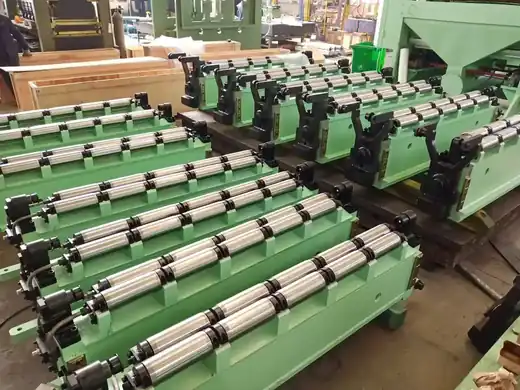

Tension Leveler Roll Cassettes With 16 mm Work Rolls in GCr15 and 9Cr2Mo
The roll cassette is the core assembly of a tension leveler. Work rolls and intermediate rolls inside it both support and straighten, preventing bending and deflection at high speed so strip thickness stays uniform and the surface stays smooth.
- 16 mm diameter work rolls
- Work roll materials GCr15 and 9Cr2Mo
- Chrome plating around 0.05 mm
- Hardened layer around 5 mm
Key Benefits
What the cassette controls.
Deflection Prevented At High Speed
Supporting and straightening in one assembly stops the work rolls bending and deflecting during high speed operation.
Uniform Thickness And Smooth Surface
Preventing roll system deflection is what keeps strip thickness uniform and avoids the shape defects that deflection creates.
Material Choice For The Duty
GCr15 and 9Cr2Mo are both available so the roll material matches the load and diameter rather than a single default.
Where It Is Used
Applications.
- High precision metal straightening lines
- Cold rolled sheet processing
- Coating line leveler sections
- Lines where strip surface quality is specified
Who It Is For
- Tension leveler operators
- Maintenance teams replacing cassettes
- Plants running small diameter work roll cassettes
- Buyers specifying roll material rather than accepting a default
Problems It Solves
- Work roll bending at high line speed
- Thickness variation across the strip
- Surface defects from roll system deflection
- Cassette wear reducing straightening accuracy
Technical Features
Cassette specification.
Dual Function Rolls
Work rolls and intermediate rolls inside the cassette perform both supporting and straightening functions.
High Wear Resistant Materials
GCr15 and 9Cr2Mo work roll materials are heat treated for wear resistance in continuous straightening duty.
Chrome Plated Surfaces
Chrome plating around 0.05 mm over a 5 mm hardened layer protects contact surfaces.
Specifications
Cassette dimensions follow your leveler. Roll specification is listed below.
| Work Roll Diameter | 16 mm |
|---|---|
| Work Roll Materials | GCr15 and 9Cr2Mo |
| Surface Treatment | Chrome plating around 0.05 mm |
| Hardened Layer | Around 5 mm |
| Function | Supporting and straightening within one assembly |
| Accuracy Class | High accuracy for precision metal straightening |
Materials
- GCr15 bearing steel work rolls
- 9Cr2Mo alloy steel work rolls
- Chrome plated contact surfaces
Manufacturing Process
Cassette Review
Roll count, diameters and cassette envelope are confirmed from your leveler.
Roll Manufacturing
16 mm work rolls are produced in the selected material and heat treated.
Plating And Grinding
Rolls are chrome plated and finish ground to the cassette tolerance.
Assembly
The cassette is assembled and roll alignment verified.
Quality Control
- Material certificate for GCr15 or 9Cr2Mo
- Hardness and hardened layer verification
- Plating thickness measurement
- Cassette alignment inspection
Customization Options
- Work roll material selected per duty
- Roll count and cassette geometry to your machine
- Plating specification by strip material
- Spare cassettes for rotating service
Use Guide
- Replace 16 mm work rolls as a complete set
- Check cassette alignment after each rebuild
- Select 9Cr2Mo where GCr15 wears too quickly
- Keep one spare cassette for planned shutdowns
How It Compares
Material and configuration choices.
| GCr15 work rolls | Cost effective wear resistance for small and medium diameter cold rolling duty. |
|---|---|
| 9Cr2Mo work rolls | Higher strength option where the load exceeds what GCr15 handles comfortably. |
| Larger diameter work rolls | 16 mm rolls give tighter bending for thin strip, provided the cassette supports them properly. |
Related Products
Roller Cartridges for Tension Leveling Machines
Deep quenched and chrome plated cassettes supporting work rolls and intermediate rolls.
View Details
Roll Units for High Accuracy Tension Leveling With 16 mm Work Rolls
Support units that prevent deflection of 16 mm diameter work rolls on high precision lines.
View Details
15 Roll Heavy Plate Multi Roll Leveler Roll Cassette
Quarto configuration 15 roll cassette for medium and wide heavy plate leveling lines.
View Details
1660 mm Precision Roll Units for Scale Breaking Machines
DIN 1.2344 equivalent alloy roll units with quick disassembly for 0.5-12 mm strip pickling lines.
View Details
Related Technical Articles
Tension Leveler Spare Parts Planning For AHSS Galvanizing Lines
What to stock, when to replace and why advanced high strength steel changes the roll wear calculation.
Read More
Choosing A Multi Roll Straightener Configuration For Mixed Materials
One machine can straighten high strength steel, stainless and titanium, but never with the same parameters.
Read More
Roll End Bush For Steel Strip Tension Levelers Explained
A small symmetrical part on both sides of the cassette that decides whether the roll system stays where it belongs.
Read MoreTension Leveler Roll Cassettes With 16 mm Work Rolls FAQ
Which work roll material should we choose?
GCr15 suits small and medium diameter cold rolling duty. 9Cr2Mo is used where higher strength is needed. Tell us your strip and load and we recommend one.
Why 16 mm work rolls?
Small diameter rolls give the bending control thin strip needs. The cassette exists to support them so they do not deflect at speed.
What surface treatment is applied?
Chrome plating at around 0.05 mm over a hardened layer of around 5 mm.
Can you build to our existing cassette?
Yes. Send the cassette drawing or a sample with roll count and diameters.
Do you supply replacement rolls separately?
Yes, 16 mm work rolls and the intermediate rolls for the cassette are available as spares.
What do you need to quote?
Cassette drawing, roll count and diameter, line width, strip material and quantity.
Order High Accuracy Cassettes
Send your cassette details and material preference and we quote a complete build.
