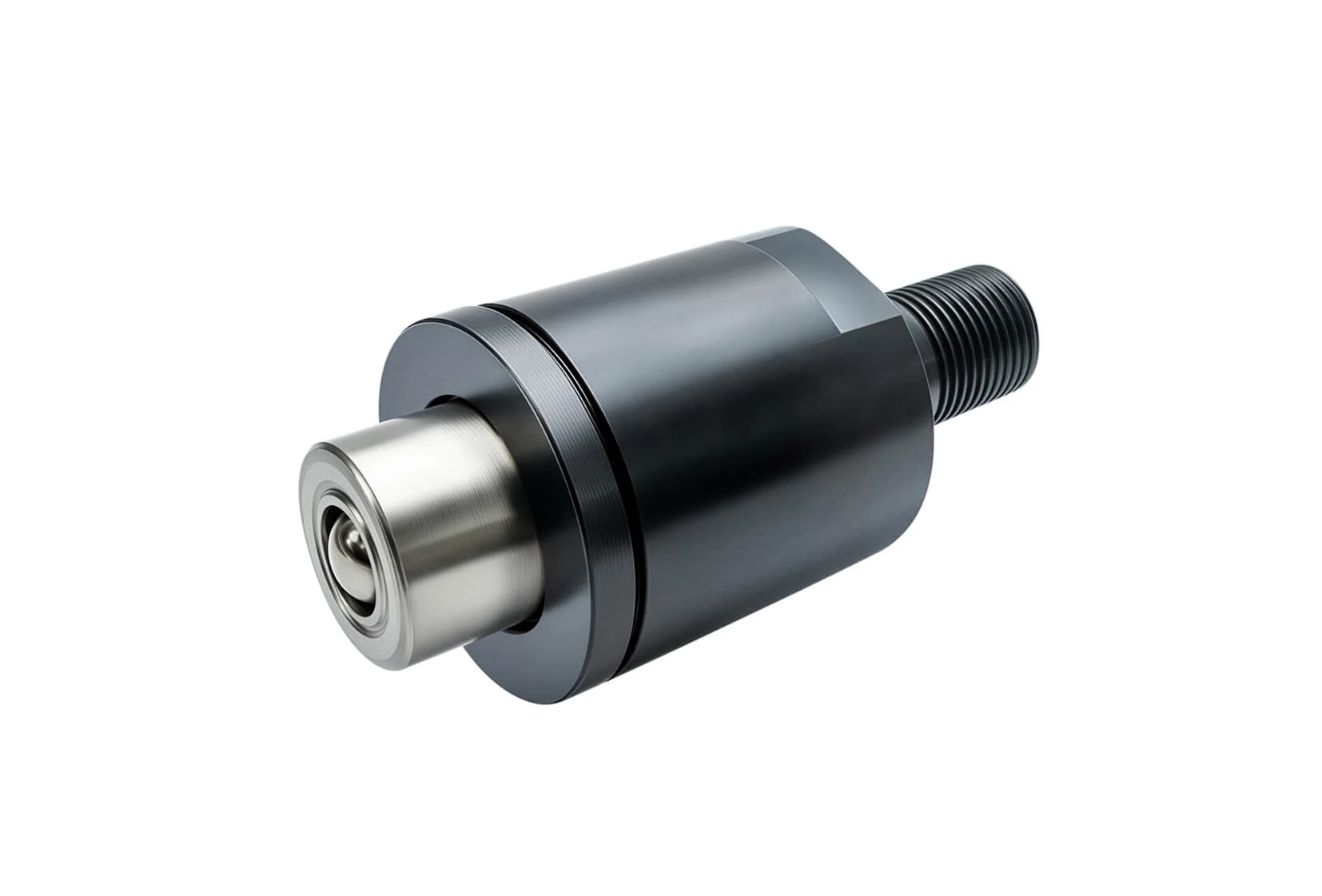

Roll End Supports With Ceramic Bead Heads for Tension Leveller Cassettes
The roll end support sits on both sides of the roll cassette and restricts the axial movement of the intermediate roll and the work roll. The head is inlaid with ceramic beads, which is what lets the roll end turn against the support without galling.
- Size 29 by 51 mm
- Head inlaid with ceramic beads
- Assembled with bearings
- Fitted on both sides of the roll cassette
Key Benefits
What the ceramic head adds.
Axial Movement Controlled
The support restricts axial movement of the intermediate roll and work roll, keeping the roll set located as designed.
Low Friction Contact At The Head
Ceramic beads inlaid in the head handle the rotating contact at the roll end where a plain steel face would wear or gall.
Reliable Durable Structure
The structure is reliable and durable, with precise sizing so the assembly with bearings is correct.
Where It Is Used
Where it fits.
- Both sides of tension leveller roll cassettes
- Work roll and intermediate roll end positions
- Cassette overhauls
- Spare parts stock for leveller maintenance
Who It Is For
- Leveller maintenance teams
- Cassette rebuild shops
- Plants stocking cassette small parts
- Buyers replacing worn roll end supports
Problems It Solves
- Axial drift of work and intermediate rolls
- Wear and galling at the roll end contact
- Cassette geometry changing during a campaign
- Sourcing precise small cassette parts
Technical Features
Construction.
Ceramic Bead Inlaid Head
The head carries inlaid ceramic beads for the rotating contact surface at the roll end.
Bearing Assembly
The support is assembled with bearings so it locates the roll while allowing rotation.
Precise Sizing
The 29 by 51 mm size is made precisely so precision and fit are maintained in the cassette.
Specifications
This is a defined size. Other dimensions are produced to drawing or sample.
| Dimensions | 29 by 51 mm |
|---|---|
| Head | Inlaid ceramic beads |
| Assembly | Assembled with bearings |
| Function | Restricts axial movement of intermediate and work rolls |
| Position | Both sides of the tension leveller roll cassette |
| Supply | Individually or in cassette sets |
Materials
- Alloy steel support body
- Ceramic beads at the head
- Machined bearing seat
Manufacturing Process
Dimension Confirmation
Support dimensions and bearing fit are taken from drawing or sample.
Machining
Body and bearing seat are machined to tolerance.
Ceramic Bead Fitting
Ceramic beads are inlaid into the head.
Assembly And Inspection
Bearings are fitted and dimensions verified before packing.
Quality Control
- Dimensional inspection of body and seat
- Ceramic bead seating check
- Bearing fit verification
- Sample fit confirmation before batch production
Customization Options
- Other sizes to drawing or sample
- Bearing seat for your bearing selection
- Head configuration with or without ceramic beads
- Cassette set quantities
Use Guide
- Replace supports during cassette rebuild
- Inspect ceramic bead heads for chipping
- Check bearing condition at the same time
- Keep a set in stock for planned service
How It Compares
Against a plain roll end sleeve.
| Plain roll end sleeve | The ceramic bead head handles rotating contact where a plain steel face would wear. |
|---|---|
| Re using worn supports | Worn supports let the roll drift axially, which changes the cassette geometry. |
| Improvised replacements | Precise sizing to drawing keeps the bearing assembly and roll location correct. |
Related Products
Roll End Sleeve 38 by 100 mm With Black Coating
Roll end sleeve 38 by 100 mm with black coating, restricting axial movement of work rolls.
View DetailsRoll End Sleeve 38 by 100 mm With Black Coating
Roll end sleeve 38 by 100 mm with black coating, restricting axial movement of work rolls.
View Details
Roll End Support With Ceramic Beads 29 by 51 mm FAQ
What does the roll end support do?
It is applied to both sides of the roll cassette in a tension leveller and restricts the axial movement of the intermediate roll and the work roll.
Why ceramic beads?
The head is inlaid with ceramic beads to handle the rotating contact at the roll end, which is where wear and galling would otherwise occur.
What size is supplied?
29 by 51 mm as standard, with other sizes produced to drawing or sample.
Is it supplied with bearings?
It is designed to be assembled with bearings. Tell us your bearing selection and we match the seat.
When should these be replaced?
During cassette rebuild, or whenever axial play appears in the roll set.
What do you need to quote?
Support dimensions or a sample, bearing type and quantity per cassette.
Restock Cassette Roll End Parts
Send your support dimensions or a sample and we quote a batch with the rest of the cassette parts.
