FA Series EN733 Horizontal Centrifugal Pump
BS EN733 / DIN24255 end-suction pump, 2 to 1100 m³/h and head to 152 m, for building services fire and irrigation
View specifications
Pump Category
FA Centrifugal Pumps
The Flowsteer EN733 series: DN32 to DN250, flow 2 to 1100 m³/h, head 2 to 152 m, bronze impeller as standard.
Products
Pump in This Category
The Problem
What This Category Is For
Most pump datasheets publish a curve and stop. Selecting against a real duty needs the speed range, the temperature limit, the pressure rating, the flange option and the material list as well. The FA publishes all of them, which is why it is the series most Flowsteer enquiries are answered from.
Who It Suits
- Engineers who select from published data rather than from a sales call
- Fire contractors who need a stated working pressure
- Specifiers choosing impeller and shaft materials against the water
- Contractors working at both 50 Hz and 60 Hz
Problems It Solves
- Selections made on an incomplete datasheet
- Cast iron impellers eroding on raw and potable water
- Shaft material chosen without reference to the water
- Speed and frequency assumptions that shift the whole curve

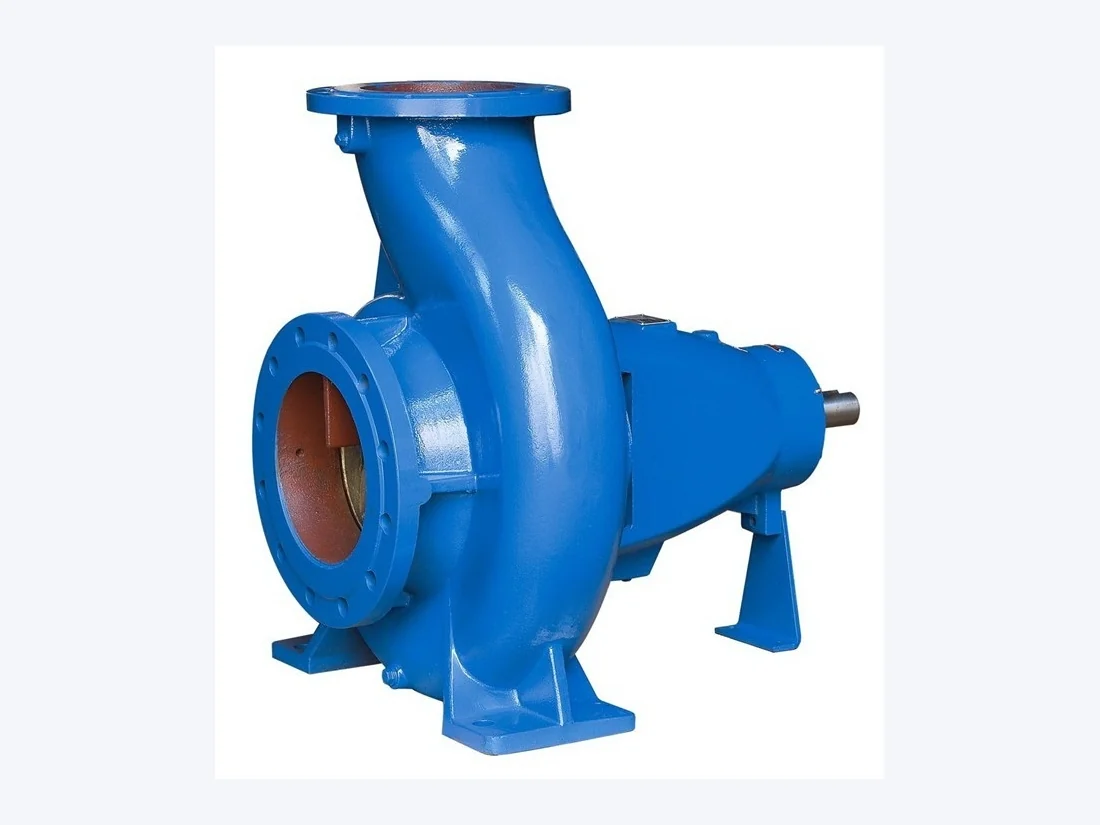

FA series EN733 / DIN24255 end-suction centrifugal pump casing with volute and foot support
Advantages
Why This Category Is Built the Way It Is
- Full envelope published2 to 1100 m³/h, 2 to 152 m, 1450 to 2900 rpm at 50 Hz and 1750 to 3500 rpm at 60 Hz, -10 °C to 105 °C.
- Bronze impeller as standardNot an upgrade — the standard build, because the series is aimed at raw and potable water.
- Four shaft materialsASTM 420 standard with ASTM 304, 316 and 1045 available.
- Seal or packingA single mechanical seal as standard with gland packing optional.
Typical Application Scenarios
- Sprinkler and hydrant supply at 1.6 MPa
- Condenser and chilled water circulation
- Irrigation pumping at high flow and moderate head
- High-rise booster sets on municipal supply
Where It Is Used
Industries That Specify This Category
Industry
Fire Protection
EN733 end-suction pumps for ring mains, hydrant supply and sprinkler duties, with a 1.6 MPa working pressure option.
Read more
Industry
HVAC and Cooling
Chilled water, condenser water and heating circulation duties from -10 °C to 105 °C on one EN733 series.
Read more
Industry
Irrigation and Agriculture
High-volume end-suction pumps for field and scheme irrigation, sized from a published curve at 50 Hz or 60 Hz.
Read more
Industry
Municipal Water Supply
Transfer, distribution and booster duties on city water networks, with EN733 and ANSI footprints and a bronze impeller as standard.
Read more
Industry
Industrial Water Transfer
Plant water, process circulation, booster and liquid transfer duties across the full Flowsteer size band.
Read moreQuestions
FA Centrifugal Pumps FAQ
What does FA stand for?
FA is the Flowsteer series designation for its BS EN733 / DIN24255 horizontal end-suction pumps, covering DN32 to DN250.
Why is the impeller bronze as standard rather than cast iron?
Because the series is aimed at raw and potable water, where bronze resists erosion and corrosion far better than cast iron. Cast iron and stainless impellers are available where the water allows.
Which shaft material should I specify?
ASTM 420 is standard. ASTM 304 and 316 are chosen where the water reaches the shaft and is aggressive; ASTM 1045 is a carbon steel option for clean duties.
Does the frequency change the selection?
Significantly. The FA publishes 1450 to 2900 rpm at 50 Hz and 1750 to 3500 rpm at 60 Hz, and the whole curve shifts with speed. Tell us the supply frequency with the duty point.
Specify a FA Centrifugal Pump for Your Duty
Send the flow, head, supply frequency and liquid description and we will confirm the size and the published specification for it.
