CI Series
ISO CI Series Water Centrifugal Pump
ISO 2858 and ISO 5199 back-pull-out end-suction pump, fully interchangeable with other ISO brands
View specifications
Pump Category
CI Centrifugal Pumps
The metal ISO series: 50×32-160 to 250×200-400, capacity to 500 m³/h, head to 80 m, in cast iron, SS304 and SS316.
Products
Pump in This Category
The Problem
What This Category Is For
Most ISO pump selections fail on material rather than hydraulics. The duty point is easy to meet; the question is whether the casing survives the water for ten years or for one season. The CI series publishes the material options alongside the hydraulic grid so both decisions are made together.
Who It Suits
- Engineers selecting from the ISO 2858 hydraulic grid by designation
- Plants whose water is treated, softened or chemically conditioned
- Buyers replacing a corroded cast iron pump with a stainless equivalent
- Maintenance teams standardising seals across a mixed ISO fleet
Problems It Solves
- Cast iron casings pitting on treated effluent
- Duty points that fall between two designations
- Seal changes that take a plant off line for a day
- Chloride attack on SS304 where SS316 was needed

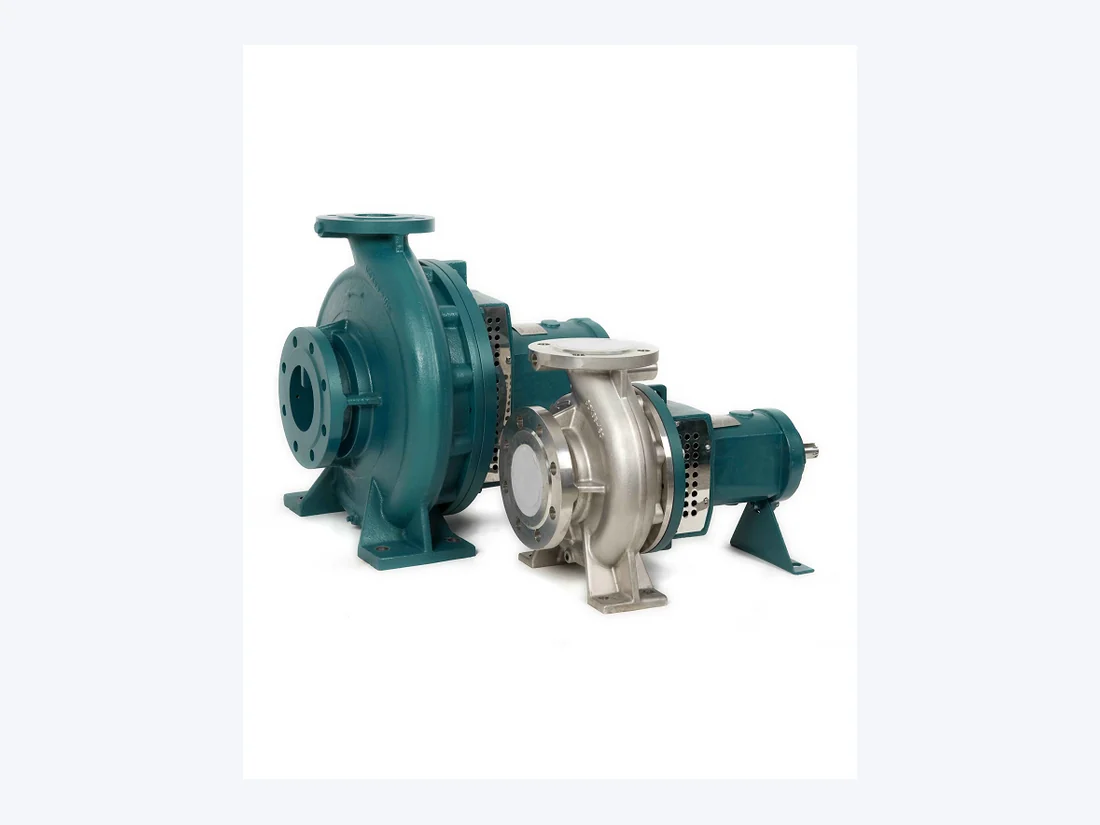

ISO 2858 CI series back-pull-out end-suction centrifugal pump
Advantages
Why This Category Is Built the Way It Is
- Eleven designations50×32-160 through 250×200-400 covers most water duties on one hydraulic grid.
- Three wetted materialsCI, SS304 and SS316, selected against the water analysis rather than the budget.
- 500 m³/h and 80 mThe published envelope for the series across the full size range.
- Interchangeable with other ISO brandsDesignation matching, not brand matching, is what decides whether the pump fits.
Typical Application Scenarios
- Raw, settled and filtered water transfer inside a treatment works
- Process water circulation on metric pipework
- Treated effluent duties in stainless steel
- Replacing a mixed-brand ISO fleet series by series
Where It Is Used
Industries That Specify This Category
Industry
Industrial Water Transfer
Plant water, process circulation, booster and liquid transfer duties across the full Flowsteer size band.
Read more
Industry
Municipal Water Supply
Transfer, distribution and booster duties on city water networks, with EN733 and ANSI footprints and a bronze impeller as standard.
Read moreQuestions
CI Centrifugal Pumps FAQ
What do the CI size designations mean?
A designation such as 80×50-200 gives the suction branch, the discharge branch and the nominal impeller diameter in millimetres. It is the ISO 2858 way of naming a pump and it is what has to match when you replace one.
When is SS316 worth the extra over SS304?
When the water carries chlorides — brackish water, heavily chlorinated water or chemically dosed streams. SS316 contains molybdenum and resists chloride pitting where SS304 will not.
What head and flow can the CI reach?
Up to 500 m³/h and up to 80 m across the range. No single designation reaches both limits, so the duty point decides the size.
Is operating temperature published for the CI series?
No. The source catalogue publishes size, capacity, head and materials but not temperature or speed, so we mark those TBC and confirm them at enquiry.
Specify a CI Centrifugal Pump for Your Duty
Send the flow, head, supply frequency and liquid description and we will confirm the size and the published specification for it.
