Fiber Adapter
Same-type mating sleeves that hold two ferrules on one axis
All 18 Fiber Adapter Products

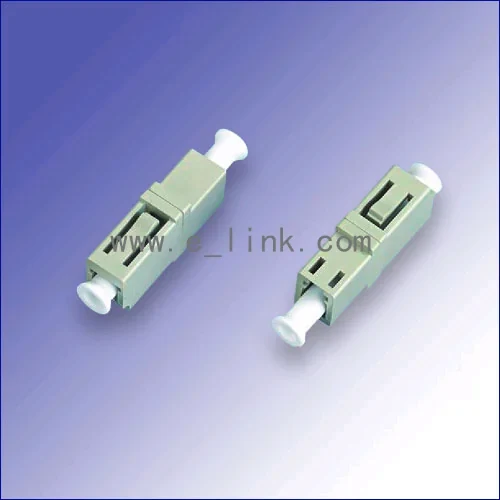

LC/PC Adapter MM
We supply LC fiber optic adapters, including simplex, duplex and quad types; these LC adapters are single mode and multimode styles with plastic housing and.
View Details
FC/PC Adapter SM
We supply FC fiber optic adapters, including square type, single D type and double D types, in single mode and multimode versions.
View Details

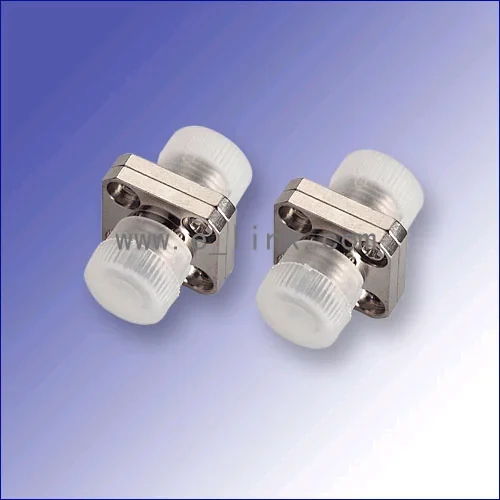

FC/PC Adapter MM
We supply FC fiber optic adapters, including square type, single D type and double D types, in single mode and multimode versions.
View Details

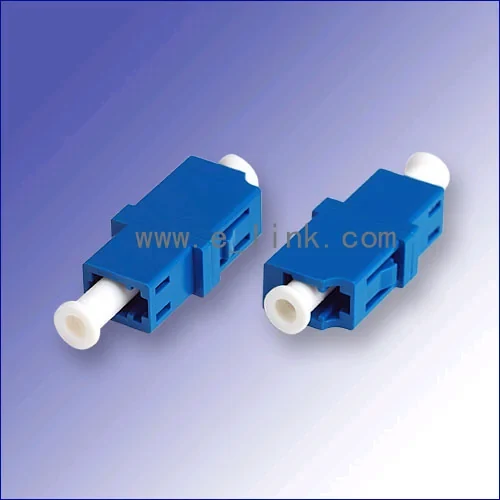

LC/PC Adapter SM
We supply LC fiber optic adapters, including simplex, duplex and quad types; these LC adapters are single mode and multimode styles with plastic housing and.
View Details

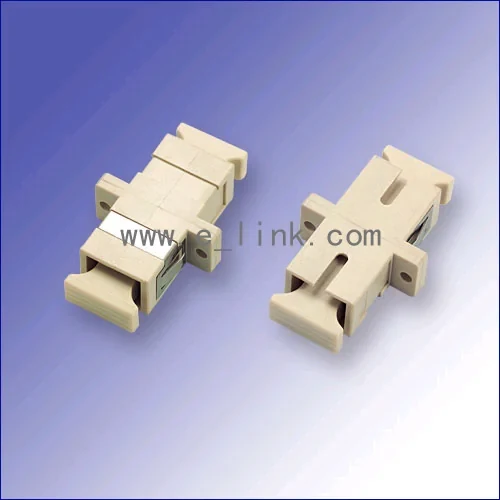

SC/PC Adapter MM
We supply SC fiber optic adapters; these products are various types including single mode and multimode, zirconia sleeve and bronze sleeve, simplex and duplex.
View Details

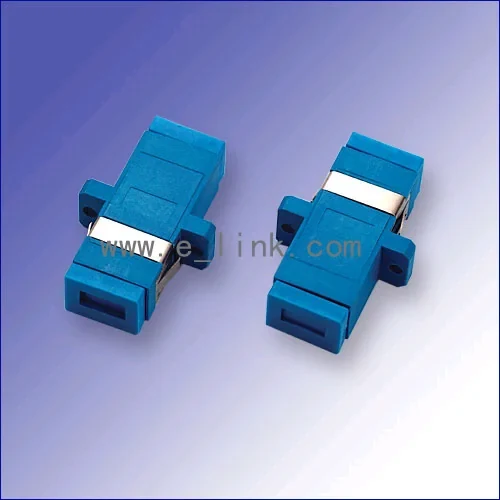

SC/PC Adapter SM
We supply SC fiber optic adapters; these products are various types including single mode and multimode, zirconia sleeve and bronze sleeve, simplex and duplex.
View Details

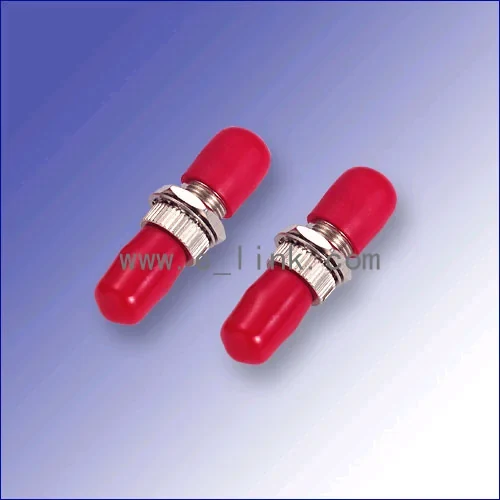

ST/PC Adapter MM
We supply the ST fiber optic adapters, including the single mode and multimode types.
View Details

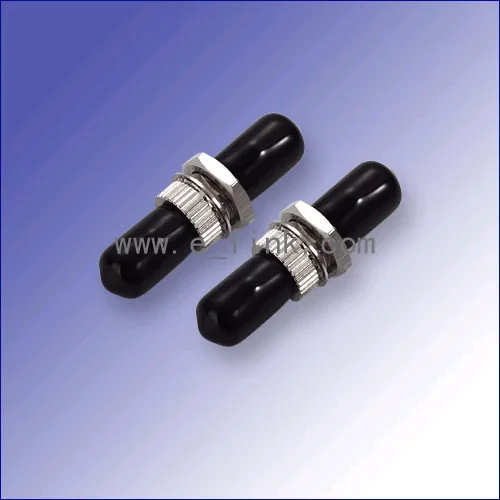

ST/PC Adapter SM
We supply the ST fiber optic adapters, including the single mode and multimode types.
View Details
MU Adapter
We supply MU fiber optic adapters, including the simplex and duplex types, single mode and multimode styles.
View Details
MT-RJ Adapter
We supply the MTRJ fiber optic adapters, including single mode and multimode types, these MT-RJ fiber adapters are with polymer housing, with flange type adapters.
View Details
E2000 Adapter
We supply the E2000 fiber optic adapters, including the single mode and multimode types, there are UPC and APC adapters available.
View Details

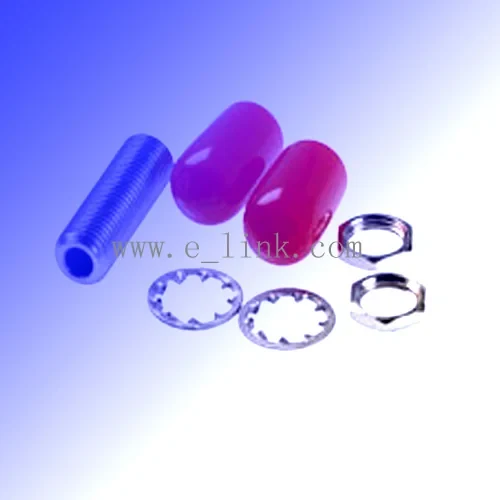

SMA Adapter
We supply SMA multimode fiber optic adapters, these FSMA mating adapter can be used with all standard FSMA fiber optic connectors and are suitable for panel.
View Details
DIN Adapter
We supply DIN fiber optic adapters which come with zirconia sleeves and threaded size.
View DetailsSC Withdrawal Adapter
Used for populating an optical distribution frame during a build-out.
View Details
LC Quad Flangeless Adapter
Quad. Used for replacing worn ports found during a maintenance sweep.
View Details
SC/PC Adapter
PC polish. Used for replacing worn ports found during a maintenance sweep.
View Details

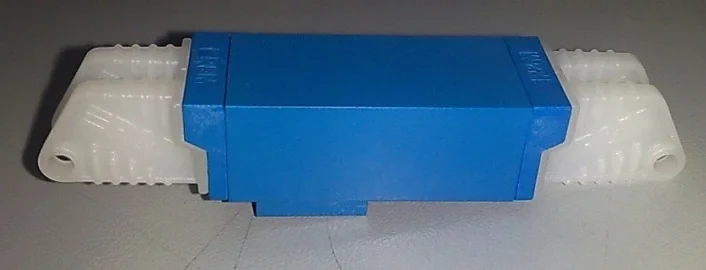

E2000 Duplex Adapter
Duplex. Used for populating an optical distribution frame during a build-out.
View Details

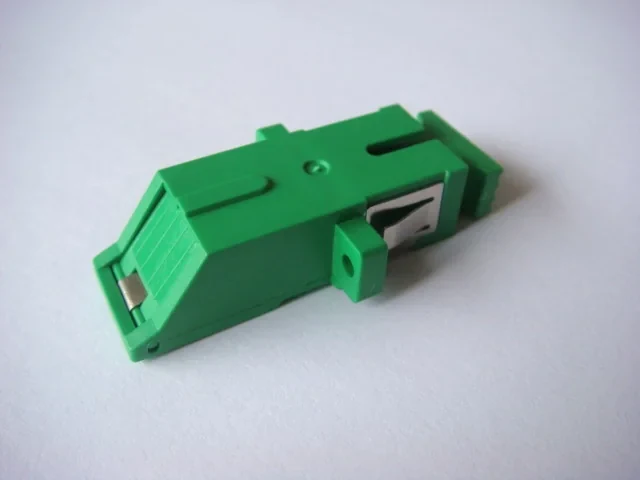

SC/APC Withdrawal Adapter
APC polish. Used for creating temporary cross-connects on a test bench.
View DetailsFiber Adapter In Practice
An adapter is a precision sleeve in a plastic or metal housing whose only job is to keep two ferrules coaxial while their springs push them together. Almost every mysterious high-loss port in a patch field turns out to be a worn or contaminated sleeve rather than a bad cord.
Problems This Range Solves
- Sleeve wear after repeated matings, which shows up as slowly rising loss
- Panel cut-outs that do not match the adapter flange being supplied
- Dust entering open ports between commissioning and service turn-up
- Mixed single-mode and multimode adapters in the same field with no visual difference
- Loose panel mounting that lets the adapter move when a cord is pulled
Who It Is For
- ODF and patch panel manufacturers
- Data-center cabling contractors
- FTTH terminal box and closure assemblers
- Maintenance teams replacing worn ports
- Distributors stocking a full adapter matrix
Where It Is Used
- Populating an optical distribution frame during a build-out
- Replacing worn ports found during a maintenance sweep
- Building faceplates and terminal boxes on an assembly bench
- Creating temporary cross-connects on a test bench
- Stocking spare ports for emergency restoration
What You Get From Our Fiber Adapter
Advantages
- Precision alignment sleeve sized for the ferrule and fiber mode
- Flanged and flangeless versions to suit existing panel cut-outs
- Dust caps fitted so ports stay clean until they are commissioned
- Color coding by polish type, so APC ports are visible at a glance
- Simplex, duplex and quad bodies for different port densities
Technical Features
- Ceramic or bronze alignment sleeve sized to the fiber mode
- Flanged, flangeless and square mounting options
- Simplex, duplex and quad body formats
- Dust caps on both sides as supplied
- Color-coded housing by polish type
Materials
- Zirconia ceramic or phosphor bronze alignment sleeve
- Thermoplastic or metal housing
- Stainless mounting hardware
- Thermoplastic dust caps
Customization Options
- Ceramic or bronze sleeve
- Flanged, flangeless or square mount
- Simplex, duplex or quad body
- Housing color to your polish convention
- Private-label bagging for distributors
Manufacturing Process
- Sleeve inner diameter inspection on incoming parts
- Housing molding or machining
- Sleeve insertion and retention check
- Mating force and alignment verification
- Dust cap fitting and packing
Quality Control
- Sleeve inner diameter sampled per lot
- Insertion loss checked with reference cords on sample units
- Repeated mating durability test on samples
- Panel fit verified against the stated cut-out dimension
- Visual check for sleeve seating and housing flash
Where This Range Is Specified
Telecom and Carrier Networks
Passive components for access, metro and transmission plant that has to stay up for decades
Data Center and Enterprise LAN
High-density patching, structured cabling and building-to-building links
Test Measurement and OEM Integration
Component-level supply for instrument builders and cable assembly houses
Industrial and Medical Optical Links
Fiber links in environments where electrical noise, isolation or geometry rules out copper
Specifying and Handling Fiber Adapter
Before You Order
- Confirm the panel cut-out before ordering flanged or flangeless
- Keep dust caps on both sides until the port is commissioned
- Clean both ferrules before every mating, not only the first one
On Site
- Replace rather than clean a sleeve that has visible wear
- Keep APC and UPC ports physically separated and color coded
- Torque panel screws evenly so the body does not sit skewed
Fiber Adapter Questions
What is the difference between a ceramic and a bronze sleeve?
Ceramic sleeves hold tighter tolerance and wear more slowly, which is what you want on single-mode and on ports that get re-patched often. Bronze is a lower-cost option normally used on multimode.
How do I choose between flanged and flangeless?
It depends on the panel. Flanged adapters mount through a rectangular cut-out with screws, flangeless versions clip into a smaller aperture. Measure the existing cut-out before ordering replacements.
Can an adapter be used to join UPC to APC?
No. Mating UPC to APC leaves an air gap that costs a large amount of loss and can damage both end faces. If you have to cross polish types, the correct part is an attenuator or a converter assembly, not an adapter.
How often should adapters be replaced?
Replace when a port shows rising loss that cleaning does not fix, or when the sleeve is visibly worn. In a heavily re-patched field this is a consumable, not a permanent fixture.
Do adapters come with dust caps?
Yes, adapters are supplied with caps on both sides. Leave them in place until the port is actually patched, because an open port in a dusty building will need cleaning before first use.
Guides Related To This Range
How to Choose a Fiber Optic Connector Type
FC SC LC ST MU MT-RJ and E2000 compared by what actually decides the choice: the port you have to mate with the space you have and how often it gets touched.
Material GuideSingle Mode and Multimode Fiber Compared
Core sizes, where each one earns its place, and the mixing mistake that quietly costs several decibels in the middle of a channel.
Buying GuideFiber Optic Patch Cord Buying Guide
The seven things a patch cord order has to state, and what happens on site for each one you leave out.
Product GuideWhat a Hybrid Fiber Adapter Does and When to Use One
Joining two different connector standards without cutting anything, and the three things that still have to match.
More Fiber Optic Components
Fiber Optic Patchcord
Factory-terminated jumpers that turn a planned link budget into a working one
11 products
Various Pigtail
Pre-terminated tails that put the factory end face inside your splice tray
12 products
Fiber Optic Connector
Connector bodies and kits for assembly houses and field termination
8 products
Hybrid Adapter
Cross-type mating sleeves that join two different connector standards
19 productsGet Pricing On Fiber Adapter
Email the model and quantity and we will reply with pricing, lead time and a datasheet for any item in the fiber adapter range.
