Hybrid Adapter

Cross-type mating sleeves that join two different connector standards

Request A Quote See All 19 Products

The Range

All 19 Hybrid Adapter Products

Hybrid Adapter

LC-FC LC-SC

Used for connecting an FC test set to an SC or LC patch field.

View Details

Hybrid Adapter

SCm-FCm&f

Used for connecting an FC test set to an SC or LC patch field.

View Details

Hybrid Adapter

SCm-LCf (Ref 288)

Used for connecting an FC test set to an SC or LC patch field.

View Details

Hybrid Adapter

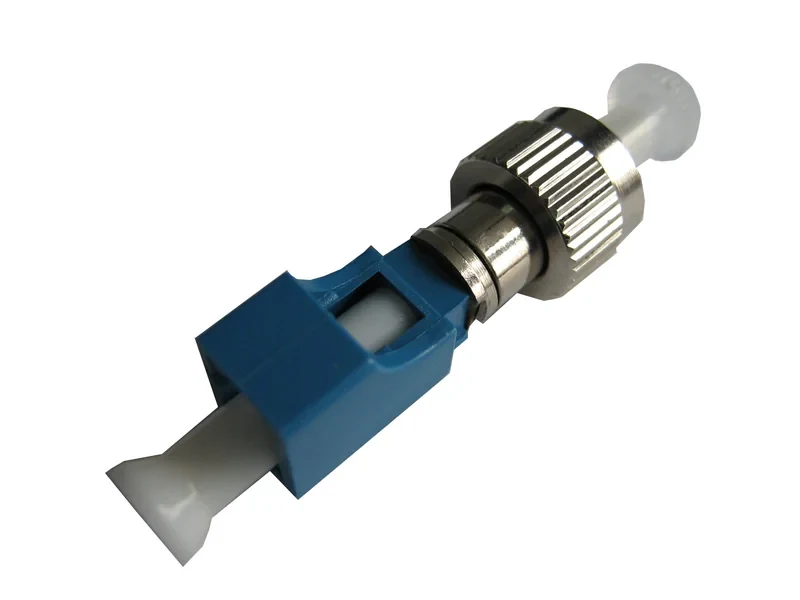

FCm-LCf (Ref 289)

Used for extending a cord's reach through a panel without a new assembly.

View Details

Hybrid Adapter

E2000-SC Adapter

Used for extending a cord's reach through a panel without a new assembly.

View Details

Hybrid Adapter

FC-DIN

Used for phasing an ST multimode backbone into new LC equipment.

View Details

Hybrid Adapter

FCm-FCf

Used for temporary cross-connects during a cutover window.

View Details

Hybrid Adapter

LC-SC Sleeve

Used for bench testing a component with a connector the test set does not carry.

View Details

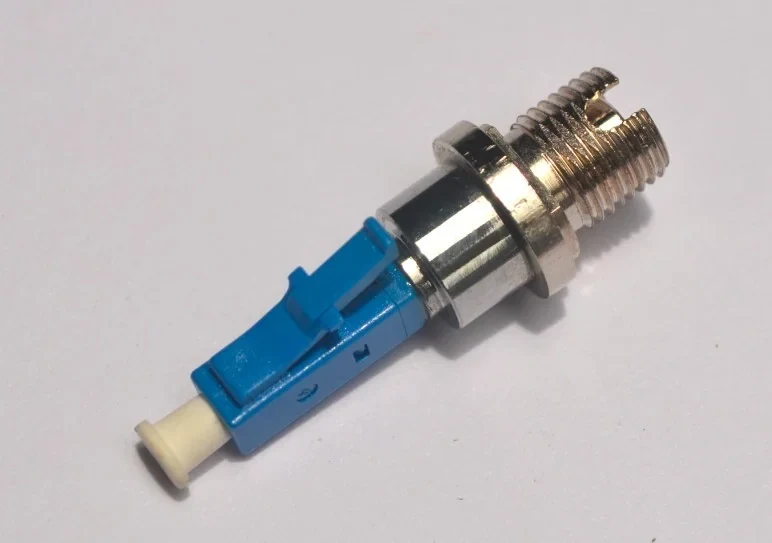

Hybrid Adapter

LCm-FCf

Used for temporary cross-connects during a cutover window.

View Details

Hybrid Adapter

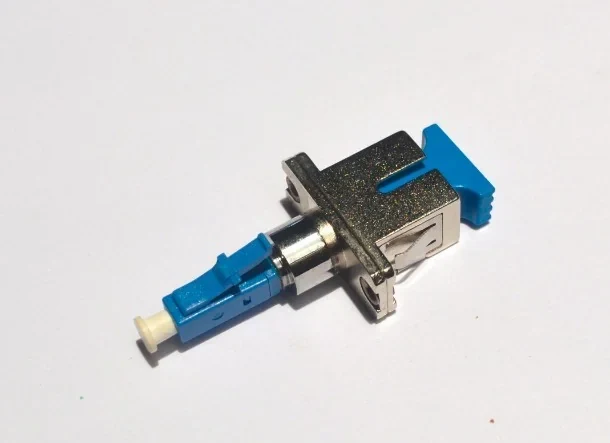

LCm-SCf

Used for connecting an FC test set to an SC or LC patch field.

View Details

Hybrid Adapter

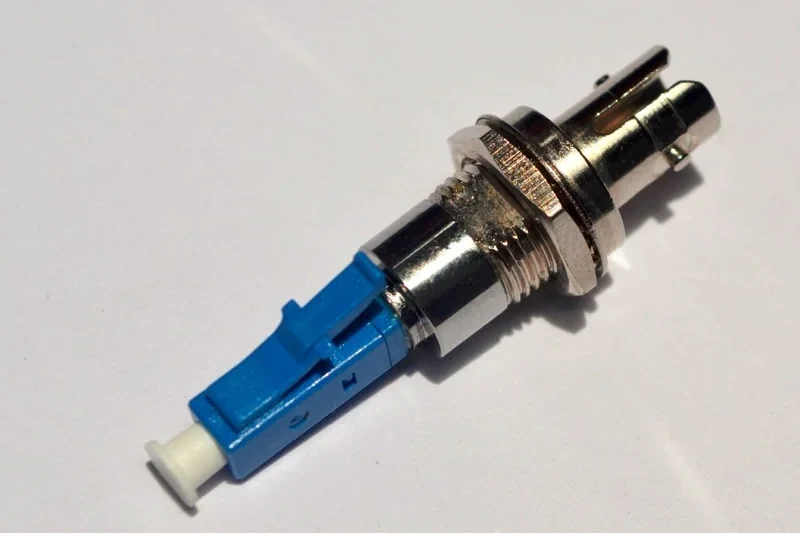

LCm-STf

Used for phasing an ST multimode backbone into new LC equipment.

View Details

Hybrid Adapter

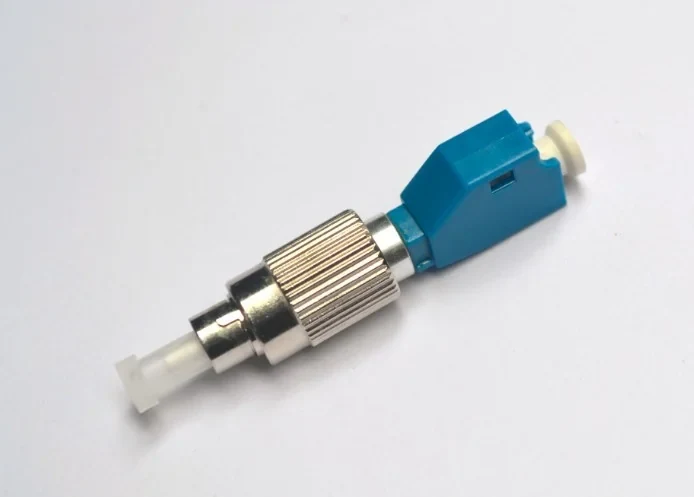

FCm-LCf (Ref 419)

Used for connecting an FC test set to an SC or LC patch field.

View Details

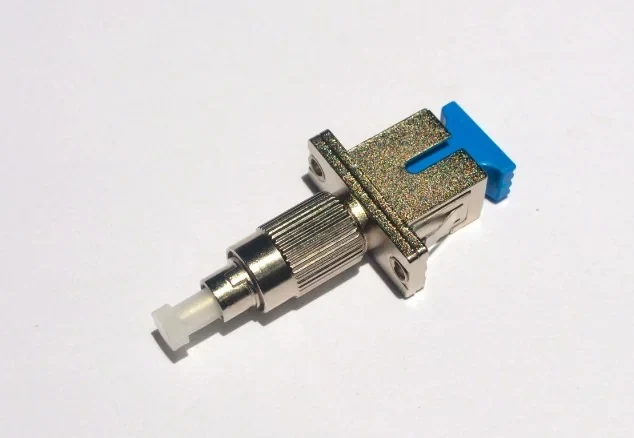

Hybrid Adapter

FCm-SCf

Used for extending a cord's reach through a panel without a new assembly.

View Details

Hybrid Adapter

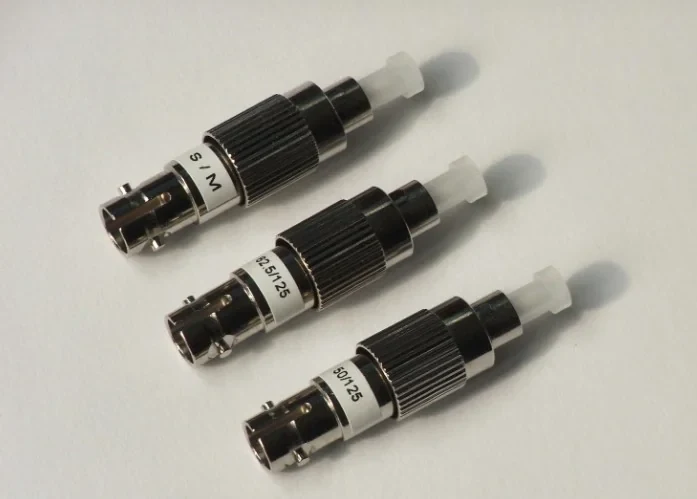

FCm-STf

Used for extending a cord's reach through a panel without a new assembly.

View Details

Hybrid Adapter

SCm-FCf

Used for phasing an ST multimode backbone into new LC equipment.

View Details

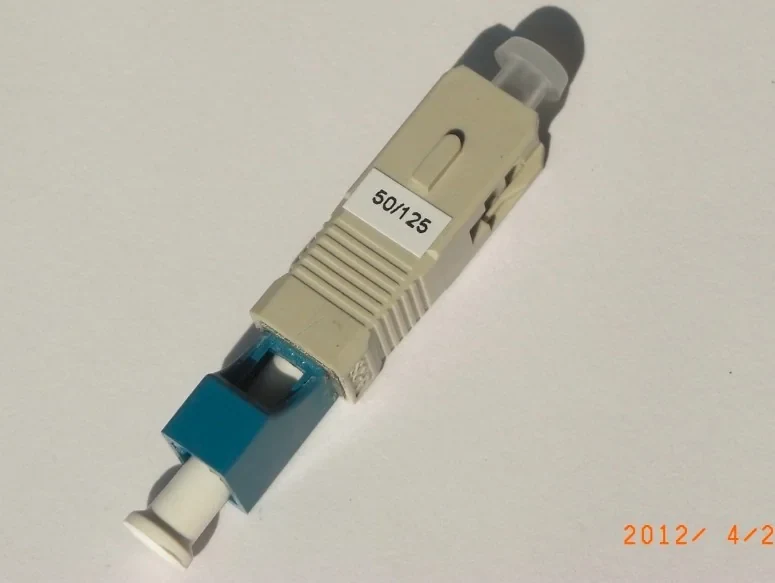

Hybrid Adapter

SCm-LCf (Ref 423)

Used for phasing an ST multimode backbone into new LC equipment.

View Details

Hybrid Adapter

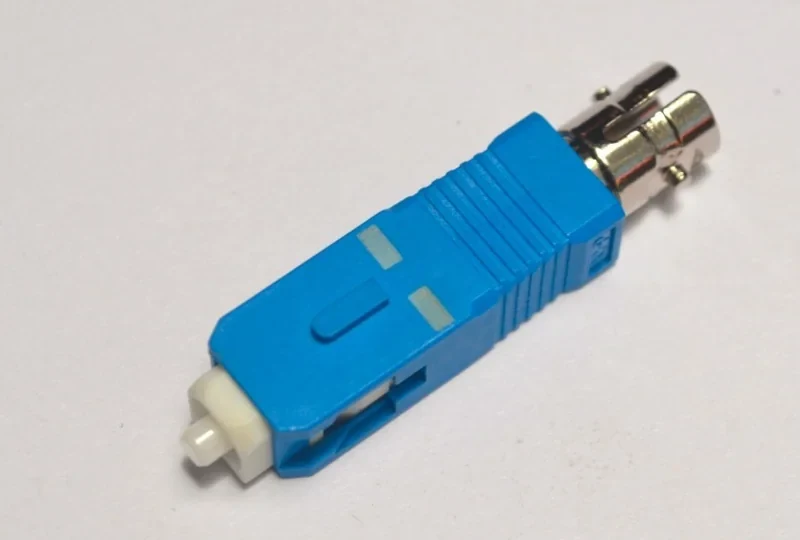

SCm-STf

Used for bench testing a component with a connector the test set does not carry.

View Details

Hybrid Adapter

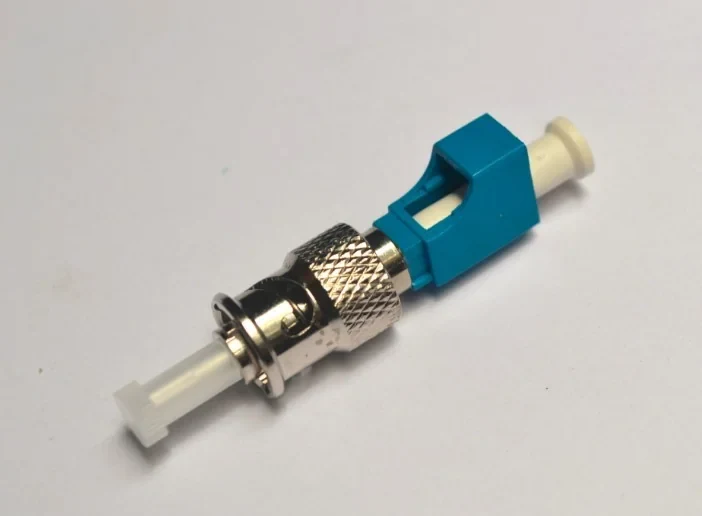

STm-LCf

Used for temporary cross-connects during a cutover window.

View Details

Hybrid Adapter

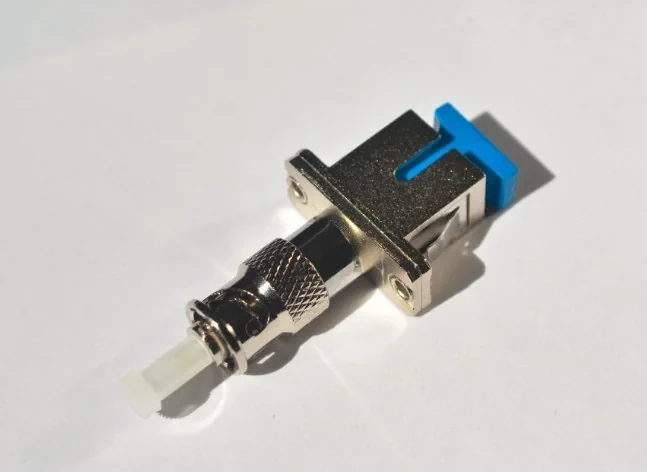

STm-SCf

Used for temporary cross-connects during a cutover window.

View Details

Why It Matters

Hybrid Adapter In Practice

Networks are rarely built in one generation. A hybrid adapter is what lets an ST building backbone meet an LC switch port, or an FC test set meet an SC patch field, without cutting a cord or building a special assembly for a temporary need.

Problems This Range Solves

Equipment ports and installed plant using different connector standards
Test sets that cannot reach the port they need to measure
Migration projects where old and new connector types have to coexist
Custom converter cords ordered for what is really a temporary connection
Gender mismatches between male ferrule ends and female panel ports

Who It Is For

Field engineers testing across mixed connector estates
Contractors migrating legacy ST or FC plant to SC or LC
Data-center teams integrating acquired or inherited cabling
Laboratories and test benches with multiple equipment standards
Maintenance crews carrying a universal patching kit

Where It Is Used

Connecting an FC test set to an SC or LC patch field
Phasing an ST multimode backbone into new LC equipment
Bench testing a component with a connector the test set does not carry
Temporary cross-connects during a cutover window
Extending a cord's reach through a panel without a new assembly

Core Advantages

What You Get From Our Hybrid Adapter

Advantages

One part bridges two standards instead of a purpose-built converter cord
Available as male-to-female and female-to-female combinations
Keeps a migration reversible, because nothing is cut
Compact enough to live permanently in a field test kit
Wide combination matrix across FC, SC, LC, ST, MU, DIN and E2000

Technical Features

Precision alignment sleeve sized for the smaller of the two ferrules
Male and female body combinations across connector families
Metal or thermoplastic housing depending on the pair
Panel-mount and inline versions
Dust caps on both interfaces

Materials

Zirconia ceramic or phosphor bronze alignment sleeve
Metal or thermoplastic housing
Stainless retention hardware
Thermoplastic dust caps

Customization Options

Any mainstream connector pair on request
Male-to-female or female-to-female
Ceramic or bronze sleeve
Panel-mount or inline body
Kitted sets for field engineering bags

Manufacturing Process

Sleeve selection matched to the ferrule pair
Housing machining or molding per connector combination
Assembly and concentricity verification
Mating check against both parent connector standards
Capping and individual packing

Quality Control

Concentricity verified against both mating standards
Insertion loss measured with reference cords on both sides
Retention and mating force checks on samples
Visual inspection of both interfaces before capping
Combination and gender verified against the order line

Industries

Where This Range Is Specified

Telecom and Carrier Networks

Passive components for access, metro and transmission plant that has to stay up for decades

Test Measurement and OEM Integration

Component-level supply for instrument builders and cable assembly houses

Deployment Profiles

How It Is Used In The Field

Campus Backbone Connector Migration

Phasing a legacy ST or FC estate onto SC and LC equipment without cutting anything

Use Guide

Specifying and Handling Hybrid Adapter

Before You Order

Confirm both connector types and their genders before ordering
Match fiber mode on both sides; a hybrid adapter does not convert core size
Clean both ferrules before mating, as with any adapter

On Site

Expect the loss of a normal mated pair, and budget for it in the link
Do not use a hybrid adapter to bridge UPC to APC
Cap unused sides when the adapter lives in a field kit

FAQ

Hybrid Adapter Questions

Does a hybrid adapter change the fiber mode?

No. It aligns two different connector housings onto one axis but does nothing to the fiber. Single-mode has to meet single-mode, and 50/125 has to meet 50/125, on both sides.

Which connector combinations can you supply?

We stock a wide matrix across FC, SC, LC, ST, MU, DIN and E2000, in both male-to-female and female-to-female forms. If your combination is not in the list, send us the two connector types and we will quote it.

Will a hybrid adapter add loss to my link?

It adds the loss of a mated connector pair, the same as any adapter in the path. Include it in the link budget rather than assuming it is free.

Can I mate UPC to APC through a hybrid adapter?

No. The end-face geometries do not touch correctly and both faces can be damaged. Cross polish types with a proper converter assembly, not an adapter.

Are these suitable for permanent installation?

Panel-mount versions are built for permanent use. Inline versions are more often used in test kits and during migrations, though nothing stops them staying in place if the enclosure supports them mechanically.
