Busbar Insulation and Covers
S1-A Wrap Around Overhead Line Cover 380 V to 110 kV

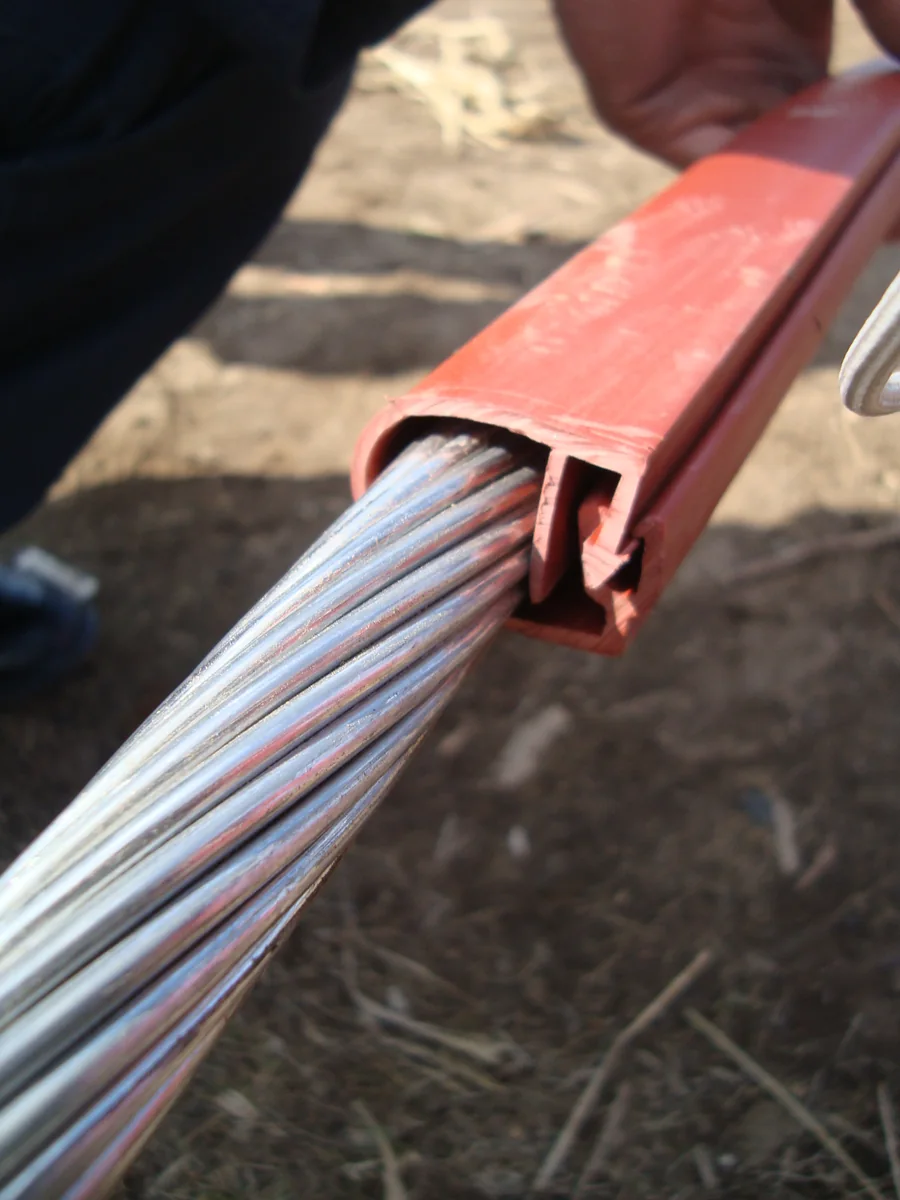

A wrap around insulating cover with a built in creepage device that clips onto a live route conductor without disconnection
- Operating temperature: -40 to 105°C
- Voltage Class:380V~110 kV
- Environmental friendly, RoHS compliant
- Standard Color: Red, Green, Yellow, Black
- Standard Packaging: 20m/roll
S1-A · Busbar Insulation and Covers
Product Overview
What S1-A Does
Suitable for improving insulation and preventing short circuits of overhead conductors of various voltage levels; Strengthen the three-phase insulation protection of the transition line from medium and high voltage lines to the main transformer station; Used for the lead part of oil switches on columns and urban public transformers. Installation is simple and fast, with built-in creepage growth device to increase creepage distance and improve insulation performance. Excellent weather resistance, UV resistance, and mechanical damage resistance
A wrap around insulating cover with a built in creepage device that clips onto a live route conductor without disconnection It is manufactured by Dalian United Polymer Material Co., Ltd. in Dalian China where radiation cross linking extrusion and molding are all performed in house under one quality system.
Key Benefits
- Fits an installed conductor without cutting or disconnecting the line
- Built in creepage growth device that raises insulation performance beyond a plain cover
- Voltage coverage from 380 V all the way to 110 kV
- Excellent weather UV and mechanical damage resistance
- Supplied in 20 m rolls so a span is covered from one pack
Who It Is For
Who Benefits Most from S1-A
The buyers and site teams this product was designed around
Overhead Distribution Utilities
Line sections close to trees buildings and structures where a phase to earth clearance is marginal.
Utilities with Bird and Animal Contact Problems
Covering the conductor at pole tops removes the electrocution and outage path.
Substation Entry Contractors
The transition span from an overhead line to a main transformer station needs reinforced three phase insulation.
Urban Network Operators
Pole mounted oil switches and public transformer lead sections in built up areas.
Problems It Solves
Problems This Product Removes
Every one of these is a failure mode we have seen on real networks
Overhead Conductors Short Circuit Against Branches and Structures
A covered conductor tolerates momentary contact that would otherwise trip the feeder.
Birds and Animals Bridge Phases at Pole Tops
Covering the conductor and the lead section removes the bridging path.
A Tube Cannot Be Fitted to an Installed Conductor
The wrap around design fits without disconnecting or cutting the line.
A Smooth Cover Has Limited Creepage
The built in creepage growth device increases the creepage distance along the cover surface.
Application Scenarios
Where It Is Used
Tree Contact Spans
Line sections where vegetation clearance cannot be maintained.
Overhead to Substation Transitions
Reinforcing three phase insulation on the transition lead into a main transformer station.
Pole Mounted Oil Switch Leads
Covering the lead section on column switches.
Urban Public Transformer Leads
Insulating leads on street mounted distribution transformers.
Bird and Animal Protection
Pole top conductor covering to prevent electrocution outages.
Technical Data
Specifications and Dimensions
Test methods and requirements taken directly from the manufacturing specification
Technical Data
| Property | Test Method | Requirement |
|---|---|---|
| Tensile Strength | ASTM D2671 | ≥12 MPa |
| Ultimate Elongation | ASTM D2671 | ≥300% |
| Heat Aging (136°C/168h) Tensile Strength Ultimate Elongation | ASTM D2671 | ≥10 MPa ≥200% |
| Water absorption (23°C/24h) | ASTM D2671 | ≤0.5% |
| Low-temperature flexibility (-40°C/4h) | ASTM D2671 | No cracking |
| Dielectric strength | ASTM D2671 | ≥20 kV/mm |
| Volume resistivity | ASTM D2671 | ≥1.0×1013Ω·cm |
| Dielectric constant | IEC 250 | ≤5.0 |
| Tracking and erosion resistance | ASTM D2303 | After 1hr at 2.5kV, and 1hr at 2.75kV, No burn penetration, no sustained burning |
| Flammability | ASTM D2863 | Oxygen index 27 min. |
Dimensions
| Size | Voltage class | Size for conductor (mm2) | Conductor diameter maximum (mm) |
|---|---|---|---|
| Ø14A | 380V~10kV | ≤70 | 14 |
| Ø18A | 380V~10kV | 95 | 18 |
| Ø20A | 380V~10kV | 120~150 | 20 |
| Ø28A | 380V~10kV | 185~300 | 28 |
| Ø38A | 380V~10kV | 400~800 | 38 |
| Ø14B | 35kV~110kV | ≤70 | 14 |
| Ø18B | 35kV~110kV | 95 | 18 |
| Ø20B | 35kV~110kV | 120~150 | 20 |
| Ø28B | 35kV~110kV | 185~300 | 28 |
| Ø38B | 35kV~110kV | 400~800 | 38 |
CROSS REFERENCE · Tyco-Raychem: MULC
Manufacturing and Quality
How It Is Made and Checked
Compounding extrusion radiation cross linking expansion and test all under one roof in Dalian
-
01
Compounding
Base polyolefin antioxidants flame retardants and functional fillers are mixed to a recipe held under our own formulation control rather than bought as a masterbatch.
-
02
Extrusion
The compound is extruded to the required wall and diameter. Co extruded products form two or three layers in a single pass so no interface can trap air.
-
03
Radiation Cross Linking
Electron beam irradiation creates the cross linked network that gives the material its shape memory. This step is what makes the product heat shrinkable.
-
04
Expansion
The cross linked part is heated expanded to its supplied diameter and cooled under tension so the expanded shape is locked in until heat is applied again.
-
05
Test and Inspection
More than 90 percent of product performance tests are carried out in our own laboratory including tensile elongation heat aging dielectric strength and tracking resistance.
-
06
Packing and Traceability
Each batch carries a production record so a delivered part can be traced back to its compound lot and process parameters.
Certification
ISO 9001:2015
Quality management system
IATF 16949:2016
Automotive quality management
ISO 14001:2015
Environmental management
ISO 45001:2018
Occupational health and safety
GJB 9001C-2017
Defence quality management
UL 224 E341796
Extruded insulating tubing
CE / RoHS
European conformity and restricted substances
CCS / ABS / DNV
Marine classification society approvals
Comparison
How S1-A Compares
An honest comparison so you can rule this product in or out quickly
| Situation | Recommended Product |
|---|---|
| Conductor can be disconnected | S1 or S1-35 tube |
| Conductor is live and installed | S1-A wrap around cover |
| Bolted lap joint in switchgear | S1-B molded cover |
| Cable jacket damage | R1 repair sleeve |
Use Guide
How to Select and Install S1-A
The sequence our engineers walk customers through on every first installation
-
01
Measure the Conductor Diameter
Sizes run from Ø14A upward. Match the size to the maximum conductor diameter in the table below.
-
02
Confirm the Voltage Class
The dimension table lists the voltage class each size covers from 380 V to 110 kV.
-
03
Clean the Conductor
Remove loose corrosion and dirt so the cover sits directly on the conductor.
-
04
Wrap and Close the Profile
Fold the cover around the conductor and engage the closure profile along the full length.
-
05
Overlap Adjacent Sections
Where more than one length is used overlap the sections so no gap is left.
-
06
Inspect the Creepage Device
The built in creepage growth feature must be correctly oriented along the whole covered length.
FAQ
S1-A Frequently Asked Questions
The questions buyers ask before they place an order
Can it be installed on a live line
What is the creepage growth device
Does it make the line touch safe
How much is supplied per pack
What sizes are available
Is it equivalent to Raychem MULC
Still need an answer ask our engineers on WhatsApp
Related
Related Products
S1-B Lap Joint Cover
Molded clip open covers that insulate bolted busbar joints and still allow inspection without damaging the connection
VIEW DETAILS
S1-35 Busbar FR 36 kV
The 36 kV flame retardant busbar grade in four phase colours for compact switchgear and collector substations
VIEW DETAILS
Y3 Rain Sheds
Red anti tracking skirts with mastic collars that build creepage distance on outdoor terminations from 1 kV to 36 kV
VIEW DETAILS
S1 Busbar Tube
The general purpose busbar insulation family covering 1 kV to 35 kV with UL 224 recognition under file E341796
VIEW DETAILSGet a Quotation for S1-A
Send us the voltage class conductor size and quantity and we will return a part number a price and a lead time. No form to fill in.
