FR4 stacks up to 64 layers
Regular Rigid PCB
Standard FR4 construction is where most programmes start, and where aspect ratio, Tg selection and expedited sample time decide whether a schedule holds.
Published capability limits
- Up to 64 layers
- FR4 TG135 / TG150 / TG170
- Halogen free / CTI ≥ 600
- Aspect ratio (finished hole) 28:1
- Sample expedited 8 hours (1–2 layer)
Categories that sit inside this window
10 catalogue categories, 144 boards in total.
Representative builds
Multilayer PCB
10 Layers Buried Resistance ENIG+Hard Gold (Gold Finger) POFV Multilayer PCB
- Layers10 Layers (Max 64 Layers)
- Base materialTU 768
- Finished thickness2.0 mm (Max 8mm)
2 Layers PCB
7.8 mm Ultra-Thick Counterboring Double Side Immersion Gold 1u PCB
- Layers2 Layers (Max 64 Layers)
- Base materialFR4 TG135
- Finished thickness7.8 mm (Max 8mm)
Multilayer PCB

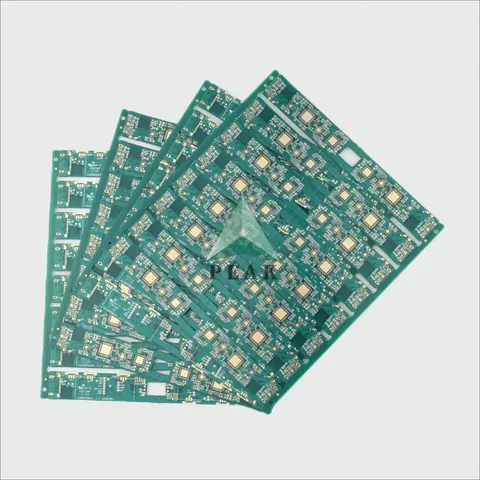

Fully Halogen Free Production 4 Layers POFV Immersion Gold 1u Multilayer PCB
- Layers4 Layers (Max 64 Layers)
- Base materialIT150GSTC
- Finished thickness1.2 mm (Max 8mm)
Multilayer PCB
6 Layers Optical Modules TU-872SLK (DK3.8; DF0.008) TUC ENIG High Speed PCB
- Layers6 Layers (Max 64 Layers)
- Base materialTUC TU-872SLK
- Finished thickness1.6 mm (Max 8mm)
Regular Rigid PCB quoted in 6 hours
Gerber plus a stack-up note is enough to start. If the design sits outside the window above, we will say so and propose the change that brings it back in.
