Iron-Based PCB manufacturer

When the heat has to leave through the board, the base metal and the bonding method matter more than the copper weight.

Request a quotation Ask on WhatsApp

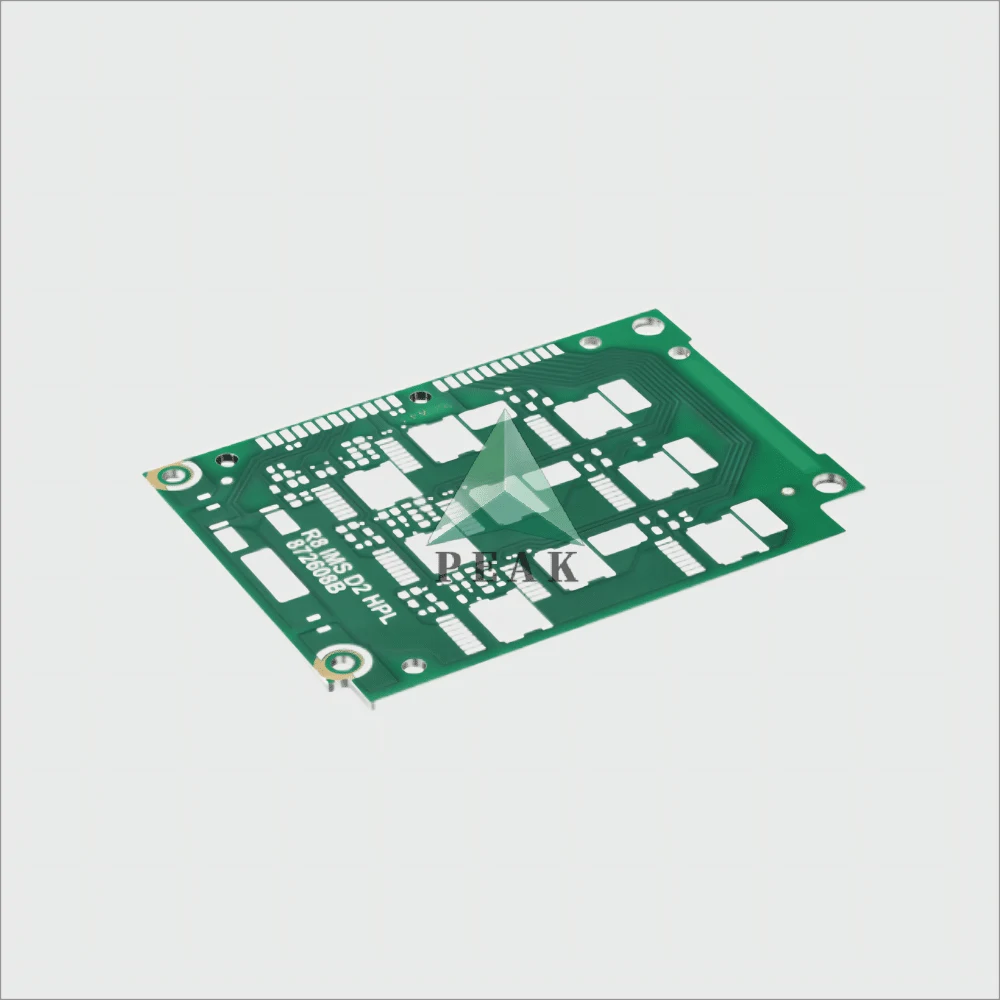

Iron-Based PCB built by PEAK PCB in Shenzhen

Process window

Thermal conductivity 1–398 W/m·K
Aluminium / copper AC 500–4000 V
Post-bonding and pre-bonding
Sweat soldering and conductive adhesive
Press-fit and embedded coin (I, T, U)

Metal Core PCB detail

Related categories

What this category was actually built to

Ranges below are computed from the 3 boards listed on this page, not from a marketing sheet.

Built to	Range across this category
Layer counts built	1
Base materials	Iron-Based
Surface finishes	ENIG 1u, HASL Lead-Free
Solder mask colours	Green
Finished thickness	0.5–2.0 mm

3 Iron-Based PCB builds

Metal Core PCB

2.0mm Thickness CFAF-06 Fingerprint-Proof 2oz Single Side Iron-Based PCB

LayersSingle Layer (Max 64 Layers)
Base materialIron-Based
Finished thickness2.0 mm (Max 8mm)

Specification & quote →

Metal Core PCB

Customized 1.0mm Thickness CFAF-04-A Silicon Steel Sheet 2oz Iron-Based PCB

LayersSingle Layer (Max 64 Layers)
Base materialIron-Based
Finished thickness1.0 mm (Max 8mm)

Specification & quote →

Metal Core PCB

CFAF-01-R Single Side 0.5mm Thickness 1oz Copper Thickness Iron Base PCB

LayersSingle Layer (Max 64 Layers)
Base materialIron-Based
Finished thickness0.5 mm (Max 8mm)

Specification & quote →

Need iron-based pcb quoted?

Send Gerber plus a drill file and a stack-up note. Quotation comes back within 6 hours, with DFM comments attached.
