Industrial Controls PCB
Controllers, drives and motherboards that have to survive a factory floor for a decade and stay buildable from the same data package.
What this application demands of the board
Thick copper for power stages and 14 oz capability
High Tg FR4 so reflow and field temperature do not delaminate the stack
CTI ≥ 600 laminate where tracking resistance is specified
Backdrill and controlled impedance on industrial motherboards
Categories used for industrial controls
Examples from production
HDI PCB
8 Layers 1+N+1 Structure (L1-2;L2-7;L7-8) 4/1/1/4oz Thick-Copper HDI PCB
- Layers8 Layers (Max 64 Layers)
- Base materialFR4 TG170
- Finished thickness2.0 mm (Max 8mm)

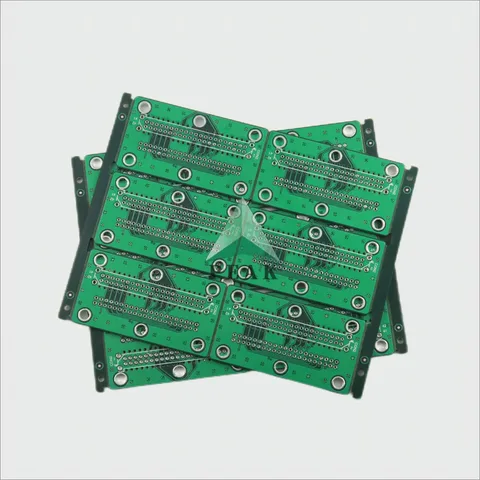

High TG PCB
Ventec VT-901 Polyimide TD (395℃) TG250 High Temperature Lamination PCB
- Layers4 Layers (Max 64 Layers)
- Base materialVentec VT-901
- Finished thickness1.2 mm (Max 8mm)
Multilayer PCB
SYTech S3116 High CTI 10 Layers GREE Domestic Electric Appliance ENIG PCB
- Layers10 Layers (Max 64 Layers)
- Base materialSYTech-S3116
- Finished thickness2.0 mm (Max 8mm)
Multilayer PCB
10 Layers Buried Resistance ENIG+Hard Gold (Gold Finger) POFV Multilayer PCB
- Layers10 Layers (Max 64 Layers)
- Base materialTU 768
- Finished thickness2.0 mm (Max 8mm)
Building for industrial controls?
Send the requirement — dielectric, thermal, qualification standard — and we will come back with a manufacturable stack-up and a price.
