4 boards in this category
Choosing the laminate brand is choosing the electrical behaviour of the board. These parts were built on stock we hold, so Dk, Df and Tg are a design decision rather than a lead-time.
Ranges below are computed from the 4 boards listed on this page, not from a marketing sheet.
| Built to | Range across this category |
|---|---|
| Layer counts built | 2–4 |

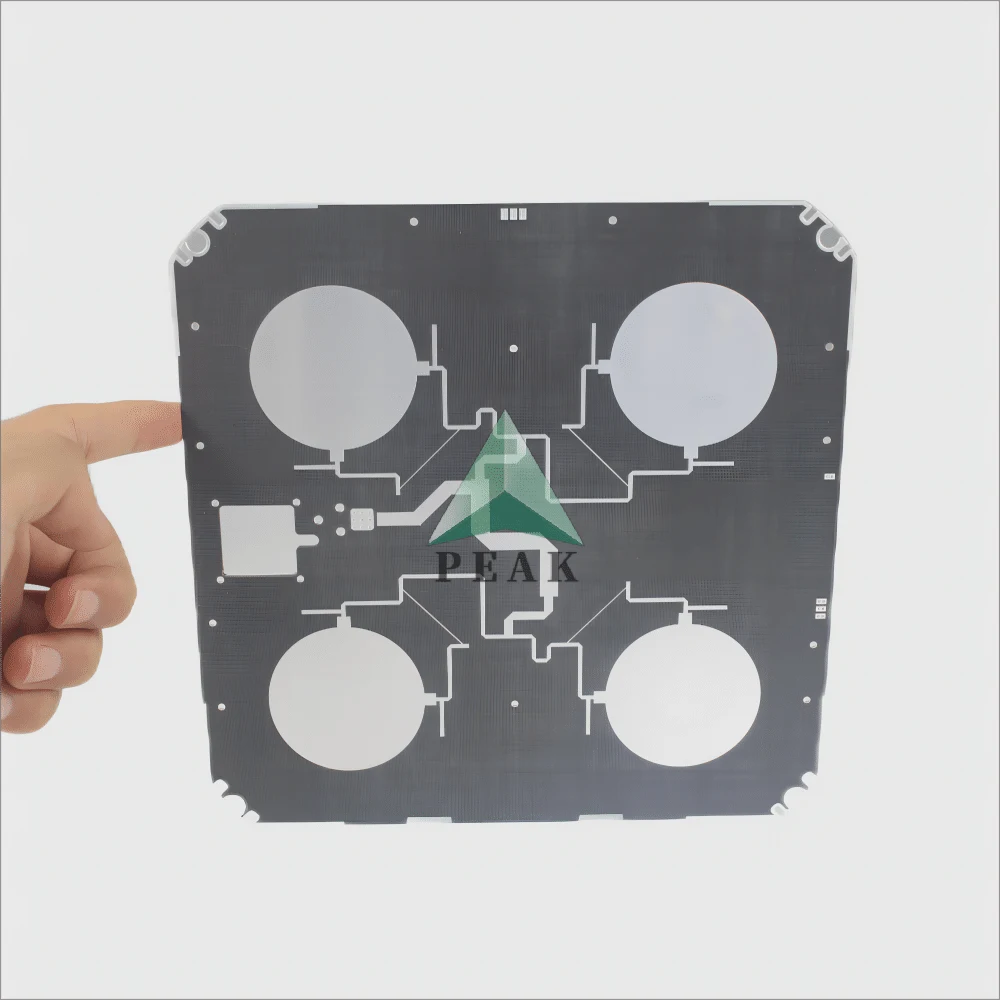

| Base materials | Arlon 25FR, Arlon 25N, Arlon AD1000, Arlon AD300C |
| Surface finishes | ENIG 1u, Immersion Silver, OSP |
| Solder mask colours | Green |
| Finished thickness | 1.0–2.45 mm |
Send Gerber plus a drill file and a stack-up note. Quotation comes back within 6 hours, with DFM comments attached.
