3 boards in this category
Choosing the laminate brand is choosing the electrical behaviour of the board. These parts were built on stock we hold, so Dk, Df and Tg are a design decision rather than a lead-time.
Ranges below are computed from the 3 boards listed on this page, not from a marketing sheet.
| Built to | Range across this category |
|---|---|
| Layer counts built | 2–6 |

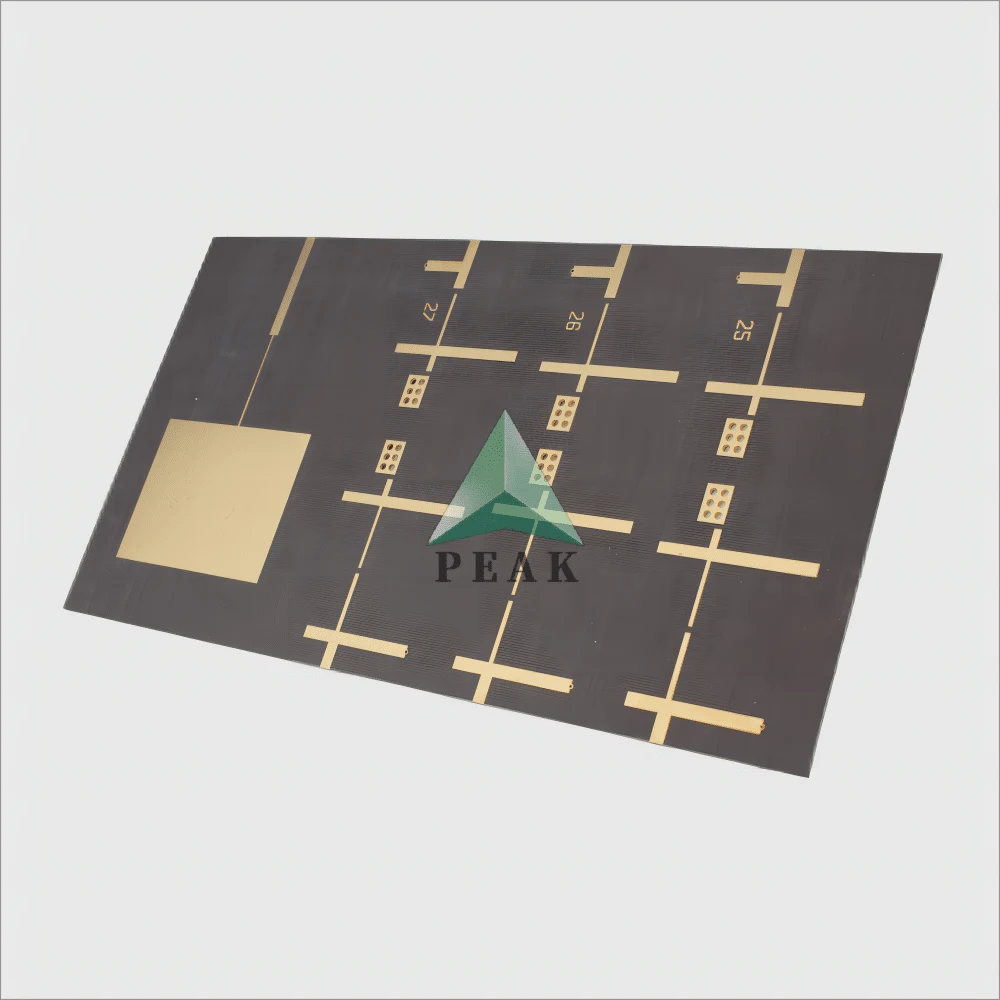

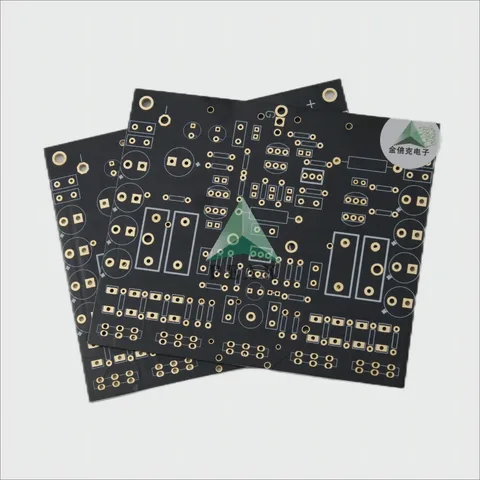

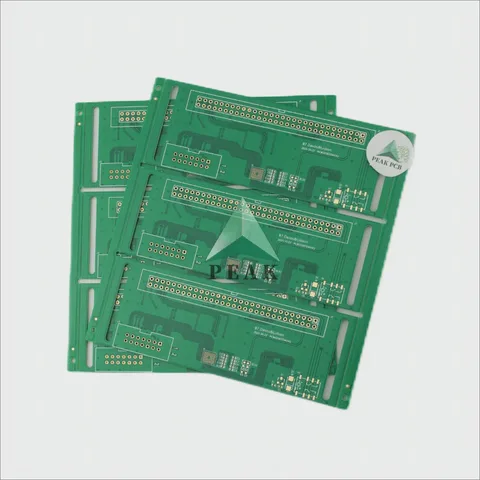

| Base materials | N4103-13EP, Nelco NX9245, Nelco NY9217 |
| Surface finishes | ENIG 1u |
| Solder mask colours | Black, Green |
| Special processes | POFV |
| Finished thickness | 1.0–1.6 mm |
Send Gerber plus a drill file and a stack-up note. Quotation comes back within 6 hours, with DFM comments attached.
