Quality and proof

Certification, testing and patents

Defense, automotive and medical programmes need the paperwork as much as the board. Everything on this page is a certificate or a report PEAK holds, reproduced from the company's own records.

Management system and product certifications

Nine certifications, including GJB9001C Chinese military certification passed in February 2021.

GJB9001C Military Certification certificate issued to PEAK Technology — **GJB9001C Military Certification**
China military quality management certification, passed February 2021.

ISO 9001:2015 certificate issued to PEAK Technology — **ISO 9001:2015**
Quality management system.

IATF 16949:2016 certificate issued to PEAK Technology — **IATF 16949:2016**
Automotive quality management system.

ISO 13485:2016 certificate issued to PEAK Technology — **ISO 13485:2016**
Medical device quality management system.

ISO 14001:2015 certificate issued to PEAK Technology — **ISO 14001:2015**
Environmental management system.

OHSAS 18001 certificate issued to PEAK Technology — **OHSAS 18001**
Occupational health and safety management.

UL — Multilayer PCB certificate issued to PEAK Technology — **UL — Multilayer PCB**
UL recognition for multilayer boards.

UL — Single Layer PCB certificate issued to PEAK Technology — **UL — Single Layer PCB**
UL recognition for single-layer boards.

CQC certificate issued to PEAK Technology — **CQC**
China Quality Certification Centre.

How boards are verified

Electrical and physical verification happens in the same plant that builds the board, so a failure is diagnosed rather than shipped back.

Electrical test and analysisFlying probe, impedance coupons, slice analysis, hole copper, peel and tensile testing, cold and heat shock, halogen content.
Assembly and final testStencil, SMT, DIP, wave solder, then 100% AOI with ICT, FCT, X-ray, vibration and drop testing to IPC-A-610 Class II.

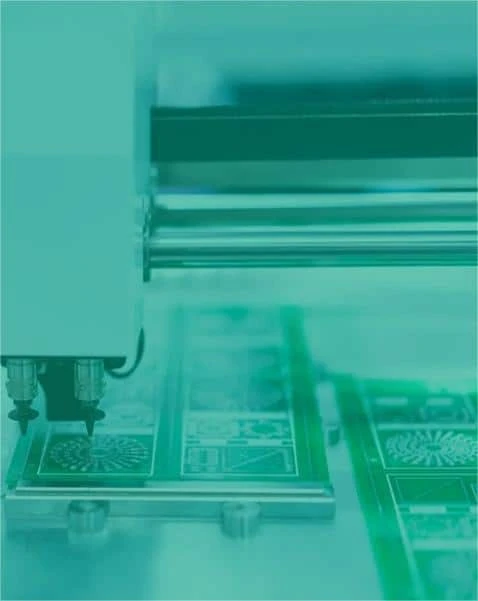

Flying probe and impedance testing

Slice analysis and hole copper measurement

Copper foil tensile and strong peel testing

Cold and heat shock, halogen content, hundredfold loupe

RoHS and REACH test reports

Third-party reports are held for each surface finish family.

ENIG–RoHS
ENIG–REACH
OSP–RoHS
OSP–REACH
HASL–RoHS
HASL–REACH
PCB–RoHS

PEAK PCB third-party Test report extract 1 test report — Test report extract 1

PEAK PCB third-party Test report extract 2 test report — Test report extract 2

PEAK PCB third-party Test report extract 3 test report — Test report extract 3

PEAK PCB third-party Test report extract 4 test report — Test report extract 4

Full report copies are issued on request against a specific part number and finish — ask for the current revision.

Eleven granted production patents

Process patents accumulated between 2019 and 2021, covering the wet process, solder resist, etching, plating recovery, test fixtures and board construction itself.

Patent certificate: A first-order blind and buried hole high-precision density circuit board — A first-order blind and buried hole high-precision density circuit board

Patent certificate: A high-precision PCB metallized half-hole circuit board — A high-precision PCB metallized half-hole circuit board

Patent certificate: A one-tow-multi precision solder resist device — A one-tow-multi precision solder resist device

Patent certificate: A printed circuit board wet-process equipment spray piping device — A printed circuit board wet-process equipment spray piping device

Patent certificate: An etching machine with stabilised etchant parameters for high-efficiency printed circuit boards — An etching machine with stabilised etchant parameters for high-efficiency printed circuit boards

Patent certificate: A high-efficiency retinning water circulation working device — A high-efficiency retinning water circulation working device

Patent certificate: A probe inspection fixture with good stability performance — A probe inspection fixture with good stability performance

Patent certificate: A bracket heat dissipation structure — A bracket heat dissipation structure

Patent certificate: An automatic coding equipment — An automatic coding equipment

Patent certificate: A connecting FPC and circuit board for circuit boards — A connecting FPC and circuit board for circuit boards

Patent certificate: Enhanced insulation strength LED driver power supply circuit board and its packaging structure — Enhanced insulation strength LED driver power supply circuit board and its packaging structure

Need the certificates for a supplier audit?

Tell us which scheme the auditor asks for — GJB9001C, IATF 16949, ISO 13485, UL or CQC — and we will send the current certificate and scope.
