9 boards in this category
Layer count is the first thing a quote turns on: it sets the press cycle, the aspect ratio you can drill and how much of the design has to move to the outer layers.
Ranges below are computed from the 9 boards listed on this page, not from a marketing sheet.
| Built to | Range across this category |
|---|---|
| Layer counts built | 6–10 |

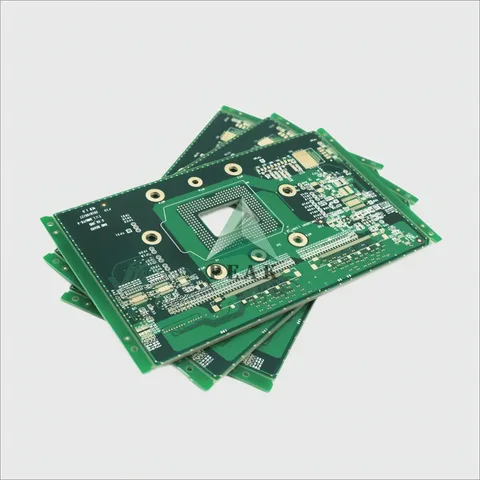

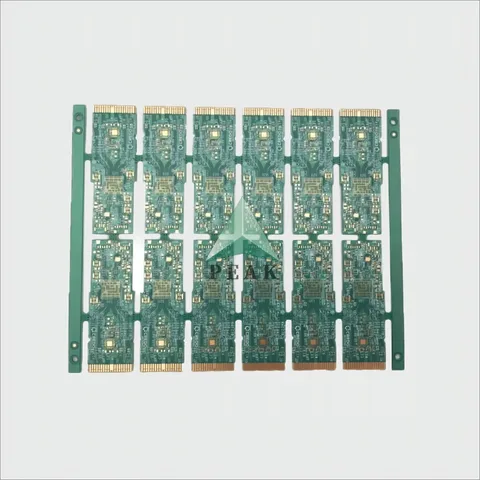

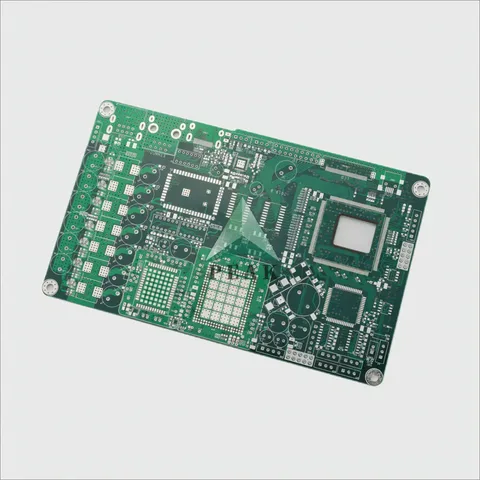

| Base materials | FR4 IT180A, FR4 TG150, FR4 TG170, Panasonic Megtron 7, SY-S1600L, SYTech-S3116 |

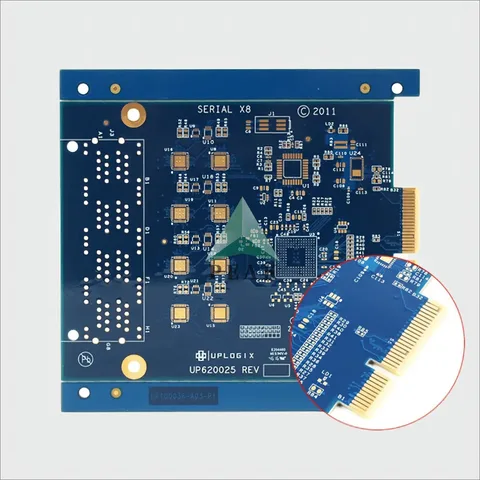

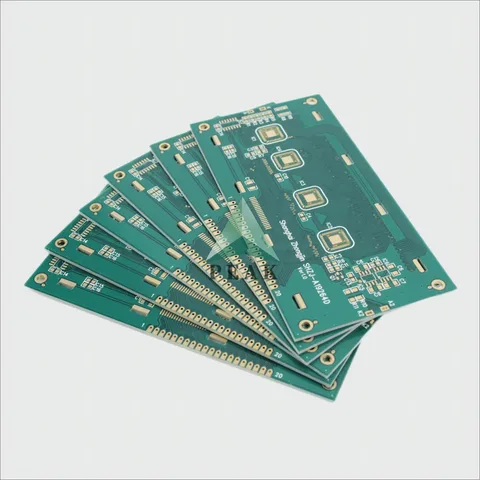

| Surface finishes | ENIG 1u, ENIG 1u + Hard Gold 30u, ENIG 2u, HASL Lead-Free |
| Solder mask colours | Blue, Green |

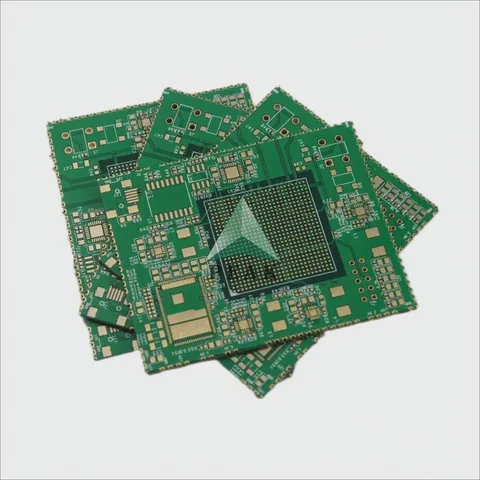

| Special processes | Buried Capacitance, Plated Half Holes & POFV |

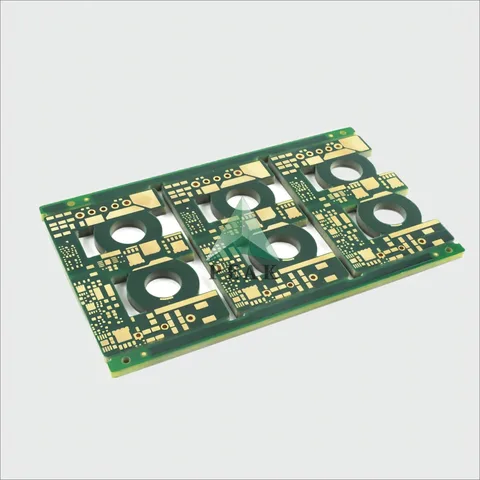

| Finished thickness | 1.6–2.6 mm |
Send Gerber plus a drill file and a stack-up note. Quotation comes back within 6 hours, with DFM comments attached.
