6 boards in this category
Choosing the laminate brand is choosing the electrical behaviour of the board. These parts were built on stock we hold, so Dk, Df and Tg are a design decision rather than a lead-time.
Ranges below are computed from the 6 boards listed on this page, not from a marketing sheet.
| Built to | Range across this category |
|---|---|
| Layer counts built | 4–16 |

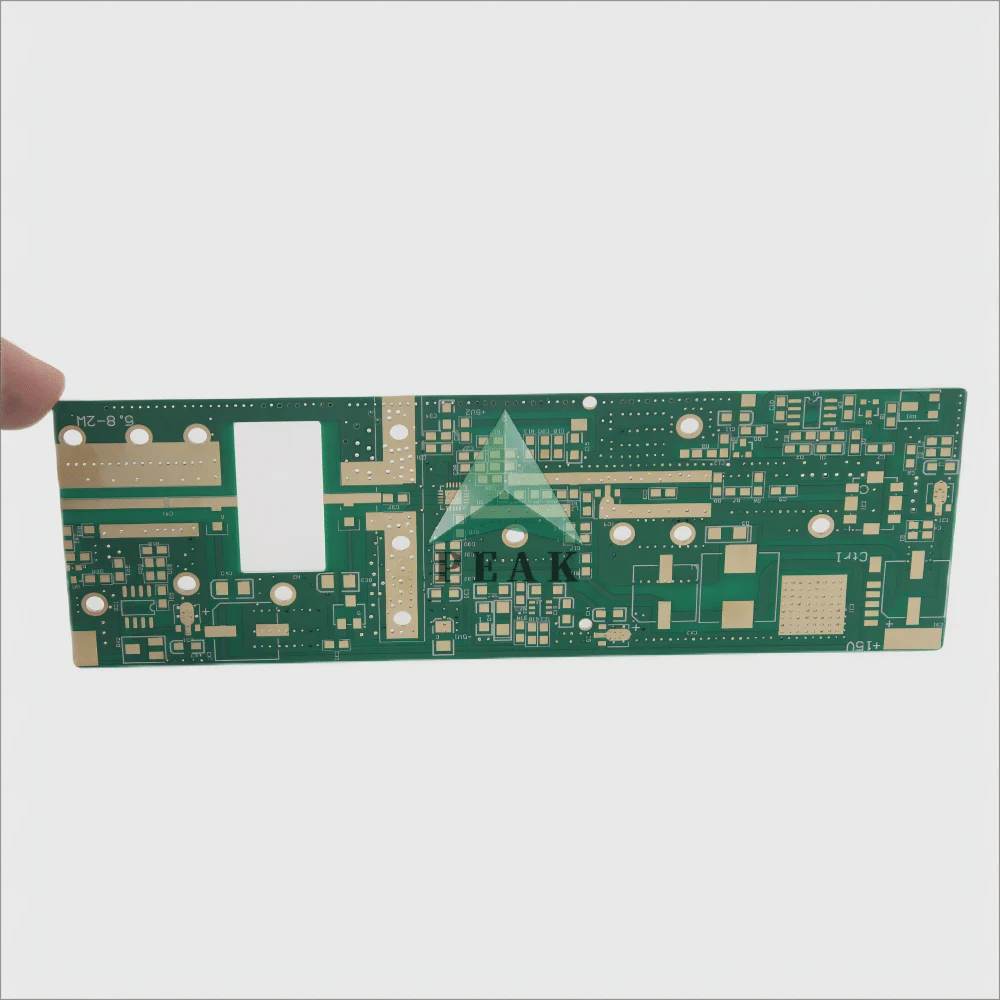

| Base materials | EMC-EM828 + ISOLA370HR, ISOLA FR408HR, Panasonic Megtron 6, Panasonic Megtron 7, TUC TU-872, TUC TU-872SLK |
| Surface finishes | ENEPIG, ENIG 1u, HASL Lead-Free |
| Solder mask colours | Blue, Green |
| Special processes | Buried Capacitance |
| Finished thickness | 1.6–2.8 mm |
Send Gerber plus a drill file and a stack-up note. Quotation comes back within 6 hours, with DFM comments attached.
