Large Format PCB

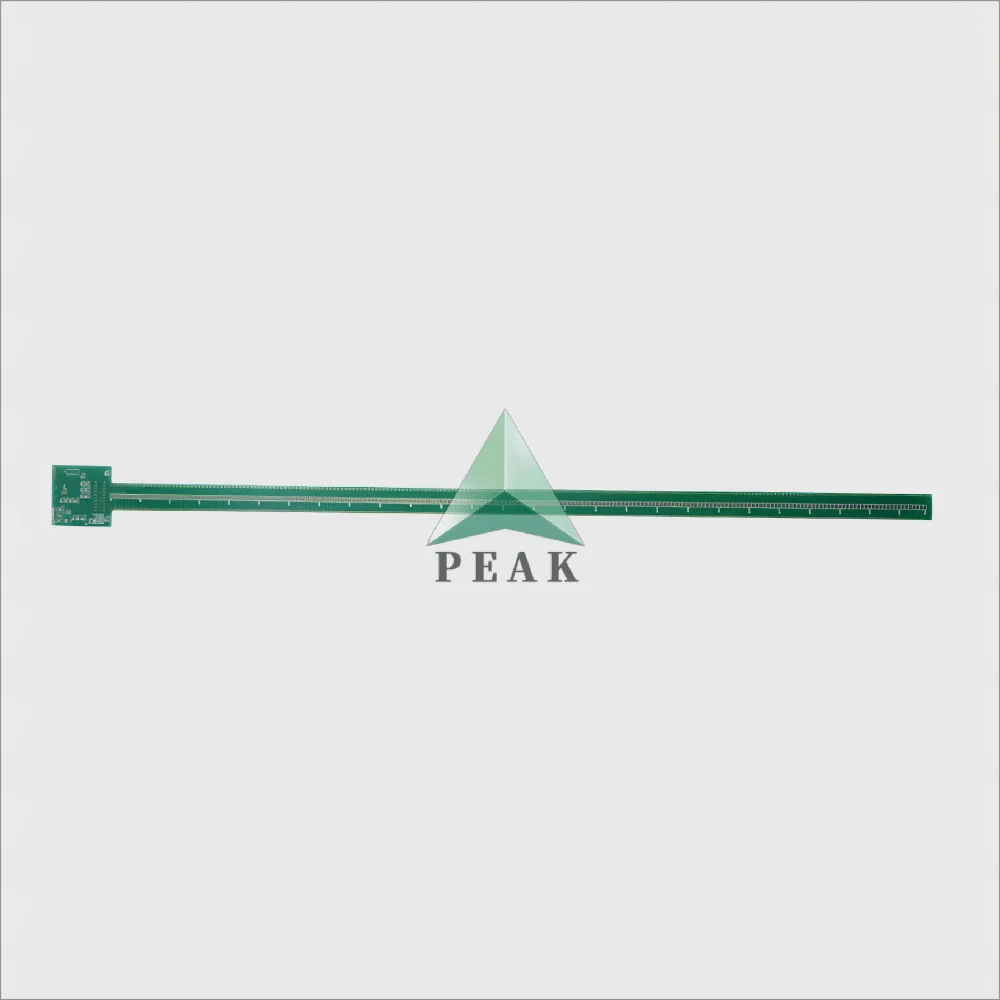

Ultra-Long 800mm 1.2mm Thickness Double Side HASL Lead-Free FR4 PCB

Ultra-Long 800mm 1.2mm Thickness Double Side HASL Lead-Free FR4 PCB is a 2-layer construction on FR4, delivered at 1.2 mm with HASL Lead-Free over green solder mask and white legend. Manufacturing tolerance is driven by copper geometry held to 10.5 mil line width and 12.0 mil spacing, mechanical holes from 0.45 mm, finished copper at ½ oz / 1 oz. Acceptance is 100% AOI, ICT and FCT testing against IPC-A-610 E Class II, with thickness to ±10% and outline by Rout / V-cut / Bridge / Stamp Hole. The part ships into electronic device applications.

  • Layers2 Layers (Max 64 Layers)
  • Base materialFR4
  • Finished thickness1.2 mm (Max 8mm)
  • Surface finishHASL Lead-Free
  • Min. line width / spacing10.5 mil (Min 2mil) / 12.0 mil (Min 2mil)

Quotation within 6 hours. Gerber, PowerPCB, CAD, AutoCAD, OrCAD, P-CAD, CAM-350 and CAM2000 files accepted.

What matters on this build

2-layer construction, scalable to 64 layers

This part is 2-layer; the same presses run 1 to 64 layers, so a stack-up revision does not force a supplier change.

FR4 laminate

Built on FR4 — FR4 — drawn from over 120 laminate types held in the warehouse, from KB and ITEQ through Rogers, Isola and Panasonic.

10.5 mil / 12.0 mil line width and spacing

Etched to 10.5 mil width and 12.0 mil spacing here; the process floor is 2/2 mil inner at 1/3 oz copper, with ±10% accuracy on impedance layers.

HASL Lead-Free surface finish

Finished with HASL Lead-Free. ENIG 1–3 μin, ENEPIG, hard gold to 3.0 μm, immersion silver, immersion tin, OSP and lead-free HASL are all in-house.

Hole sizes from 0.45 mm mechanical

Drilling covers 0.15 mm mechanical and 0.076 mm laser holes, backdrill to ±0.1 mm and depth control to 0.05 mm.

Full specification as manufactured

These are the parameters this part was quoted, tooled and shipped against.

ParameterValue
PCB TypeLarge Format PCB
Number of Layers2 Layers (Max 64 Layers)
Finished Thickness1.2 mm (Max 8mm)
Base MaterialFR4
Copper Thickness1oz
Min. Mechanical Hole0.45 mm (Min 0.1mm)
Min. Line Width10.5 mil (Min 2mil)
Min. Line Spacing12.0 mil (Min 2mil)
Surface FinishingHASL Lead-Free
Solder MaskGreen
Silk ScreenWhite
Thickness Tolerance±10%
Impedance Control Accuracy±10% (min±5%)
Testing Service100% AOI ICT FCT Testing
Special ProcessesNo
PCB StandardIPC-A-610 E Class II
Brand NamePEAK PCB
Place of OriginShenzhen, Guangdong, China
Packaging InnerVacuum Packing/ Anti-Static Package
Packaging OuterExport Carton/ Customizable
PortShenzhen,Hongkong
Supply AbilitySample and Mass Production
Finished Inner Copper Thickness0oz (Max 14oz)
Finished Outer Copper Thickness1oz (Max 14oz)
Outline ProfileRout/ V-cut/ Bridge/ Stamp Hole
ApplicationElectronic Device
Acceptable File FormatGerber file, Powerpcb, CAD, AUTOCAD, ORCAD, P-CAD, CAM-350, CAM2000

Questions engineers ask about this board

Can this design be scaled beyond 2 layers?

Yes. This part is quoted at 2 layers and the plant fabricates 1 to 64 layers, including sequential-lamination HDI up to 5+N(N+M)+5.

Can a different laminate be substituted for FR4?

It can. FR4 is what this part is built on, but material is a design input — Rogers, Arlon, Taconic, Isola, Nelco, Panasonic, TUC, ITEQ, SYTech, Ventec and KB grades are all stocked, and customer-supplied stock is accepted.

Is HASL Lead-Free the only surface finish offered on this board?

No. HASL Lead-Free is specified here; ENIG at 1–3 μin gold, ENEPIG, hard gold to 3.0 μm, immersion silver, immersion tin, OSP and lead-free HASL are alternatives, subject to panel size limits on HASL.

What files do you need to quote this part?

Gerber RS-274X plus a drill file and a stack-up or impedance note. PowerPCB, CAD, AutoCAD, OrCAD, P-CAD, CAM-350 and CAM2000 formats are also accepted. Quotation normally comes back within 6 hours.

Other builds in Large Format PCB

Get this board quoted

Send the part number or your own Gerber set. An engineer replies with price, lead time and any DFM comments — usually inside 6 hours.
