SUB PCB

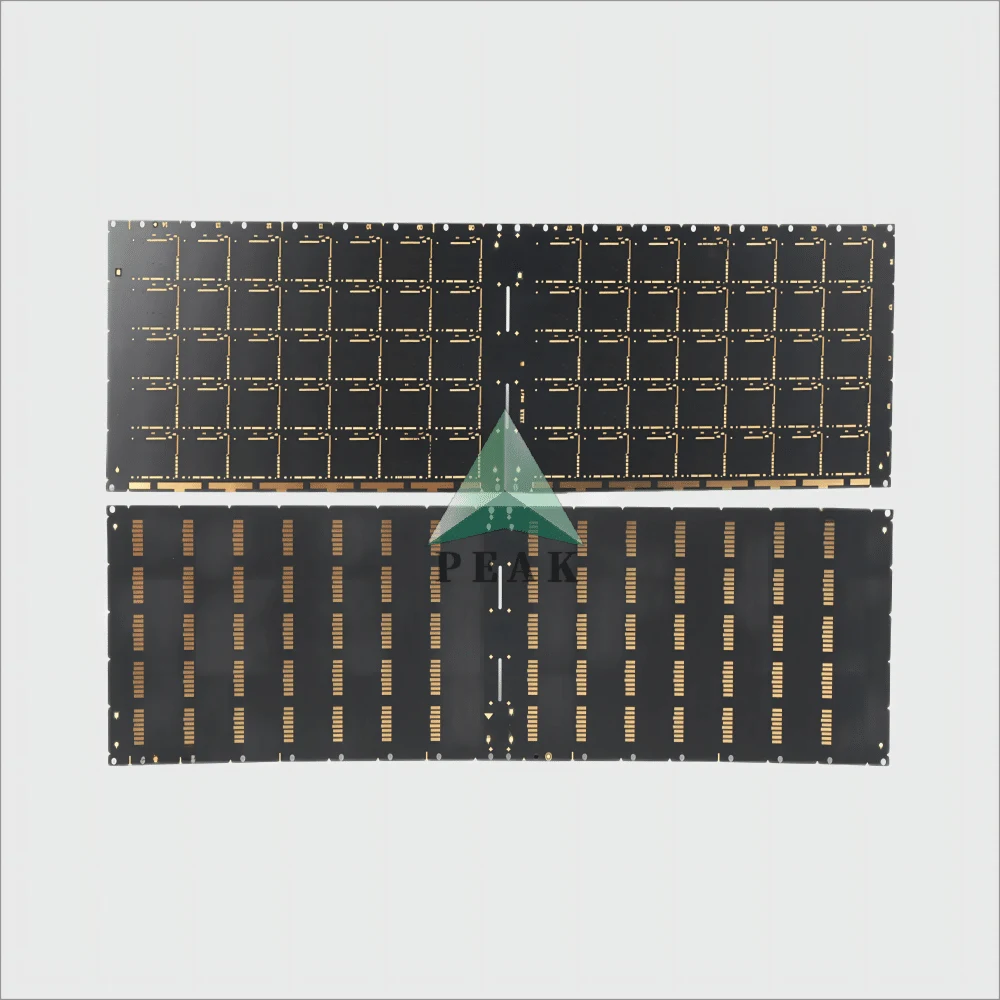

TF Card AMC832-HF Double Side 0.2mm Thickness Hard Gold Body SUB PCB

This 2-layer Substrate PCB is pressed on AMC832-HF and finished at 0.2 mm overall thickness with Hard Gold Body over black solder mask. What makes this part non-trivial: copper geometry held to 25 μm line width and 105 μm spacing, mechanical holes from 100 μm, finished copper at ½ oz / ½ oz. IPC-A-610 E Class III is the workmanship standard, verified by 100% AOI, ICT and FCT testing and thickness to ±5%. This one was quoted for USB flash drives and storage devices.

Layers2 Layers (Max 64 Layers)
Base materialAMC832-HF
Finished thickness0.2 mm (Max 8mm)
Surface finishHard Gold Body
Min. line width / spacing25um / 105um

Email a quotation request WhatsApp about this board

Quotation within 6 hours. Gerber, PowerPCB, CAD, AutoCAD, OrCAD, P-CAD, CAM-350 and CAM2000 files accepted.

SUB PCB

What matters on this build

2-layer construction, scalable to 64 layers

This part is 2-layer; the same presses run 1 to 64 layers, so a stack-up revision does not force a supplier change.

AMC832-HF laminate

Built on AMC832-HF — engineered laminate — drawn from over 120 laminate types held in the warehouse, from KB and ITEQ through Rogers, Isola and Panasonic.

25 μm / 105 μm line width and spacing

Etched to 25 μm width and 105 μm spacing here; the process floor is 2/2 mil inner at 1/3 oz copper, with ±10% accuracy on impedance layers.

Hard Gold Body surface finish

Finished with Hard Gold Body. ENIG 1–3 μin, ENEPIG, hard gold to 3.0 μm, immersion silver, immersion tin, OSP and lead-free HASL are all in-house.

Hole sizes from 100 μm mechanical

Drilling covers 0.15 mm mechanical and 0.076 mm laser holes, backdrill to ±0.1 mm and depth control to 0.05 mm.

Full specification as manufactured

These are the parameters this part was quoted, tooled and shipped against.

Parameter	Value
PCB Type	Substrate PCB
Number of Layers	2 Layers (Max 64 Layers)
Finished Thickness	0.2 mm (Max 8mm)
Base Material	AMC832-HF
Copper Thickness	Hoz
Min. Hole	100um
Min. Line Width	25um
Min. Line Spacing	105um
Surface Finishing	Hard Gold Body
Solder Mask	Black
Silk Screen	No
Thickness Tolerance	±5%
Impedance Control Accuracy	±10% (min±5%)
Testing Service	100% AOI ICT FCT Testing
Special Processes	No
PCB Standard	IPC-A-610 E Class III
Brand Name	PEAK PCB
Place of Origin	Shenzhen, Guangdong, China
Packaging Inner	Vacuum Packing/ Anti-Static Package
Packaging Outer	Export Carton/ Customizable
Port	Shenzhen,Hongkong
Supply Ability	Sample and Mass Production
Finished Inner Copper Thickness	0oz (Max 14oz)
Finished Outer Copper Thickness	Hoz (Max 14oz)
Outline Profile	Rout/ V-cut/ Bridge/ Stamp Hole
Application	USB Flash Drives and Storage Devices
Acceptable File Format	Gerber file, Powerpcb, CAD, AUTOCAD, ORCAD, P-CAD, CAM-350, CAM2000
