High Frequency PCB

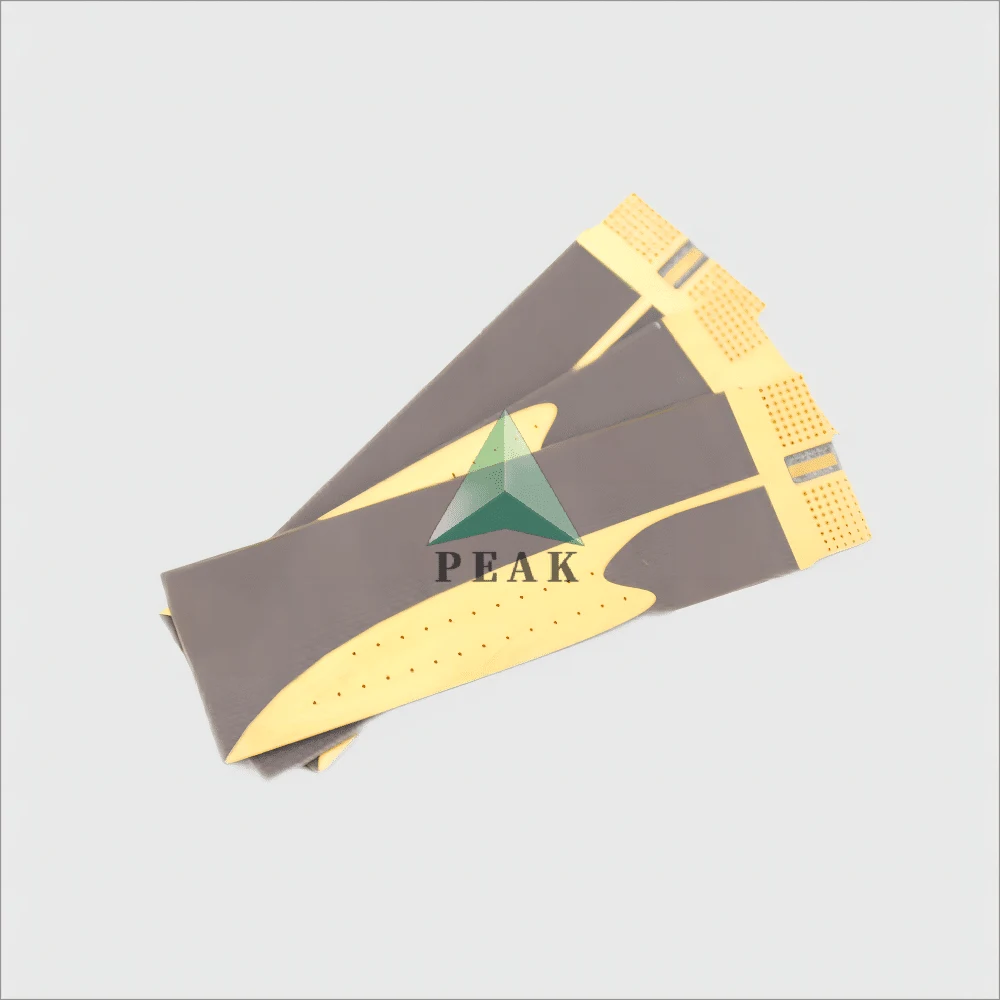

Rogers CLTE-AT (DK3.0; DF0.0013) Double Side Step Slots ENIG 2u High Frequency PCB

Rogers CLTE-AT is a 2-layer construction on CLTE-AT, delivered at 1.0 mm with ENIG 2u. Manufacturing tolerance is driven by a laminate specified at Dk 3.0 and Df 0.0013, copper geometry held to 3.5 mil line width and 0 mil spacing, mechanical holes from 0.25 mm. Inspection runs 100% AOI, ICT and FCT testing, judged to IPC-A-610 E Class II with thickness to ±10%. The part ships into electronic device applications.

  • Layers2 Layers (Max 64 Layers)
  • Base materialCLTE-AT
  • Finished thickness1.0 mm (Max 8mm)
  • Surface finishENIG 2u
  • Min. line width / spacing3.5 mil (Min 2mil) / 0 mil (Min 2mil)

Quotation within 6 hours. Gerber, PowerPCB, CAD, AutoCAD, OrCAD, P-CAD, CAM-350 and CAM2000 files accepted.

What matters on this build

2-layer construction, scalable to 64 layers

This part is 2-layer; the same presses run 1 to 64 layers, so a stack-up revision does not force a supplier change.

CLTE-AT laminate

Built on CLTE-AT — engineered laminate — drawn from over 120 laminate types held in the warehouse, from KB and ITEQ through Rogers, Isola and Panasonic.

3.5 mil / 0 mil line width and spacing

Etched to 3.5 mil width and 0 mil spacing here; the process floor is 2/2 mil inner at 1/3 oz copper, with ±10% accuracy on impedance layers.

ENIG 2u surface finish

Finished with ENIG 2u. ENIG 1–3 μin, ENEPIG, hard gold to 3.0 μm, immersion silver, immersion tin, OSP and lead-free HASL are all in-house.

Hole sizes from 0.25 mm mechanical

Drilling covers 0.15 mm mechanical and 0.076 mm laser holes, backdrill to ±0.1 mm and depth control to 0.05 mm.

Full specification as manufactured

These are the parameters this part was quoted, tooled and shipped against.

ParameterValue
PCB TypeHigh Frequency PCB
Number of Layers2 Layers (Max 64 Layers)
Finished Thickness1.0 mm (Max 8mm)
Base MaterialCLTE-AT
Copper Thickness1 oz
Min. Mechanical Hole0.25 mm (Min 0.1mm)
Min. Line Width3.5 mil (Min 2mil)
Min. Line Spacing0 mil (Min 2mil)
Surface FinishingENIG 2u
Solder MaskNo
Silk ScreenNo
Thickness Tolerance±10%
Impedance Control Accuracy±10% (min±5%)
Testing Service100% AOI ICT FCT Testing
Special ProcessesNo
PCB StandardIPC-A-610 E Class II
Brand NamePEAK PCB
Place of OriginShenzhen, Guangdong, China
Packaging InnerVacuum Packing/ Anti-Static Package
Packaging OuterExport Carton/ Customizable
PortShenzhen,Hongkong
Supply AbilitySample and Mass Production
Finished Inner Copper ThicknessHoz (Max 14oz)
Finished Outer Copper Thickness1oz (Max 14oz)
Outline ProfileRout/ V-cut/ Bridge/ Stamp Hole
ApplicationElectronic Device
Acceptable File FormatGerber file, Powerpcb, CAD, AUTOCAD, ORCAD, P-CAD, CAM-350, CAM2000

Questions engineers ask about this board

Can this design be scaled beyond 2 layers?

Yes. This part is quoted at 2 layers and the plant fabricates 1 to 64 layers, including sequential-lamination HDI up to 5+N(N+M)+5.

Can a different laminate be substituted for CLTE-AT?

It can. CLTE-AT is what this part is built on, but material is a design input — Rogers, Arlon, Taconic, Isola, Nelco, Panasonic, TUC, ITEQ, SYTech, Ventec and KB grades are all stocked, and customer-supplied stock is accepted.

Is ENIG 2u the only surface finish offered on this board?

No. ENIG 2u is specified here; ENIG at 1–3 μin gold, ENEPIG, hard gold to 3.0 μm, immersion silver, immersion tin, OSP and lead-free HASL are alternatives, subject to panel size limits on HASL.

What files do you need to quote this part?

Gerber RS-274X plus a drill file and a stack-up or impedance note. PowerPCB, CAD, AutoCAD, OrCAD, P-CAD, CAM-350 and CAM2000 formats are also accepted. Quotation normally comes back within 6 hours.
