Rigid-Flex PCB

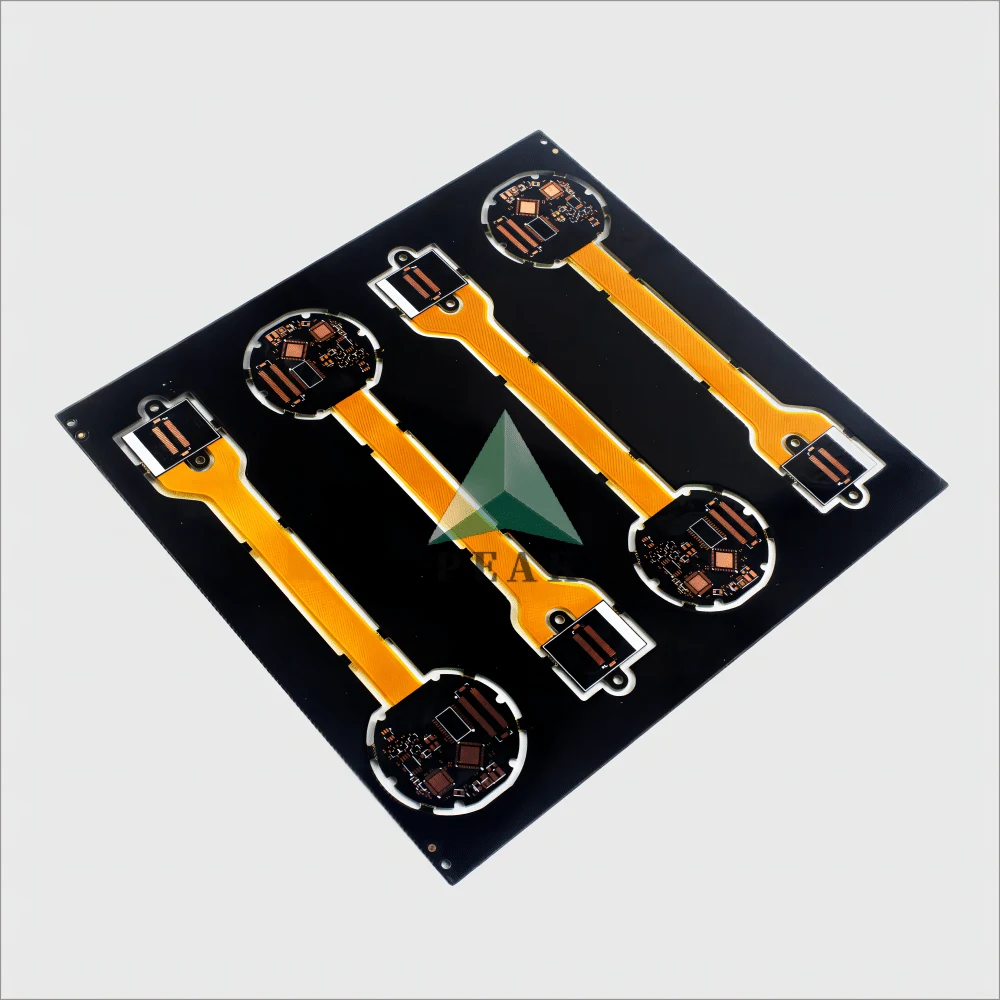

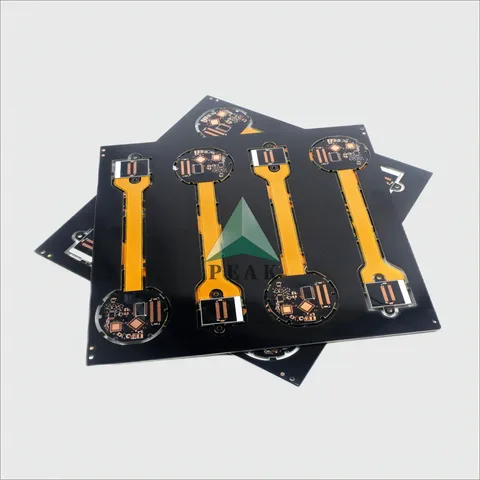

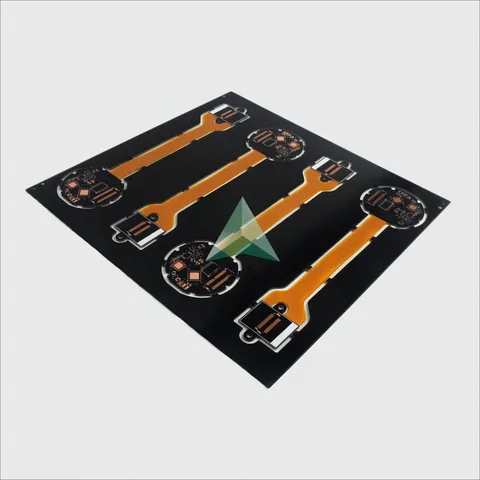

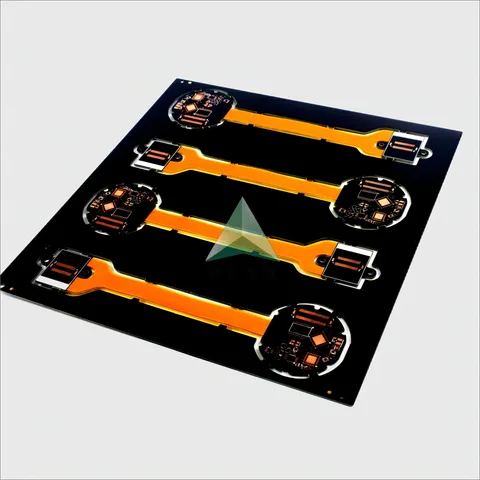

FR4 S1000-2M+PI 4 Layers ENTEK (OSP) Rigid-Flex Printed Circuit Board

This 4-layer Rigid-Flex PCB is pressed on FR4 S1000-2M and finished at 1.6 mm overall thickness with ENTEK (OSP) over black solder mask and white legend. What makes this part non-trivial: copper geometry held to 3.0 mil line width and 3.0 mil spacing, mechanical holes from 0.2 mm, finished copper at ½ oz / 1 oz. Quality release covers 100% AOI, ICT and FCT testing, IPC-A-610 E Class II and thickness to ±10%. This one was quoted for intelligent parking equipment.

  • Layers4 Layers (Max 64 Layers)
  • Base materialFR4 S1000-2M
  • Finished thickness1.6 mm (Max 8mm)
  • Surface finishENTEK (OSP)
  • Min. line width / spacing3.0 mil (Min 2mil) / 3.0 mil (Min 2mil)

Quotation within 6 hours. Gerber, PowerPCB, CAD, AutoCAD, OrCAD, P-CAD, CAM-350 and CAM2000 files accepted.

What matters on this build

4-layer construction, scalable to 64 layers

This part is 4-layer; the same presses run 1 to 64 layers, so a stack-up revision does not force a supplier change.

FR4 S1000-2M laminate

Built on FR4 S1000-2M — FR4 — drawn from over 120 laminate types held in the warehouse, from KB and ITEQ through Rogers, Isola and Panasonic.

3.0 mil / 3.0 mil line width and spacing

Etched to 3.0 mil width and 3.0 mil spacing here; the process floor is 2/2 mil inner at 1/3 oz copper, with ±10% accuracy on impedance layers.

ENTEK (OSP) surface finish

Finished with ENTEK (OSP). ENIG 1–3 μin, ENEPIG, hard gold to 3.0 μm, immersion silver, immersion tin, OSP and lead-free HASL are all in-house.

Hole sizes from 0.2 mm mechanical

Drilling covers 0.15 mm mechanical and 0.076 mm laser holes, backdrill to ±0.1 mm and depth control to 0.05 mm.

Full specification as manufactured

These are the parameters this part was quoted, tooled and shipped against.

ParameterValue
PCB TypeRigid-Flex PCB
Number of Layers4 Layers (Max 64 Layers)
Finished Thickness1.6 mm (Max 8mm)
Base MaterialFR4 S1000-2M
Copper Thickness1oz
Min. Mechanical Hole0.2 mm (Min 0.1mm)
Min. Line Width3.0 mil (Min 2mil)
Min. Line Spacing3.0 mil (Min 2mil)
Surface FinishingENTEK (OSP)
Solder MaskBlack
Silk ScreenWhite
Thickness Tolerance±10%
Impedance Control Accuracy±10% (min±5%)
Testing Service100% AOI ICT FCT Testing
Special ProcessesNo
PCB StandardIPC-A-610 E Class II
Brand NamePEAK PCB
Place of OriginShenzhen, Guangdong, China
Packaging InnerVacuum Packing/ Anti-Static Package
Packaging OuterExport Carton/ Customizable
PortShenzhen,Hongkong
Supply AbilitySample and Mass Production
Finished Inner Copper ThicknessHoz (Max 14oz)
Finished Outer Copper Thickness1oz (Max 14oz)
Outline ProfileRout/ V-cut/ Bridge/ Stamp Hole
ApplicationIntelligent Parking Equipment
Acceptable File FormatGerber file, Powerpcb, CAD, AUTOCAD, ORCAD, P-CAD, CAM-350, CAM2000

Questions engineers ask about this board

Can this design be scaled beyond 4 layers?

Yes. This part is quoted at 4 layers and the plant fabricates 1 to 64 layers, including sequential-lamination HDI up to 5+N(N+M)+5.

Can a different laminate be substituted for FR4 S1000-2M?

It can. FR4 S1000-2M is what this part is built on, but material is a design input — Rogers, Arlon, Taconic, Isola, Nelco, Panasonic, TUC, ITEQ, SYTech, Ventec and KB grades are all stocked, and customer-supplied stock is accepted.

Is ENTEK (OSP) the only surface finish offered on this board?

No. ENTEK (OSP) is specified here; ENIG at 1–3 μin gold, ENEPIG, hard gold to 3.0 μm, immersion silver, immersion tin, OSP and lead-free HASL are alternatives, subject to panel size limits on HASL.

What files do you need to quote this part?

Gerber RS-274X plus a drill file and a stack-up or impedance note. PowerPCB, CAD, AutoCAD, OrCAD, P-CAD, CAM-350 and CAM2000 formats are also accepted. Quotation normally comes back within 6 hours.
