Double Side Ceramic Based Immersion Gold 3u Laser Cutting PCB Board

Ceramic PCB

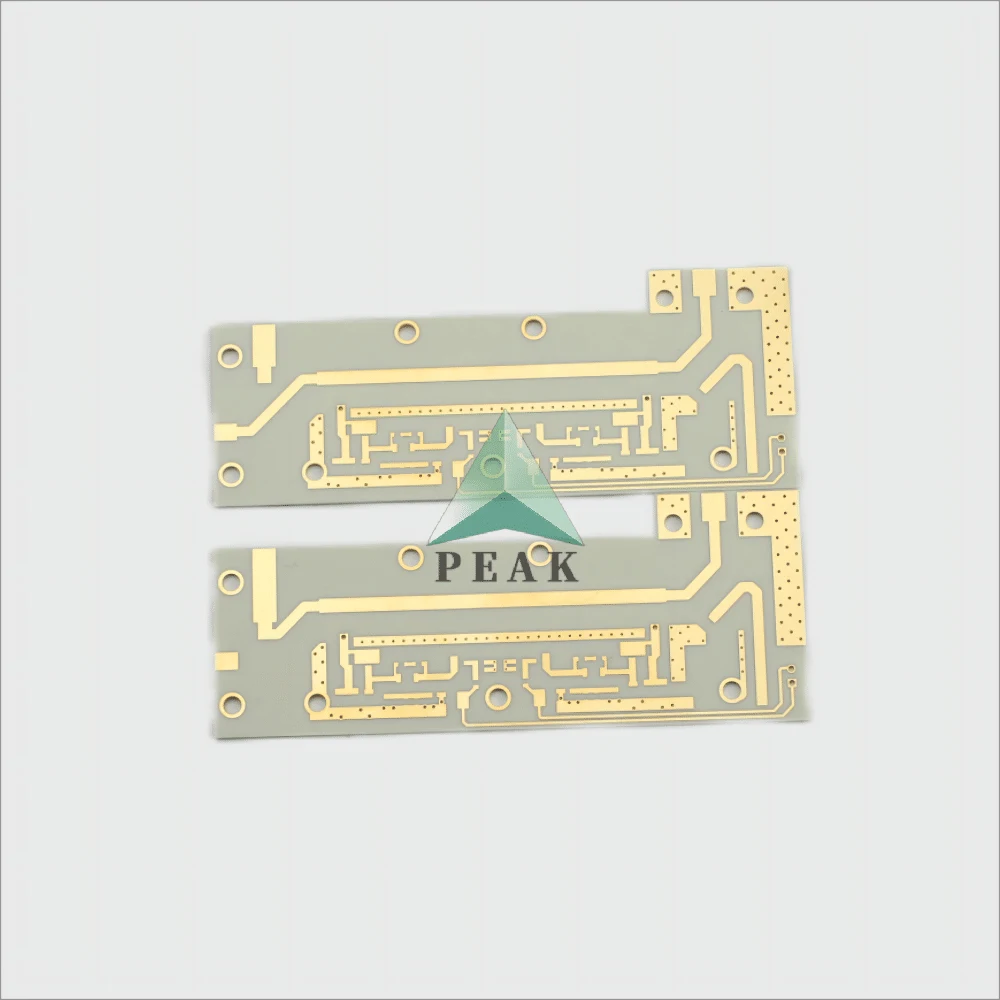

Double Side Ceramic Based Immersion Gold 3u Laser Cutting PCB Board

This 2-layer Ceramic PCB is pressed on a ceramic base and finished at 1.0 mm overall thickness with ENIG 3u. What makes this part non-trivial: copper geometry held to 4.0 mil line width and 4.5 mil spacing, mechanical holes from 0.25 mm, finished copper at ½ oz / 1 oz. Quality release covers 100% AOI, ICT and FCT testing, IPC-A-610 E Class II and thickness to ±10%. This one was quoted for electronic device.

Layers2 Layers (Max 64 Layers)
Base materialCeramic Based
Finished thickness1.0 mm (Max 8mm)
Surface finishENIG 3u
Min. line width / spacing4.0 mil (Min 2mil) / 4.5 mil (Min 2mil)

Email a quotation request WhatsApp about this board

Quotation within 6 hours. Gerber, PowerPCB, CAD, AutoCAD, OrCAD, P-CAD, CAM-350 and CAM2000 files accepted.

Ceramic PCB

What matters on this build

2-layer construction, scalable to 64 layers

This part is 2-layer; the same presses run 1 to 64 layers, so a stack-up revision does not force a supplier change.

Ceramic Based laminate

Built on Ceramic Based — ceramic base — drawn from over 120 laminate types held in the warehouse, from KB and ITEQ through Rogers, Isola and Panasonic.

4.0 mil / 4.5 mil line width and spacing

Etched to 4.0 mil width and 4.5 mil spacing here; the process floor is 2/2 mil inner at 1/3 oz copper, with ±10% accuracy on impedance layers.

ENIG 3u surface finish

Finished with ENIG 3u. ENIG 1–3 μin, ENEPIG, hard gold to 3.0 μm, immersion silver, immersion tin, OSP and lead-free HASL are all in-house.

Hole sizes from 0.25 mm mechanical

Drilling covers 0.15 mm mechanical and 0.076 mm laser holes, backdrill to ±0.1 mm and depth control to 0.05 mm.

Full specification as manufactured

These are the parameters this part was quoted, tooled and shipped against.

Parameter	Value
PCB Type	Ceramic PCB
Number of Layers	2 Layers (Max 64 Layers)
Finished Thickness	1.0 mm (Max 8mm)
Base Material	Ceramic Based
Copper Thickness	1 oz
Min. Mechanical Hole	0.25 mm (Min 0.1mm)
Min. Line Width	4.0 mil (Min 2mil)
Min. Line Spacing	4.5 mil (Min 2mil)
Surface Finishing	ENIG 3u
Solder Mask	No
Silk Screen	No
Thickness Tolerance	±10%
Impedance Control Accuracy	±10% (min±5%)
Testing Service	100% AOI ICT FCT Testing
Special Processes	No
PCB Standard	IPC-A-610 E Class II
Brand Name	PEAK PCB
Place of Origin	Shenzhen, Guangdong, China
Packaging Inner	Vacuum Packing/ Anti-Static Package
Packaging Outer	Export Carton/ Customizable
Port	Shenzhen,Hongkong
Supply Ability	Sample and Mass Production
Finished Inner Copper Thickness	0oz (Max 14oz)
Finished Outer Copper Thickness	1oz (Max 14oz)
Outline Profile	Rout/ V-cut/ Bridge/ Stamp Hole
Application	Electronic Device
Acceptable File Format	Gerber file, Powerpcb, CAD, AUTOCAD, ORCAD, P-CAD, CAM-350, CAM2000

Questions engineers ask about this board

Can this design be scaled beyond 2 layers?

Yes. This part is quoted at 2 layers and the plant fabricates 1 to 64 layers, including sequential-lamination HDI up to 5+N(N+M)+5.

Can a different laminate be substituted for Ceramic Based?

It can. Ceramic Based is what this part is built on, but material is a design input — Rogers, Arlon, Taconic, Isola, Nelco, Panasonic, TUC, ITEQ, SYTech, Ventec and KB grades are all stocked, and customer-supplied stock is accepted.

Is ENIG 3u the only surface finish offered on this board?

No. ENIG 3u is specified here; ENIG at 1–3 μin gold, ENEPIG, hard gold to 3.0 μm, immersion silver, immersion tin, OSP and lead-free HASL are alternatives, subject to panel size limits on HASL.

What files do you need to quote this part?

Gerber RS-274X plus a drill file and a stack-up or impedance note. PowerPCB, CAD, AutoCAD, OrCAD, P-CAD, CAM-350 and CAM2000 formats are also accepted. Quotation normally comes back within 6 hours.
