3D PVC Desktop Embossed Durable High Density New Materials

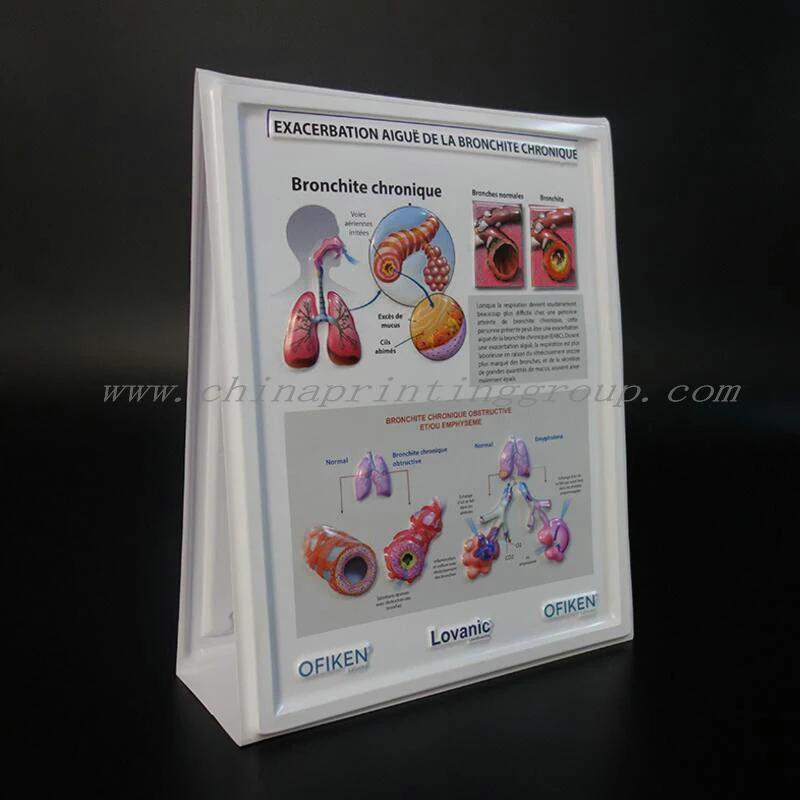

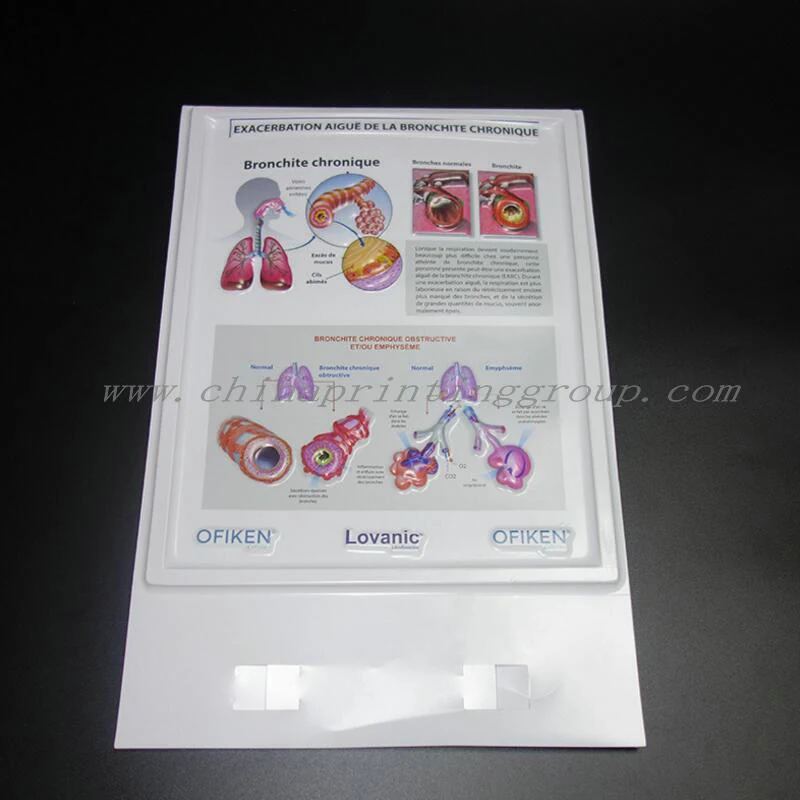

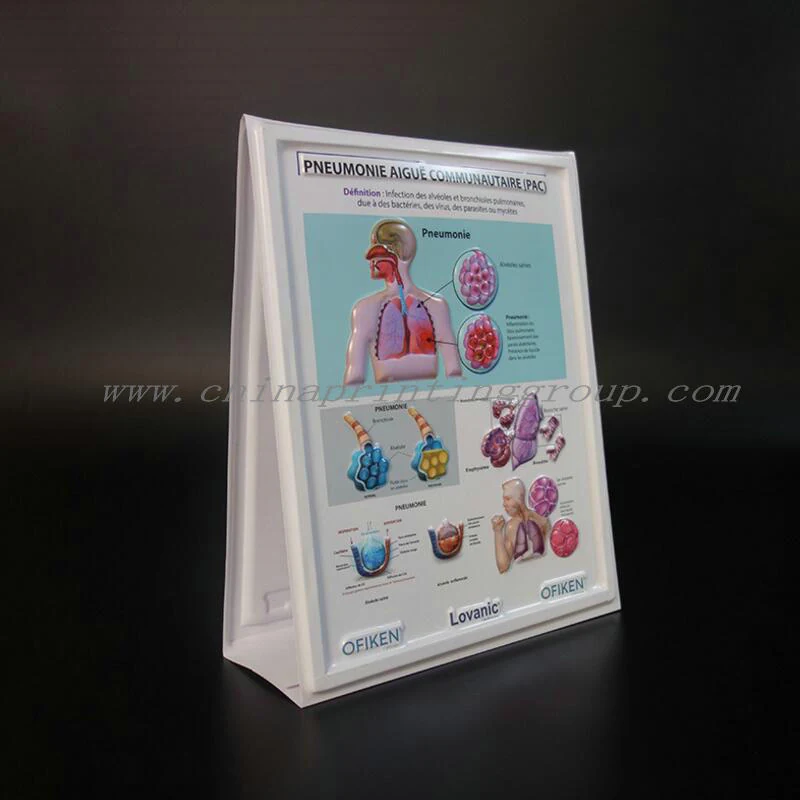

Desktop charts moulded in eco-friendly PVC from 0.2mm to 0.6mm and UV printed, with the anatomical detail raised so a patient can run a finger over it during a consultation. The sheet is embossed rather than flat printed, which is what makes organ structures and bone shapes readable to someone who cannot interpret a diagram. Clinics, diagnostic centres and teaching hospitals order them for consultation desks, physiotherapy rooms and training sessions, and thicker builds at 1.5mm to 5mm are made where the chart must stand unsupported.
What This Product Gives You
- Raised relief lets a patient understand an organ or a bone structure by touch instead of interpreting a flat illustration
- Eco-friendly PVC wipes clean, which matters on a consultation desk that is cleaned between patients
- UV printing goes directly onto the PVC, so there is no laminated film to peel at a handled corner
- Thickness from 0.2mm to 0.6mm for flexible charts, or 1.5mm to 5mm where the piece must stand up
- The design fee is waived on bulk orders of 500 pcs and above, which lowers the cost of a multi-site rollout
- A single artwork can be produced as both a desktop chart and a wall poster so a clinic set stays consistent
Where It Is Used and Who Buys It
Application Scenarios
- Patient education and consultation aids on a doctor's desk
- Anatomical demonstration of heart, lung and brain structures for hands-on learning
- Physiotherapy room charts explaining bone and joint structure
- Medical training material in teaching hospitals and colleges
- Veterinary practice charts covering pet anatomy, parasite life cycles and dental health
Who It Is For
- Hospital and clinic procurement buyers specifying patient education material
- Medical education publishers producing teaching aids
- Diagnostic centre and physiotherapy practice managers
- Veterinary practice groups ordering pet health charts
- Medical device and pharmaceutical marketing teams supplying consultation aids to clinics
What Goes Wrong Without It
- Flat printed diagrams do not communicate depth, so a patient nods along without understanding the procedure
- Paper charts on a clinical desk absorb spills and cannot be wiped down between appointments
- Laminated printed sheets delaminate at the corner where they are picked up hundreds of times
- Thin unsupported charts curl on a desk and will not stand for a demonstration
- Design charges on each new chart make a full clinic set expensive before anything is printed
Technical Features
- 3D embossed relief across the chart surface rather than flat printing
- UV printing directly onto eco-friendly PVC
- Standard sheet thickness 0.2mm to 0.6mm
- Thicker builds at 1.5mm, 2mm, 3mm and 5mm where rigidity is needed
- Size customised to your drawing
- Supplied as a desktop chart or bundled with matching embossed posters
Specification
| Material | Plastic, eco-friendly PVC |
|---|---|
| Product Type | Medical use desktop chart |
| Theme | 3D embossed wall chart |
| Thickness | 0.2-0.6mm |
| Thickness Options | 1.5mm, 2mm, 3mm, 5mm or custom |
| Imprint | UV printing |
| Application | Medical and education |
| Size | Customised |
| Eco-Friendly | Yes |
| Design Fee | Waived on bulk orders of 500 pcs and above |
| Bundle Option | Desktop chart with matching embossed posters |
| Artwork Format | PDF, AI, PSD or JPEG at 300dpi minimum with outlined fonts |
| Factory Visit | Welcome at the Beijing and Shenzhen plants |
Materials and Manufacturing Process
Materials
- Eco-friendly PVC
- Plastic sheet
Manufacturing Process
- Artwork preflight
- Emboss mould preparation
- UV printing onto PVC
- 3D embossing
- Die cutting to size
- Hand inspection
- Packing
How This Job Is Checked
- Artwork preflighted for design discrepancies before the emboss mould is cut
- PDF proof issued and approved before production begins
- Emboss registration to the printed image checked on the first pieces
- Every chart checked by hand for colour match against the approved artwork and for surface defects
- Photographs of the finished charts sent for approval before shipment
What You Can Change
- Chart content and illustrations supplied to your own medical artwork
- Any size cut to your drawing
- Thickness chosen from 0.2-0.6mm, or 1.5mm to 5mm for rigid builds
- Embossed areas placed to match the anatomical detail in the artwork
- Bundled as a set with matching 3D embossed posters
- Language and labelling set for the market the chart ships to
Compared With the Alternatives
| Alternative | How This Compares |
|---|---|
| Printed paper wall charts | Embossed PVC can be wiped clean and read by touch, while paper charts cost far less for a short-lived campaign or a single lecture |
| Laminated card charts | UV printing direct to PVC has no film to delaminate at a handled corner, though laminated card is lighter to post |
| Physical anatomical models | A desktop chart stores flat and costs a fraction of a model, but a model shows structures from every angle that relief cannot |
Getting the Best Result
- Supply the anatomical artwork as PDF, AI or PSD at 300dpi or better with fonts converted to outlines
- Mark on a separate layer which elements should be raised, since not everything in the illustration should emboss
- Choose 0.2-0.6mm for a flexible desk mat and 1.5mm to 5mm for a chart that must stand unsupported
- Keep small labelling text off strongly embossed areas where the relief distorts the letterforms
- Order 500 pcs or more if you want the design fee waived across a clinic set
- Wipe the surface with a damp cloth rather than a solvent so the UV printed ink is not attacked
Other Products in This Group
3D PVC Poster High Quality Embossed UV Print Medical Using
Product Display Stand 2 Layers Cardboard New Design No MOQ
3D Custom Printed Cards New Wedding Invitation Thank U Card
Print on PVC Cards 100% Recyclable High Quality Gift Cards
3D PVC Desktop Embossed Durable High Density New Materials FAQ
What thickness is the PVC?
0.2-0.6mm for the standard flexible chart. Rigid builds are available at 1.5mm, 2mm, 3mm and 5mm, or a custom thickness.
Is there a design fee?
A design charge applies case by case, and it is waived for bulk orders of 500 pcs and above.
How is the artwork printed?
UV printing directly onto the PVC, then embossed so the illustrated structures stand in relief.
Can I supply my own medical illustrations?
Yes. Send the artwork as PDF, AI or PSD at 300dpi or better with the areas to be embossed marked on a separate layer.
Can I order posters to match?
Yes, the desktop chart and the 3D embossed posters are made from the same artwork and are often ordered together as a set.
Can I visit the factory?
Yes. Visitors are welcome at the Beijing and Shenzhen plants.
What are the payment terms?
A 30-50% deposit before production with the balance before shipment, by PayPal, bank transfer or Western Union.
Quote 3D PVC Desktop Embossed Durable High Density New Materials
Send the quantity, size and finish. Digital samples run in 1-2 working days and custom sample cost is refunded once the bulk order is confirmed.
