Low Bed Truck Trailer
17 models available

Lowbed and Low Loader Trailers for Plant Transport

Three, four and six-axle lowbeds and low loaders from 35 to 120 tonnes, with deck heights from 700mm and decks up to 18 metres.

Moving plant is a clearance problem before it is a weight problem. A deck a hundred millimetres too high, a ramp angle a few degrees too shallow, or an axle group over the local limit and the machine does not travel.

Request A QuoteTalk To An Engineer
Models

All 17 Low Bed Truck Trailer Models

Every model in this family, with full specifications taken from the manufacturer data sheet.

Who It Is For

Operators This Family Suits

  • Plant hire companies moving their own fleet
  • Civil and mining contractors relocating machines between sites
  • Equipment dealers delivering sold and rental machines
  • Heavy haulage operators working under height and axle restrictions
Problems It Solves

What Goes Wrong Without It

  • A deck that is too high puts the loaded machine over bridge and cable clearance
  • Shallow ramp angles ground low-clearance tracked machines during loading
  • Three-axle groups exceed per-axle limits even when total weight is legal
  • A deck that is too short throws weight onto the kingpin instead of the axles
Why This Family

Core Advantages

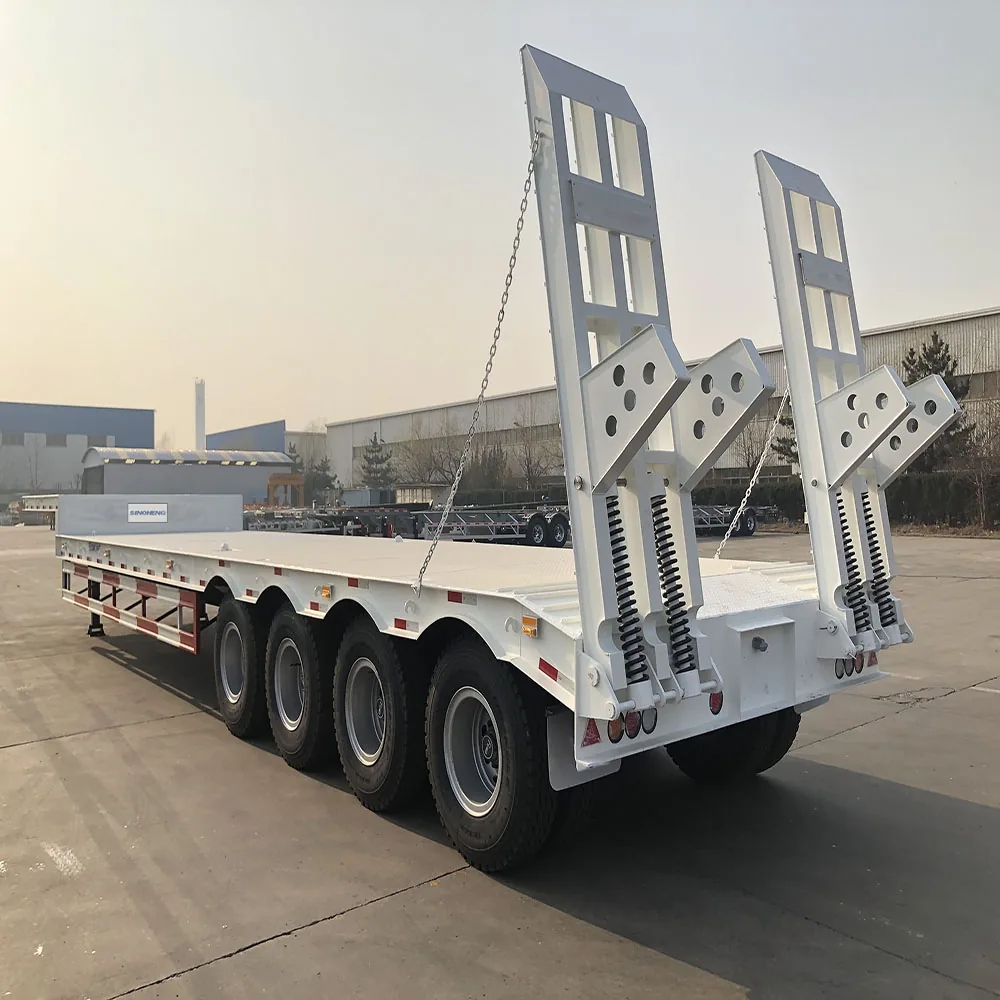

Deck heights from 700mm to 1100mm so the loaded height clears your route

Departure angles from 13 to 35 degrees across the range for difficult loading

Three-axle, four-axle and three-line six-axle layouts for different axle-load rules

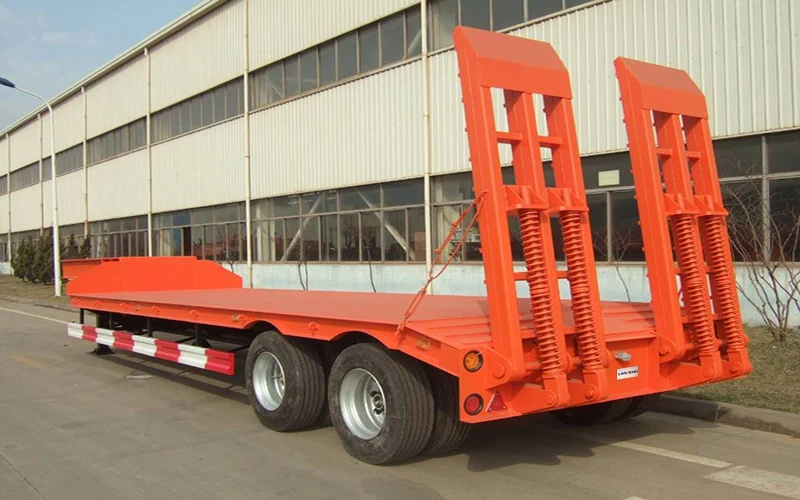

Hydraulic detachable gooseneck and extendable deck options

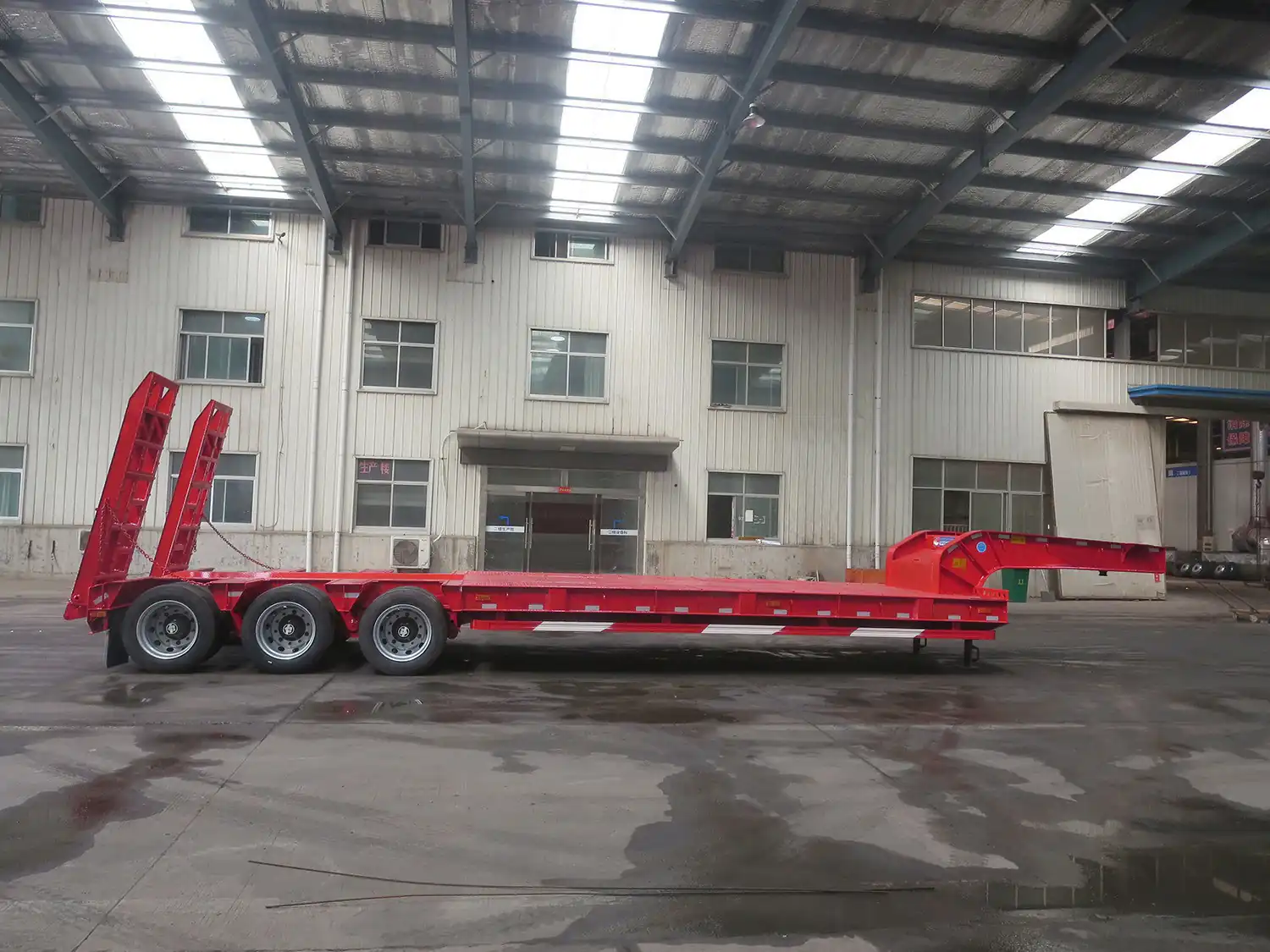

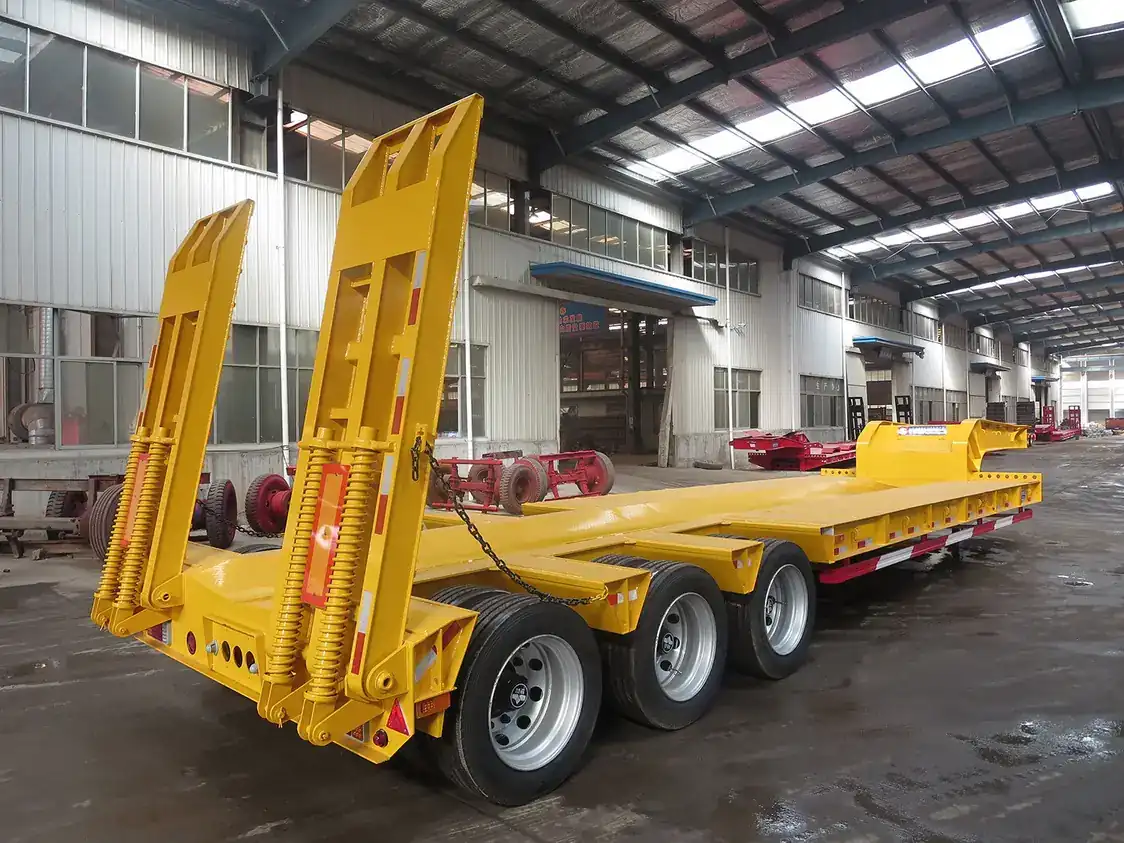

Hydraulic and spring-assisted ramps for single-person loading

Application

Where These Trailers Work

  • Excavator and dozer transport between construction sites
  • Crane and drilling rig relocation on public roads
  • Mining equipment moves on site haul roads
  • Transformer and industrial module transport
  • Plant delivery from dealer yards to project sites
Low Bed Truck Trailer in service
Industries

Industries Using This Family

Mining and Quarrying

Mine and quarry haulage destroys equipment that was designed for sealed roads. Blasted rock dropped from an excavator bucket dishes thin flo…

Construction and Infrastructure

Construction transport is a scheduling problem. Material has to arrive where the crew is working, plant has to move between packages without…

Related

Other Trailer Families

Dump Trailer Truck

Rear, side and U-shape tipping bodies, 2 to 6 axles, 30 to 80 tonnes

Oil Tank Trailer Truck

30 to 60 cubic metres, aluminium alloy from 6600kg tare, heated asphalt builds

LPG/LNG Tank Trailer Truck

Q370R pressure vessels and vacuum-insulated cryogenic tanks to -196 degrees

Cement Tank Trailer

30 to 68 cubic metres pneumatic, V shape floors, BOHAI compressors

FAQ

Low Bed Truck Trailer Questions

How Do I Choose the Deck Height

Measure your tallest machine, add the deck height and check it against the lowest bridge, cable and gantry on your route. Work backwards from the clearance, not forwards from the catalogue.

What Departure Angle Do I Need

It depends on the ground clearance of the machines you load. Low-slung tracked plant needs 32 degrees or more; ordinary excavators load fine at 20 to 28 degrees.

Three Axles, Four Axles or Six

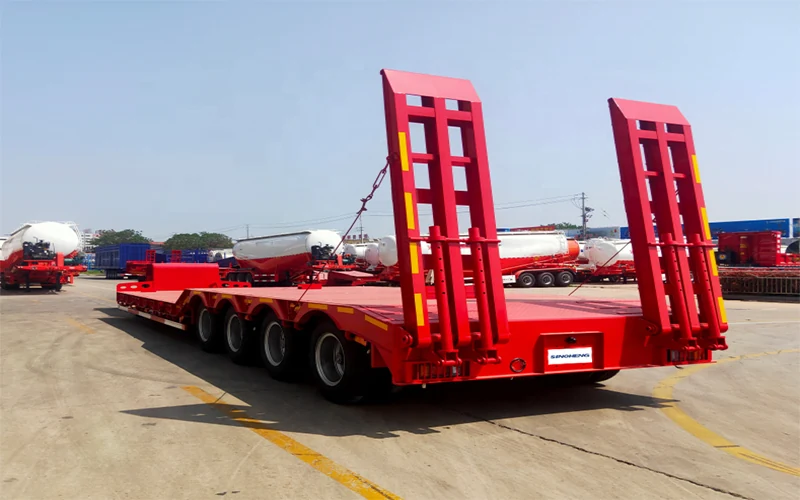

Three axles cover up to about 40 tonnes. Four axles carry 50-60 tonnes. Three-line six-axle layouts spread the load at 7000kg per line where per-axle enforcement is strict.

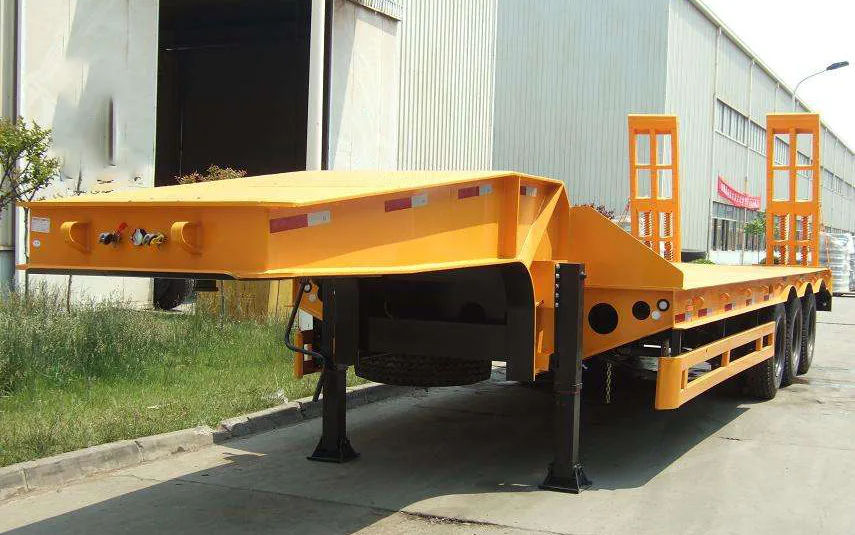

Is a Detachable Gooseneck Worth It

Yes if you regularly carry low-clearance or long-wheelbase machines, or load several times a day. For occasional loading of ordinary tracked plant, a fixed gooseneck with ramps is better value.

Can Cargo Be Carried on the Gooseneck

On most models, no. The gooseneck section is not rated for cargo, and loading it moves weight off the axles onto the tractor.

Configure Your Low Bed Truck Trailer

Tell us the country of use, cargo, load weight and axle limits and we will confirm the configuration and quote.
